General

This Chrome Passenger Footpeg Support is designed for

installation on 2005 FLSTN Softail

models.

This kit consists of the following components:

QTY DESCRIPTION PART NO.

2 Retaining Ring 11304

2 Footpeg Clevis Pin 42680-01

2 Passenger Footrest Support 51050-05

The rider’s safety depends upon the correct installation

of this kit. If the procedure is not within your capabilities

or you do not have the correct tools, have a Harley-

Davidson dealer perform the installation. Improper

installation of this kit could result in death or serious

injury. (00308a)

The footrest pegs must fold up at a 45° angle (from ver-

tical) toward rear of motorcycle. This angle allows

footrest pegs to fold up if they strike the ground when

making a sharp turn. Failure to set footpegs to the prop-

er fold-up angle could result in death or serious injury.

Installation

NOTE

A Service Manual for your model motorcycle is available

from any Harley-Davidson Dealer.

1. See Service Parts illustration.

Remove retainer ring (1),

and footpeg clevis pin (2) from the passenger footrest (4).

Disgard both items. Retain foorrest for later use.

2 Remove and retain spring washer (3) for later use.

3. Remove and retain the hex head socket cap screw (6)

from passenger footrest support (5). Disgard passenger

footrest support.

Install the new passenger footrest support (5) using

the

hex head socket cap screw (6) previously removed.

Tighten screw to 35-45 ft-lbs (47.5-61.0 Nm).

6. Install

passenger footrest

(4) using the new footpeg cle-

vis pin (2), retainer ring (1) and retained spring washer.

7 . Repeat procedure for opposite side passenger footrest

support.

1WARNING

INSTRUCTIONS

-J03371

REV. 04-23-2004

CHROME PASSENGER FOOTPEG SUPPORT KIT

1 of 2

Kit Number 51039-05

2 of 2

-J03371

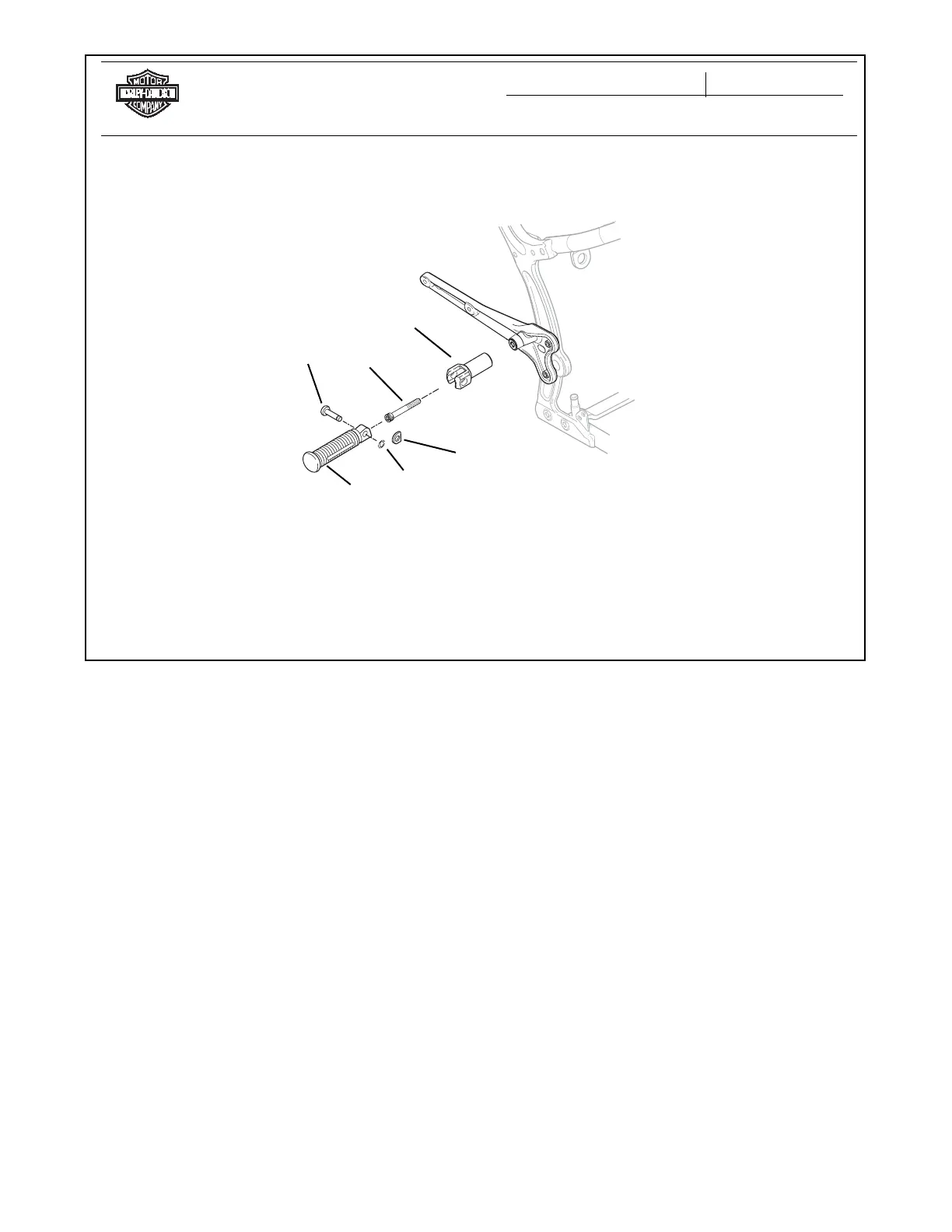

Service Parts

Chrome Footpeg Support Kit

Date 04/2004Part No. 51039-05

i06337

Item Description Part No.

1 Retainer ring 11304

2 Footpeg clevis pin 42680-01

3 Spring washer Not in kit

4 Passenger footrest Not in kit

5 Passenger footrest support 51050-05

6 Hex head socket cap screw Not in kit
