Side 1/2

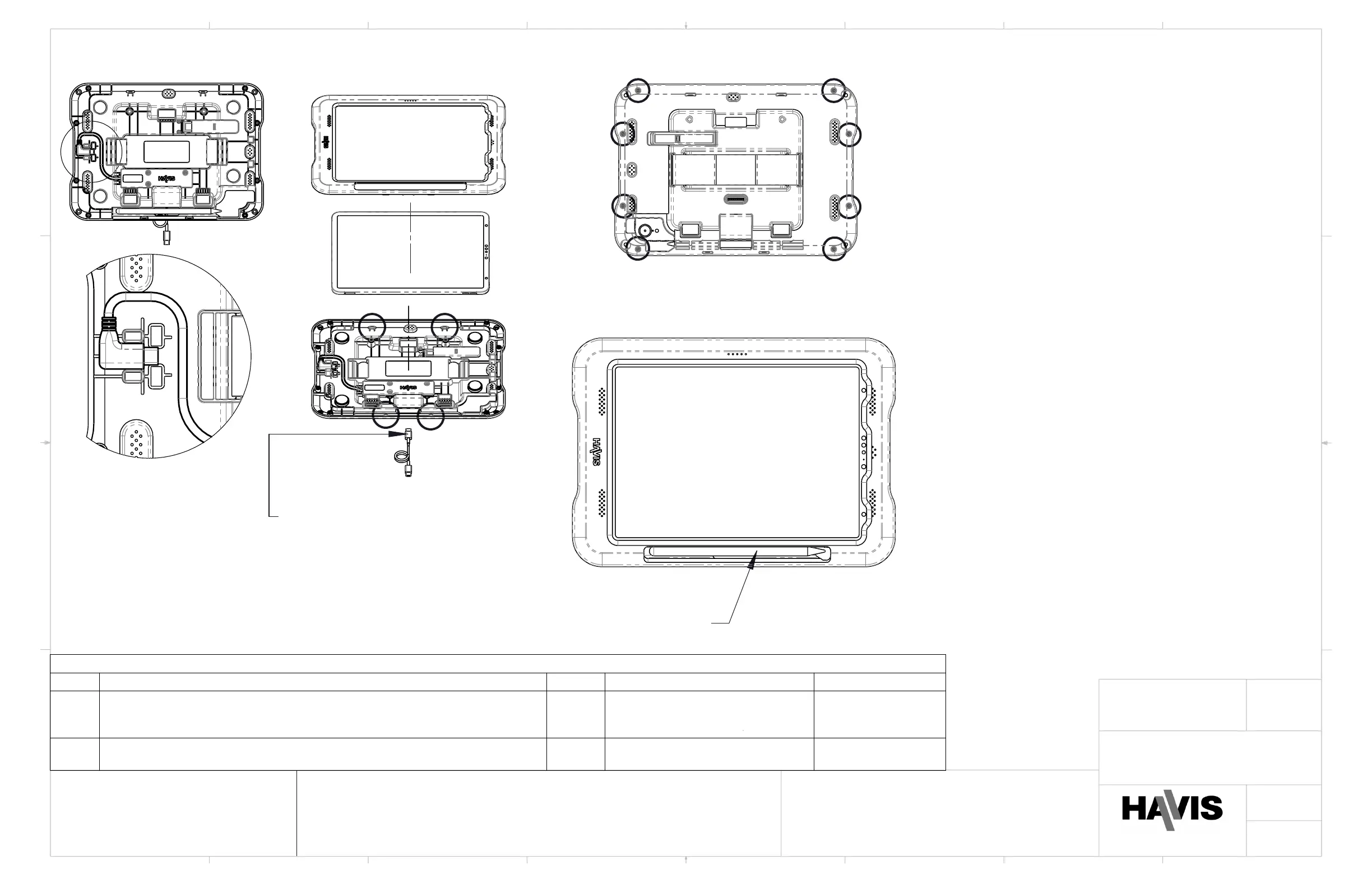

USB TYPE C CABLE (NOT
INCLUDED) CAN BE USED FOR
CHARGING WHEN TABLET IS NOT
DOCKED WITH THE DS-TAB-100.
IMAGE 2
A
IMAGE 1
DETAIL A
SCALE 2 : 3
IMAGE 3
IMAGE 4
APPLE PENCIL DOCKING PORT
FOR WIRELESS CHARGING
HARDWARE KIT CONTENTS
ITEM #
DESCRIPTION
QTY.
FINISH
DRIVE STYLE/ SIZE
1
THREAD-FORMING SCREW, WASHER HEAD, M2.5 STS+ THREAD,
6MM LONG, T8 DRIVE, STEEL, ZINC-NICKEL PLATED, BLACK
12
ZINC-NICKEL PLATED, BLACK
T8
2
T-8 PIN-IN TORX BIT
1
--------------------------
1/4" HEX
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
INSTALLATION
INSTRUCTIONS FOR TC-106
04-04-19
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
TC-106_INST_04-19
PRODUCT DESCRIPTION
INSTALLATION INSTRUCTIONS FOR TC-106,
APPLE iPad PRO 11" PROTECTIVE CASE.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
PRODUCT NAME
REV. DATE
04-04-19
DRAWING NUMBER:
TC-106
INSTALLATION INSTRUCTIONS:
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
-
WWW.HAVIS.COM
1-800-524-9900
F-730-019 REV A
Note the cable routing detailed in Image 1,
1.
Detail A.
Insert the connector from the Protective
2.
Case into the Apple iPad Pro 11,
maintaining the orientation shown in Detail
A.
Place the iPad Pro into the Rear Protective
3.
Case and ensure that the cable routing
matches that shown in Detail A. Be careful
not to pinch the cable.
Place Front Protective Case onto the rear,
4.
noting that the Havis logo should be
positioned on the bottom side (connector
side) of the iPad Pro. Ensure that the cable
is not pinched when placing the two halves
together.
Your Protective Case includes four (4)
5.
snap fits located in the areas circled in
Image 2. Apply light pressure until all the
snaps are interlocked.
Holding the two pieces together, carefully
6.
turn the Protective Case over.
Fasten all eight (8) of the M2.5 x 6mm
7.
screws (Item #1) with the supplied T8 torx
bit (Item #2) into the locations shown in
Image 3. Torque to 4 in-lbs +/- 10%. Do not
over-tighten screws.
NOTE: Hardware kit includes extra screws
in the event of loss or damage.
NOTE: Protective case will allow for
storage and charging of compatible Apple
Pencil in location noted in Image 4.
IMAGE 3
x
xx
x
IMAGE 2
IMAGE 1
LOCATION OF SNAP FITS
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
INSTALLATION
INSTRUCTIONS FOR TC-106
04-04-19
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
TC-106_INST_04-19
PRODUCT DESCRIPTION
INSTALLATION INSTRUCTIONS FOR TC-106,
APPLE iPad PRO 11" PROTECTIVE CASE.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
PRODUCT NAME
REV. DATE
04-04-19
DRAWING NUMBER:
TC-106
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
-
WWW.HAVIS.COM
1-800-524-9900
F-730-019 REV A

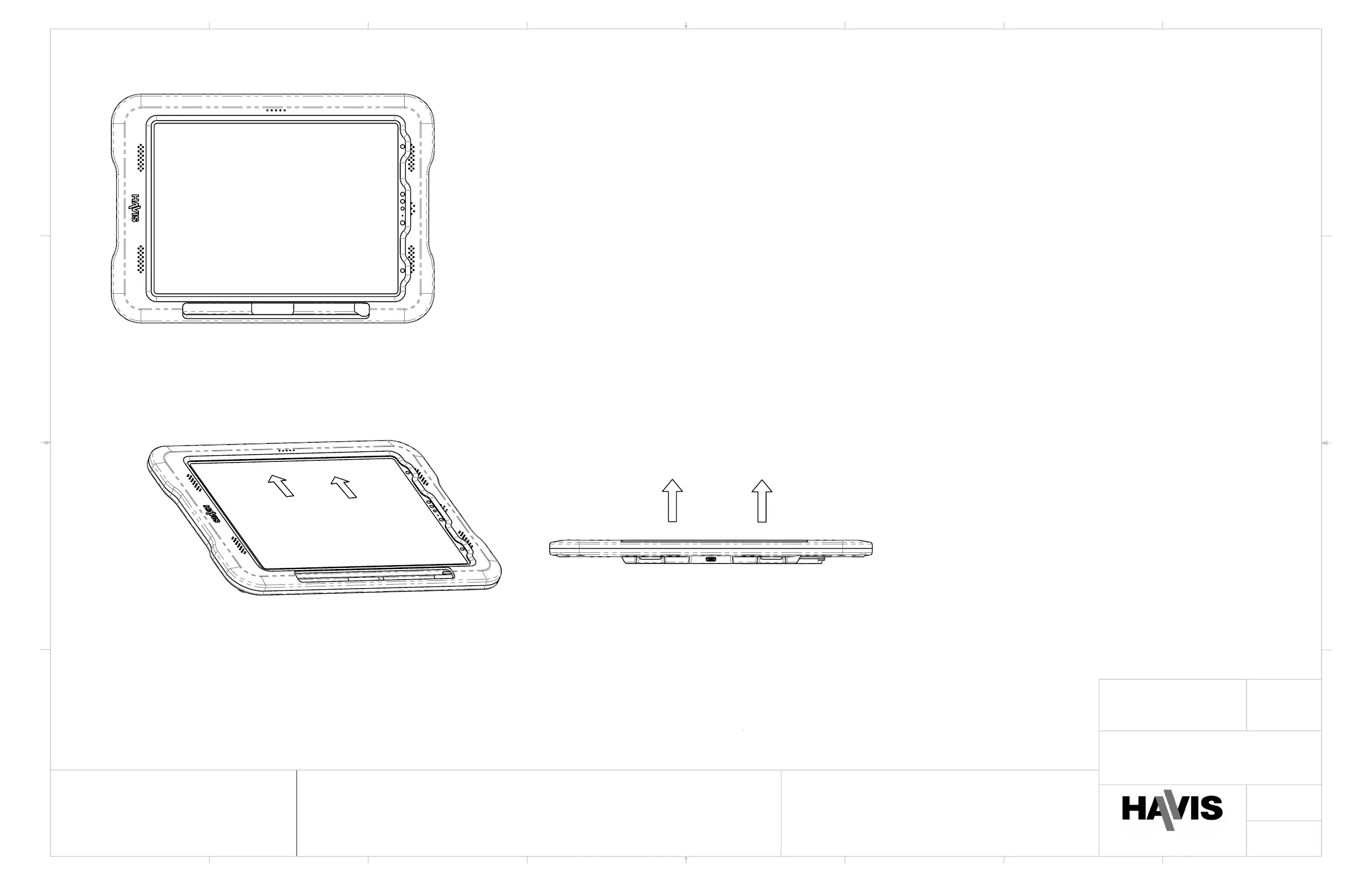

REMOVING TABLET
FROM PROTECTIVE CASE:
Remove all eight (8) of the screws that secure
1.
the front and back case together. Reference
Image 3 of the installation instructions.
Protective case contains four snap fits that
2.
must be detached to remove the front case.
Image 1 shows the locations of the snap fits.
Detach the snap fits on one side first applying
3.
light pressure on the snap fit locations in the
directions indicated to detach the snaps
(Reference Image 2).
While maintaining light pressure lift up the
4.
one side of the case to completely detach the
snaps.
Repeat steps 3 and 4 to release the snaps on
5.
the opposite side. Once snap fits are
detached you can then remove the front case.
Detach the connector from the tablet.
6.
Tablet can now be removed from the
7.
protective case.
