Side 1/1

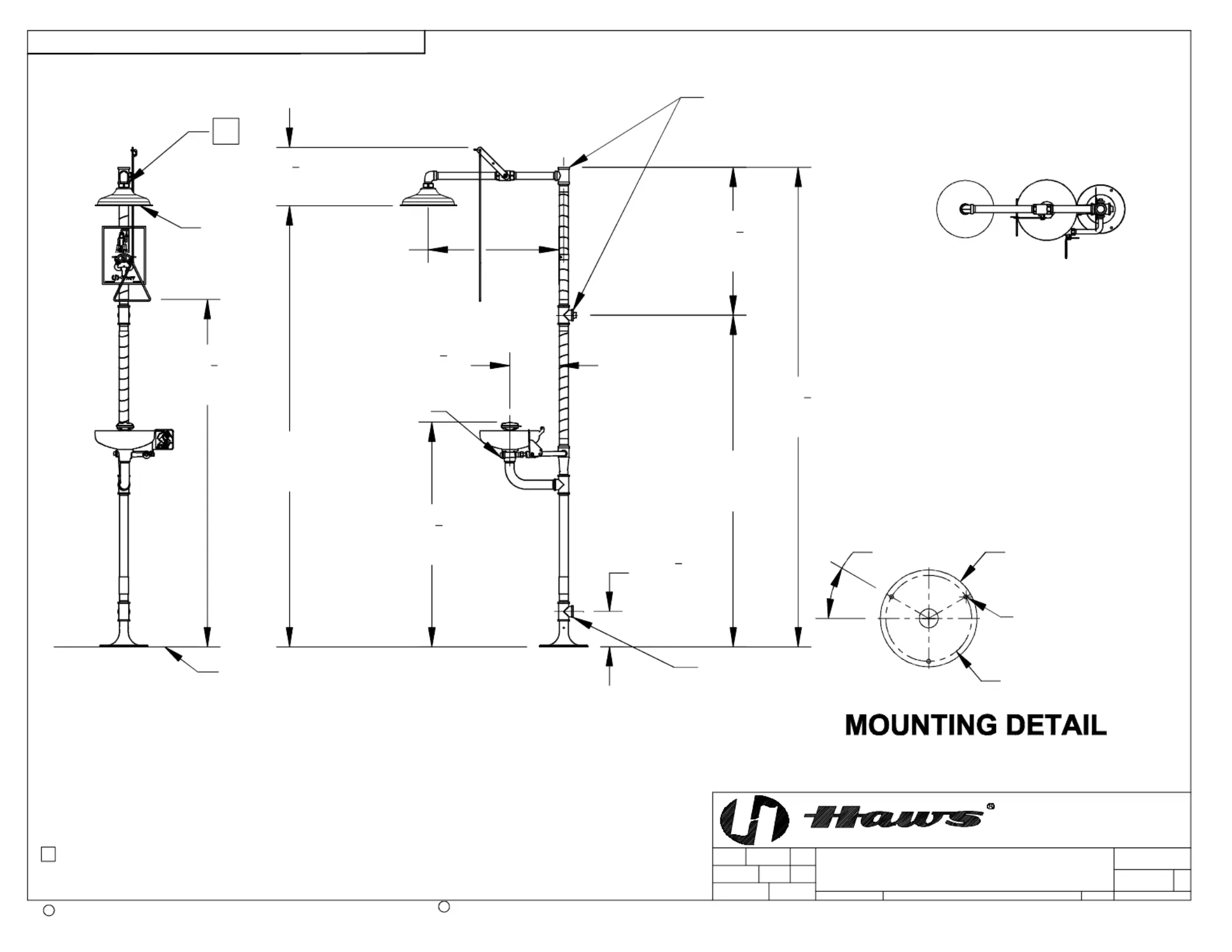

TOP VIEW

NOTES:

1. DIMENSIONS MAY VARY BY ± 1/2 INCH [13mm].

2. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY EYEWASH OR EYE/FACE WASH AND SHOWER EQUIPMENT:

- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS AND ACCEPTABLE PLUMBING PRACTICES.

- EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED WITH NOZZLES NOT LESS THEN 83.8 CM (33 IN.) AND NO GREATER THAN

114.3 CM (45 IN.) FROM SURFACE ON WHICH USER STANDS AND 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.

- SHOWER SHALL BE POSITIONED SO THAT SHOWER HEAD IS NOT LESS THAN 208.3 CM (82 IN.) NOR MORE THAN 243.8 CM (96 IN.)

FROM SURFACE ON WHICH USER STANDS.

- SHOWER SPRAY PATTERN SHALL HAVE A MINIMUM DIAMETER OF 50.8 CM (20 IN.) AT 152.4 CM (60 IN.) ABOVE SURFACE ON WHICH

USER STANDS, AND CENTER OF SPRAY PATTERN SHALL BE LOCATED AT LEAST 40.6 CM (16 IN.) FROM ANY OBSTRUCTION.

3. DO NOT USE REGULAR PIPE SEALANT. IF NECESSARY USE DOW CORNING 832 SEALANT PLACING 5 SMALL BEADS ON THE MALE

THREADS, JUST ABOVE THE FIRST THREAD.

FLOOR LINE

L-STRAINER

WASTE

1-1/4"

IPS

SUPPLY

1-1/4"

IPS

25"

635mm

82"

2083mm

MINIMUM

SP829

1661mm

286mm

SCALE 10:1

30°

3/8"

9.5mm

203mm

B.C.

229mm

3X ø

235mm

1061mm

167mm

2266mm

699mm

62"

1575mm

APPROVED:

DRAWN:

PART NUMBER

DRAWING NO.

SCALE:

SHEET OF

REV

DRAWING TYPE: SIZE: A

BY:ECN NO.

DATE:

ECN:

REVISED PER

CHK'D.:

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: HAWS@HAWSCO.COM

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

SLS

5/1/08

09460A00

0002080170.D

8320-8325/8320CRP

1:1

1 1

01/08/15

VWC

INSTA LLATION

4938

2014
