Side 1/2

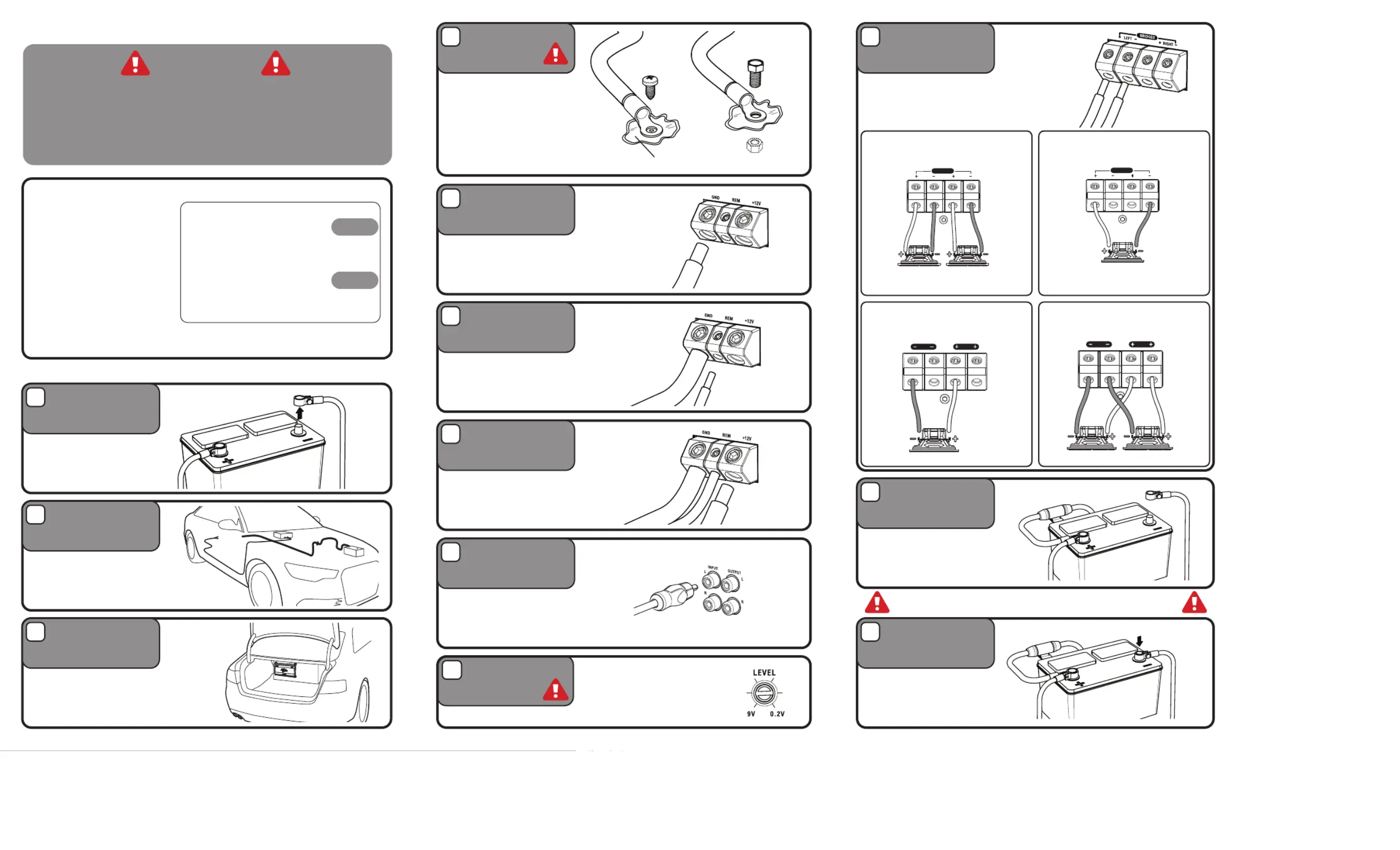

Place terminal in a secure

position so that it won’t

accidentally contact the

negative battery post

Power cable size

and fusing

It is critical to use the proper power

and ground cable. Select the size

listed here for your amplier model.

Always use high quality copper

cable. Visit our website for multi amp

system cable recommendations.

Be sure to use the proper fuse size

for each model. Some models require

an external fuse.

Properly route power,

speaker and RCA cables

through the vehicle.

Choose a mounting location

that will provide adequate air

ventilation. Mount the amplier to

a secure surface. Do not mount

the amplier upside down.

Attach the chassis ground

cable to the amplier

negative terminal. It is

important to make sure this

connection is very tight.

Bare metal

Attach the main power cable

to the amplier +12V. The

cable must run directly to

the battery and be properly

fused and be very tight.

Attach the remote turn on

wire to the amplier remote

output of the source unit.

Connect the RCA cables to

the INPUT connectors. The

OUTPUT can be used to

provide input for a second

amplier.

Connect the power cable to the

positive battery terminal. The

power cable must be fused

within 18 inches of the battery

terminal.

Re-connect the negative

battery terminal making sure it

is securely tightened.

Connect the speaker cables to

the speaker output connectors.

Follow the diagram below

that best ts your speaker

conguration.

The chassis ground connection

is critical to the performance

of the amplier. Choose a

location that is close to the

amplier. Completely scrape

away the paint and use a nut

and bolt if possible.

DO NOT USE AN EXISTING

FACTORY BOLT!

Disconnect

negative battery

terminal

Run Cables

Mount Amplier

Negative Power

Connection

Positive Power

Connection

Remote Turn-on

Connection

Signal Input

Connection

Positive Battery

Connection

Re-connect

Negative Battery

Terminal

Speaker

Connections

Chassis Ground

Be prepared to disarm your vehicle’s alarm and

to enter your radio / source unit code.

Stereo

Installation

Before you start

Monoblock

single woofer multiple woofersMonoblock

Bridged

CAUTION

Many new and factory radios require a reset code when

disconnected from battery power. This is an anti-theft

feature. Before unplugging power, you must determine if

your radio/source unit requires a reset code. Check the

operation manual for your vehicle or contact the dealer.

104

POWER

Turn the LEVEL control completely

counter-clockwise to minimum.

Level Control

0ga

4ga

S EAKER OUTPUT

PEAKER OUTPUT

SPEAKER

LEFT

RIGHT

BRIDGED

OUTPUT

CH3/4

PEAKER

LEFT

RIGHTCH1/2

BRIDGED

OUTPUT

HCC-1700.4

HCC-1500.1D

HCC-2000.1D

HCC-2500.1D

HCC-3000.1D

HCC-4200.1D

100A

50A x 2

60A x 2

External 150A

External 250A

External 300A

Model Fuse Cable

Hifonics products are designed and engineered in the USA by

www.maxxsonics.com

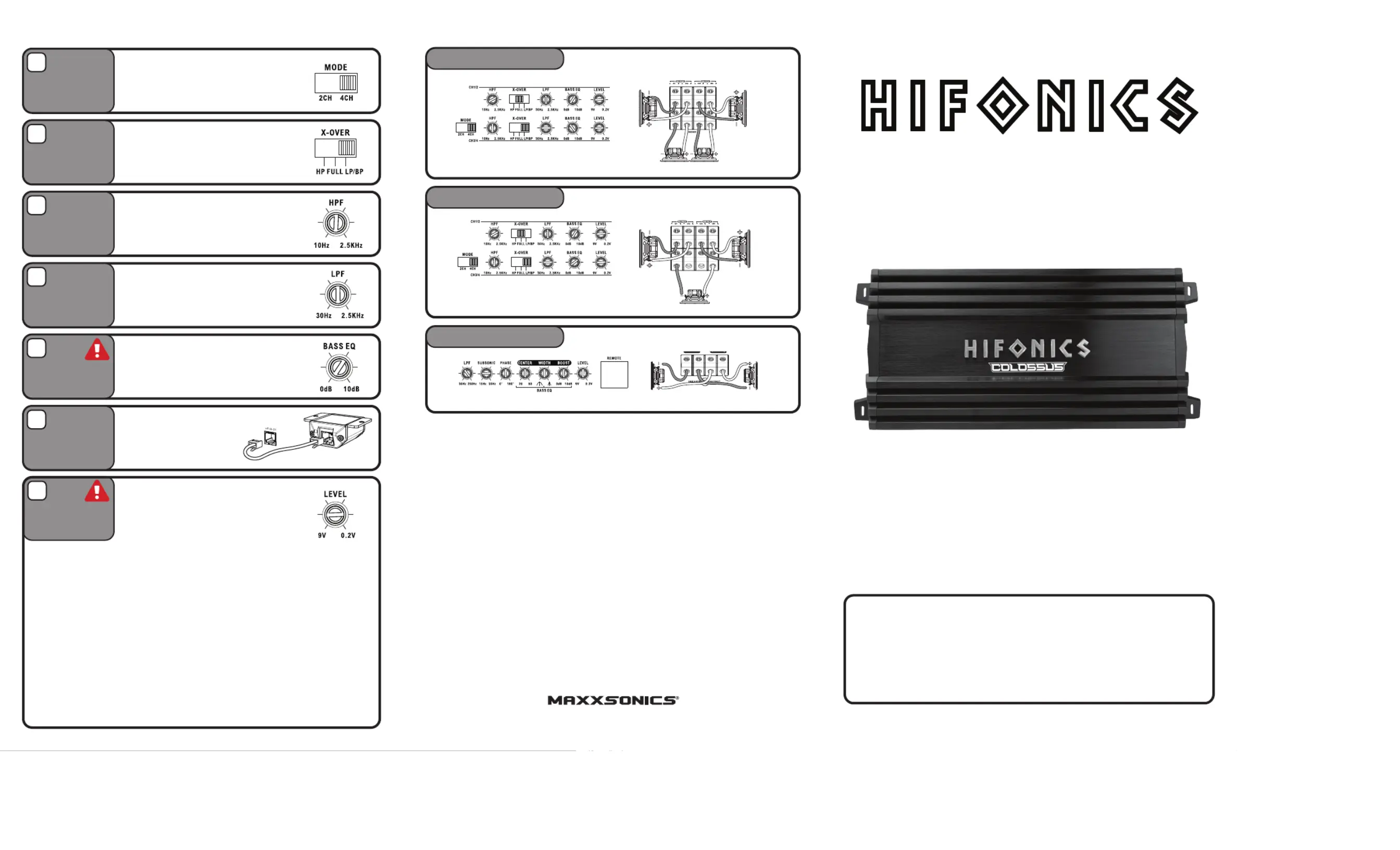

Setup Common System Setup

Quick Start

Installation Guide

The input MODE switch will “sum” or

combine the right and left channel signals

in the MONO position to improve bass

performance. Select MONO only when the

amp is being used for subwoofers.

The XOVER Mode switch sets the type

of crossover that will be active. 4 channel

models will have two switches, one for each

set of channels.

The HPF(high pass lter) control will limit the

output below the selected frequency. This

is typically used to protect midrange and hi

frequency speakers from damage and to

allow a smooth transition from a subwoofer.

The LPF(low pass lter) control will limit

output above the selected frequency. This

is used to allow a smooth transition to the

higher frequency speakers.

1. If possible, with the source unit off, conrm that the primary volume control is

turned down (counter clockwise).

2. Turn on the source unit (CD, or MP3 player). Re-conrm that the volume is

turned down. Make sure the source unit controls; balance, fader, bass and

treble are all set to center or “0” adjustment. Make sure that the green LED on

the end of the amplier is illuminated.

3. Play a clean musical selection of which you are very familiar. CD is preferred.

Do not use radio signals for level setting. Hit play and start turning the volume

of the source unit up.

4. Stop increasing the source unit volume when you reach 3/4 (about 75%) or until

you hear speakers begin to slightly start producing distortion.

5. Increase the amplier level (clockwise) until distortion is heard, then back

the level down (counter clockwise) until the distortion is eliminated. Small

adjustments may need to be made to balance the levels of multiple ampliers.

The Bass EQ control will increase the power

output at 45Hz for more pronounced bass.

Exercise caution when using this control.

Increase the level in small amounts until

distortion is noticed, then back off a little.

Some models include a bass

remote. Avoid adjusting the bass

remote while operating vehicle.

Input Mode

Xover Mode

High pass

Adjustment

Low pass

Adjustment

Bass Boost

Remote Level

Control

4ch - Full Range

4ch - Mixed Mono

Mono

This is a critical step to insure your amplier

is properly adjusted to match the signal

output level of your source unit.

THIS IS NOT A VOLUME CONTROL!

Level Setting

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper

installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from

where it was purchased. A photocopy of the original receipt must accompany the product being

returned. The costs associated with removal, re-installation and freight are not the responsibility of

Maxxsonics, LLC. This warranty is limited to defective parts and specically excludes any incidental

or consequential damages connected therewith. To view the full warranty, please visit the website.

The information contained within this document is intended to offer some basic guidelines

for a few of the most common installations. More complex audio systems should be

installed by a competent professional. Additional installation information available at

www.maxxsonics.com

Congratulations on your choice of a Hifonics amplier.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information,

on system setting, speaker and subwoofer conguration

and full specications by model visit the website,

http://hifonics.com/manuals.html

HF HCC QSG 01 - rev 1

HCC-2500.1D

HCC-3000.1D

HCC-4200.1D

HCC-1 700.4

HCC-1500.1D

HCC-2000.1D

HF-U-01
