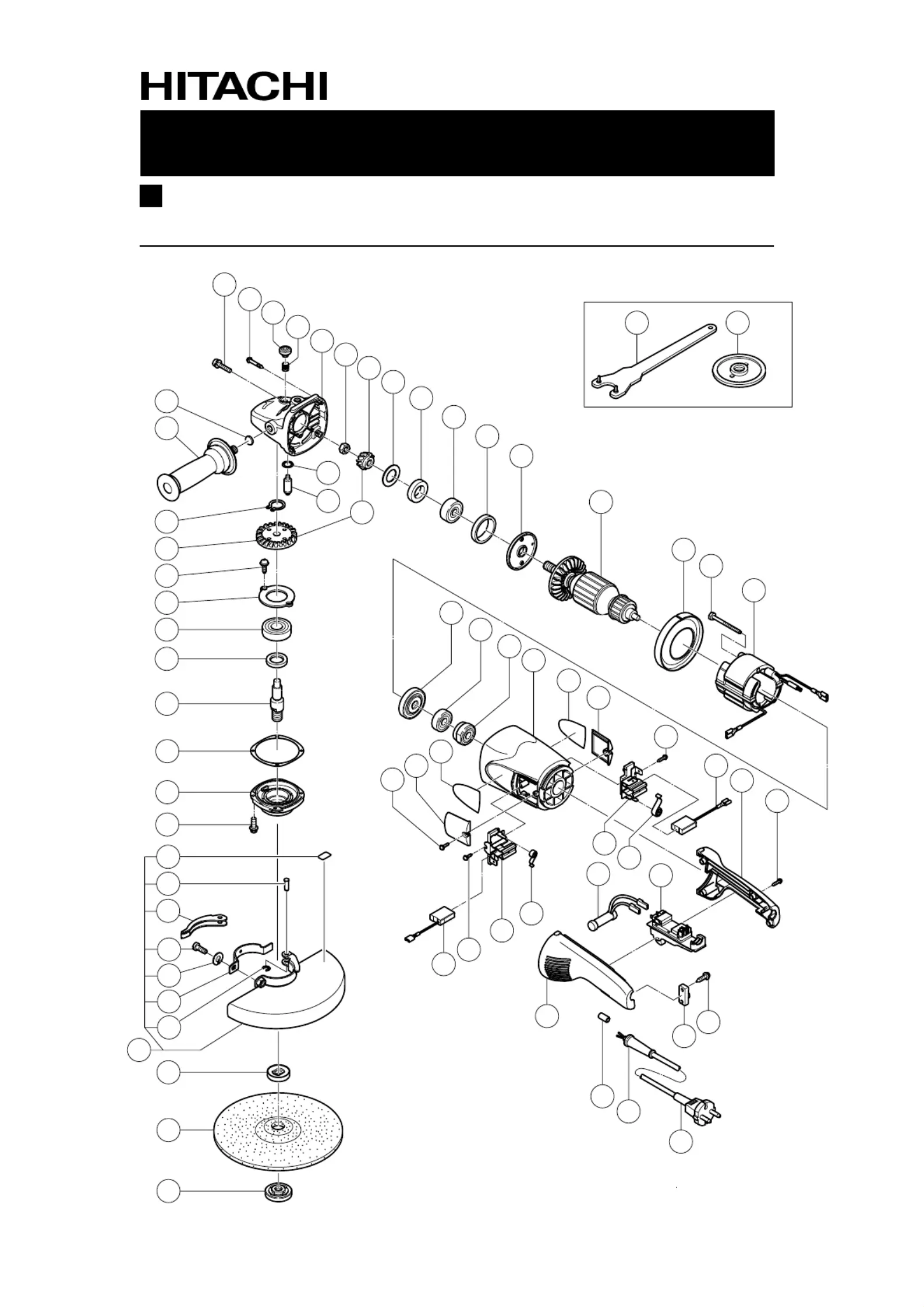

ELECTRIC TOOL PARTS LIST
LIST NO.
DISC GRINDER
Model G 23UB2
2002
•
11
•
(E1)
E257
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
53
501
502
48
49
49
49
50
54
62
*
ALTERNATIVE PARTS
--- 2 ---
ITEM
NO.
CODE NO.
DESCRIPTION REMARKS
NO.
USED
PARTS
11 -- 02
G 23UB2
1 315-636
SEAL LOCK SCREW (W/SP.WASHER) M5X14 (BLACK)
2
2 301-654 TAPPING SCREW (W/FLANGE) D5X35 4
3 306-888 PUSHING BUTTON 1
4 320-219 SPRING 1
5 320-217 GEAR COVER ASS’Y 1 INCLUD. 3, 4, 17, 40, 41
6 320-226 SPECIAL NUT M10 1
7 320-225 PINION 1
8 320-221 SEAL WASHER 1
9 320-222 FELT PACKING 1
10 630-1DD BALL BEARING 6301DDCMPS2L 1
11 994-208 RUBBER RING (B) 1
12 320-220 BEARING COVER (A) 1
* 13 360-594U ARMATURE ASS’Y 110V-120V 1 INCLUD. 9, 10, 43, 44
* 13 360-594E ARMATURE 220V-230V 1
* 13 360-594F ARMATURE 240V 1
14 320-215 FAN GUIDE 1
15 984-271 HEX. HD. TAPPING SCREW D5X75 2
* 16 340-546C STATOR 110V-120V 1
* 16 340-546E STATOR 220V-230V 1
* 16 340-546F STATOR 240V 1
17 937-033 FELT WASHER 1
18 321-542 SIDE HANDLE 1
19 939-542
RETAINING RING FOR D12 SHAFT (10 PCS.)
1
20 320-224 GEAR 1
21 949-236 MACHINE SCREW M5X10 (10 PCS.) 2
22 320-229 BEARING COVER (B) 1
23 630-2DD BALL BEARING 6302DDCMPS2L 1
24 990-852 FELT PACKING (B) 1
25 320-234 SPINDLE 1
26 320-228 SEAL PLATE 1
27 320-227 PACKING GLAND 1
28 994-192
HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
4
29 311-492 LABEL 1
30 321-546 SET PIN 1
31 321-545 LEVER 1
32 306-887 BOLT M8X22 1
33 949-457 SPRING WASHER M8 (10 PCS.) 1
34 321-544 SET PIECE 1
35 673-489
RETAINING RING (E-TYPE) FOR D5 SHAFT
1
36 321-547 WHEEL GUARD ASS’Y 1 INCLUD. 29-35
* 37 937-907Z WHEEL WASHER (A) 1
* 37 937-908Z WHEEL WASHER (B) 1 FOR AUS
* 38 316-825 D. C. WHEELS 230MM A24R (25 PCS.) 1 FOR AUS
39 937-909Z WHEEL NUT M14X2 1
40 320-218 O-RING 1
41 306-890 LOCK PIN 1
42 320-223 GEAR AND PINION ASS’Y 1 INCLUD. 7, 20
43 320-216 DUST SEAL 1
44 600-0VV BALL BEARING 6000VVCMPS2L 1
45 321-536 BEARING BUSHING 1
46 321-535 HOUSING ASS’Y 1 INCLUD. 45
