assembly instructions

Item No. 3641

1. Find a clear area in which you can work.

2. Unpack ﬁxture and glass from carton.

3. Carefully review instructions prior to assembly.

*** The construction of this ﬁxture will be accomplished by ﬁrst attaching the

mounting strap to the junction box, making all necessary electrical connections,

hanging the ﬁxture from the ceiling, and then installing the glass.

start here

3641

Drawing 4 - Fixture Assembly

Make electrical connections from supply wire to ﬁxture lead wires. Refer to instruction

sheet and follow all instructions to make all necessary wiring connections. (I.S. 18)

Then refer back to this sheet to continue installation of this ﬁxture.

***It is recommended you have some assistance when installing the glass on this

ﬁxture.

1. Main body of ﬁxture can be mounted to the ceiling and lamped accordingly prior (1)

to installing the glass. Remove knurled knob (4) from arms prior to installing the

glass - see Drawing 4 .

2. Slip glass into ring . (3) (2)

3. Lift ring with glass and slip inside uprights and align holes in ring studs(2) (3) (U) (H)

(S) (T) (U) (4) with holes in uprights and thread in knurled knobs to secure glass to

ﬁxture.

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

01.01.13

Drawing 3 - Fixture Mounting

Drawing 2 - Strap Detail

1. Prepare mounting strap for mounting by installing screws into mounting (B) (A)

plate - see .(B) Drawing 1

• Be sure the holes into which the screws are threaded match the spacing of holes (C)

in the canopy - see .(1) Drawings 2 and 3

2. Attach mounting plate to junction box , using screws not provided and slip (B) (J) (G)

supply wires through large center hole.

2. Hang the ﬁxture by slipping canopy over screws (D) (A) and hold in position - see

Drawings 2 and 3.

3. Thread barrel knobs (E) onto end of screws (A) and tighten to secure ﬁxture to ceiling.

H I N K L E Y L I G H T I N G 3300 0 Pin Oak Park way Avon L ake , O H 440 12 80 0.4 46 .55 39 / 44 0.6 53 .55 00 hi nk le yl igh tin g.com

Drawing 1 - Strap Detail

120o

1. First rotate arms attached to canopy until they are degrees apart - see Drawing 1.120

r2-12

T24 JA8-2016

I.S. 18 wiring grounding instructions

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

wiring instructions

Indoor Fixtures

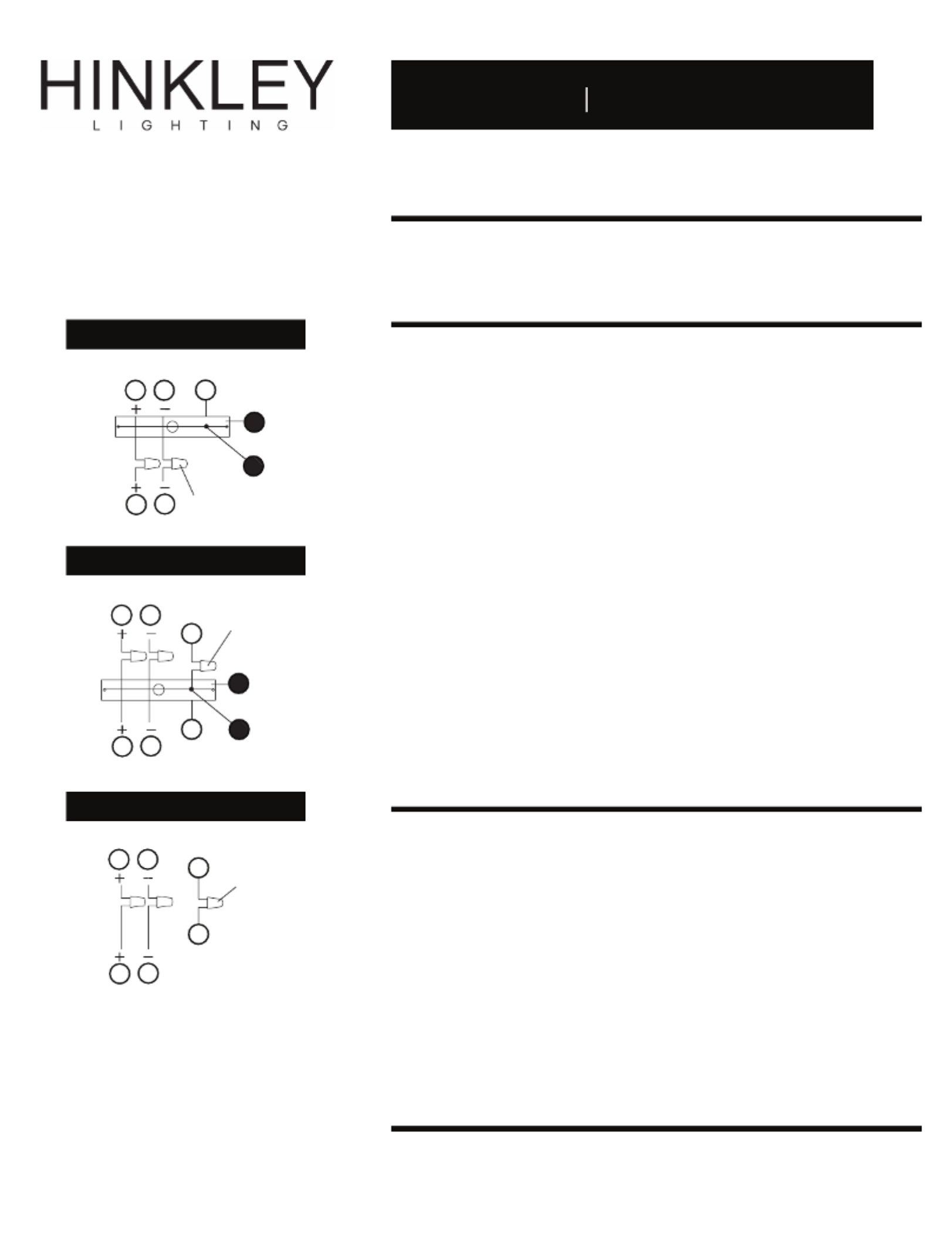

1. Connect positive supply wire (A) (typically black or the smooth, unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see .Drawings 1 or 2

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Please refer to the below to complete all grounding instructions

electrical connections.

Outdoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see . Drawings 2 or 3

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Cover open end of connectors with silicone sealant to form a watertight seal.

• If installing a wall mount ﬁxture, use caulk to seal gaps between the ﬁxture

mounting plate (backplate) and the wall. This will help prevent water from

entering the outlet box. If the wall surface is lap siding, use caulk and a

ﬁxture mounting platform specially.

4. Please refer to the below to complete all grounding instructions

electrical connections.

grounding instructions

Flush Mount Fixtures

For positive grounding in a 3-wire electrical system, fasten the ﬁxture ground

wire (typically copper or green plastic coated) to the ﬁxture mounting strap (E) (1)

with the ground screw - see . (2) Drawing 1

Note: On straps for screw supported ﬁxtures, ﬁrst install the two mounting screws in strap.

Any remaining tapped hole may be used for the ground screw.

Chain Hung Fixtures

Loop ﬁxture ground wire (typically copper or green plastic coated) under the (E)

head of the ground screw on ﬁxture mounting strap and connect to the (2) (1)

loose end of the ﬁxture ground wire directly to the ground wire of the building

system with appropriately sized twist-on connectors - see .Drawing 2

Post-Mount Fixtures

Connect ﬁxture ground wire (typically copper or green plastic coated) to power (E)

supply ground with appropriately sized twist-on connector inside post. Cover open

end of connector with silicone sealant to form a watertight seal - see .Drawing 3

Drawing 1 - Flush Mount

Drawing 2 - Chain Hung

supply wire

ﬁxture leads

twist-on

connectors

Drawing 3 - Post-Mount

twist-on

connectors

A CC

B D

supply wire

ﬁxture leads

A C

B D

supply wire

ﬁxture leads

A C

B D

twist-on

connectors

I.S. 18

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
