PRODUCT DATA
68-0209-3
The Honeywell Trademark is used under license from Honeywell
International Inc. by Air-Pure Systems.
Honeywell International Inc. makes no representations or warranties
with respect to this product.

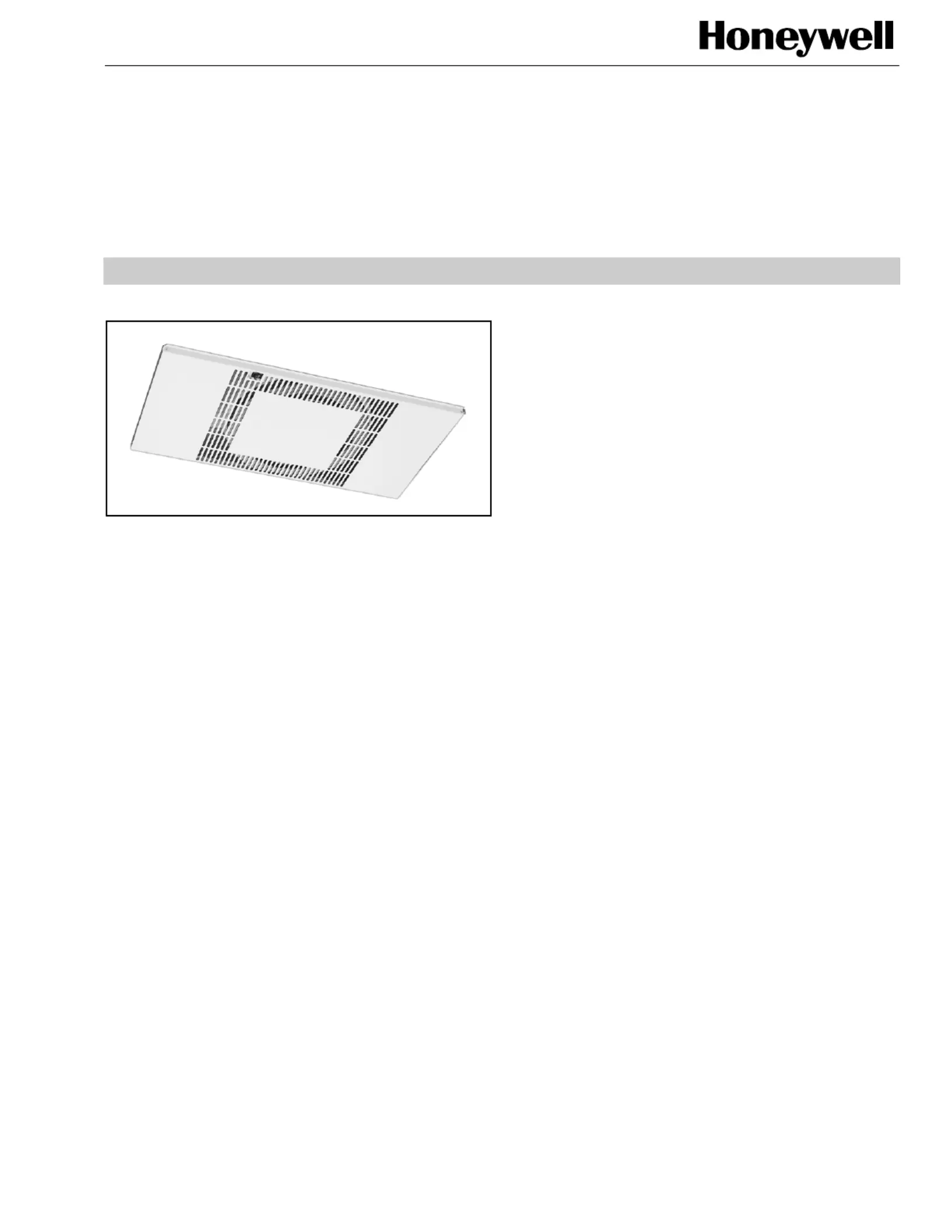

F118 In-Ceiling
Media Air Cleaner
APPLICATION
direct-drive, forward-curve blower motor and a 95 percent
DOP particle filter to capture airborne particles such as dust,
soot, and cooking smoke from the air circulated through it.
When equipped with two CPZ™ modules, the air cleaner also
adsorbs gases and odors from the air passing through it. The
F118 is recommended for use in rooms with drop ceilings, and
for spaces with structural ceilings not higher than 16 feet (4.8
meters) where there is a minimum one-foot (0.3 meter)
clearance between the drop ceiling and the structural ceiling.
The air cleaner is designed to use the Coanda effect to
circulate air throughout the space. This effect is the tendency
of air to travel close to a wall contour when ejected from a jet.
The air cleaner draws contaminated air up from the center of
the room, forces it through the filters, and then blows the
filtered air out through the narrow ends of the air cleaner.
FEATURES
•The DOP particle filter is 95 percent efficient at 0.3
micron particles, and more efficient on particles
smaller and larger.
•CPZ™ modules can reduce space odors.
•Circulates up to 425 cubic feet per minute (723 cubic
meters per hour).
•Provides Coanda air distribution by drawing in dirty
air, cleaning it, and bi-directionally recirculating the
filtered air throughout the space.
•Designed to overcome the increase in air flow
resistance normally caused by filter loading.
•White color cover complements the ceiling.
•Accessible three-speed pushbutton switch.
•Optional wall-mounted remote switch.
•Filters are easily removed and replaced.
•READ AND SAVE THESE
INSTRUCTIONS
Contents
Application ........................................................................ 1
Features ........................................................................... 1
Specifications ................................................................... 2
Ordering Information ........................................................ 2
Planning the Installation ................................................... 3
Installation ........................................................................ 4
Operation .......................................................................... 8
Service ............................................................................. 8
Parts list ............................................................................ 9
Limited Two-Year Warranty .............................................. 12
F118 IN-CEILING MEDIA AIR CLEANER
68-0209-3 Revised 9-08
2
ORDERING INFORMATION
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Honeywell Commercial Air Products Distributor.
2. Air-Pure Systems
16873 Fish Point Rd. SE
Prior Lake, MN 55372-1714
Phone: (800) 998-1919
Fax: (800) 221-3248
SPECIFICATIONS
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed specifica-
tions. Also, this product is tested and calibrated
under closely controlled conditions, and some minor
differences in performance can be expected if those
conditions are changed.
Color: Galvanized steel cabinet and white cover.
Blower/Motor: Three-speed direct-drive forward curve. Motor
lubrication is not required.
Ambient Temperature Rating:
Shipping and Storage: -20°F to +150°F ( -29°C to +66°C).
Operating: Ambient temperatures usually below 77°F (25°C)
but occasionally as high as 104°F (40°C).
Humidity: Up to 95% relative humidity, non-condensing.
Air Volume:
Electrical Ratings:
Grille Type: Perforated metal.
Dimensions:
Fig. 1. Approximate dimensions of F118 in in. (mm).
Mounting:
Hangs freely from structural ceiling.
Can be recessed into a drop ceiling frame.
Weight:
Shipping (Cabinet and Contents): 119 lb (54 kg).
Installation: 92 lb (42 kg).
CPZ™ Adsorbent Module: 8 lb (3.6 kg) each.
Module Total Weight: 10 lb. (4.5 kg) each.
Sound Level at 3.3 ft (1m):
High Speed: 65 dBA.
Medium Speed: 54.5 dBA.
Low Speed: 48 dBA.
Operation at low and medium speeds is within white noise
range.
Approvals:
UL: Listed.
CSA: Certified.
CE: Pending.
Replacement Parts: See the Parts List section.
120V 230V
High
425 cfm, 723 m
3
/hr 400 cfm, 680 m
3
/hr
Medium
300 cfm, 510 m
3
/hr 320 cfm, 544 m
3
/hr
Low
200 cfm, 340 m
3
/hr 220 cfm, 374 m
3
/hr
Current Draw 120V 230V
High 2.8A 1.6A
Medium 2.0A 0.8A
Low 1.4A 0.5A
12-1/2
(317)
1 (25) CLEARANCE 
OF DROP CEILING
47-3/4
(1213)
23-1/2
(597)
VIEW UNDERSIDE
(GRILLE REMOVED)
POWER CONNECTOR
(ELECTRICAL BOX)
M16213
SUPPORT RODS
PRE-FILTER (WRAPS)
PARTICULATE FILTER
