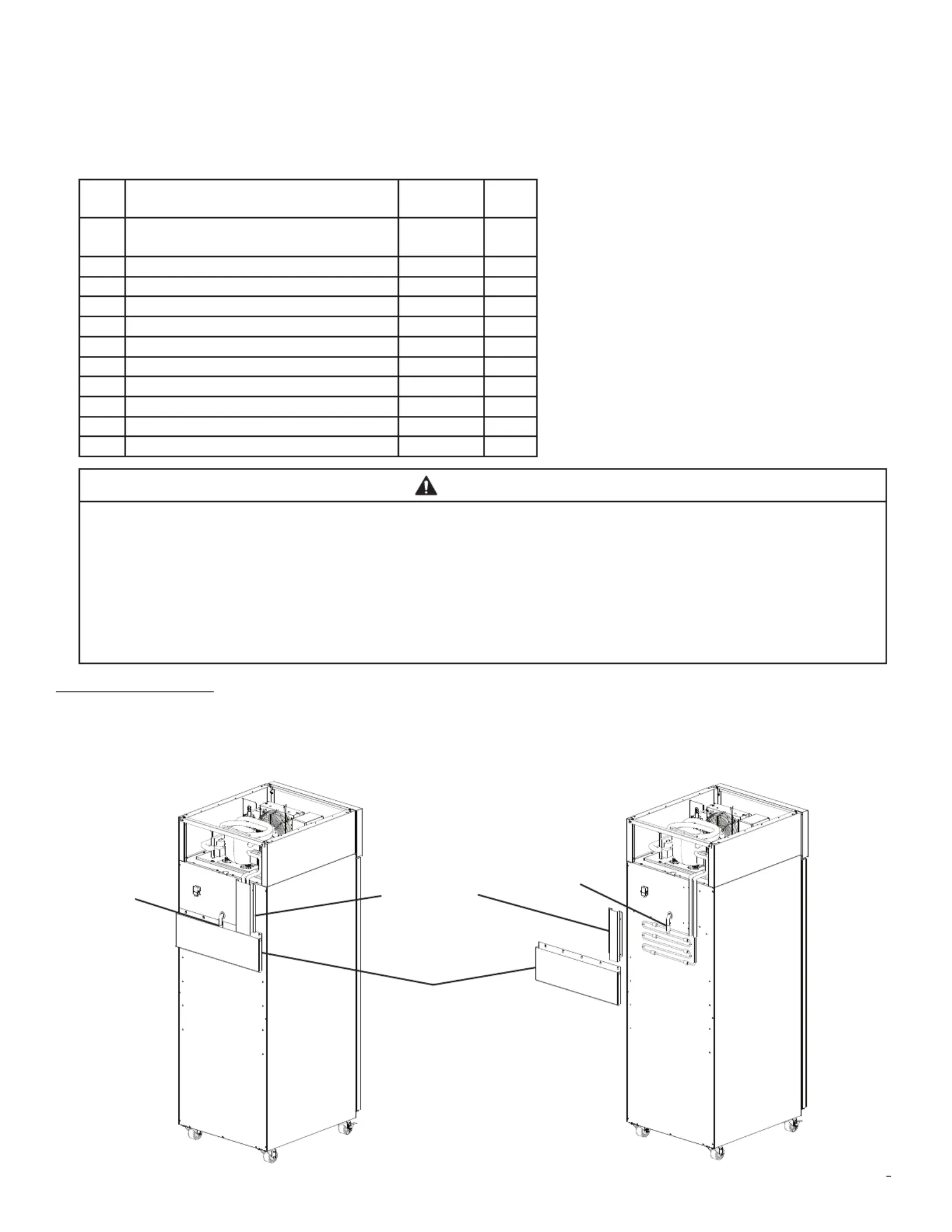

2A8351-010

Hoshizaki Optional Heated Overow Drain Pan Kit

HS-5234

For Use with Commercial "S" Series Upright Models

Installation Instructions

Check to ensure that all parts are included:

Index

No. Description

Part

Number Qty

1 Heated Overow Drain Pan

(includes 8 ft. (2.4 m) Power Cord)

3A9247-01 1

2 Heated Overow Drain Pan Bracket 3A9248-01 1

3 Rubber Gasket 413854-03 1

4 Drain Fitting 4A2792-01 1

5 Silicone Hose (3/8×1/2 in.; L = 2 m) 7730I3812 1

6 Wire Harness (6 in.) 4A6030-01 1

7 Self-Drilling Hex Screw 7B03I1210 8

8 437618-01 1Nylon Tie Mount

9 8911-0200 4Nylon Tie

10 Wire Clamp 4A0809-03 4

11 Wiring Label 3A9294-01 1

WARNING

• The appliance should be serviced only by qualied service personnel to reduce the risk of death, electric

shock, serious injury, or re.

• No installation or service should be undertaken until the technician has thoroughly read these instructions.

Failure to follow these instructions will adversely affect safety, performance, component life and warranty

coverage, and may result in costly water damage.

• To reduce the risk of electric shock, do not touch the plug with damp hands. Move the power switch to the

"OFF" position, then unplug the appliance from the electrical outlet before servicing.

Installation Instructions

1) Move the power switch to the "OFF" position, then unplug the appliance from the electrical outlet.

2) Move the appliance out to access the rear of the appliance.

3) Remove the channel cover and condensate pan from the rear of the appliance. See Fig. 1.

4) Pour the condensate water out, then clean and dry the condensate pan.

Fig. 1

Model Shown: CF1S-FS

Condensate Pan

Channel CoverDrain Boot

Drain Boot

2A8351-010

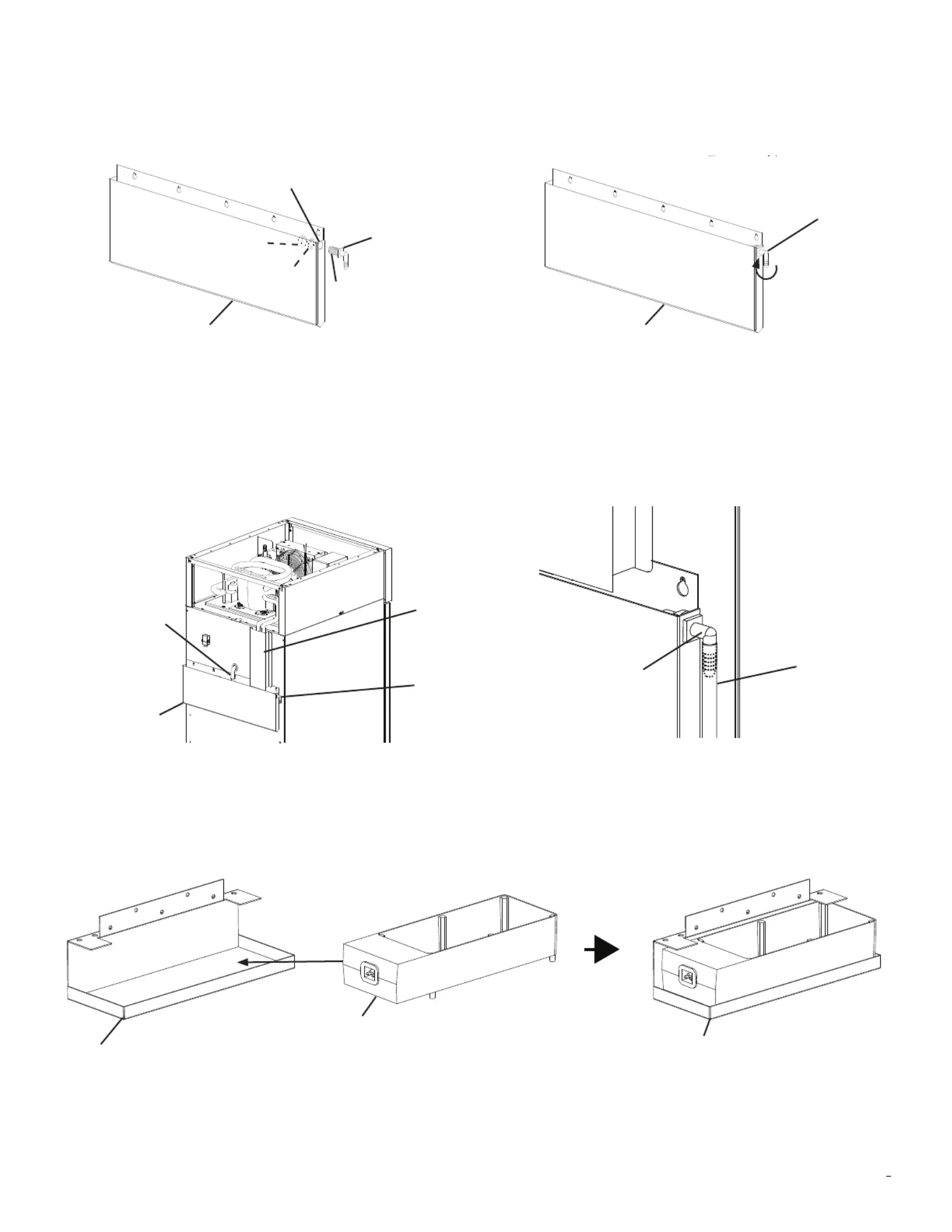

6) Once tight, replace the condensate pan and channel cover in their correct positions. Connect the silicone hose provided in this kit

onto the end of the drain tting. See Fig. 3. NOTICE! Be sure the drain boot is correctly positioned back into the condensate

pan.

7) Place the heated overow drain pan into the heated overow drain pan bracket. See Fig. 4.

Fig. 3

Drain Fitting

Condensate Pan

Drain Fitting

Silicone Hose

Drain Boot

Channel Cover

Fig. 4

Heated Overow

Drain Pan Assembly

Heated Overow Drain

Pan Bracket

Drain Fitting Nut

Drain Fitting

Fig. 2

Condensate Pan

Rubber Gasket

Condensate Pan

Drain Fitting

Overow Hole

5) Remove the drain tting nut from the drain tting provided in this kit, then apply thread sealant tape or thread sealant to the drain

tting. Place the drain tting into the overow hole from the outside. Next, place the rubber gasket and drain tting nut onto the drain

tting and tighten. See Fig. 2. Be sure the drain tting is facing down.

Rear

Front

Thread Sealant Tape

or Thread Sealant

Heated Overow

Drain Pan

Front

Rear

Model Shown: CF1S-FS
