Cascade 450

INSTALLATION AND OPERATING INSTRUCTIONS.

READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

INSTALLATION ET MODE D'EMPLOI.

LISEZ CES INSTRUCTIONS ATTENTIVEMENT AVANT D'ENTREPRENDRE L'INSTALLATION.

CONSERVEZ CES INSTRUCTIONS COMME FUTURE REFERENCE

INSTALLATIONS- UND BEDIENUNGSANLEITUNG.

LESEN SIE DIE ANWEISUNGEN VOR DER INSTALLATION DER PUMPE SORGFÄLTIG DURCH.

HEBEN SIE DIESE ANWEISUNGEN ZUR INFORMATION AUF

ISTRUZIONI PER L'INSTALLAZIONE E L'USO

LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI PRIMA DI PROCEDERE CON L'INSTALLAZIONE.

CONSERVARE QUESTE ISTRUZIONI PER EVENTUALI CONSULTAZIONI FUTURE.

INSTRUCCIONES DE INSTALACIÓN Y DE OPERACIÓN.

LEA LAS INSTRUCCIONES CUIDADOSAMENTE ANTES DE COMENZAR LA INSTALACIÓN.

GUARDE ESTAS INSTRUCCIONES PARA CONSULTA FUTURA.

INSTALLATIE EN BEDIENINGSINSTRUCTIES.

LEES DEZE INSTRUCTIES ZORGVULDIG VOORDAT U MET DE INSTALLATIE BEGINT.

HOUD DEZE INSTRUCTIES ALS NASLAGWERK BIJ DE HAND.

INSTRUKTIONER FÖR INSTALLATION OCH DRIFT.

LÄS INSTRUKTIONERNA NOGA INNAN DU BÖRJAR INSTALLERA.

SPARA DESSA INSTRUKTIONER FÖR FRAMTIDA BRUK.

INSTRUÇÕES DE INSTALAÇÃO E OPERAÇÃO.

LEIA CUIDADOSAMENTE ESTAS INSTRUÇÕES ANTES DE EFECTUAR A INSTALAÇÃO.

GUARDE ESTAS INSTRUÇÕES PARA REFERÊNCIA FUTURA

INSTALLASJONS- OG DRIFTSINSTRUKSER.

LES INSTRUKSENE NØYE FØR DU TAR FATT PÅ INSTALLASJON.

TA VARE PÅ DISSE INSTRUKSENE TIL SENERE BRUK

INSTALLATIONS- OG DRIFTSVEJLEDNING.

LÆS DENNE VEJLEDNING GRUNDIGT IGENNEM FØR INSTALLATION UDFØRES.

GEM DENNE VEJLEDNING TIL SENERE BRUG

INSTRUÇÕES DE INSTALAÇÃO E OPERAÇÃO.

LEIA CUIDADOSAMENTE ESTAS INSTRUÇÕES ANTES DE EFECTUAR A INSTALAÇÃO.

GUARDE ESTAS INSTRUÇÕES PARA REFERÊNCIA FUTURA

INSTRUKCJA INSTALACJI I OBS¿UGI.

PRZED PRZYST√PIENIEM DO INSTALOWANIA NALE…Y UWA…NIE PRZECZYTA∏ NINIEJSZ√ INSTRUKCJ≈.

INSTRUKCJ≈ NALE…Y ZACHOWA∏ NA PRZYSZ¿Y U…YTEK

ИНСТРУКЦИЯ ПО УСТАНОВКЕ И ЭКСПЛУАТАЦИИ.

ВНИМАТЕЛЬНО ПРОЧИТАЙТЕ ИНСТРУКЦИЮ ПЕРЕД УСТАНОВКОЙ.

СОХРАНИТЕ ЭТУ ИНСТРУКЦИЮ ДЛЯ ПОСЛЕДУЮЩЕГО ИСПОЛЬЗОВАНИЯ

3303

The Hozelock Cyprio Cascade 450

pump is designed for submersible

use only. The pump does not use oil

or grease for lubrication and can be

used safely in ponds containing ﬁsh or

plants. The motor consists of a sealed stator

and water-cooled permanent magnet rotor.

All electrical components are isolated from

the water.

IMPORTANT

1. WARNING: ALWAYS UNPLUG OR

DISCONNECT ALL APPLIANCES IN THE

POND FROM THE ELECTRICITY SUPPLY

BEFORE PUTTING YOUR HANDS IN THE

WATER WHILST EQUIPMENT IS BEING

INSTALLED, REPAIRED, MAINTAINED OR

HANDLED.

2. Do not use the supply cable to lift the

pump, as this may cause damage. We

recommend ﬁtting a lifting cord when

the pump is installed in deep water.

3. Do not operate or leave the pump in

freezing conditions.

4. Do not allow the pump to run dry.

5. Check that the voltage marked on the

pump corresponds to the mains supply.

6. A 10MA OR 30 MA RESIDUAL CURRENT

DEVICE MUST BE FITTED TO THE MAINS

SUPPLY.

7. DO NOT OPERATE THIS PUMP WITHOUT

THE STRAINER CAGE ATTACHED. USING

THE PUMP WITHOUT A STRAINER MAY

INVALIDATE YOUR WARRANTY.

Safety Information

The appliance is not intended for use by

persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use

of the appliance by a person responsible

for their safety. Children should be

supervised to ensure that they do not

play with the appliance.

WARNING: SAFETY AND

ELECTRICAL CONNECTIONS.

1. The pump is supplied with 10m of 3 core

electric cable which is permanently

connected and sealed to the motor.

The supply cable cannot be replaced. If

the cable is damaged, the pump should

be discarded.

WARNING: THE PLUG SUPPLIED WITH THIS

PRODUCT IS NOT WATERPROOF AND THE

CONNECTION TO THE MAINS SUPPLY

SHOULD ONLY BE MADE IN A

WEATHERPROOF ENCLOSURE.

The installation must conform to the

regulations of the local electricity

authority which could include the use of

plastic or metal conduit to protect the

cable.

2. A 10MA OR 30MA RESIDUAL CURRENT

DEVICE (RCD) MUST BE FITTED TO THE

MAINS SUPPLY.

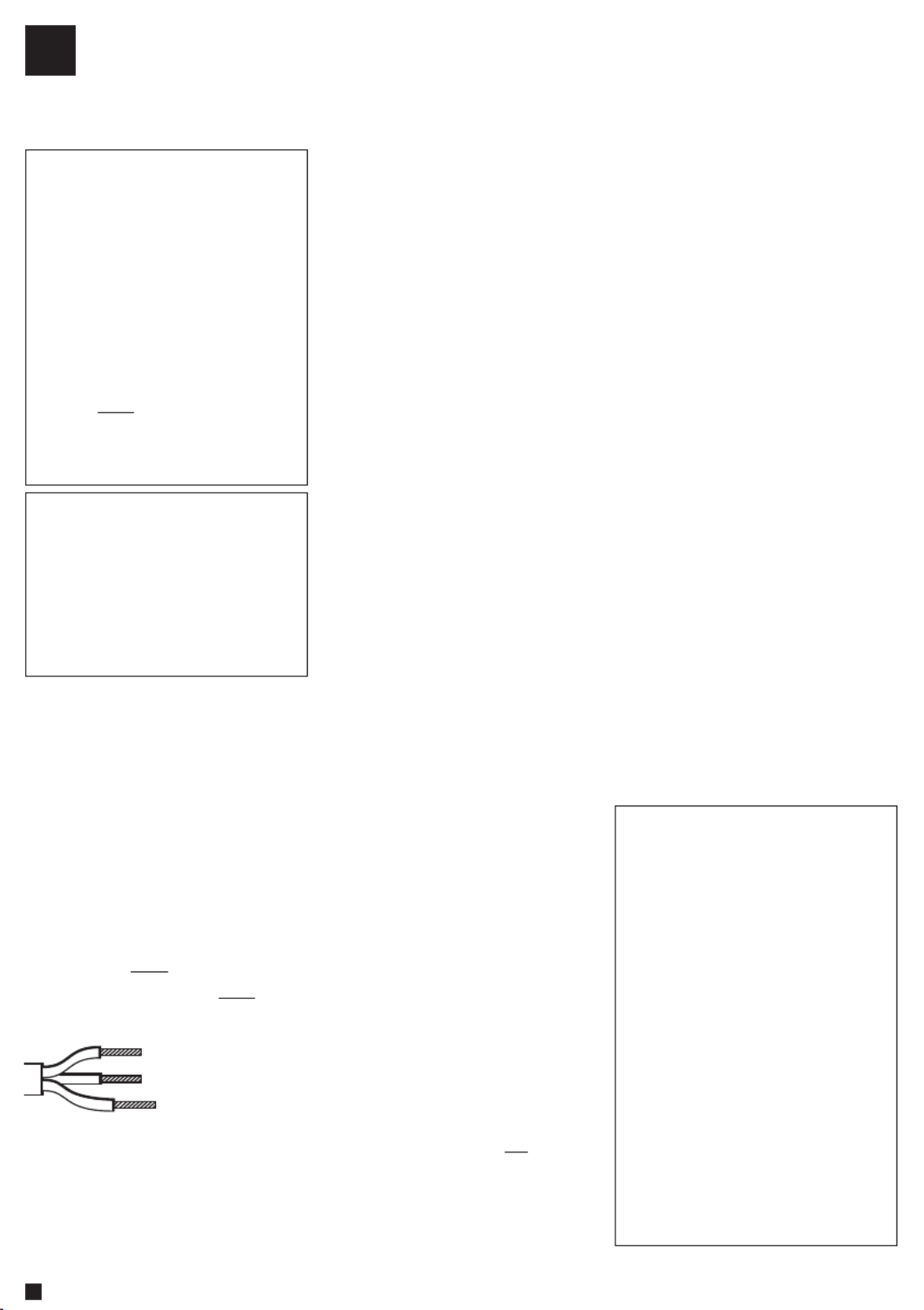

3. WARNING: THIS APPLIANCE MUST BE

EARTHED AND IT IS ESSENTIAL THAT THE

CONNECTIONS ARE MADE USING THE

FOLLOWING CODE;

Brown - Live

Blue - Neutral

Green/Yellow - Earth

The BROWN lead should be connected to

the LIVE terminal which may be marked

with an ‘L’ or coloured brown or red.

The BLUE lead should be connected to the

NEUTRAL terminal which may be marked

with an ‘N’ or coloured blue or black.

The GREEN/YELLOW lead should be

connected to the EARTH terminal which

may be marked with an ‘E’ or coloured

green or green/yellow.

4. If an extension cable is required, this

should be connected to the end of the

pump cable using a weatherproof cable

connector. The joint must be positioned in

a suitable weatherproof housing. The

extension cable should be of 3 core

0.75mm2Polychloroprene rubber

insulated cable (ref: HO5 RN-F) and

permanently wired to the mains supply

with a 3 or 5 Amp fuse.

5. The pump cable (and extension cable)

should be positioned and adequately

protected against damage especially

where contact with gardening equipment

(lawn mowers, forks etc..) children and

domestic animals may occur.

6. CONSULT A QUALIFIED ELECTRICIAN OR

LOCAL AUTHORITY IF IN ANY DOUBT

ABOUT WIRING TO THE MAINS SUPPLY.

ACCESSORY ASSEMBLY.

Telescopic Stem Assembly.

Take the outer telescopic stem ‘A’ and slide

the inner stem ‘B’ into it, as shown. See Fig 1.

PUMP INSTALLATION.

Position

Position the pump in the pond or water

feature ensuring that it is fully submerged in

water at all times whilst the pump is

running.

The connection to the outlet of the pump

can be made with 12.5mm (1/2”) bore hose.

Flow Control

The ﬂow from the pump can be regulated to

meet your needs by rotating the ﬂow

controller on the front of the pump. See Fig

3 (D).

Base Fixing.

Slide off the rear cover/base. Fix the base

using the holes provided. Slide the motor

onto the rear cover/base.

For extra stability when using the fountain

attachments, clip the pump onto the

separate base plate. See Fig 3 (E). This can be

secured to a surface with screws through the

holes in each of the base plate corners.

Fountain Only.

1. Place the pump next to the pond and

route the cable back to the mains supply.

2. Select the desired fountain accessory. The

2 and 3 tier fountainheads simply snap

onto the fountain stem (See Fig 4). The

fountain stem pushes onto the narrower

tube section of the telescopic fountain

stem (See Fig 4). Then place the pump in

the desired position. Note: Check that the

inner stem of the telescopic tube has not

been pushed inside the outer tube.

3. a). 3 tier fountain – Creates a wider and

attractive fountain spray.

b). 2 tier fountain – Creates a higher and

narrower display.

4. The ball joint - See Fig 5 (F), ﬁts onto the

pump outlet and the telescopic stem

pushes onto the top. This can then be

used to adjust the fountain angle so that

it is vertical.

NOTE: This pump will not operate a

fountain and waterfall at the same time.

Waterfall Only.

1. Fit a suitable length of hose 12.5mm bore

hose on to the hose adaptor. See Fig 2 (C).

2. Route the hose back to the waterfall.

MAINTENANCE.

The Hozelock Cyprio range of Cascade

pumps has been designed to allow fast and

easy maintenance. As with all pumps of its

kind, occasionally it will become necessary to

clean the Strainer Cage and Fountain Spray

head ring.

Always unplug or disconnect ALLappliances

in the pond from the electricity supply

before putting your hands in the water or

starting maintenance.

Fountain Head

1. Place a coin or similar in the slot and

gently lever off the fountain head.

2. Rinse in clean water and reassemble.

Strainer.

1. Remove the strainer from the front of

the pump by gently pulling it.

2. Rinse the strainer with clean water and

then re-ﬁt it.

Rotor Assembly.

1. Remove the Strainer Cage as described

above.

2. Release the Chamber Front Plate, by

unsnapping it from the Motor Body. See

Fig 5 (G).

3. Gently pull the Chamber Front Plate

squarely away from the Motor Body.

4. Pull the Rotor Assembly out of the Motor

Body. See Fig 5 (H).

5. Wash out all of the components in clean

water. Do not use detergents or other

chemical cleaners.

6. Replace the Rotor Assembly into the

Motor Body and reﬁt the Pump Chamber

and Strainer Cage.

ALL YEAR PUMP CARE.

A quick daily check should be carried out to

ensure that the pump is performing

satisfactorily.

Once a week- Remove and clean the Strainer

Cage and Fountain Head in accordance with

the general maintenance notes. Depending

on water conditions, cleaning may be

required more frequently.

Once a year- Completely disassemble the

pump including the Rotor Assembly as

described in the general maintenance notes

and wash all components in clean, fresh

water. Replace worn or broken parts.

HOZELOCK CYPRIO 3 YEAR

GUARANTEE.

If this pump, excluding the Rotor Assembly,

becomes unserviceable within 3 years of the

date of purchase it will be repaired or

replaced at our option free of charge, unless

in our opinion it has been damaged or

misused.

Liability is not accepted for damage due to

accident, improper installation or use.

Liability is limited to replacement of a faulty

pump. This guarantee is not transferable. It

does not affect your statutory rights.

To obtain the beneﬁts of the guarantee,

ﬁrstly contact Hozelock Cyprio Consumer

Services who may request that the pump is

sent along with proof of purchase directly to

the address below.

DAMAGE CAUSED BY RUNNING THE PUMP

DRY OR BY FROST INVALIDATES THE

GUARANTEE.

FAULT FINDING

WARNING: ALWAYS UNPLUG OR

DISCONNECT ALL APPLIANCES IN THE

POND FROM THE ELECTRICITY SUPPLY

BEFORE PUTTING YOUR HANDS IN THE

WATER WHILST EQUIPMENT IS BEING

INSTALLED, REPAIRED, MAINTAINED OR

HANDLED.

IMPORTANT - PLEASE KEEP THIS

SECTION FOR REFERENCE

LOW FLOW FROM PUMP

1. Ensure the Strainer Cage is clean.

2. A small diameter outlet pipe will

restrict outlet ﬂow.

3. Clear any blockages and adjust the ﬂow

controls.

NO FLOW FROM PUMP

1. Check power supply is on.

2. Check fuse and wiring.

3. Check the Rotor Assembly is not

jammed, damaged or showing signs of

excessive wear.

4. Ensure the Strainer Cage is clean.

POOR FOUNTAIN DISPLAY.

1. Clean the Fountain Head. (see

maintenance).

www.hozelock.com

Produkt Specifikationer

Mærke:	Hozelock
Kategori:	Vandpumpe
Model:	Cascade 450
Vekselstrømsindgangsspænding:	230 V
Produktfarve:	Sort
Produkttype:	Vandpumpe
Strøm:	10 W
Pakkevægt:	1344 g
Pakkedybde:	104 mm
Pakkebredde:	204 mm
Pakkehøjde:	190 mm
Maksimalt driftstryk:	- bar
Materiale:	Metal, PVC
Strømkilde type:	Vekselstrøm
Normal brug:	Vandforsyning
Maksimal sugehøjde:	0.63 m
Maksimal leveringshøjde:	1 m
Gennemstrømningshastighed:	450 l/t
Immersion, dybde (maks.):	- m
