×1 Back to zero / ×2 Main Menu

Bluetooth Send / Select Scale / Select Unit

Switch (length / scales / unit)

Back to measure Switch Scales

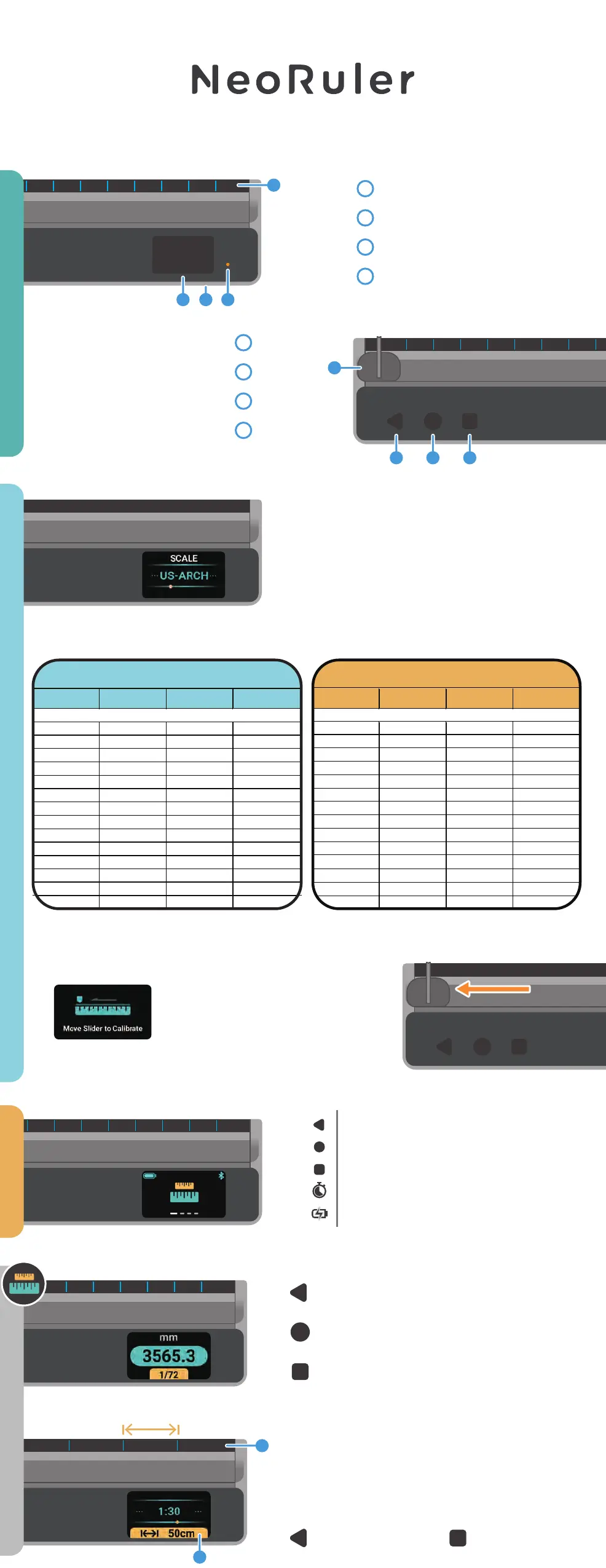

QUICKSTART GUIDE

Model : N01 | Ver:1.3

2 sec > ON/OFF

Select

Switch Function

5 min > Sleep, 2 hr > OFF

1.5-2 hrs > 100%

NeoPointer

Back / ON-OFF

Select Button

Switch Button

7 86

32 4

LED Marks

Screen

USB-C Charging Port

Charging Light

NeoRuler has 93 built-in scales

distributed in 8 scale modes. Select

the default scale mode before use,

and switch it in the setting menu.

The spacing between the LED Mark

(1) changes when changing the scale. The

distance indicator (2) represents the actual

scaled length between two marks.

Scale Setting

When the calibration notiﬁcation

shows up, move the NeoPointer to

the left for calibration. When

ﬁnished, click any button to return.

Basic Start to use Calibration Main menu Scale Ruler

50cm

Arch ENG I ENG II MAP

1/2 1/125 1/10 0 0

1/10 0 k

1/3 1/150 1/1250

1/125k

1/4 1/20 0 1/150 0

1/20 0 k

1/5 1/250 1/16 25

1/250 k

1/10 1/30 0 1/20 0 0

1/50 0 k

1/20 1/4 0 0 1/250 0

1/10 0 0k

1/25 1/50 0 1/50 0 0

1/20 0 0 k

1/30 1/60 0 0

1/250 0 k

1/4 0 1/10 k

1/50 1/12.5k

1/72 1/20 k

1/75 1/25k

1/10 0 1/50 k

41 Built-in Metric Scales

1/1

Arch ENG I ENG II MAP

6" = 1' 1" = 10 ' 1" = 30 0 ' 1" = 1 Mi

4 " = 1' 1" = 20 ' 1" = 333' 1" = 1.5 Mi

3" = 1' 1" = 30 ' 1" = 4 16.6' 1" = 2 Mi

2" = 1' 1" = 4 0 ' 1" = 50 0 ' 1" = 3 Mi

1 1/2" = 1' 1" = 50 ' 1" = 583.3' 1" = 4 M i

1" = 1' 1"= 60 ' 1"= 60 0 ' 1" = 5 Mi

3/4 " = 1' 1" = 70 ' 1"= 6 25' 1" = 6 M i

1/2" = 1' 1" = 80 ' 1"= 666' 1" = 10 Mi

3/8" = 1' 1" = 83.3' 1"= 750 ' 1" = 20 Mi

1/4 " = 1' 1" = 90 ' 1" = 10 0 0 ' 1" = 24 M i

3/16" = 1' 1" = 10 0 ' 1" = 120 0 ' 1" = 25 Mi

1/8" = 1' 1" = 166.6' 1" = 20 0 0 '

3/32" = 1' 1" = 200 ' 1" = 30 0 0 '

1/16" = 1' 1" = 250 '

52 Built-in US Standard Scales

1' = 1'

Divider AccessoriesSetting

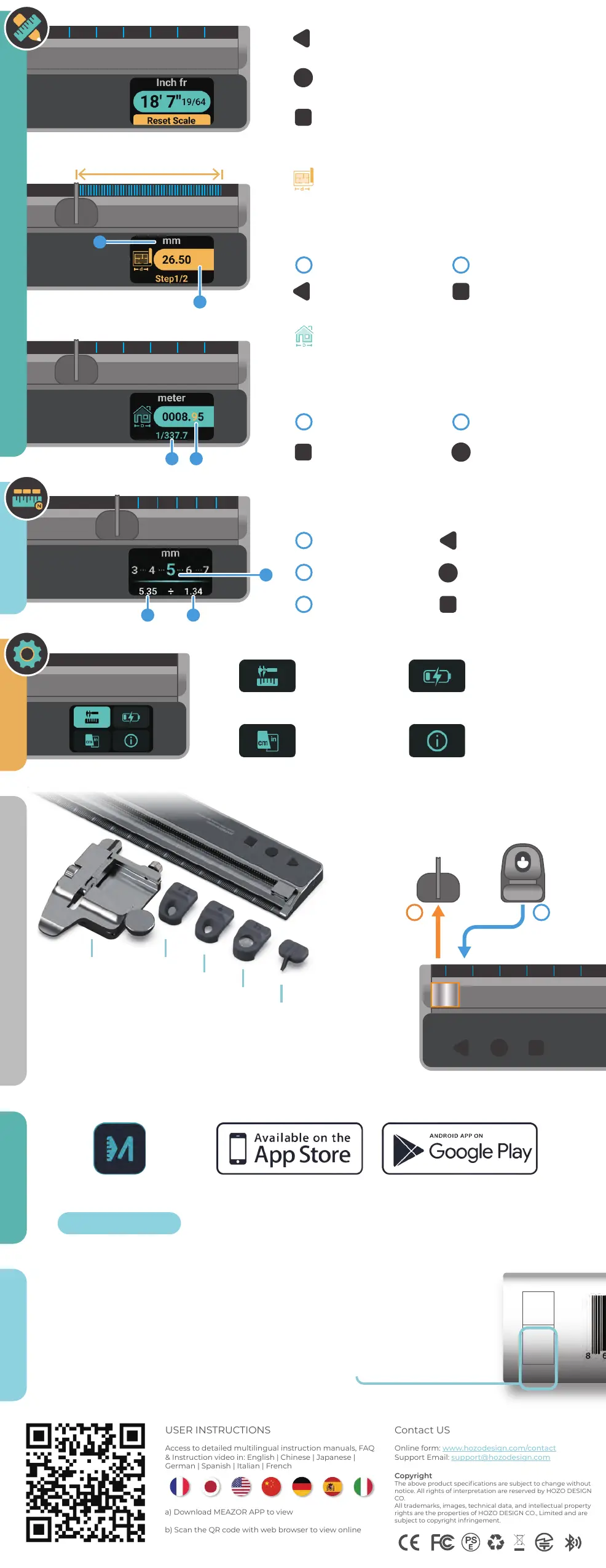

×1 Zero / ×2 Main Menu

Bluetooth Send / Reset Scale / Select Unit

Switch (length / scales / unit)

graphic length

Back to measure Switch Section

The principle of customized scale is to measure

a section of graphic length corresponding to its

actual distance

Step 1 | Measure Graphic Length

1 2

Unit of Graphic Length Graphic Length

Total Length Change # of division

Mode Battery

(Normal/Caliper) Normal/ Performance

Scale Info

(8 Scale Modes)

Section Length Switch Section

Divider allows the user to divide a certain

distance (slider's distance) into 2-12 sections.

# of division Main Menu

Use the pointer or press the button to increase ●

the value of the actual length. Press the button ■

to switch between different digits and units.

Step 2 | Input Actual Distance

Actual Distance Calculated Scale

Switch digits/Sections Add value

2 3

APP

Penholder

(1.2mm)

Download MEAZOR APP to enhance your experience with NeoRuler, Include

Data transfer, List mode, Drawing, and much more! Free for lifetime use and

Available to download in Apple APP Store and Google Play Store.

NeoRuler’s slider uses a modular snap design that allows you to

easily replace the slider pointer or other functional accessories. For

more information, please visit the HOZO DESIGN ofﬁcial website.”

*The accessories shown on this page are not included and need to be purchased separately.

Place the NeoRuler ﬂat on the desktop when

replacing the module, and gently push the pointer

forward. Then put the new accessory into the slot.

MEAZOR APP 2.0

Customized Scale

* In performance mode, NeoRuler does

not go into standby or power off

Warrenty

Warranty period

HOZO Design. CO. - One-year Limited Consumer

Warranty covers your product against manufacturing

defects for one year from the date you bought your

product.

Special cases

The following cases are not covered by the warranty policy during the

warranty period and will be repaired at extra cost.

1) Damage caused by improper use, maintenance, or storage by the

user.

2) Dismantling of parts under unauthorized circumstances.

3) No proof of purchase.

4) The serial number does not correspond to the product sent for

repair or has been altered

5) Damage to the body caused by force majeure

6) Normal wear and tear of the parts, which need to be replaced

7) Damage caused by abnormalities in the temperature/humidity of

use or storage

8) Damage to the battery caused by not charging in accordance with

the instructions

9) Any damage caused by not following the instructions.

How to send it for repair?

If the product needs to be repaired, please contact the

distributor and send the product accordingly, and

provide a valid with proof of purchase.device number

Batch#: 2311-1#

Free for Lifetime

Caliper Kit

Penholder

(0.8mm)

Magniﬁer

Pointer
