HP EliteBook Folio 9480m Notebook PC
Maintenance and Service Guide

© Copyright 2014 Hewlett-Packard
Development Company, L.P.
Intel and Pentium are trademarks of Intel
Corporation in the U.S. and other countries.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft, Windows,
WIndows 7, and Windows 8 are U.S. registered
trademarks of the Microsoft group of
companies. SD Logo is a trademark of its
proprietor.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: July 2014
Document Part Number: 768849-001
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available on all editions of
Windows 8. This computer may require
upgraded and/or separately purchased
hardware, drivers, and/or software to take full
advantage of Windows 8 functionality. See
http://www.microsoft.com for details.
This computer may require upgraded and/ or
separately purchased hardware and/or a DVD
drive to install the Windows 7 software and
take full advantage of Windows 7 functionality.
See http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.

Important Notice about Customer Self-Repair Parts
CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an
authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair
parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for
Authorized Service Provider only parts," can damage the computer or void your warranty.
iii

iv Important Notice about Customer Self-Repair Parts

Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits defined by the International Standard for Safety of Information Technology
Equipment (IEC 60950).
v

vi Safety warning notice

Dynamically choosing a boot device using the f9 prompt ............................................. 82
Setting a MultiBoot Express prompt .............................................................................. 82
Entering MultiBoot Express preferences ....................................................................... 82
Using HP PC Hardware Diagnostics (UEFI) .......................................................................................................... 83
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................. 83
8 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 7 .................................. 84
Using Computer Setup ......................................................................................................................................... 84
Starting Computer Setup .................................................................................................................. 84
Navigating and selecting in Computer Setup ................................................................................... 84
Restoring factory settings in Computer Setup ................................................................................. 85
Updating the BIOS ............................................................................................................................. 85
Determining the BIOS version ........................................................................................ 85
Downloading a BIOS update ........................................................................................... 86
Using MultiBoot ................................................................................................................................................... 87
About the boot device order ............................................................................................................. 87
Choosing MultiBoot preferences ...................................................................................................... 87
Setting a new boot order in Computer Setup ................................................................. 87
Dynamically choosing a boot device using the f9 prompt ............................................. 88
Setting a MultiBoot Express prompt .............................................................................. 88
Entering MultiBoot Express preferences ....................................................................... 88
Using HP PC Hardware Diagnostics (UEFI) (select models only) ........................................................................ 88
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................. 89
9 Specifications ............................................................................................................................................. 90
Computer specifications ...................................................................................................................................... 90
35.6-cm (14.0-in) display specifications ............................................................................................................ 91
Hard drive specifications ..................................................................................................................................... 92
Solid-state drive specifications ........................................................................................................................... 93
mSATA drive specifications ................................................................................................................................. 94
10 Backup and recovery in Windows 8 .............................................................................................................. 95
Backing up your information ............................................................................................................................... 95
Performing a system recovery ............................................................................................................................ 95
Using the Windows recovery tools ................................................................................................... 95
Using f11 recovery tools ................................................................................................................... 96
Using Windows operating system media (purchased separately) ................................................... 96
Using Windows Refresh or Windows Reset ...................................................................................... 97
Using HP Software Setup .................................................................................................................. 97
ix

11 Backup and recovery in Windows 7 .............................................................................................................. 98
Creating recovery media and backups ................................................................................................................ 98
Guidelines .......................................................................................................................................... 98
Creating recovery media with HP Recovery Disc Creator ................................................................. 98
Creating recovery media ................................................................................................. 99
Backing up your information ............................................................................................................ 99
Performing a system recovery .......................................................................................................................... 100
Using the Windows recovery tools ................................................................................................. 100
Using f11 recovery tools (select models only) ............................................................................... 101
Using Windows 7 operating system media .................................................................................... 101
12 Statement of Volatility ............................................................................................................................ 103
Non-volatile memory usage ............................................................................................................................. 104
Questions and answers ..................................................................................................................................... 106
13 Power cord set requirements .................................................................................................................... 107
Requirements for all countries ......................................................................................................................... 107
Requirements for specific countries and regions ............................................................................................. 107
14 Recycling ................................................................................................................................................ 109
Battery ............................................................................................................................................................... 109
Display ............................................................................................................................................................... 109
Index ........................................................................................................................................................... 115
x

1 Product description
Category Description
Product Name HP EliteBook Folio 9480m Notebook PC
Processors Intel® Core® processors:
●i7-4650U 1.7-GHz (max turbo frequency 3.3-GHz), 4-MB L3 Cache, 15W
●i7-4600U 2.1-GHz (max turbo frequency 3.3-GHz), 4-MB L3 Cache, 15W
●i5-4310U 2.0-GHz (max turbo frequency 3.0-GHz), 3-MB L3 Cache, 15W
●i5-4210U 1.7-GHz (max turbo frequency 2.7-GHz), 3-MB L3 Cache, 15W
Chipset Integrated with processor
Graphics Intel UMA Graphics with shared video memory: Intel HD Graphics 5000 (i7-4650U)
Intel UMA Graphics with shared video memory: Intel HD Graphics 4400 (i7-46000U,
i5-4310U, i5-4210U))
Panels 35.6-cm (14.0-in), 3.0-mm, flat/thin backlit, light-emitting diode (LED), high-
definition+ (HD+), AntiGlare (AG), SVA (1600×900) display with and without webcam
35.6-cm (14.0-in), 3.0-mm, flat/thin backlit, LED, HD, AG, SVA (1366×768) display
with and without webcam
Memory Two customer-accessible/upgradable memory module slots
DDR3L PC3-1600-MHz dual channel support
Supports 16384-MB of system RAM in the following configurations:
●16384-MB (8192-MB×2)
●8192-MB (8192-MB×1)
●4096-MB (4096-MB×1)
Flash cache 32-GB MLC mSATA module, not available on computer models equipped with SSD or
SED.
Supports no Flash cache module configuration.
Hard drive Supports 7.0-mm (.28-in), 6.35-cm (2.5-in) SATA hard drives and solid-state drives
●500-GB, 7200-rpm, self-encrypting drive (SED)
●500-GB, 7200-rpm
Solid-state drive Supports the following SATA III SSDs:
●256-GB SED
●240-GB
●180-GB
●128-GB
MiniCard SSD Supports 120-GB M.2 solid-state drive
No available with flash cache module
1

Category Description
Audio and video Two stereo speakers
HD audio with DTS Studio Sound
Integrated 720p HD webcam (supports no camera option)
Integrated dual-array microphone
Ethernet Intel I1218LM 10/100/1000 Ethernet network interface card (NIC) with iAMT
NIC Power Down technology
S3/S4/S5 wake on LAN
Wireless Integrated wireless local area network (WLAN) options by way of wireless module
Two WLAN antennas built into display assembly
Support for the following WLAN formats:
●Intel Dual Band Wireless-AC 7260 802.11 AC 2x2 WiFi + BT 4.0 Combo Adapter
●HP Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) combination WiFi
and Bluetooth 4.0 WLAN module
●Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) combination WiFi and
Bluetooth 4.0 WLAN module for use in Indonesia
Supports no WLAN option
Integrated wireless wide area network (WWAN) options by way of wireless module
Two world-wide/5-band WWAN antennas built into display assembly
Secured by subscriber identity module (SIM, user-accessible behind battery)
Support for the following WWAN formats:
●HP lt4112 LTE/HSPA+ Mobile Broadband Module
●HP lt4211 LTE/EV-DO/HSPA+ Gobi 4G Module
●HP hs3110 HSPA+ Mobile Broadband Module
Supports no WWAN option
Supports WWAN after market option
External media cards Secure Digital (SD) flash media slot supporting the following digital card formats:
●Secure Digital (SD) Memory Card
●SDHC
●SDXC
Ports Headphone/Microphone combo
Battery connector
DisplayPort 1.2a
Docking connector
Multi-Pin AC Port
RJ-45 (Ethernet)
USB 3.0 ports (2)
USB 3.0 charging/powered port (1)
2 Chapter 1 Product description

Category Description
VGA (Dsub 15 pin) supporting: 1920×1200 external resolution @ 60 Hz, hot plug and
unplug and auto-detection for correct output to wide-aspect vs. standard aspect
video
Keyboard/pointing devices Full chiclet keyboard, backlit, dual-point, spill-resistant with durakeys
Gesture support: MultiTouch gestures enabled, two-finger scrolling, and pinch-
zoom as default
Taps enabled by default
Touchpad on/off button
Touchpad supports 2-way scroll with legend
Power requirements Supports the following AC adapters:
65-W Smart EM adapter
45-W Smart AC adapter
45-W AC adapter (2-prong) for use in Japan
Supports the following batteries:
●Primary: 4-cell, 52-Wh, 3.55-Ah battery
●Secondary: 6-cell, 60-Wh, 2.7-Ah battery
Supports the following power cords:
●2 wire plug (1.0 m)
●3 wire plug with ground pin (1.0 m)
●3 wire plug with ground pin (1.8 m)
Security Supports security cable lock
Supports fingerprint reader and no fingerprint reader option
Supports Trusted Platform Module (TPM) 1.2 (Infineon, soldered down)
Integrated Smart Card reader (active)
Full volume encryption
HP ProtectTools
Operating system Preinstalled:
●Windows 8.1 Professional 64 DPK with Windows 7 Professional 64 image
●Windows 8.1 Professional 64 DPK with Windows 7 Professional 64 image –
MSNA
●Windows 8.1 EM 64
●Windows 8.1 CH 64
●Windows 8.1 ML 64
●Windows 8.1 Professional 64
●Windows 8.1 Professional 64 – MSNA
●FreeDOS
●Ubuntu Linux
3

2 External component identification

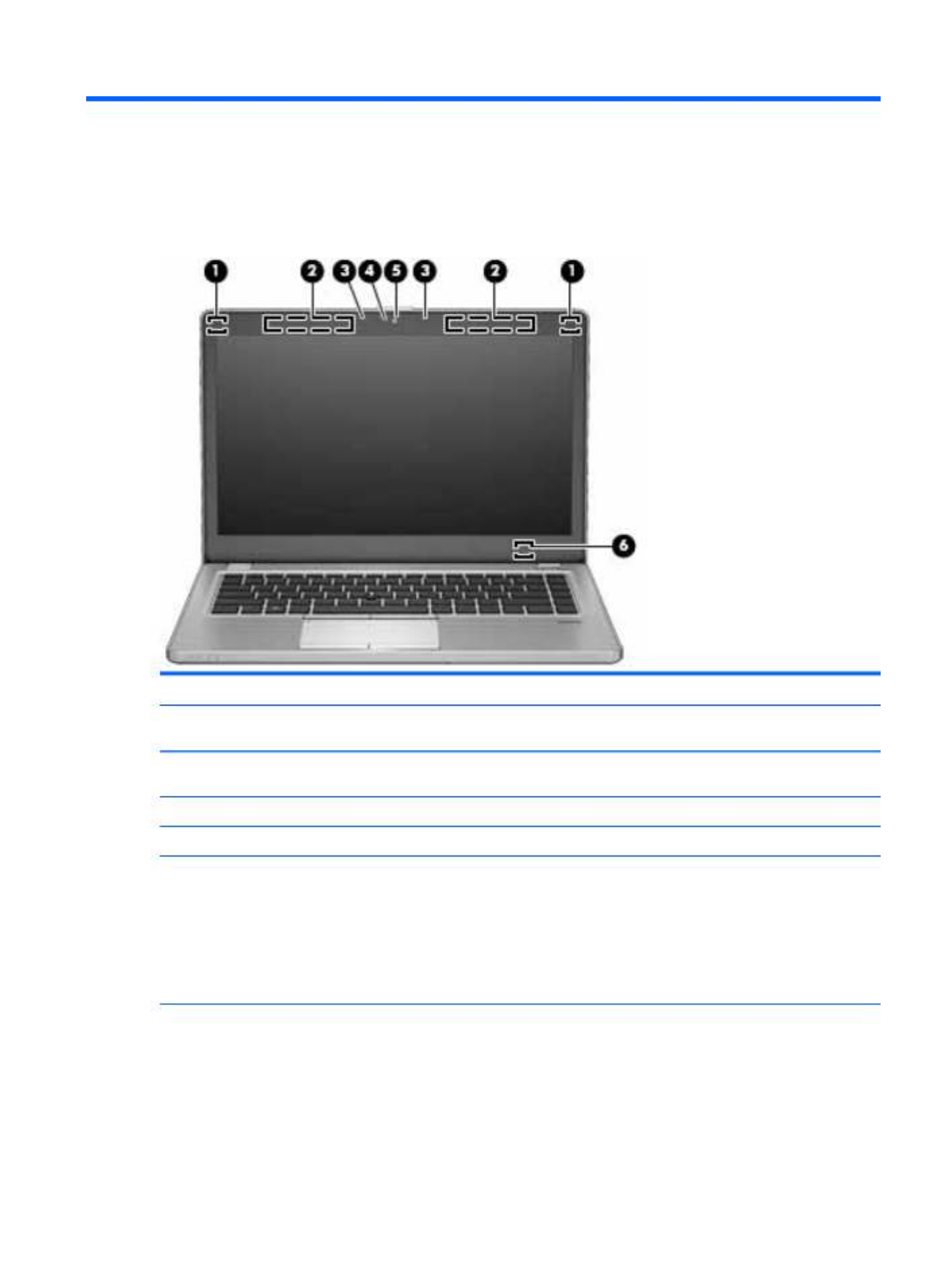

Display
Component Description
(1) WLAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless local
area networks (WLAN).
(2) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless wide
area networks (WWAN).
(3) Internal microphones (2) Record sound.
(4) Webcam light (select models only) On: The webcam is in use.
(5) Webcam (select models only) Records video and captures photographs. Some models allow you to
video conference and chat online using streaming video.
Windows 8.1: For information on using the webcam, access HP
Support Assistant. To access HP Support Assistant, from the Start
screen, select the HP Support Assistant app.
Windows 7: For information on using the webcam, select Start > All
Programs > Communication and Chat > CyberLink YouCam.
(6) Internal display switch Turns off the display or initiates Sleep if the display is closed while
the power is on.
NOTE: The display switch is not visible from the outside of the
computer.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions. For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices
Display 5

Component Description
that applies to your country or region. To access this guide in Windows 8.1, from the Start screen, type support, and then select the
HP Support Assistant app. To access the user guides in Windows 7, select Start > Help and Support > User Guides.
Top

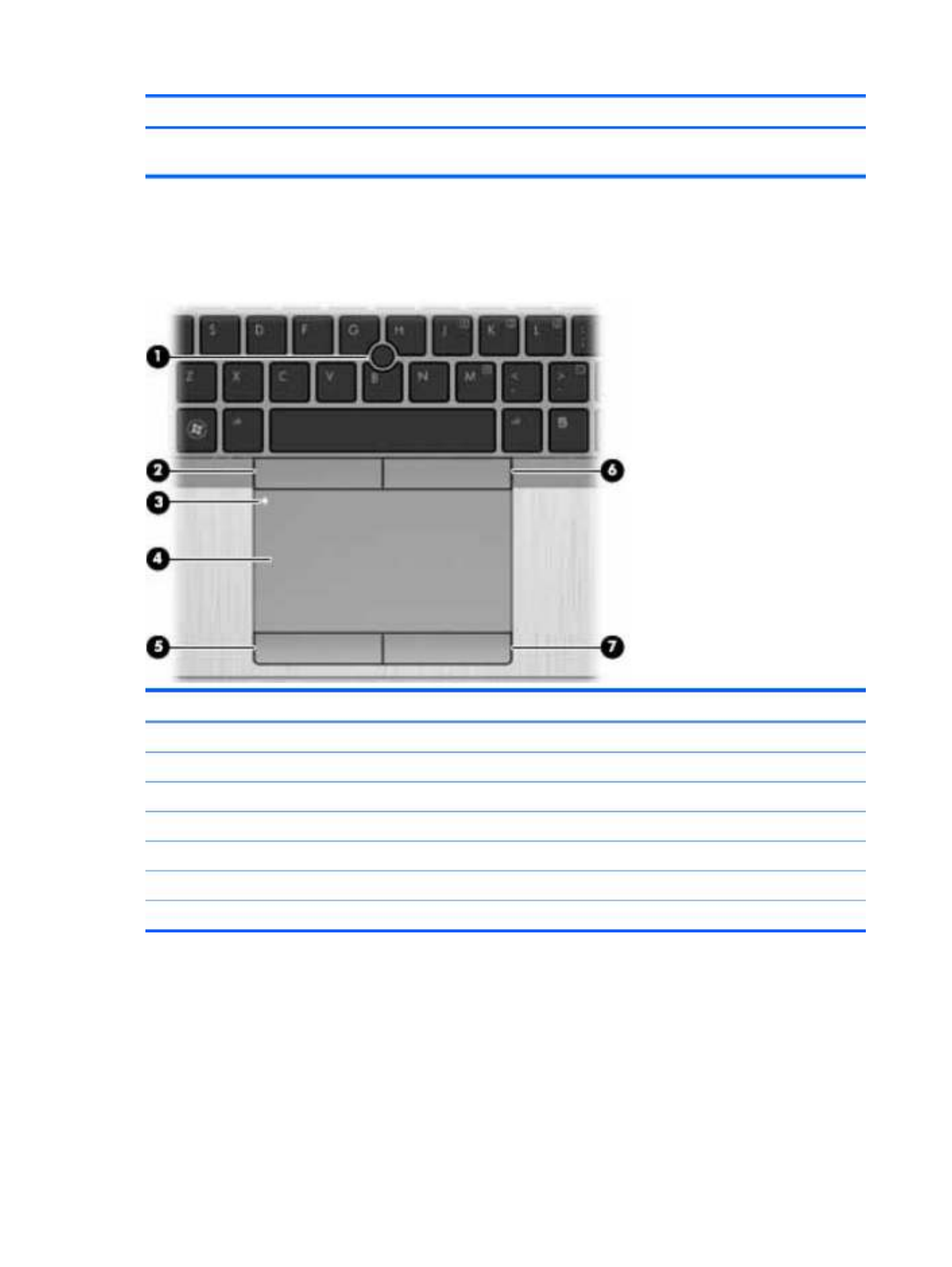

TouchPad
Component Description
(1) Pointing stick Moves the pointer and selects or activates items on the screen.
(2) Left pointing stick button Functions like the left button on an external mouse.
(3) TouchPad on/off button Turns the TouchPad on and off.
(4) TouchPad zone Moves the pointer and selects or activates items on the screen.
(5) Left TouchPad button Functions like the left button on an external mouse.
(6) Right pointing stick button Functions like the right button on an external mouse.
(7) Right TouchPad button Functions like the right button on an external mouse.
6 Chapter 2 External component identification

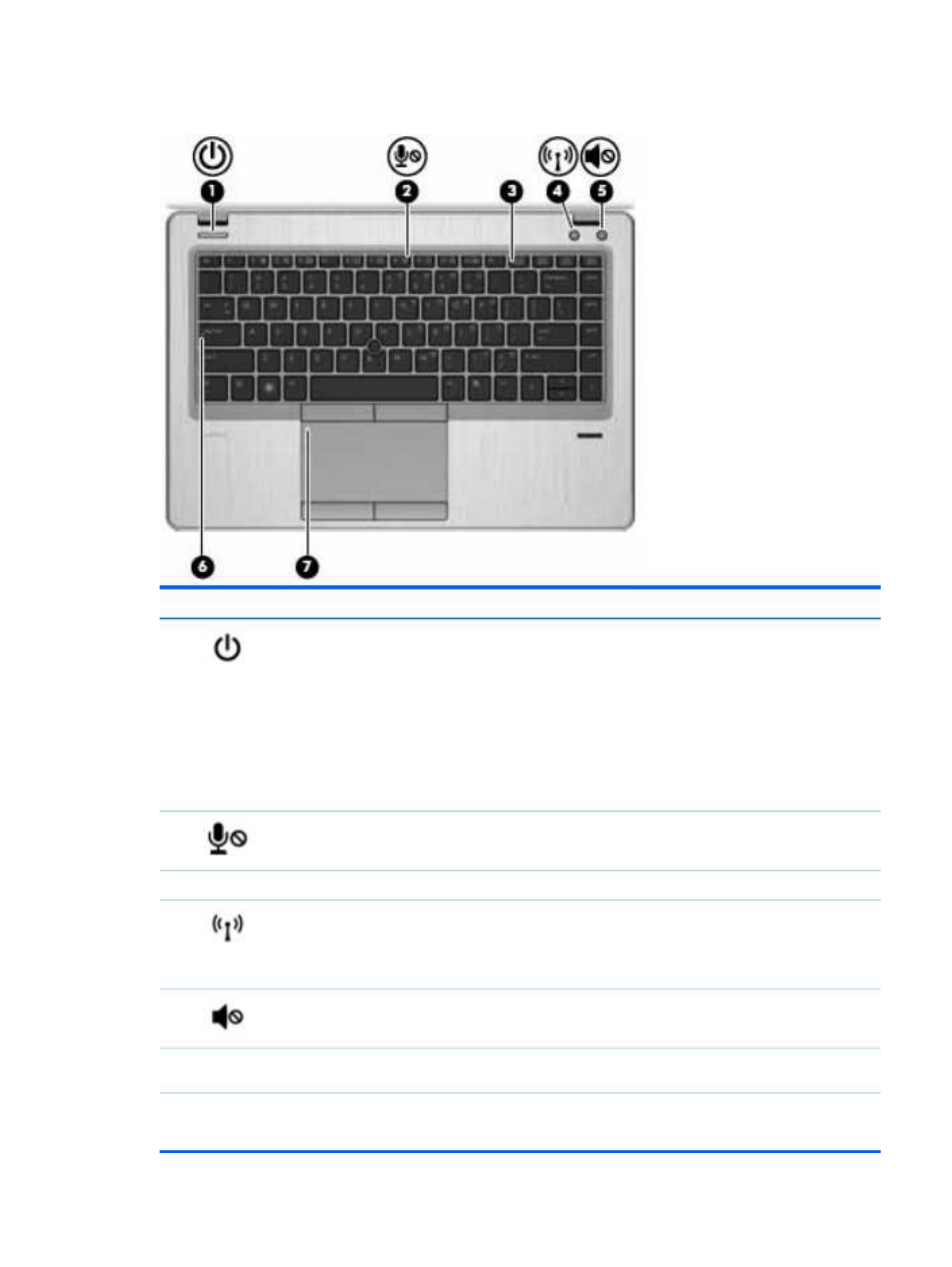

Lights
Component Description
(1) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state, a power-
saving state. The computer shuts off power to the display
and other unneeded components.
●Off: The computer is off or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
NOTE: For select models, the Intel® Rapid Start Technology
feature is enabled at the factory. Rapid Start Technology allows
your computer to resume quickly from inactivity.
(2) Microphone mute light ●Amber: microphone sound is off.
●Off: microphone sound is on.
(3) Num lock light On: Num lock is on.
(4) Wireless light White: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is on.
NOTE: On some models, the wireless light is amber when all
wireless devices are off.
(5) Mute light ●Amber: Computer sound is off.
●White: Computer sound is on.
(6) Caps lock light White: Caps lock is on, which switches the keys to all capital
letters.
(7) TouchPad light ●Amber: The TouchPad is off.
●Off: The TouchPad is on.
Top 7

Front

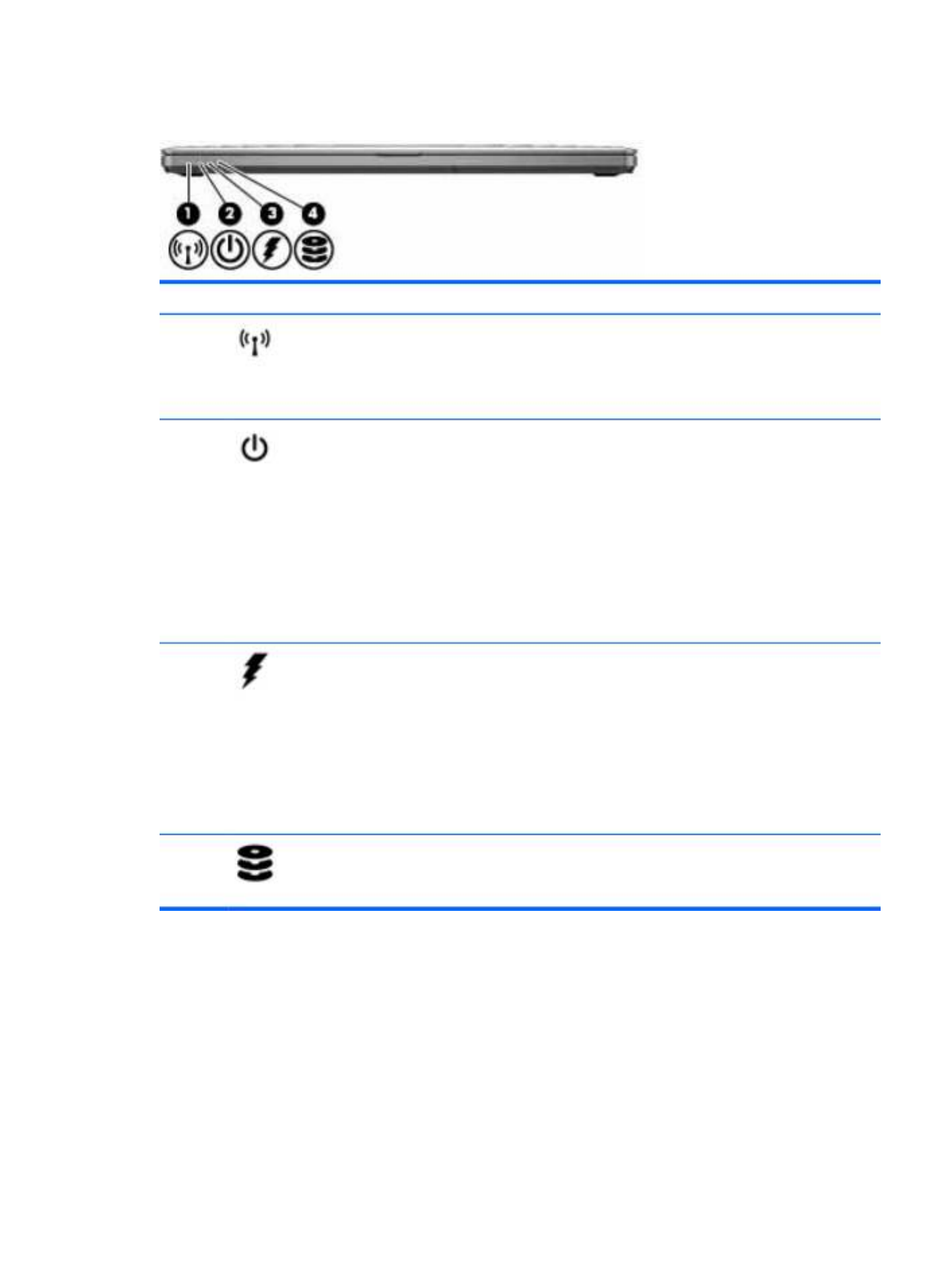

Component Description
(1) Wireless light White: An integrated wireless device, such as a wireless
local area network (WLAN) device and/or a Bluetooth®
device, is on.
NOTE: On some models, the wireless light is amber when
all wireless devices are off.
(2) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state, a power-
saving state. The computer shuts off power to the
display and other unneeded components.
●Off: The computer is off or in Hibernation.
Hibernation is a power-saving state that uses the
least amount of power.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity.
(3) AC adapter/Battery light ●White: The computer is connected to external power
and the battery is charged from 90 to 99 percent.
●Amber: The computer is connected to external power
and the battery is charged from 0 to 89 percent.
●Blinking amber: A battery that is the only available
power source has reached a low battery level. When
the battery reaches a critical battery level, the
battery light begins blinking rapidly.
●Off: The battery is fully charged.
(4) Hard drive light ●Blinking white: The hard drive is being accessed.
●Amber: HP 3D DriveGuard has temporarily parked the
hard drive.
Front 11
Produkt Specifikationer
Mærke: | HP |
Kategori: | Bærbare computer |
Model: | EliteBook Folio 9480m |
Bredde: | 338 mm |
Dybde: | 231 mm |
Højde: | 18.9 mm |
Vægt: | 1610 g |
Brugervejledning: | Ja |
Produktfarve: | Sølv |
Batterikapacitet: | 52 Wh |
Produkttype: | Notebook |
Skærm diagonal: | 14 " |
Skærmopløsning: | 1366 x 768 pixel |
Berøringsskærm: | Ingen |
Kompatible hukommelseskort: | SD |
Front kamera: | Ja |
Wi-Fi: | Ja |
Bluetooth: | Ingen |
Batteriteknologi: | Lithium-Ion (Li-Ion) |
Formfaktor: | Muslingeskal |
HD-type: | HD |
Naturligt aspektforhold: | 16:9 |
DVI-port: | Ingen |
Ethernet LAN-porte (RJ-45): | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: | 3 |
Ethernet LAN: | Ja |
Wi-Fi-standarder: | Ikke understøttet |
Processorkerner: | 2 |
Ethernet LAN-datahastigheder: | 10,100,1000 Mbit/s |
Intern hukommelse: | 4 GB |
Indgangsspænding for vekselstrømsadapter: | 100 - 240 V |
Frekvens for vekselstrømsadapter: | 50 - 60 Hz |
Hurtig start guide: | Ja |
Operativsystem installeret: | Windows 7 Professional |
AC-adapter inkluderet: | Ja |
Indbygget kortlæser: | Ja |
HDD kapacitet: | 320 GB |
LED-baggrundsbelysning: | Ja |
Antal indbyggede højttalere: | 2 |
Batterilevetid (maks.): | - t |
Intel® Wireless Display (Intel® WiDi): | Ja |
Bæredygtighedscertifikater: | ENERGY STAR |
Processorfrekvens: | 2 GHz |
Processorserie: | Intel® Core™ i7 |
Processor boost frekvens: | 3.2 GHz |
Processortråde: | 4 |
Processor-cache: | 4 MB |
Processor cache type: | Smart cache |
Intern hukommelsestype: | DDR3-SDRAM |
Hukommelsesur hastighed: | 1600 Mhz |
Maksimal intern hukommelse: | 16 GB |
Hukommelse form faktor: | SO-DIMM |
Samlet lagringskapacitet: | 320 GB |
Lagermedie: | HDD+SSD |
On-board grafikkort, model: | Intel® HD Graphics 4000 |
Diskret grafikadaptermodel: | Ikke tilgængelig |
On-board grafikkort: | Ja |
Diskret grafikadapter: | Ingen |
Indbygget grafikadapterfamilie: | Intel® HD Graphics |
Indbygget mikrofon: | Ja |
Mikrofonindgang: | Ingen |
S/PDIF-udgang: | Ingen |
Docking-stik: | Ja |
ExpressCard-slot: | Ingen |
Cardbus PCMCIA slot type: | Ingen |
Smartcard slot: | Ingen |
Opladningsport type: | DC-in-stik |
Pegeredskab: | Touchpad |
Numerisk tastatur: | Ingen |
Baggrundsbelyst tastatur: | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology): | Ja |
Intel® Turbo Boost Teknologi: | 2.0 |
Vekselstrømsadapter strøm: | 45 W |
Slot til kabellås: | Ingen |
Lydsystem: | SRS Premium Sound PRO |
Hukommelsesstik: | 2x SO-DIMM |
Processorproducent: | Intel |
Processormodel: | i7-3667U |
Tilslutning af hovedtelefoner: | 3,5 mm |
Oprindelsesland: | Kina |
Skærmoverflade: | Mat |
Antal DisplayPorts: | 1 |
Antal VGA-porte (D-sub): | 1 |
Garantibevis: | Ja |
Antal installerede SSD'er: | 1 |
SDD-kapacitet: | 32 GB |
Optisk drevtype: | Ingen |
Kombineret hovedtelefon/mikrofon-port: | Ja |
Antal battericeller: | 4 |
Enhanced Intel SpeedStep Teknologi: | Ja |
Udfør deaktivering af bit: | Ja |
Idle status: | Ja |
CPU-konfiguration (maks.): | 1 |
Intel® VT-x with Extended Page Tables (EPT): | Ja |
Indlejret tilgængelige muligheder: | Ingen |
Intel® 64: | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d): | Ja |
Intel® Virtualization Technology (VT-x): | Ja |
HDD-grænseflade: | SATA |
Bus type: | DMI |
Processorgeneration: | 3rd gen Intel® Core™ i7 |
Intel® Flex Memory Access: | Ja |
Intel® Trusted Execution Teknologi: | Ja |
Intel® Enhanced Halt State: | Ja |
Intel® klar video teknologi: | Ingen |
Intel® Identity Protection Technology version: | 1.00 |
Intel® Secure Key Technology version: | 1.00 |
Konfliktfri processor: | Ja |
HDD hastighed: | 7200 rpm |
Processor sokkel: | BGA 1023 |
Processor litografi: | 22 nm |
Stepping: | L1 |
Thermal Design Power (TDP): | 17 W |
Maksimalt antal PCI Express-kanaler: | 16 |
PCI Express slots version: | 2.0 |
PCI Express-konfigurationer: | 1x8,1x16,2x4,2x8 |
Fejlkorrigerende kode understøttet af processor: | Ingen |
Tjunction: | 105 °C |
Processor front side bus: | - Mhz |
Systembus-hastighed: | 5 GT/s |
Processor driftstilstande: | 64-bit |
Processor kodenavn: | Ivy Bridge |
FSB Paritet: | Ingen |
Integreret 4G WiMAX: | Ja |
Intel® InTru™ 3D Teknologi: | Ja |
Intel® Clear Video HD Teknologi (Intel® CVT HD): | Ja |
Intel® Insider™: | Ja |
Intel® Sikker Nøgle: | Ja |
Intel® Smart Connect Teknologi: | Ingen |
Intel® My WiFi Teknologi (Intel® MWT): | Ja |
Intel® Anti-Theft Teknologi (Intel® AT): | Ja |
Intel® Rapid Start Teknologi: | Ingen |
Intel® Smart Response Teknologi: | Ingen |
Intel® Identity Protection Teknologi (Intel® IPT): | Ja |
Intel® Mindre Forretnings-fordele (Intel® SBA): | Ingen |
Intel® Matrix Storage Teknologi (Intel® MST): | Ingen |
Intel® Active Management Teknologi (Intel® AMT): | Ingen |
Intel® Quick Sync Video Teknologi: | Ja |
Intel® AES Nye Instruktioner (Intel® AES-NI): | Ja |
Intel® Demand Based Switching: | Ingen |
Termiske overvågningsteknologier: | Ja |
Intel® Dual Display Capable Teknologi: | Ja |
Intel® FDI Teknologi: | Ja |
Intel® Rapid Storage Teknologi: | Ingen |
Intel® Fast Memory Access: | Ja |
Intel® Clear Video Teknologi til MID (Intel® CVT for MID): | Ingen |
Processor-pakke størrelse: | 31 x 24 mm |
Processor kode: | SR0N5 |
Grafisk og IMC litografi: | 22 nm |
Processor ARK ID: | 64898 |
Hukommelseslayout (slots x størrelse): | 1 x 4 GB |
Antal installerede HDD'er: | 1 |
Indbygget grafikadapter basefrekvens: | 350 Mhz |
Indbygget grafikadapter dynamisk frekvens (maks.): | 1150 Mhz |
CPU-multiplikator (bus/kerneforhold): | 20 |
Indbygget grafikadapter-ID: | 0x166 |
Operativsystemets arkitektur: | 32-bit |
Understøttede instruktionssæt: | AVX |
Intel® Smart Cache: | Ja |
LightScribe: | Ingen |
Bundkort chipsæt: | Intel® QM77 Express |
Intel HD Audio Teknologi: | Ingen |
Spildsikret tastatur: | Ja |
Gendannelse af operativsystem: | Windows 8 Pro |
Har du brug for hjælp?
Hvis du har brug for hjælp til HP EliteBook Folio 9480m stil et spørgsmål nedenfor, og andre brugere vil svare dig
Bærbare computer HP Manualer
4 August 2025
4 August 2025
4 August 2025
4 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Bærbare computer Manualer
- Honor
- Vorago
- Razer
- Getac
- NEC
- Tripp Lite
- BEKO
- Medion
- Thomson
- Pyle
- Archos
- Huawei
- Apple
- Viewsonic
- Hyundai
Nyeste Bærbare computer Manualer
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
