HP Pavilion dv6 Entertainment PC
Maintenance and Service Guide
© Copyright 2008, 2009 Hewlett-Packard
Development Company, L.P.
ATI Mobility Radeon is a registered
trademark of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-
Packard Company under license. Intel,
Celeron, Core, and Pentium are trademarks
of Intel Corporation in the U.S. and
other countries. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation.
SD Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: May 2009
First Edition: December 2008
Document Part Number: 505495-003
Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers and fingerprint reader ........................................................................... 11
Keys ................................................................................................................................... 13
Front components .............................................................................................................................. 14
Rear component ................................................................................................................................. 15
Right-side components ....................................................................................................................... 15
Left-side components ......................................................................................................................... 16
Bottom components ........................................................................................................................... 17
Display components ........................................................................................................................... 18
Wireless antennas (select models only) ............................................................................................. 19
3 Illustrated parts catalog
Service tag ......................................................................................................................................... 20
Computer major components ............................................................................................................. 21
Display assembly components ........................................................................................................... 33
AntiGlare display assembly spare parts ............................................................................ 33
BrightView display assembly spare parts .......................................................................... 35
Plastics Kit .......................................................................................................................................... 37
Cable Kit ............................................................................................................................................. 38
Miscellaneous parts ............................................................................................................................ 39
Sequential part number listing ............................................................................................................ 40
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 52
Tools required .................................................................................................................... 52
Service considerations ....................................................................................................... 52
Plastic parts ....................................................................................................... 52
Cables and connectors ..................................................................................... 53
v
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Intel Core Duo P8400 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7550 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7450 2.13-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Celeron® 900 2.20-GHz with 1-MB L2 cache
and 667-MHz FSB
√
Intel Celeron® T1600 1.66-GHz with 1-MB L2
cache and 667-MHz FSB
√
Chipset Northbridge: Intel PM45 √
Northbridge: Intel GM45 √
Southbridge: Intel ICH9M √ √
Graphics nVIDIA GeForce 9200M GS with 512 MB of
dedicated video memory (64 MB × 16 DDR2 × 4
PCs)
●Up to 767 MB video memory on computer
models equipped with 1 GB of main system
memory
●Up to 1279 MB video memory on computer
models equipped with 2 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 3 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 4 GB of main system
memory (32-bit OS)
●Up to 2303 MB video memory on computer
models equipped with 4 GB of main system
memory (64-bit OS)
√
ATI Discrete PCI Express x 16 Graphics
●ATI Mobility Radeon
TM
HD 4650 (M96) with
1 GB dedicated video memory (64MBx16
DDR3 x 8 PCs)
●ATI Mobility Radeon HD 4530 (M92) with
512 MB dedicated video memory (64MBx16
DDR3 x 4 PCs)
√
Intel Extreme Graphics - Intel GMA 4700MHD √
2 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Unified memory architecture (UMA) with shared
video memory:
●Up to 270 MB of graphics subsystem
memory on computer models equipped with
1024 MB of main system memory
●Up to 782 MB of graphics subsystem
memory on computer models equipped with
2048 MB of main system memory
●Up to 1294 MB of graphics subsystem
memory on computer models equipped with
3072 MB of main system memory
●Up to 1294 MB of graphics subsystem
memory on computer models equipped with
4096 MB of main system memory (32-bit
OS)
●Up to 1759 MB of graphics subsystem
memory on computer models equipped with
4096 MB of main system memory (64-bit
OS)
●Memory size is dynamic change
√
Panels ●15.6-inch, WXGA (1366 × 768) BrightView √ √
●16.0-inch, WXGA (1366 × 768) BrightView √ √
●15.6-inch WXGA (1366 × 768) AntiGlare √ √
●16.0-inch, WXGA (1366 × 768) AntiGlare √ √
●AntiGlare glass panel cover support √ √
●Support for lighted logo on display enclosure √ √
●Typical brightness 200 nits √ √
Memory 2 SODIMM slots √ √
Customer-accessible/upgradable √ √
PC2-6400, 800-MHz, DDR2 √ √
Dual-channel support √ √
3
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Supports up to 8 GB system memory
●1024-MB total system memory (1024 MB ×
1, dual-channel)
●2048-MB total system memory (1024 MB ×
2, dual-channel)
●2048-MB total system memory (2048 MB ×
1, dual-channel)
●3072-MB total system memory (2048 MB +
1024 MB)
●4096-MB total system memory (2048 MB ×
2, dual-channel)
●6144-MB total system memory (2048 MB +
4096 MB)
●8192-MB total system memory (4096 MB ×
2, dual-channel)
√ √
Hard drives Supports all Serial ATA (SATA) 9.5 mm, 6.35-cm
(2.5-inch) hard drives
√ √
Supports one hard drive √ √
Support for HP ProtectSmart Hard
Drive Protection
√ √
Single hard drive configurations:
●160 GB (5400 rpm)
●250 GB (7200 rpm) (select models only)
●250 GB (5400 rpm)
●320 GB (7200 rpm) (select models only)
●320 GB (5400 rpm)
●400 GB (5400 rpm)
●500 GB (5400 rpm) (select models only)
√ √
Optical drives 12.7-mm tray load √ √
Serial ATA √ √
Fixed (removal of 1 screw required) √ √
Supports the following optical drives:
●DVD±RW and D-RW SuperMulti Double-
Layer Combo Drive with
●Blu-ray ROM DVD±R/RW SuperMulti
Double-Layer Drive
●Blu-ray ROM with LightScribe DVD±R/RW
SuperMulti Double-Layer Drive
√ √
4 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Webcam VGA camera √ √
Fixed (no tilt) √ √
Activity LED √ √
640 × 480 by 24 frames per second √ √
Microphone 2 omnidirectional microphones, dual-array with
appropriate software (supports beam forming,
echo cancellation, and noise suppression)
√ √
Audio HD Audio (IDT) √ √
Supports Microsoft® Premium Requirements √ √
Pavilion-branded Altec Lansing speakers √ √
Modem 56K V.92 data/fax modem (select models only) √ √
Supports all worldwide certification requirements √ √
Ethernet Integrated Realtek 10/100/1000 network
interface card (NIC)
√
Integrated Realtek 10/100 NIC √
Wireless Integrated wireless local area network (WLAN) options by way of wireless module:
Broadcom BCM4312 802.11b/g √ √
Broadcom BCM4312 802.11b/g + Bluetooth®
with two antennas
√ √
Broadcom 4322 802.11a/b/g/n WLAN √ √
Broadcom 4322 802.11a/b/g/n WLAN +
Bluetooth
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module + Bluetooth with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
+ Bluetooth with two antennas
√ √
TV tuner Integrated NTSC/ATSC/ANG hybrid
TV tuner module (select models only)
√ √
Integrated worldwide analog DVB-T/ANG
TV tuner module (select models only)
√ √
Integrated DVB-T TV tuner module (select
models only)
√
Support for TV tuner antennas for both DVB-T
and NTSC/ATSC (select models only)
√ √
5
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
External media card One ExpressCard 54 slot √ √
Digital Media Slot, supports Secure Digital (SD )
Memory Card, MultiMediaCard (MMC), Memory
Stick (MS, Memory Stick Pro (MSP), xD-Picture
Card (XD)
√ √
Internal card
expansion
Two Mini Card slots
●One slot for WLAN
●One slot for TV tuner or other technologies
√ √
Ports VGA, 15-pin supporting 1920 × 1200 resolution
at 75Hz
√
VGA, 15-pin supporting 1600 × 1200 resolution
at 75Hz
√
High-Definition Multimedia Interface (HDMI)
v1.3b supporting 1080p with HDCP key
√ √
eSATA port combo with fourth USB port √ √
Four USB 2.0 ports √ √
IEEE 1394a √
RJ-11 modem (select models only) √ √
RJ-45 Ethernet √ √
Consumer infrared √ √
MCX connector for TV antennas (select models
only)
√ √
Two stereo headphone jacks (audio-out) √ √
Microphone input (audio-in) √ √
2-pin AC power for 90-W AC adapter √ √
Docking Expansion port 3 supports the HP xb3000
Notebook Expansion Base and HP Notebook
QuickDock
√ √
Keyboard/pointing
devices
16-inch full-size keyboard with numeric keypad √ √
Standard IMR keyboard with molded keyboard
characters
√ √
EspressoTextured Keyboard (select models
only)
√ √
TouchPad supports 2-way scrolling √ √
Taps enabled as default √ √
Power requirements 6-cell, 47-Wh, 2.55-Ah Li-ion battery √
6 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
6-cell, 55-Wh, 2.55-Ah Li-ion battery (Germany
only)
√
6-cell, 55-Wh, 2.55-Ah Li-ion battery √
12-cell, 95-Wh, 8.8-Ah Li-ion battery √
90-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
65-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
Security Security cable slot √ √
Fingerprint reader (select models only) √ √
Operating system Preinstalled:
Windows Vista® Business (32 bit) √ √
Windows Vista Home Basic (32 bit) √ √
Windows Vista Premium (32 bit and 64 bit) √ √
Windows Vista Ultimate (64 bit) √ √
Serviceability AC adapter √ √
Battery (system) √ √
Hard drive √ √
Memory module √ √
Optical drive √ √
Mini Card components √ √
WLAN module √ √
7
2 External component identification
Top components

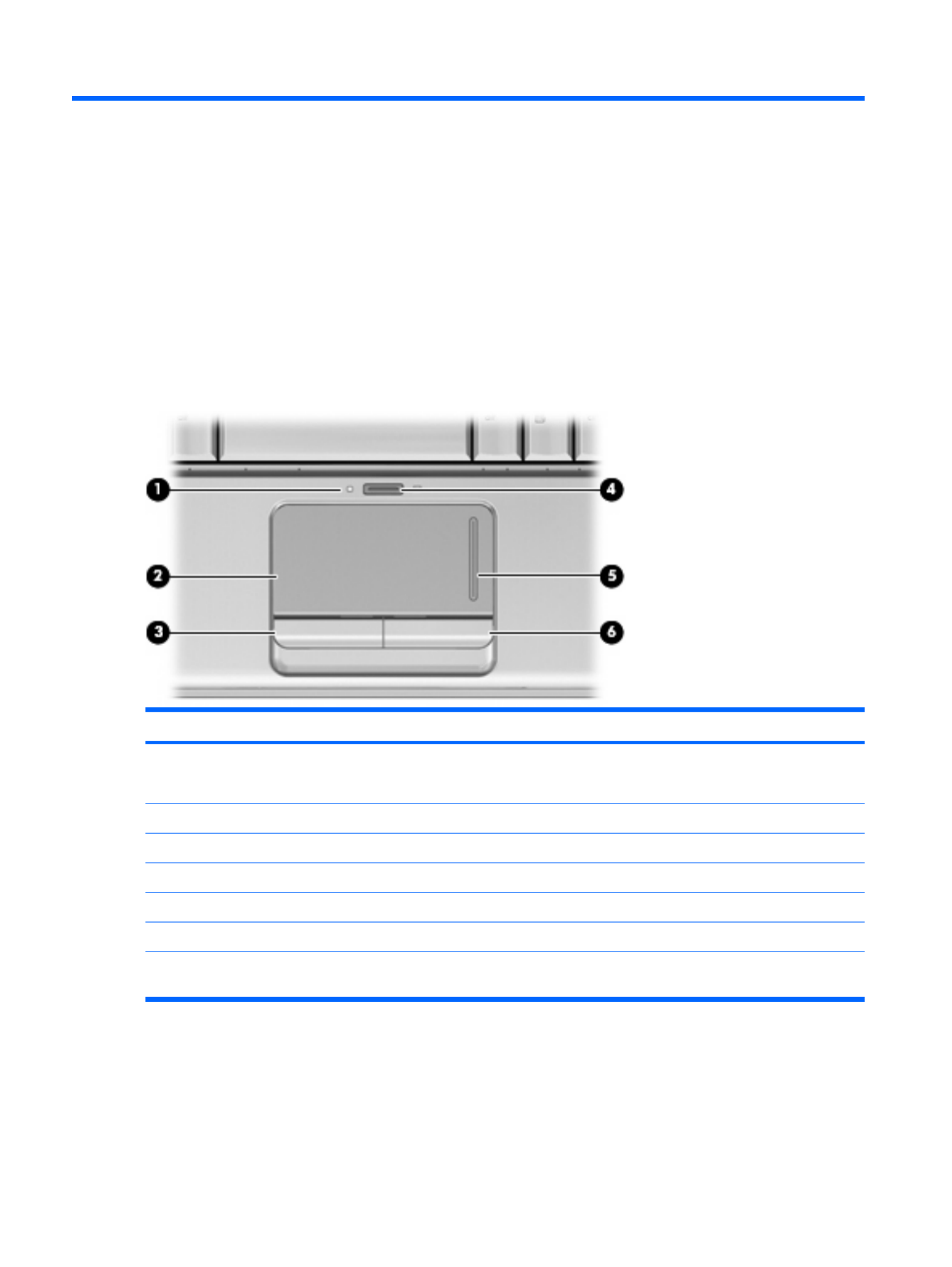

TouchPad
Item Component Description
(1) TouchPad light ●White: TouchPad is enabled.
●Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad on/off button Enables/disables the TouchPad.
(5) TouchPad vertical scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change TouchPad preferences, select Start > Control Panel > Hardware
and Sound .> Mouse
8 Chapter 2 External component identification

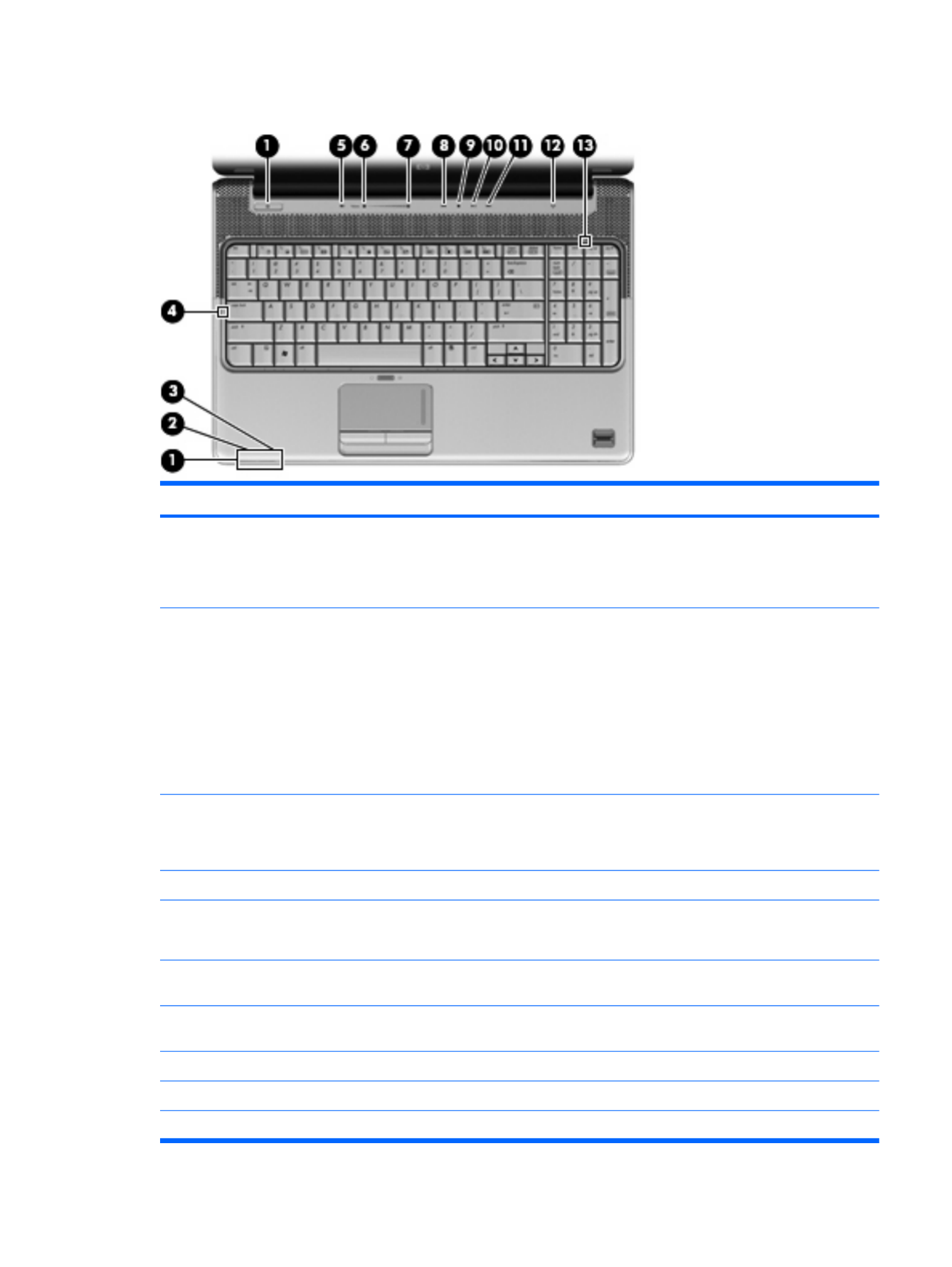

Lights
Item Component Description
(1) Power lights* (2) ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(3) Drive light ●Blinking: The hard drive or optical drive is being accessed.
●Amber: HP ProtectSmart Hard Drive Protection has
temporarily parked the hard drive.
(4) Caps lock light On: Caps lock is on.
(5) Volume mute light ●White: Computer sound is turned on.
●Amber: Computer sound is turned off.
(6) Volume down light On: The volume scroll zone is being used to decrease speaker
volume.
(7) Volume up light On: The volume scroll zone is being used to increase speaker
volume.
(8) Previous/rewind light On: The previous/rewind button has been pressed.
(9) Play/pause light On: The play/pause button has been pressed.
(10) Next/fast forward light On: The next/fast forward button has been pressed.
Top components 9

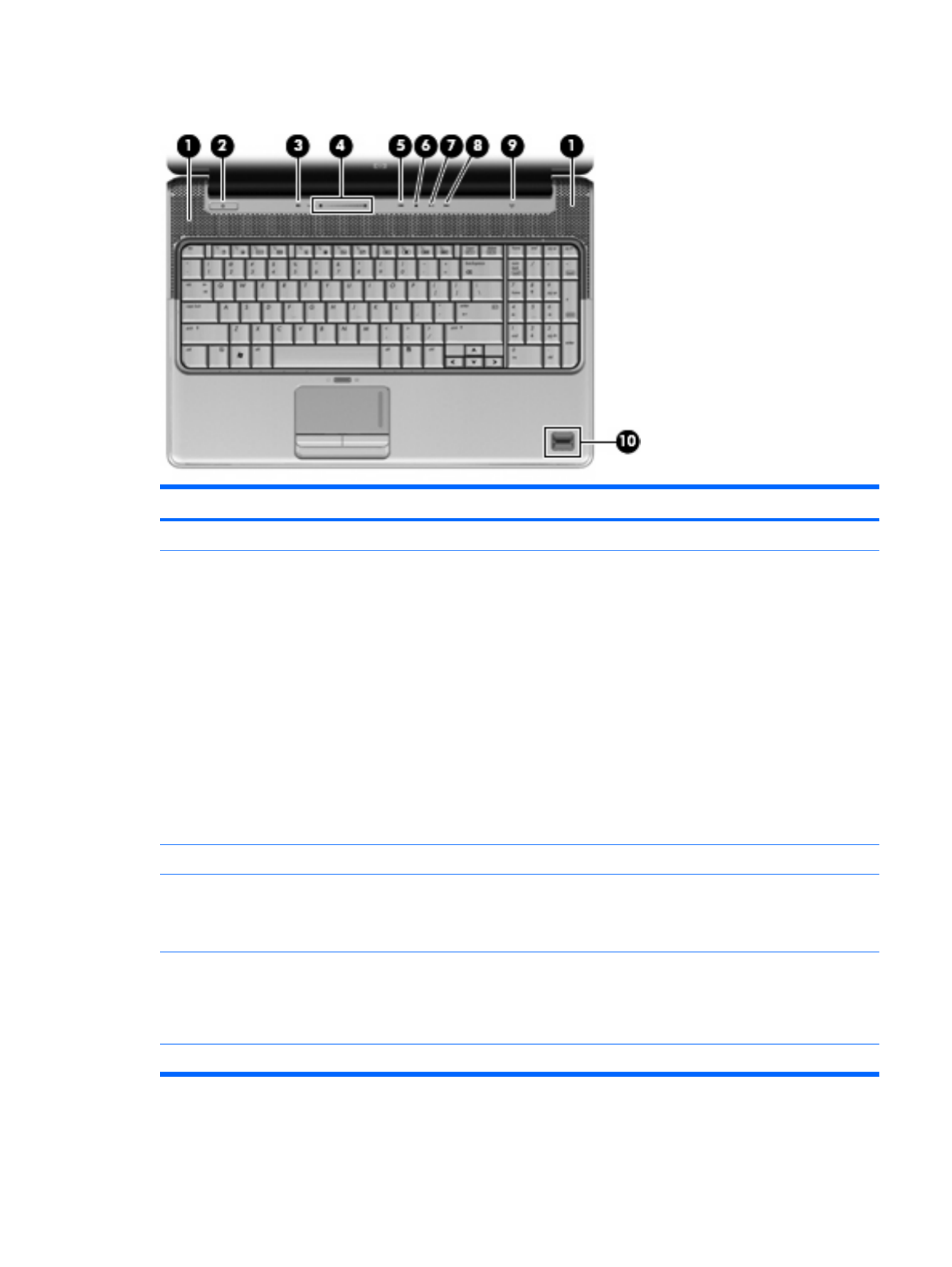

Buttons, speakers and fingerprint reader
Item Component Description
(1) Speakers (2) Produce sound.
(2) Power button* ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button briefly to initiate
Sleep.
●When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(3) Volume mute button Mutes and restores speaker sound.
(4) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus sign (-) on the scroll zone to decrease volume, or tap the
plus sign (+) on the scroll zone to increase volume.
(5) Previous/rewind button ●Plays the previous track or chapter when the button is pressed
once.
●Rewinds media when the button is pressed simultaneously
with the fn key.
(6) Play/pause button Plays or pauses media.
Top components 11
Item Component Description
(7) Next/fast forward button ●Plays the next track or chapter when the button is pressed
once.
●Fast forwards media when pressed simultaneously with the
fn key.
(8) Stop button Stops playback.
(9) Wireless button Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE: A wireless network must be set up in order to establish a
wireless connection.
(10) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password logon.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
12 Chapter 2 External component identification

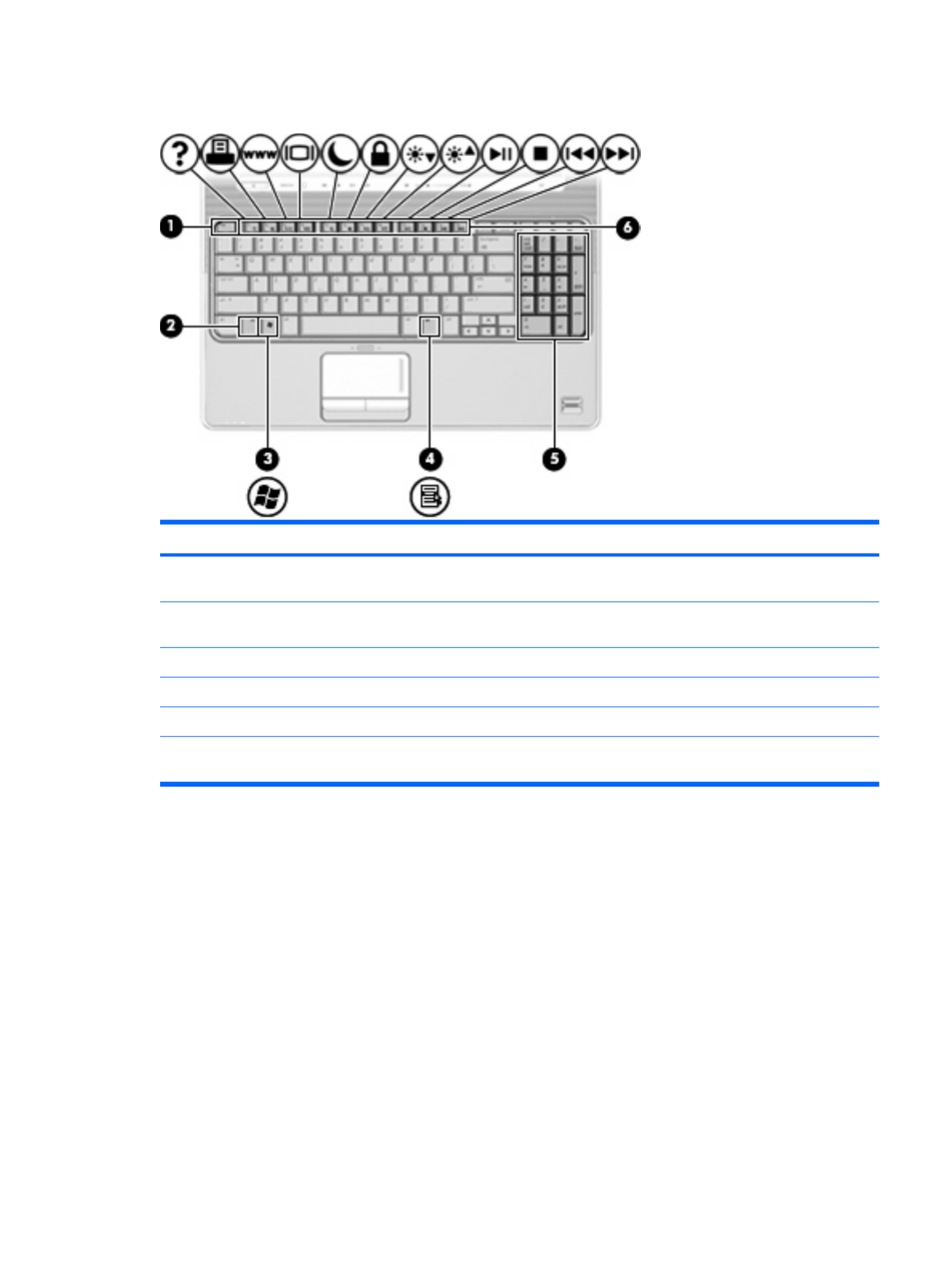

Keys
Item Component Description
(1) esc key Displays system information about your computer when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 13
Front components

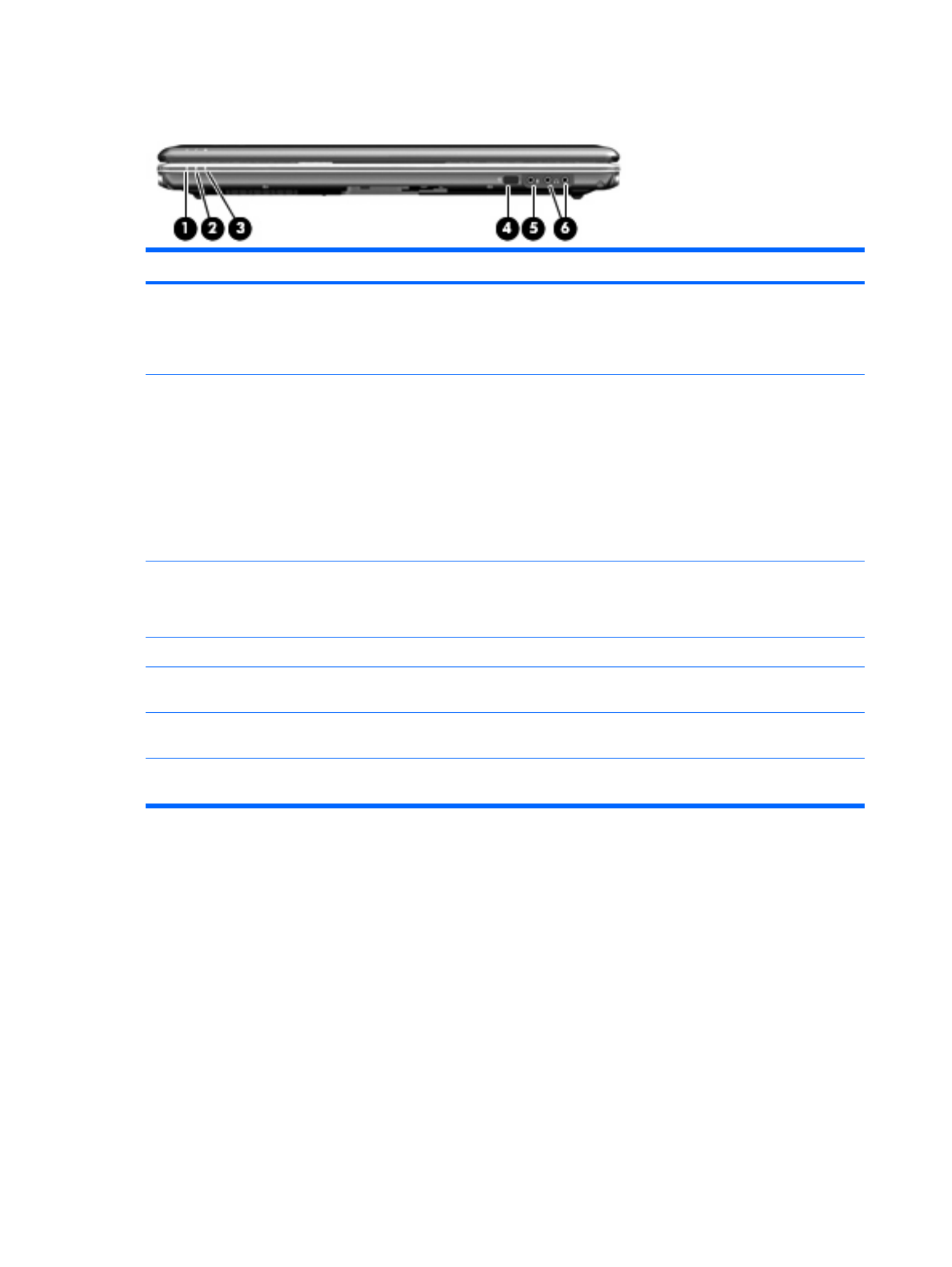

Item Component Description
(1) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a low
battery level.
(3) Drive light ●Blinking: The hard drive or optical drive is being accessed.
●Amber: HP ProtectSmart Hard Drive Protection has
temporarily parked the hard drive.
(4) Consumer infrared lens Receives a signal from the remote control.
(5) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(6) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
NOTE: This table describes factory settings. For information about changing factory settings, refer to the user guides located
in Help and Support.
14 Chapter 2 External component identification
Rear component
Component Description
Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
Right-side components

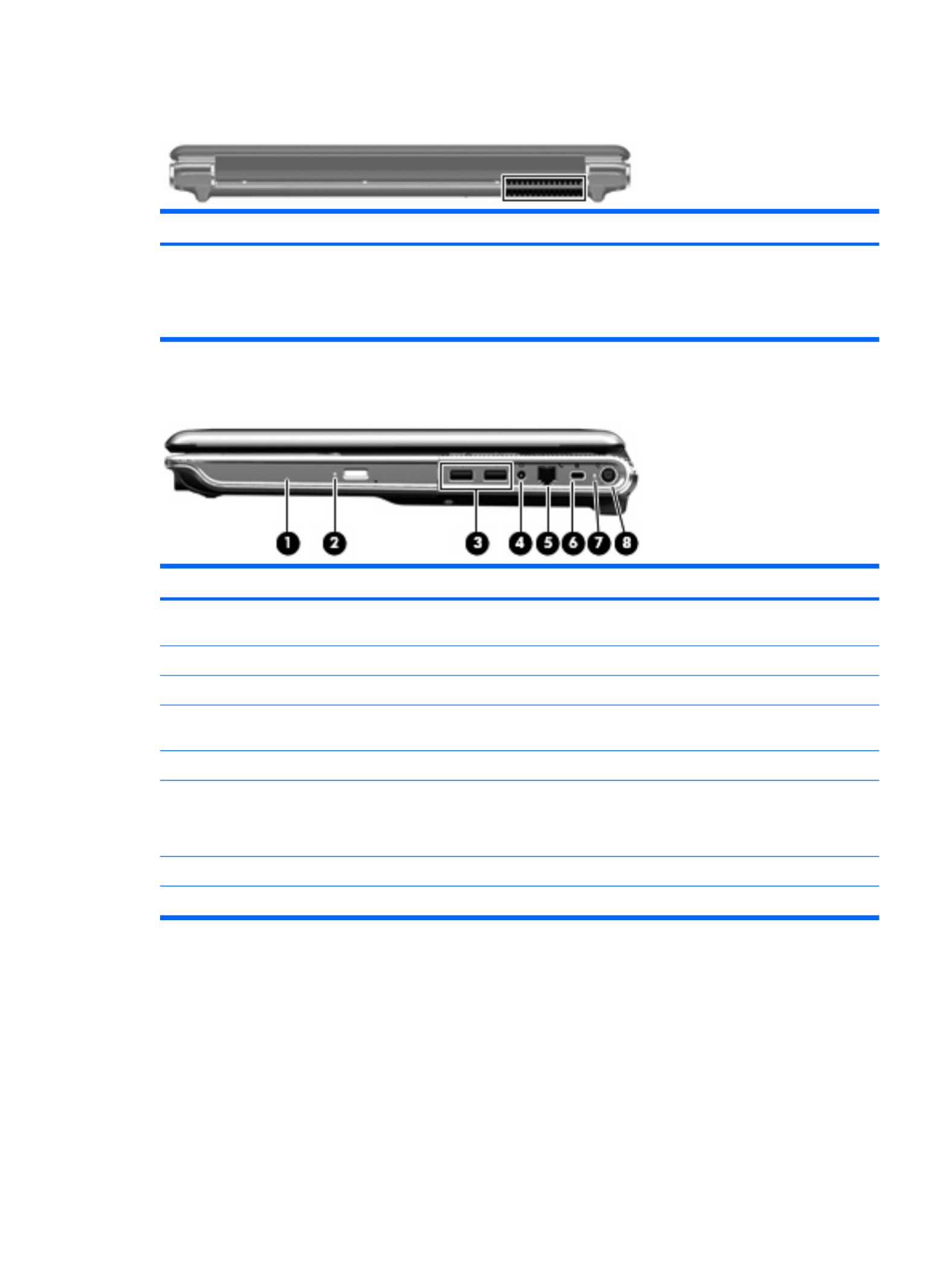

Item Component Description
(1) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) TV antenna/cable jack (select models only) Connects a TV antenna, a digital cable device, or a satellite device
that receives standard or high-definition TV broadcasts.
(5) RJ-11 (modem) jack (select models only) Connects a modem cable.
(6) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(7) Activity light for the power connector Indicates that the power is on.
(8) Power connector Connects an AC adapter.
Rear component 15
Bottom components

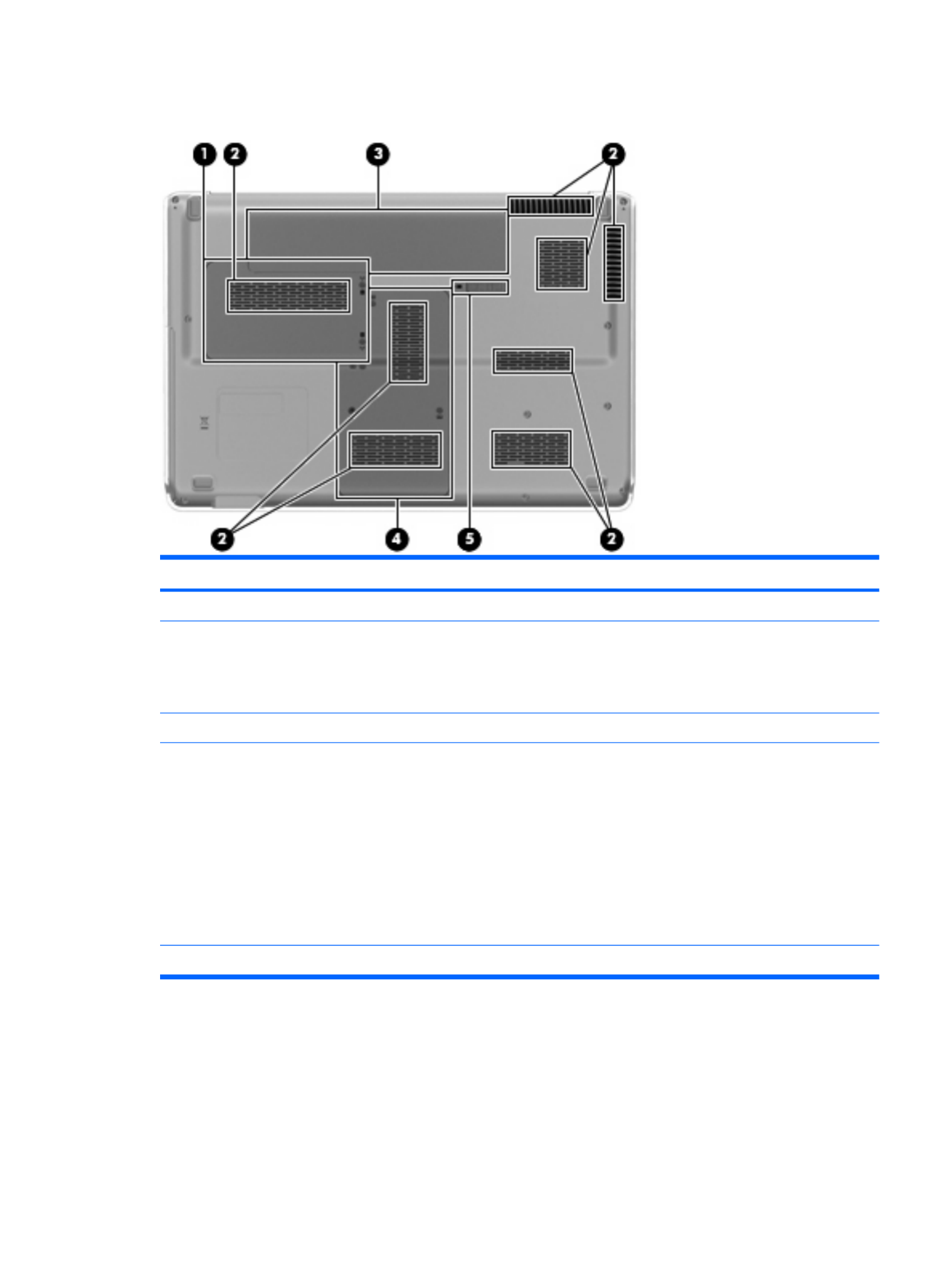

Item Component Description
(1) Hard drive bay Holds the hard drive.
(2) Vents (8) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Battery bay Holds the battery.
(4) Memory module compartment Contains the memory module slots.
Also holds the WLAN module, TV tuner card (select models only),
and the Intel Turbo Memory card (select models only).
CAUTION: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for use in
the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(5) Battery release latch Releases the battery from the battery bay.
Bottom components 17
Display components

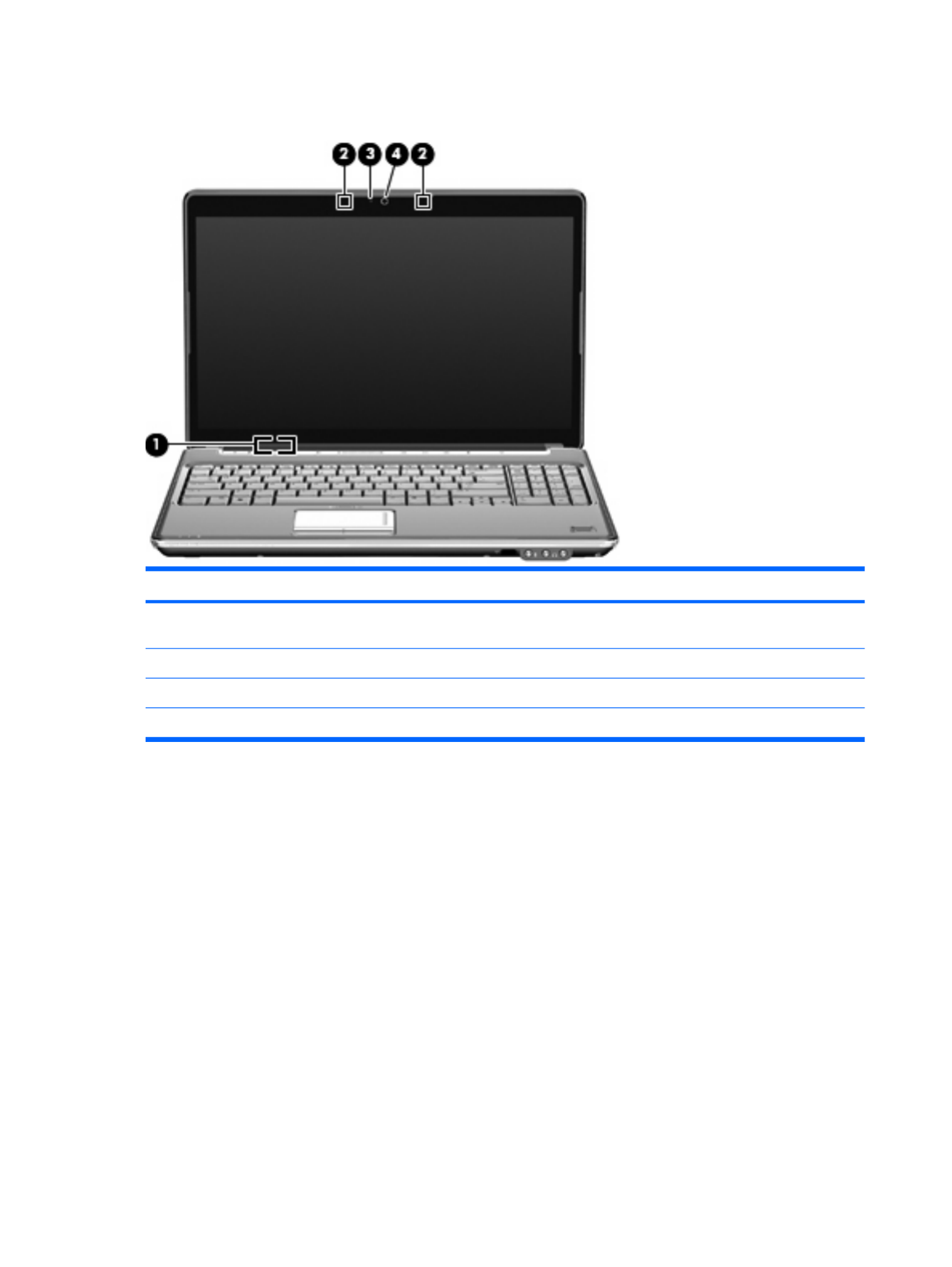

Item Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is closed while
the power is on.
(2) Internal microphones (2) Record sound.
(3) Integrated webcam light On: The integrated webcam is in use.
(4) Integrated webcam Records audio and video and captures still photographs.
18 Chapter 2 External component identification
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support
for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
20 Chapter 3 Illustrated parts catalog

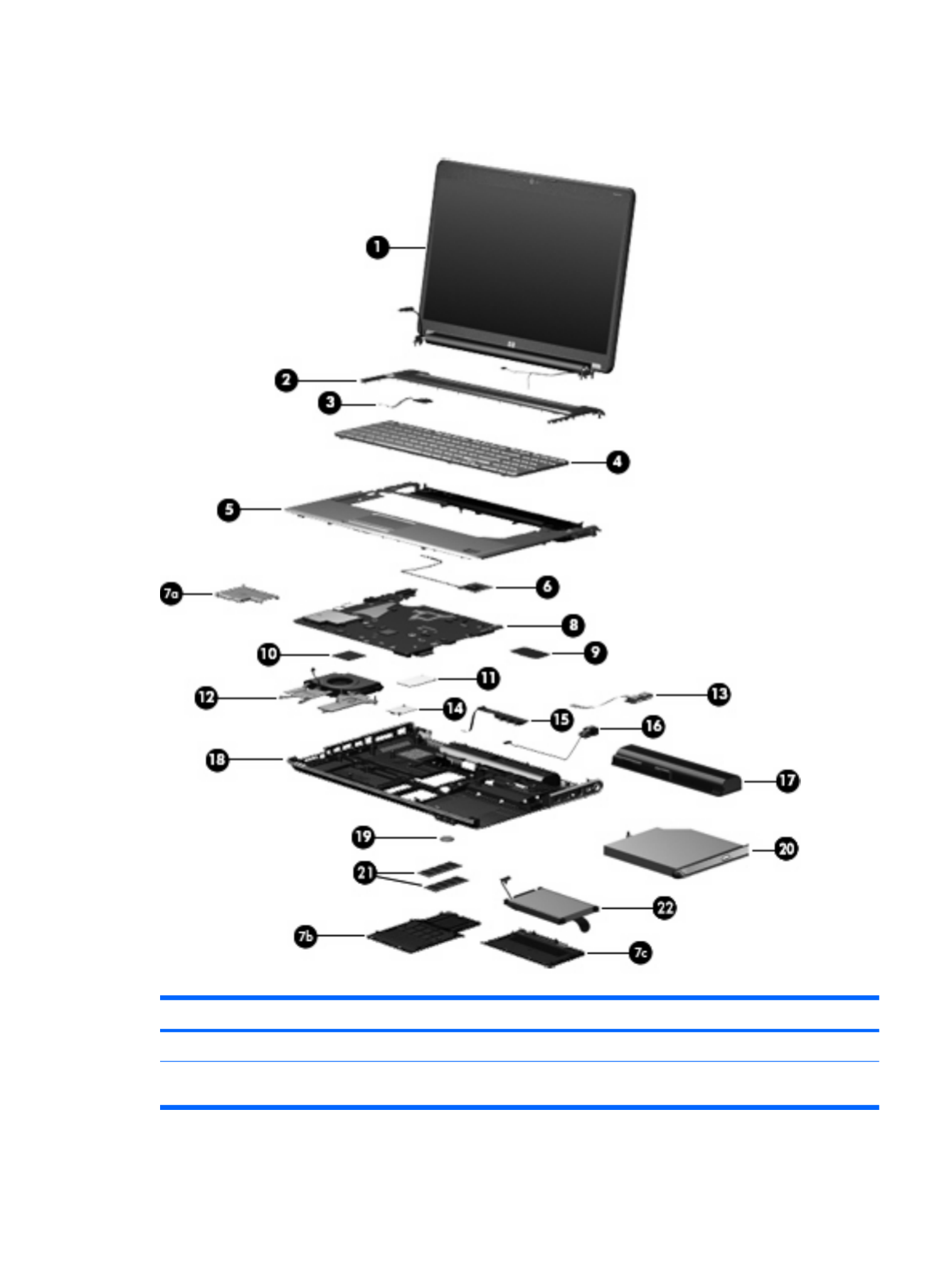

Computer major components
Item Description Spare part number
(1) Display assembly (includes wireless antenna transceivers and cables)
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Onyx
511867-001
Computer major components 21
Item Description Spare part number
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571743–001)
517862-001
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 517862–001)
571743–001
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571745-001)
518776-001
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518776–001)
571745-001
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571744–001)
518775-001
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 518775–001)
571744–001
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571746-001)
518777-001
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518777–001)
571746-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Onyx
511865-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571738-001)
512357-001
16.0-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512357–001)
571738-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571740-001)
518771-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaces 518771–001)
571740-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Onyx
511866-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571739-001)
512358-001
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512358–001)
571739-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571741-001)
518772-001
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518772–001)
571741-001

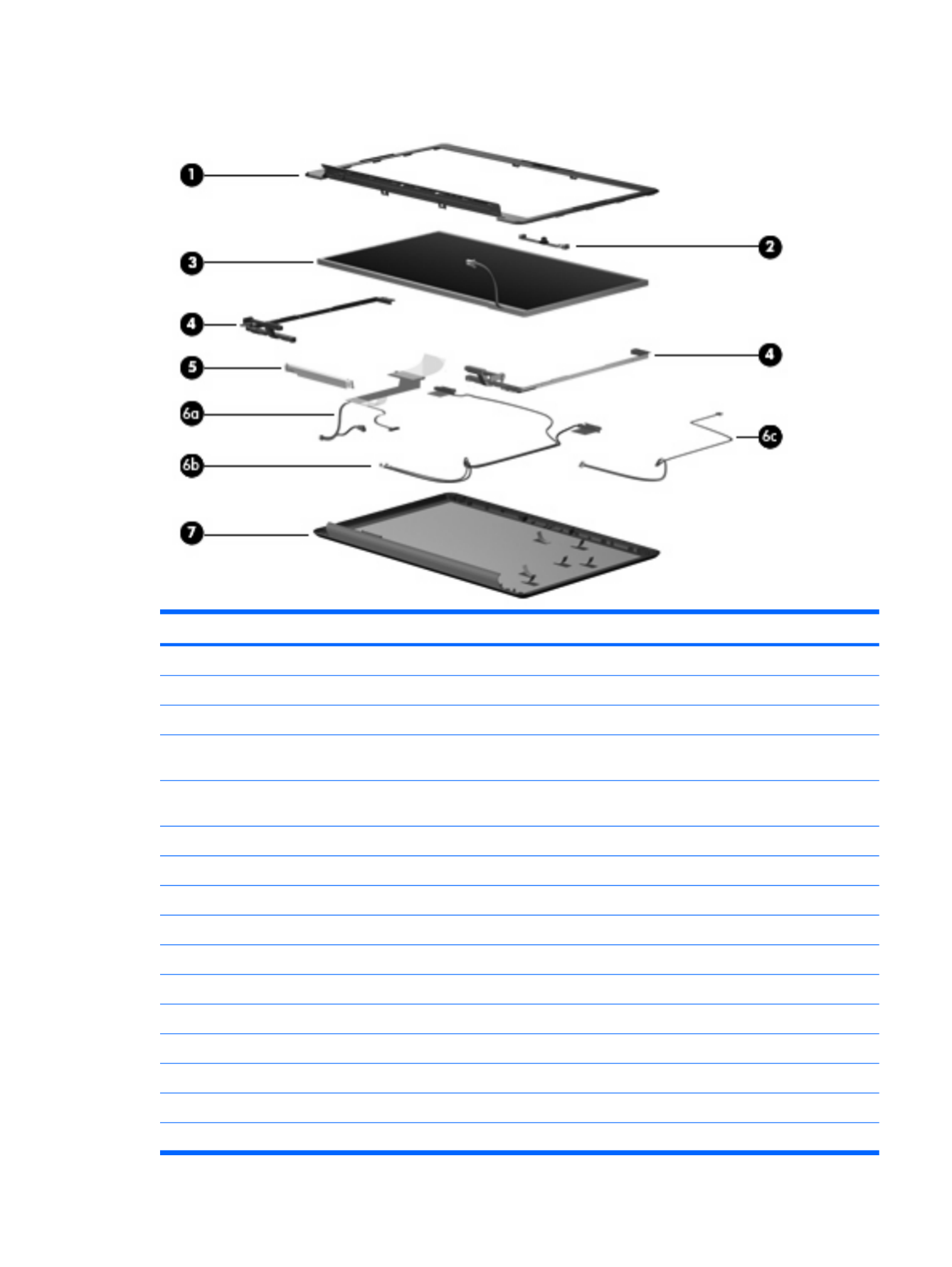

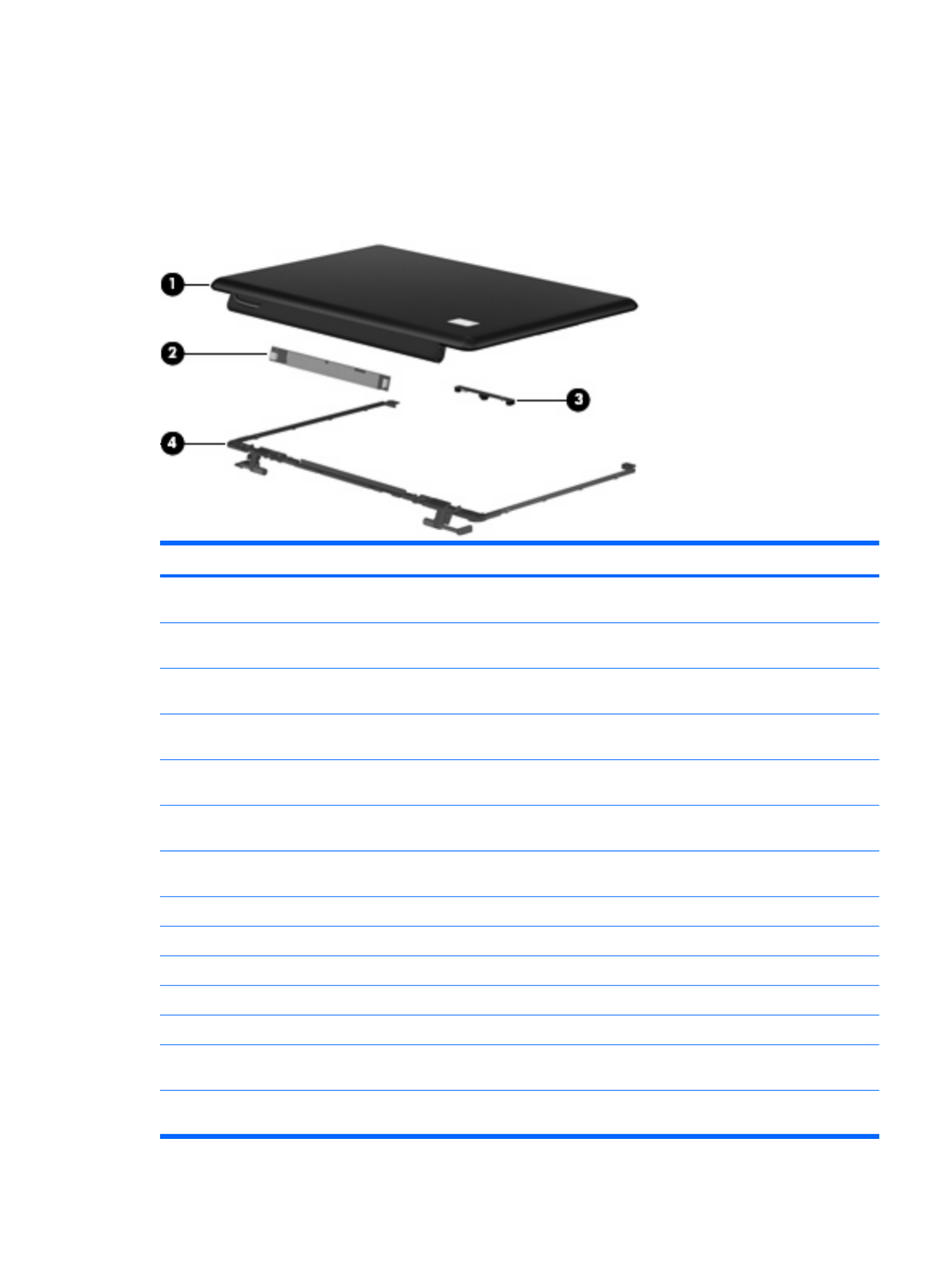

NOTE: See Display assembly componentson page 33 for more information on display assembly spare part
numbers.
(2) Switch cover (includes LED board and cable)
Onyx 512829-001
Moonlight White (replaced by 571747-001 on select models) 518110-001
Moonlight White (replaces 518110–001 on select models) 571747-001
Espresso Black (replaced by 571757-001 on select models) 518790-001
22 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in France 517864-051
For use in French Canada 517864-121
For use in Germany 517864-041
For use in Greece 517864-DJ1
For use in Hungary 517864-211
For international use 517864-B31
For use in Israel 517864-BB1
For use in Italy 517864-061
For use in Japan 517864-291
For use in Latin America 517864-161
For use in Portugal 517864-131
For use in Russia 517864-251
For use in Saudi Arabia 517864-171
For use in South Korea 517864-AD1
For use in Spain 517864-071
For use in Switzerland 517864-111
For use in Taiwan 517864-AB1
For use in Thailand 517864-281
For use in Turkey 517864-141
For use in the United Kingdom 517864-031
For use in the United States 517864-001
Keyboard, Moonlight White, IMR, molded keyboard characters (replaces 517864-xx1) (includes keyboard cable)
For use in Belgium 517683-A41
For use in the Czech Republic 517683-221
For use in France 517683-051
For use in Germany 517683-041
For use in Greece 517683-DJ1
For use in Hungary 517683–211
For international use 517683-B31
For use in Israel 517683-BB1
For use in Italy 517683-061
For use in Latin America 517683-161
For use in Portugal 517683-131
For use in Russia 517683-251
24 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in Hungary 518966-211
For international use 518966-B31
For use in Israel 518966-BB1
For use in Italy 518966-061
For use in Japan 518966-291
For use in Latin America 518966-161
For use in Portugal 518966-131
For use in Russia 518966-251
For use in Saudi Arabia 518966-171
For use in South Korea 518966-AD1
For use in Spain 518966-071
For use in Switzerland 518966-
For use in Taiwan 518966-AB1
For use in Thailand 518966-281
For use in Turkey 518966-141
For use in the United Kingdom 518966-031
For use in the United States 518966—001
Espresso Textured Keyboard, Espresso Black, (includes keyboard cable)
For use in Belgium 570228-A41
For use in the Czech Republic 570228-221
For use in Denmark, Norway, and Sweden 570228-DH1
For use in France 570228-051
For use in French Canada 570228-121
For use in Germany 570228-041
For use in Greece 570228-DJ1
For use in Hungary 570228-211
For international use 570228-B31
For use in Israel 570228-BB1
For use in Italy 570228-061
For use in Japan 570228-291
For use in Latin America 570228-161
For use in Portugal 570228-131
For use in Russia 570228-251
For use in Saudi Arabia 570228-171
26 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in South Korea 570228-AD1
For use in Spain 570228-071
For use in Switzerland 570228–111
For use in Taiwan 570228-AB1
For use in Thailand 570228-281
For use in Turkey 570228-141
TFor use in the United Kingdom 570228-031
(5) Top cover (includes TouchPad and TouchPad buttons, and speaker assembly):
For use only with computer models equipped with a fingerprint reader, Onyx 512828-001
For use only with computer models not equipped with a fingerprint reader, Onyx 511888-001
For use only with computer models equipped with a fingerprint reader, Moonlight White 518108-001
For use only with computer models not equipped with a fingerprint reader, Moonlight
White
518109-001
For use only with computer models equipped with a fingerprint reader, Espresso Black 518788-001
For use only with computer models not equipped with a fingerprint reader, Espresso
Black
518789-001
(6) Fingerprint reader board (select models only) Included with the top cover
Plastics Kit, includes:
●(7a) Express card slot bezel
●(7b) Memory module cover
●(7c) Hard drive bay cover
NOTE: See Plastics Kit on page 37 for more information.
511890-001
(8) System board (includes replacement thermal material):
●For use with computer models equipped with UMA graphics subsystem memory 511863-001
●For use with computer models equipped with discrete graphics subsystem
memory
511864-001
●For use with computer models equipped with ATI Mobility Radeon HD4650
graphics with 1-GB memory
518431-001
●For use with computer models equipped with ATI Mobility Radeon HD4530
graphics with 512-MB memory
518432-001
●For use with computer models equipped with UMA graphics and GM47 chipset 518433-001
(9) Modem module:
NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is
included in the Cable Kit, spare part number 512832-001. For more information, see Cable Kit on page 38.
For use in all countries and regions except Australia and New Zealand 461749-001
For use only in Australia and New Zealand 461749-011
(10) Processor (includes replacement thermal material):
Computer major components 27
Item Description Spare part number
Intel Core2 Duo T9900 3.06-GHz with 6-MB L2 cache and 1066-MHz FSB 570434-001
Intel Core2 Duo T9800 2.93-GHz with 6-MB L2 cache and 1066-MHz FSB 507951-001
Intel Core2 Duo T9600 2.80-GHz with 6-MB L2 cache and 1066-MHz FSB 507955-001
Intel Core2 Duo T9550 2.66-GHz with 6-MB L2 cache and 1066-MHz FSB 507953-001
Intel Core2 Duo T9400 2.53-GHz with 6-MB L2 cache and 1066-MHz FSB 507954-001
Intel Core2 Duo T6600 2.20-GHz with 2-MB L2 cache and 800-MHz FSB 513593-001
Intel Core2 Duo T6500 2.10-GHz with 2-MB L2 cache and 800-MHz FSB 572928-001
Intel Core2 Duo T6400 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 513592-001
Intel Core2 Duo T5800 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 515040-001
Intel Pentium Dual-Core T4300 2.10-GHz with 1-MB L2 cache and 800-MHz FSB 572929-001
Intel Pentium Dual-Core T4200 2.00-GHz with 1-MB L2 cache and 800-MHz FSB 513599-001
Intel Pentium Dual-Core T3400 2.16-GHz with 1-MB L2 cache and 667-MHz FSB 509549-001
Intel Core Duo P8800 2.66-GHz with 3-MB L2 cache and 1066-MHz FSB 570036-001
Intel Core Duo P8700 2.53-GHz with 3-MB L2 cache and 1066-MHz FSB 507960-001
Intel Core Duo P8600 2.40-GHz with 3-MB L2 cache and 1066-MHz FSB 507961-001
Intel Core Duo P8400 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 507962-001
Intel Core Duo P7550 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 573076-001
Intel Core Duo P7450 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB 507122-001
Intel Celeron 900 2.20-GHz with 1-MB L2 cache and 667-MHz FSB 534419–001
Intel Celeron T1600 1.66-GHz with 1-MB L2 cache and 667-MHz FSB (for use only
with computers equipped with UMA graphics memory subsystems)
501894-001
(11) WLAN module: (Bluetooth supported)
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all
countries and regions
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all
countries and regions
482957-001
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
487330-001
28 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
487330-002
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-001
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
459263-002
Computer major components 29
Item Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504664-002
(12) Fan/heat sink assembly (includes replacement thermal material):
For use only with computer models equipped with ATI Mobility Radeon HD4650
graphics subsystems
518435-001
For use only with computer models equipped with graphics subsystems with discrete
graphics memory
512837-001
For use only with computer models equipped with graphics subsystems with UMA
graphics memory
512830-001
(13) USB board
For use with computer models equipped with graphics subsystems with UMA graphics
memory
516497-001
For use with computer models equipped with graphics subsystems with discrete
graphics memory
516855-001
(14) Bluetooth module 483113-001
Bluetooth cable (not illustrated) 489822-001
(15) Audio/infrared board (includes cable):
For use with computer models equipped with UMA graphics subsystem memory 511892-001
For use with computer models equipped with discrete graphics subsystem memory 512836-001
(16) Power connector cable
NOTE: The power connector cable is available in the Cable Kit, spare part number
512832-001. For more information, see Cable Kit on page 38.
(17) Battery
Computer major components 31
Item Description Spare part number
12-cell, 95-Wh, 8.8-Ah Li-ion battery for use with all computer models 511884-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models 511872-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use only with computers for Germany 511872-002
6-cell, 47-Wh, 2.55-Ah Li-ion battery for use with all computer models 511883-001
(18) Base enclosure (includes rubber feet) 511887-001
Rubber Feet Kit (not illustrated, includes 4 base enclosure rubber feet) 516499-001
(19) RTC battery 449729-001
TV tuner module (not illustrated):
NOTE: The TV tuner module spare part kits do not include a TV tuner module cable. The TV tuner module cable
is included in the Cable Kit, spare part number 512832-001.
NTSC/ATSC/ANG hybrid TV tuner module 482899-001
DVB-T/ANG TV tuner module 482899-002
DVB-T TV tuner module (for use only with computers equipped with discrete graphics
memory)
482899-003
TV tuner external antenna cable (not illustrated):
With F-PAL jack 482900-001
With PAL jack 482900-002
(20) Optical drive (includes bezel and bracket):
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 511880-001
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive 511881-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive 511882-001
(21) Memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM):
4 GB 511871-001
2 GB 511870-001
1 GB 511869-001
(22) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and four rubber isolators):
160 GB, 5400 rpm 511873-001
250 GB, 7200 rpm (select models only) 511874-001
250 GB, 5400 rpm 511875-001
320 GB, 7200 rpm (select models only) 511876-001
320 GB, 5400 rpm 511877-001
400 GB, 5400 rpm 511878-001
500 GB, 5400 rpm 511879-001
Hard Drive Hardware Kit (not illustrated, includes left and right bracket rails, connector
cable, Mylar cover with tab, and 4 rubber isolators)
483862-001
32 Chapter 3 Illustrated parts catalog
Display assembly components
The HP Pavilion dv6 Entertainment PC offers two types of display assemblies. Component spare parts
are listed in this section for AntiGlare display assemblies and BrightView display assemblies.
AntiGlare display assembly spare parts
Item Description Spare part number
(1) Display enclosure, Onyx (for 16-inch only) (includes wireless antenna transceivers
and cables)
513478-001
Display enclosure, Moonlight White (for 16-inch only) (includes wireless antenna
transceivers and cables)
517861-001
Display enclosure, Espresso Black (for 16-inch only) (includes wireless antenna
transceivers and cables)
518774-001
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571744–001)
518775-001
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518775–001)
571744–001
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571746–001)
518777-001
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518777–001)
571746–001
(2) Display inverter 488317-001
(3) Webcam/microphone module, low light VGA (includes cable) 512827-001
Webcam/microphone , standard VGA (includes cable) 571742–001
(4) Display Hinge Kit (for 16-inch only) (includes left and right hinges) 513477-001
Display Hinge Kit (for 15.6-inch only) (includes left and right hinges) 519209-001
Display Rubber Kit, (for 16-inch only) (not illustrated, includes display bezel rubber
screw covers)
512361-001
Display Rubber Kit, (for 15.6-inch only) (not illustrated, includes display bezel rubber
screw covers)
513479-001
Display assembly components 33
Item Description Spare part number
Display Screw Kit (not illustrated) 512362-001
Display LCD cable (not illustrated) 512825-001
34 Chapter 3 Illustrated parts catalog
BrightView display assembly spare parts
Item Description Spare part number
(1) Display bezel (includes logo and display lid switch actuator magnet)
For use with computer models equipped with 16-inch displays 512359-001
For use with computer models equipped with 15.6-inch displays 512364-001
(2) Webcam/microphone module, low light VGA (includes cable) (replaced by
571742-001)
512827-001
Webcam/microphone module, standard VGA (includes cable) (replaces 512827–
001)
571742-001
(3) BrightView display panel (includes display panel cable):
For use with computer models equipped with 16-inch display panels 511868-001
For use with computer models equipped with 15.6-inch display panels 512363-001
(4) Display Hinge Kit (includes left and right hinges)
For use with computer models equipped with 16-inch display panels 512360-001
For use with computer models equipped with 15.6-inch display panels 512365-001
(5) Display inverter 488317-001
(6a) Display cable 512825-001
(6b) Wireless antenna cable (included in Cable Kit 512832-001)
(6c) Webcam/microphone cable (includes module) 512827-001
Webcam/microphone cable (includes module) (replaces 512827–001) 571742-001
Display assembly components 35
Item Description Spare part number
(7) Display enclosure, Onyx (includes wireless antenna transceivers and cables and
logo LED board and cable) 16-inch
512824-001
DIsplay enclosure, Moonlight White (includes wireless antenna transceivers and
cables and logo LED board and cable) 15.6-inch
517860-001
DIsplay enclosure, Espresso Black (includes wireless antenna transceivers and
cables and logo LED board and cable) 16-inch
518773-001
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 15.6-
inch
513479-001
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 16-
inch
512361-001
Display Screw Kit (not illustrated) 512362-001
36 Chapter 3 Illustrated parts catalog
Plastics Kit
Item Description Spare part number
Plastics Kit 511890-001
(1) ExpressCard slot bezel
(2) Hard drive bay cover (includes 2 captive screws, secured by C-clips)
(3) Memory module compartment cover (includes 1 captive screw, secured by a C-clip)
Plastics Kit 37
Cable Kit
Item Description Spare part number
Cable Kit 512832-001
(1) Fingerprint reader cable
(2) Audio/Infrared module cable
(3) Modem module cable (includes RJ-11 jack)
(4) USB cable
(5) Power connector cable
TV tuner module cable (not illustrated)
38 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Description Spare part number
AC adapters
65-W AC adapter 463958-001
90-W AC adapter, PFC 463955-001
90-W AC adapter for use only in Germany 510485-005
Power cords, Black:
Argentina 490371-D01
Australia and New Zealand 490371-011
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
490371-021
Brazil 490371-201
Canada, French Canada, Latin America, Thailand, and the United States 490371-001
Denmark 490371-081
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
The People's Republic of China 490371-AA1
South Africa 490371-AR1
South Korea 490371-AD1
Switzerland 490371-111
Taiwan 490371-AB1
The United Kingdom and Hong Kong 490371-031
Bluetooth cable 489822–001
Remote controls
Full-function remote control 465540-001
Full-function remote control with teletext 465541-001
Rubber Kit 516499–001
Miscellaneous parts 39
Description Spare part number
Headphone, black, with volume control and stereo/mono switch 371693–001
Screw Kit
●Phillips PM2.0×3.0 screw
●Phillips PM2.0×14.0 captive screw
●Phillips PM2.5×3.0 screw
●Phillips PM2.5×4.0 screw
●Phillips PM2.5×5.0 screw
●Phillips PM2.5×5.0 captive screw
●Phillips PM2.5×5.5 captive screw
●Phillips PM2.5×6.5 screw
●Phillips PM3.0×3.5 screw
516498-001
Sequential part number listing
Spare part
number
Description
371693-001 Headphone, black, with volume control and stereo/mono switch
449729-001 RTC battery
459263-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
461749-001 Modem module for use in all countries and regions except Australia and New Zealand
461749-011 Modem module for use only in Australia and New Zealand
40 Chapter 3 Illustrated parts catalog
Spare part
number
Description
463955-001 90-W AC adapter, PFC
463958-001 65-W AC adapter
465540-001 Full-function remote control
465541-001 Full-function remote control with teletext
480985-001 Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all countries and
regions
482899-001 NTSC/ATSC/ANG hybrid TV tuner module
482899-002 DVB-T/ANG TV tuner module
482899-003 DVB-T TV tuner module (for use only with computers equipped with discrete graphics memory)
482900-001 TV tuner external antenna cable with F-PAL jack
482900-002 TV tuner external antenna cable with PAL jack
482957-001 Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all countries and
regions
483113-001 Bluetooth module
483862-001 Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with tab, and
4 rubber isolators
487330-001 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Antigua and Barbuda,
Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago,
the U.S. Virgin Islands, and the United States
487330-002 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
488317-001 Display inverter
489822-001 Bluetooth cable
490371-001 Power cord for use in Canada, French Canada, Latin America, Thailand, and the United States
490371-011 Power cord for use in Australia and New Zealand
Sequential part number listing 41
Spare part
number
Description
490371-021 Power cord for use in Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway,
Portugal, Spain, and Sweden
490371-031 Power cord for use in the United Kingdom and Hong Kong
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Brazil
490371–291 Power cord for use in Japan
490371-AA1 Power cord for use in the People's Republic of China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentina
490371-D61 Power cord for use in India
501894-001 Intel Celeron T1600 1.66-GHz processor with 1-MB L2 cache and 667-MHz FSB (for use only with
computers equipped with UMA graphics memory subsystems)
504593-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504593-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
504664-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
42 Chapter 3 Illustrated parts catalog
Spare part
number
Description
504664-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
507122-001 Intel Core Duo P7450 2.13-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507951-001 Intel Core2 Duo T9800 2.93-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507953-001 Intel Core2 Duo T9550 2.66-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507954-001 Intel Core2 Duo T9400 2.53-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507955-001 Intel Core2 Duo T9600 2.80-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507960-001 Intel Core2 Duo P8700 2.53-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507961-001 Intel Core2 Duo P8600 2.40-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507962-001 Intel Core2 Duo P8400 2.26-GHz processor with 3-MB L2 cache and 1066-MHz FSB
509549-001 Intel Pentium Dual-Core T3400 2.16-GHz processor with 1-MB L2 cache and 667-MHz FSB
510485-005 90-W AC adapter for use only in Germany
511863-001 System board for use with computer models equipped with UMA graphics subsystem memory (includes
replacement thermal material)
511864-001 System board for use with computer models equipped with discrete graphics subsystem memory (includes
replacement thermal material)
511865-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Onyx
511866-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Onyx
511867-001 15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Onyx
511868-001 BrightView display panel for use only with computer models equipped with 16-inch display panels
(includes display panel cable)
511869-001 1 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
511870-001 2 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
511871-001 4 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
511872-001 6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models
Sequential part number listing 43
Spare part
number
Description
511885-DJ1 Keyboard for use in Greece, Onyx, molded keyboard characters
511887-001 Base enclosure (includes rubber feet)
511888-001 Top cover for use only with computer models not equipped with a fingerprint reader, Onyx (includes
TouchPad and TouchPad buttons, and speaker assembly)
511890-001 Plastics Kit (see Plastics Kit on page 37)
511892-001 Audio/infrared board (for use with computer models equipped with UMA graphics subsystem memory)
512357-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Moonlight
White (replaced with 571738–001)
512358-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Moonlight
White (replaced with 571739–001)
512359-001 Display bezel for use with computer models equipped with 16-inch BrightView displays (includes logo and
display lid switch actuator magnet)
512360-001 Display Hinge Kit for use only with computer models equipped with 16-inch BrightView display panels
(includes left and right hinges)
512361-001 Display Rubber Kit for BrightView displays (includes display bezel rubber screw covers)
512362-001 Display Screw Kit
512363-001 BrightView display panel for use only with computer models equipped with 15.6-inch display panels
(includes display panel cable)
512364-001 Display bezel for use with computer models equipped with 15.6-inch BrightView displays (includes logo
and display lid switch actuator magnet)
512365-001 Display Hinge Kit for use only with computer models equipped with 15.6-inch BrightView display panels
(includes left and right hinges)
512824-001 Display enclosure for 16-inch BrightView displays (includes wireless antenna transceivers and cables),
Onyx
512825-001 Display Cable for use with computers models equipped with BrightView display panels
512827-001 Webcam/microphone module, low light VGA (includes cable) (replaced with 571742–001)
512828-001 Top cover for use only with computer models equipped with a fingerprint reader, Onyx (includes TouchPad
and TouchPad buttons, and speaker assembly)
512829-001 Switch cover (includes LED board and cable)
512830-001 Fan/heat sink assembly for use only with computer models equipped with graphics subsystems with UMA
graphics memory (includes replacement thermal material)
512832-001 Cable Kit (see Cable Kit on page 38)
512834-001 Power button board for computer models equipped with UMA graphics subsystem memory (includes
cable)
512835-001 Power button board for computers with discrete graphics subsystem memory (includes cable)
512836-001 Audio infrared board for use with computer models equipped with graphics subsystems with discrete
graphics memory
512837-001 Fan/heat sink assembly for use only with computer models equipped with graphics subsystems with
discrete graphics memory (includes replacement thermal material)
513477-001 Display Hinge Kit for 16-inch AntiGlare displays (includes left and right hinges)
Sequential part number listing 45
Spare part
number
Description
517863-161 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Latin
America
517863-211 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Hungary
517863-221 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in the
Czech Republic
517863-251 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Russia
517863-A41 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Belgium
517863-AB1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Taiwan
517863-B31 Keyboard, Moonlight White, IMR, molded keyboar keyboard cable), for used characters (includes
International use
517863-BB1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Israel
517863-DJ1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Denmark, Norway, and Sweden
517864-001 Keyboard for use in the United States, Moonlight White, painted keyboard characters
517864-031 Keyboard for use in the United Kingdom, Moonlight White, painted keyboard characters
517864-041 Keyboard for use in Germany, Moonlight White, painted keyboard characters
517864-051 Keyboard for use in France, Moonlight White, painted keyboard characters
517864-061 Keyboard for use in Italy, Moonlight White, painted keyboard characters
517864-071 Keyboard for use in Spain, Moonlight White, painted keyboard characters
517864-111 Keyboard for use in Switzerland, Moonlight White, painted keyboard characters
517864-121 Keyboard for use in French Canada, Moonlight White, painted keyboard characters
517864-131 Keyboard for use in Portugal, Moonlight White, painted keyboard characters
517864-141 Keyboard for use in Turkey, Moonlight White, painted keyboard characters
517864-161 Keyboard for use in Latin America, Moonlight White, painted keyboard characters
517864-171 Keyboard for use in Saudi Arabia, Moonlight White, painted keyboard characters
517864-211 Keyboard for use in Hungary, Moonlight White, painted keyboard characters
517864-221 Keyboard for use in the Czech Republic, Moonlight White, painted keyboard characters
517864-251 Keyboard for use in Russia, Moonlight White, painted keyboard characters
517864-281 Keyboard for use in Thailand, Moonlight White, painted keyboard characters
517864-291 Keyboard for use in Japan, Moonlight White, painted keyboard characters
517864-A41 Keyboard for use in Belgium, Moonlight White, painted keyboard characters
517864-AB1 Keyboard for use in Taiwan, Moonlight White
517864-AD1 Keyboard for use in South Korea, Moonlight White, painted keyboard characters
Sequential part number listing 47
Spare part
number
Description
518764-B31 Keyboard for international use, Moonlight White, painted keyboard characters
517864-BB1 Keyboard for use in Israel, Moonlight White, painted keyboard characters
517864-DH1 Keyboard for use in Denmark, Norway, and Sweden, Moonlight White, painted keyboard characters
517864-DJ1 Keyboard for use in Greece, Moonlight White, painted keyboard characters
518108-001 Top cover for use with computer models equipped with fingerprint reader, Moonlight White (includes
TouchPad and TouchPad buttons, and speaker assembly)
518109-001 Top cover for use with computer models not equipped with fingerprint reader, Moonlight White (includes
TouchPad and TouchPad buttons, and speaker assembly)
518110-001 Switch cover (includes LED board and cable), Moonlight White (replaced with 571747–001 on select
models)
518431-001 System board for use with computer models equipped with ATI Mobility Radeon HD 4650 graphics with
1 GB memory (includes replacement thermal material)
518432-001 System board for use with computer models equipped with ATI Mobility Radeon HD 4530 graphics with
512 MB memory (includes replacement thermal material)
518433-001 System board for use with computer models equipped with UMA graphics and GM47 chipset (includes
replacement thermal material)
518435-001 Fan/heat sink assembly for use only with computer models equipped with ATI Mobility Radeon HD4650
graphics (includes replacement thermal material)
518771-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Espresso
Black (replaced with 571740–001)
518772-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Espresso
Black (replaced with 571741–001)
518773-001 Display enclosure for 16-inch BrightView displays (includes wireless antenna transceivers and cables and
logo LED board and cable), Espresso Black
518774-001 Display enclosure for 16-inch AntiGlare displays (includes wireless antenna transceivers and cables),
Espresso Black
518775-001 15.6-inch WXGA AntiGlare display assembly with webcam and 2 microphones, Moonlight White (replaced
with 517774–001)
518776-001 15.6-inch WXGA AntiGlare display assembly with webcam and 2 microphones, Espresso Black (replaced
with 571745–001)
518777-001 15.6-inch WXGA BrightView display assembly with webcam and 2 microphones, Espresso Black
(replaced with 571746–001)
518778-001 Top cover for use only with computer models not equipped with a fingerprint reader (includes TouchPad
and TouchPad buttons and speaker assembly), Espresso Black
518788-001 Top cover for use only with computer models equipped with a fingerprint reader (includes TouchPad and
TouchPad buttons and speaker assembly), Espresso Black
518790-001 Switch cover (includes LED board and cable), Espresso Black (replaced with 571757–001 on select
models)
518965-001 Keyboard for use in the United States, Espresso Black, molded keyboard characters
518965-031 Keyboard for use in the United Kingdom, Espresso Black, molded keyboard characters
518965-041 Keyboard for use in Germany, Espresso Black, molded keyboard characters
48 Chapter 3 Illustrated parts catalog
Spare part
number
Description
572929-001 Intel Pentium Dual-Core T4300 2.10-GHz with 1-MB L2 cache and 800-MHz FSB
573076-001 Intel Core Duo P7550 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB
Sequential part number listing 51
Produkt Specifikationer
| Mærke: | HP |
| Kategori: | Bærbare computer |
| Model: | Pavilion dv6-1100es |
| Bredde: | 378.5 mm |
| Dybde: | 258 mm |
| Højde: | 41 mm |
| Vægt: | 3140 g |
| Brugervejledning: | Ja |
| Produktfarve: | Sort |
| Produkttype: | Notebook |
| Pakkedybde: | 160 mm |
| Pakkebredde: | 450 mm |
| Pakkehøjde: | 345 mm |
| Skærm diagonal: | 15.6 " |
| Skærmopløsning: | 1366 x 768 pixel |
| Berøringsskærm: | Ingen |
| Kompatible hukommelseskort: | Memory Stick (MS), MMC, MS PRO, SD, xD |
| Wi-Fi: | Ja |
| Bluetooth: | Ingen |
| Batteriteknologi: | Lithium-Ion (Li-Ion) |
| Formfaktor: | Muslingeskal |
| Naturligt aspektforhold: | 16:9 |
| Opbevaringstemperatur (T-T): | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H): | 10 - 90 % |
| Relativ luftfugtighed ved opbevaring (H-H): | 5 - 95 % |
| Antal HDMI-porte: | 1 |
| DVI-port: | Ingen |
| Ethernet LAN-porte (RJ-45): | 1 |
| Antal USB 2.0-porte: | 4 |
| Udgange til hovedtelefoner: | 2 |
| Ethernet LAN: | Ja |
| Wi-Fi-standarder: | 802.11b, 802.11g |
| Processorkerner: | 2 |
| Driftstemperatur (T-T): | 5 - 35 °C |
| Ethernet LAN-datahastigheder: | 10,100,1000 Mbit/s |
| Intern hukommelse: | 4 GB |
| Hurtig start guide: | Ja |
| Kabler inkluderet: | Vekselstrøm |
| Operativsystem installeret: | Windows Vista Home Premium |
| Fjernbetjening inkluderet: | Ja |
| Kabelteknologi: | 10/100/1000Base-T(X) |
| Netværksstandarder: | IEEE 802.11b, IEEE 802.11g |
| AC-adapter inkluderet: | Ja |
| Indbygget kortlæser: | Ja |
| HDD kapacitet: | 320 GB |
| LED-baggrundsbelysning: | Ja |
| Antal indbyggede højttalere: | 2 |
| Batterilevetid (maks.): | - t |
| Processorfrekvens: | 2.2 GHz |
| Processorserie: | AMD Turion 64 X2 Mobile |
| Processortråde: | 2 |
| Processor-cache: | 1 MB |
| Processor cache type: | L2 |
| Intern hukommelsestype: | DDR2-SDRAM |
| Maksimal intern hukommelse: | 8 GB |
| Hukommelse form faktor: | SO-DIMM |
| Samlet lagringskapacitet: | 320 GB |
| Lagermedie: | HDD |
| On-board grafikkort, model: | Ikke tilgængelig |
| Diskret grafikadaptermodel: | AMD Mobility Radeon HD 4530 |
| On-board grafikkort: | Ingen |
| Diskret grafikadapter: | Ja |
| Indbygget mikrofon: | Ja |
| Mikrofonindgang: | Ja |
| S/PDIF-udgang: | Ingen |
| Docking-stik: | Ja |
| ExpressCard-slot: | Ja |
| Cardbus PCMCIA slot type: | Ingen |
| Smartcard slot: | Ingen |
| Opladningsport type: | DC-in-stik |
| Pegeredskab: | Touchpad |
| Numerisk tastatur: | Ja |
| Vekselstrømsadapter strøm: | 90 W |
| Slot til kabellås: | Ingen |
| Driftshøjde: | -15 - 3048 m |
| Ikke-drift højde: | -15 - 12192 m |
| Lydsystem: | SRS Premium Sound |
| Hukommelsesstik: | 2x SO-DIMM |
| Processorproducent: | AMD |
| Processormodel: | RM-75 |
| Tilslutning af hovedtelefoner: | 3,5 mm |
| Oprindelsesland: | Kina |
| Drivere inkluderet: | Ja |
| Skærmoverflade: | Glans |
| Antal VGA-porte (D-sub): | 1 |
| Garantibevis: | Ja |
| Optisk drevtype: | DVD Super Multi DL |
| Antal battericeller: | 6 |
| Antal taster på tastatur: | 101 |
| HDD-grænseflade: | SATA |
| Windows taster: | Ja |
| Tilslutning af mikrofon: | 3,5 mm |
| HDD hastighed: | 5400 rpm |
| Processor sokkel: | Sokkel S1 |
| Hukommelseslayout (slots x størrelse): | 2 x 2 GB |
| Antal installerede HDD'er: | 1 |
| FireWire-porte (IEEE 1394): | 1 |
| Operativsystemets arkitektur: | 32-bit |
| LightScribe: | Ja |
| Diskret grafikadapterhukommelse: | 0.512 GB |
| Maksimal grafikadapterhukommelse: | 1.79 GB |
| Antal eSATA-porte: | 1 |
Har du brug for hjælp?
Hvis du har brug for hjælp til HP Pavilion dv6-1100es stil et spørgsmål nedenfor, og andre brugere vil svare dig
Bærbare computer HP Manualer
4 August 2025
4 August 2025
4 August 2025
4 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Bærbare computer Manualer
Nyeste Bærbare computer Manualer
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
12 August 2025
12 August 2025
12 August 2025
