RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Key features
• 3x 3.5" SATA or SAS HDD in 2x 5.25" bay
• 4x 3.5" SATA or SAS HDD in 3x 5.25" bay
• 5x 3.5" SATA or SAS HDD in 3x 5.25" bay
• Robust industrial design
• Hard disk capacity not limited
• SATA III host interface 6.0 Gbit/s
• HDD tray with key lock
• LED for power and HDD access
• Visual LED and audio alarm for fan failure & over-heat
• 80x80 mm cooling fan (60x60 mm for IB-563SSK)
• Alarm temperature adjustable (55° C, 60° C, 65° C)
• Plug & play and hot swap
• Supports Windows & Mac
IB-563, 564, 565 Serie: Backplanes for SATA / SAS HDDs
For heaviest server duty
These three HDD backplanes are well-proven in extremely hard server duty.
Even with highest transfer rates they run very smoothly. That’s why we
recommend them for the demanding duty in RAID systems.
Accordingly elaborate is the temperature control. The aluminium parts dissipate
the heat. The fan operates reliably and silently and the operating mode is
easily adjusted. If high temperature is detected there are optical and acoustic
warning signals.
All moving parts are layed out for strongest strain. The trays and their locking
mechanism are extremely fitting. They slide without resistance. The aluminium
parts are electropolished.
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
2.1.
1. 2.
3. 4. 5. 6.
3.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Technical data
Model IB-563SSK IB-564SSK IB-565SSK
Article-No. 56003 56004 56005
EAN code 4250078161394 4250078161400 4250078161417
Colour Black
HDD interface 3x SAS / SATA I/II/III 4x SAS / SATA I/II/III 5x SAS / SATA I/II/III
Host interface 3x SATA I/II/III 4x SATA I/II/III 5x SATA I/II/III
Place requirement 2x 5,25" bays 3x 5,25" bays
Power connector 2x Molex 4pin and 2x SATA Power Connector
HDD capacity No limit
Casematerial Aluminium
Plug & Play Yes
Hot Swap Yes
Alarm temperature 55, 60, 65° C
LED Power (blue), HDD Access (orange), On / O
Key lock Yes
Fan 60 x 60 mm 80 x 80 mm
Fan speed up to 3000 rpm
Package Contents IB-563SSK
1x IB-563SSK, 3x SATA cables, 2x Keys,
8x Screws, 1x Manual
Package Contents IB-564SSK
1x IB-564SSK, 4x SATA cables, 2x Keys,
8x Screws, 1x Manual
Package Contents IB-565SSK
1x IB-565SSK, 5x SATA cables, 2x Keys,
8x Screws, 1x Manual

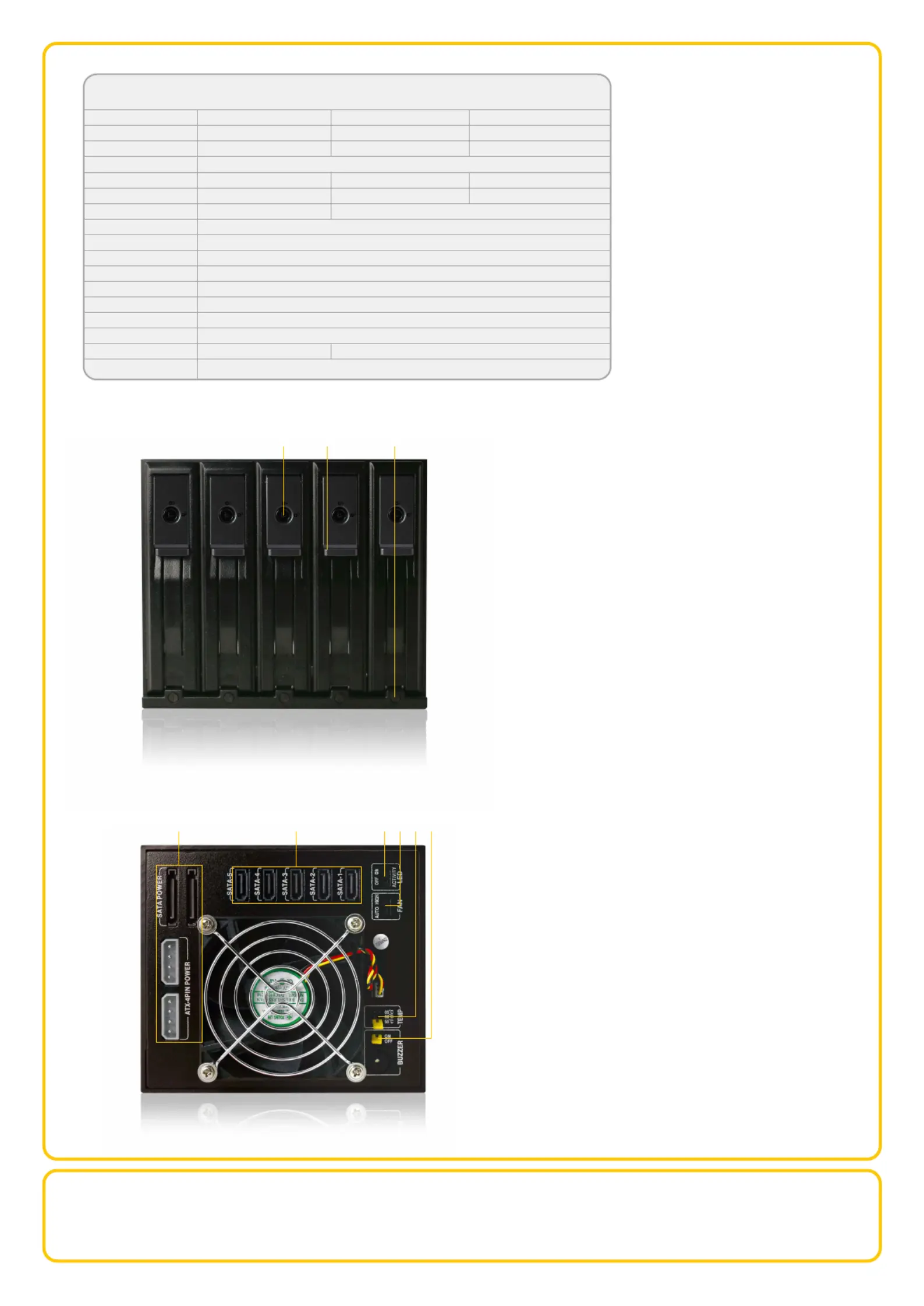

Rear view IB-565SSK
1. SATA and Molex power connector
2. SATA host connector 1-5
3. LED mode
4. Fan mode
5. Alarm temperatur setting
6. Alarm buzzer setting
Front view IB-565SSK
1. Tray lock
2. Door handle
3. Power button and LED
The tray has no electric lock function, it is locked mechanically
against improper operation or sliding out.
1. Lock – Turn to right
2. Open – Turn to top
