STEP

Brief Notes

Operation Environment

Temperature 0 ~ 50 °C Humidity 90 ％ RH

Under Windows Vista / 7, users can enable GPT when initializing

HDD with a total capacity of more than 2 TB.

Support USB transfer speeds up to Super Speed (5 Gbit/s),

eSATA transfer speed (1.5~3.0 Gbit/s)

Please refer to the instructions when switching the RAID mode,

otherwise the execution might fail.

Changing the RAID mode will cause data lost.

Interface of USB / eSATA can not be used at the same time.

When using RAID function, HDDs with the same brand, model and

capacity is strongly recommended.

References

Smart fan controlled by the built-in thermal sensor

and it comes with 2 modes (auto

/ manual) and 3 levels of speed:

Level 1: higher than 55 °C

Level 2: 45 °C ~ 54 °C

Level 3: below 45 °C

2,500rpm

1,800rpm

1,200rpm

3,500rpm

2,500rpm

1,800rpm

• Follow all instructions.

• Do not place this device near water.

• Clean only with dry cloth.

• Do not block any ventilation openings.

• Install in accordance with the manufacturer’s instructions.

• Do not place near any heat sources such as radiators, heat registers,

stoves, or the devices (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from

the apparatus.

• Power supply cords should be routed so that they are not likely to be

walked on or pinched by items placed upon them or against them.

• Only use attachments/accessories specified by the manufacturer.

• Unplug this during lightning storms or when unused for long

periods of time.

• Refer all servicing to qualified service personnel. Servicing is required

when the devices has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen

into the devices, the devices has been exposed to rain or moisture,

does not operate normally, or has been dropped.

• Carefully read and follow the Quick Install Guide and User Manual.

• Do not drop or shake the device.

• Do not move the device when it is powered on.

• Do not overload wall outlets.

Reminders

Front Panel Overview

LED Indication / Button

Descriptions

eSATA in use / access

Rebuild

Blue

Orange

Power on

Sleep mode

HDD error When any of HDD1~HDD8 has error, HDD error is on.

in use / accessUSB

2 x Spanning Mode (BIG)

Spanning Mode (BIG)

2 x RAID 0 Striping Mode

10.

RAID 0 Striping Mode

11.

2 x RAID 5

13.

2 x RAID 10

12.

RAID 50

15.

Smart Fan manual mode

16.

Fan speed

level 1

17.

Fan speed

level 2

18.

Fan speed

level 3

19.

Mode RAID mode button needs to be pressed and held

for 3 seconds to switch the device's RAID mode.

This design will prevent accidental execution of this function.

21.

Blue

Purple

Red

active

access

rebuild

HDD1 / HDD2 / HDD3 / HDD4 / HDD5 / HDD6 / HDD7 / HDD8

20.

Controls auto & manual modes and fan speed from

level 1 to level 3.

Fan button

22.

Key slot

14.

Smart Fan automatic mode

http://www.raidsonic.de

Please visit our website for latest manual

Power button

It needs to be pressed and held for 3 seconds

to power off.

1 2 3 5 64

11 12 13 19 20

STEP

RAID mode setup

First install the HDD from up to down in the enclosure. Power on the device, press and hold RAID button for 3 seconds until LED flashes.

Press it again, select the RAID mode you want to use and press the Confirmation Button on the rear panel till the device shuts down.

Power the device on again and the RAID mode setup is completed.

Set-up

Layer 1 Layer 2

HDD 1

HDD 2

HDD 3

HDD 4

HDD 5

HDD 6

HDD 7

HDD 8

Figure-6

Layer 1

Layer 2

Layer

HDD No.

4 HDDs 4 HDDs 8 HDDs

2 X Spanning (BIG) 2 X RAID 0 (Striping)

Figure-3

RAID MODE

Layer 1

Layer 2

Layer

HDD No.

2 HDDs

6 HDDs

7 HDDs 8 HDDs5 HDDs4 HDDs3 HDDs

: Installed : Empty

: Installed : Empty: Installed : Empty

: Installed : Empty

Spanning Mode (BIG)

(Layer 1 and layer 2 combined and shown as 1 HDD capacity icon)

(layer 1 and layer 2 shown individually

as 1 or 2 HDD capacity icons)

(layer 1 and layer 2 shown individually

as 1 or 2 HDD capacity icons)

Figure-1

2 X RAID 5

(layer 1 and layer 2 shown individually

as 1 or 2 HDD capacity icons)

(layer 1 and layer 2 combined

and shown as 1 HDD capacity icon)

2 X RAID 10

(layer 1 and layer 2 shown individually

as 1 or 2 HDD capacity icons)

: Installed : Empty

Figure-4

RAID MODE

Layer 1

Layer 2

Layer

HDD No.

3 HDDs 7 HDDs 8 HDDs6 HDDs4 HDDs

RAID MODE

shown as 2 HDD capacity icons

shown as 1 HDD capacity icon

Layer 1

Layer 2

Layer

HDD No.

4 HDDs 8 HDDs7 HDDs6 HDDs5 HDDs

RAID 50

Figure-5

Layer 1

Layer 2

Layer

HDD No.

6 HDDs 8 HDDs

shown as 1 HDD capacity icon

Figure-2

(layer 1 and layer 2 combined and shown

as 1 HDD capacity icon)

RAID 0 (Striping Mode)

4 HDDs

6 HDDs 8 HDDs

RAID MODE

shown as 1 HDD capacity iconshown as 1 HDD capacity icon

shown as 1 HDD capacity icon shown as 2 HDD capacity icons

RAID MODE RAID MODE

shown as 2 HDD capacity icons

This design prevents accidental power off.

Operation System

Windows Vista (32bit/64bit) / Windows 7 (32bit/64bit)

Windows 8 (for PC version only)

(under MBR partition, supports total capacity up to 2 TB only)

Windows Vista (32bit/64bit) / Windows 7 (32bit/64bit)

Windows 8 (for PC version only)

(with GPT partition enabled, supports total capacity of more than 2TB)

Mac OS X 10.8 or later

3.5’’ SATA I/II/III HDD

8-bay external RAID enclosure

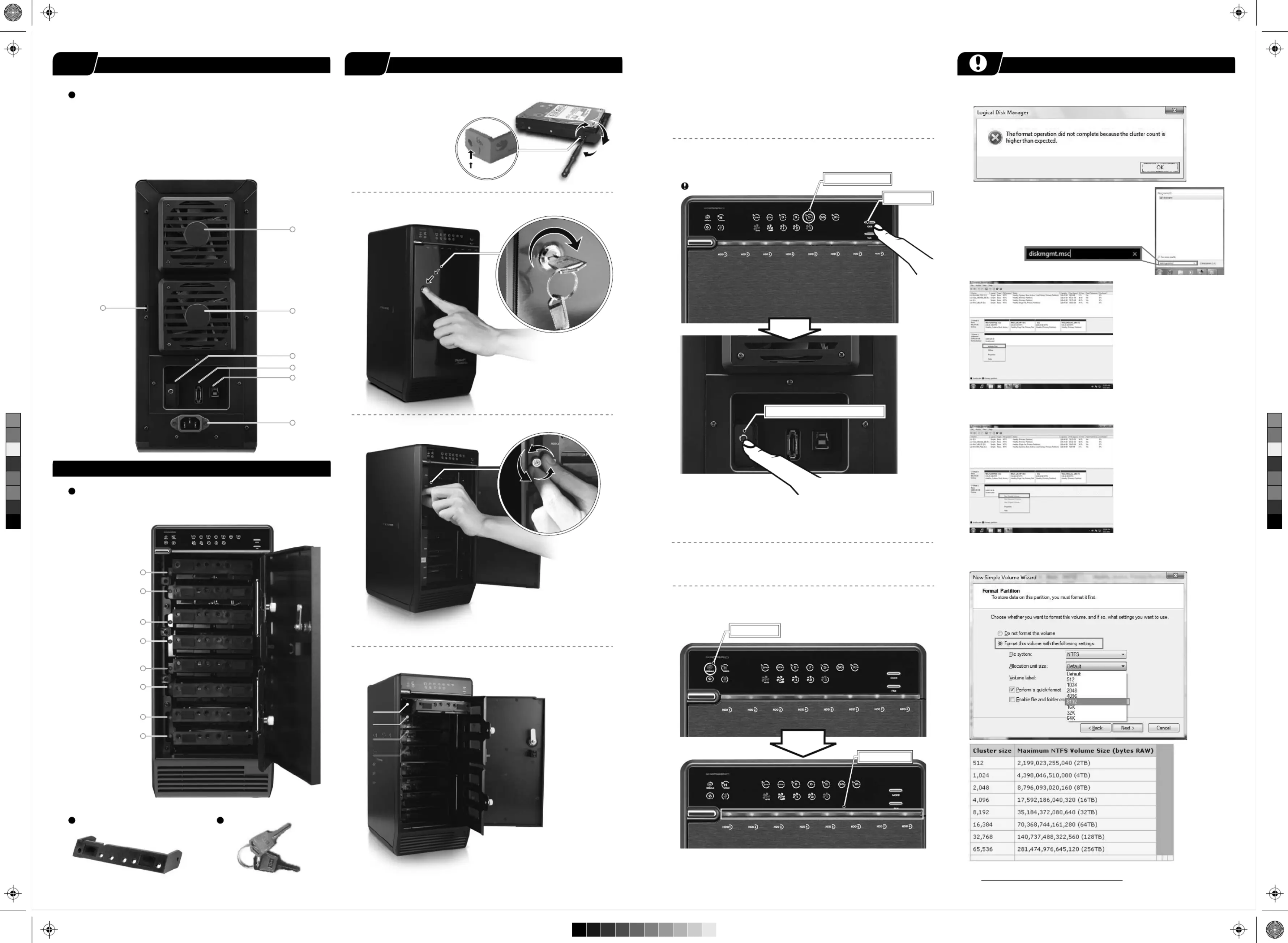

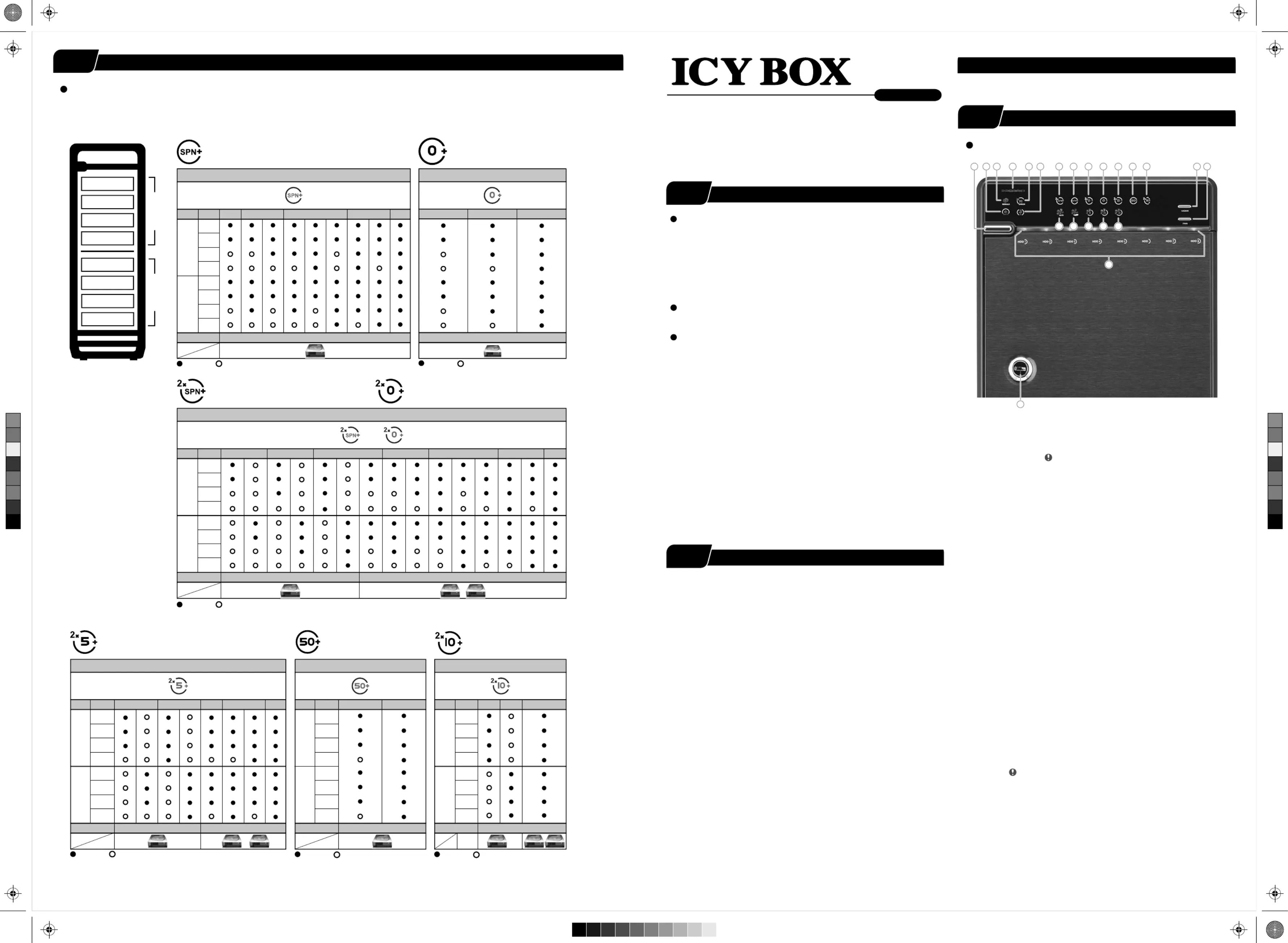

Quick Installation Guide

IB-RD3680SU3

CMY

IB-RD3680_Series_engl.ai 1 14.05.2014 09:28:18

IB-RD3680_Series_engl.ai 1 14.05.2014 09:28:18IB-RD3680_Series_engl.ai 1 14.05.2014 09:28:18

Close and secure the covers.

Plug in USB or eSATA cable.

Initialize the HDD accordingly to your operating system.

After selecting the RAID you want, press and HOLD the confirmation

button in the rear panel till the device shuts down.

RAID mode setup, users need to press and HOLD the "RAID" button for

3 seconds till the LED flashes, press again to change the mode.

Defaut Setting at ”RAID 5” mode.

Mode button

RAID Mode Confirmation button

Rebuild time varies depending on the HDD volume, say about 1 hour for

200GB.

Red / rebuild

Orange / RAID 5

Blue / active

When rebuild completes, rebuild LED goes off.

Unlock the cover with the key supplied and press the curricular

depression to open the cover.

Release the inner covers anti-clockwise!

Please use the provided screws to secure the handles

to the HDDs.

Quick Installation Guide

Install the HDDs from up to down. Please refer STEP 6 for details.

HDD 1

HDDHDD

HDDD

HDDDD

STEP

Descriptions

HDD1 Error

HDD2 Error

HDD3 Error

HDD4 Error

HDD5 Error

HDD6 Error

HDD7 Error

HDD8 Error

Rear Panel Overview

Rear Panel

Inside Panel

HDD Handle

Keys

STEP

Descriptions

Fan

RAID Mode confirmation button

eSATA port

USB 3.0 port

220 V AC Input port

Kensington

hole

Inside Overview

2. Create new partition and format disk.

If the HDD is uninitialized, you may have to initialize

it by doing steps as followed:

At first click “Start”, “Execute” at your PC

and key in “diskmgmt. msc”.

After that please press “Enter” key.

1. Start disk initialization.

Note: Please enable GPT if the total capacity is more

than 2TB and enable MBR if the total capacity is less than 2TB.

Under Windows Vista (32/64-bit) / Windows XP (64-bit),

if the total capacity is more than 16 TB, it's strongly recommend to

choose “Allocation unit size” at 8192 when formatting the HDD.

Under Windows Vista (32/64-bit) / Windows XP (64-bit),

if the total capacity is more than 16 TB.

Trouble Shooting

Users could find more information about cluster allocation

at：http://support.microsoft.com/kb/302873
