Side 1/2

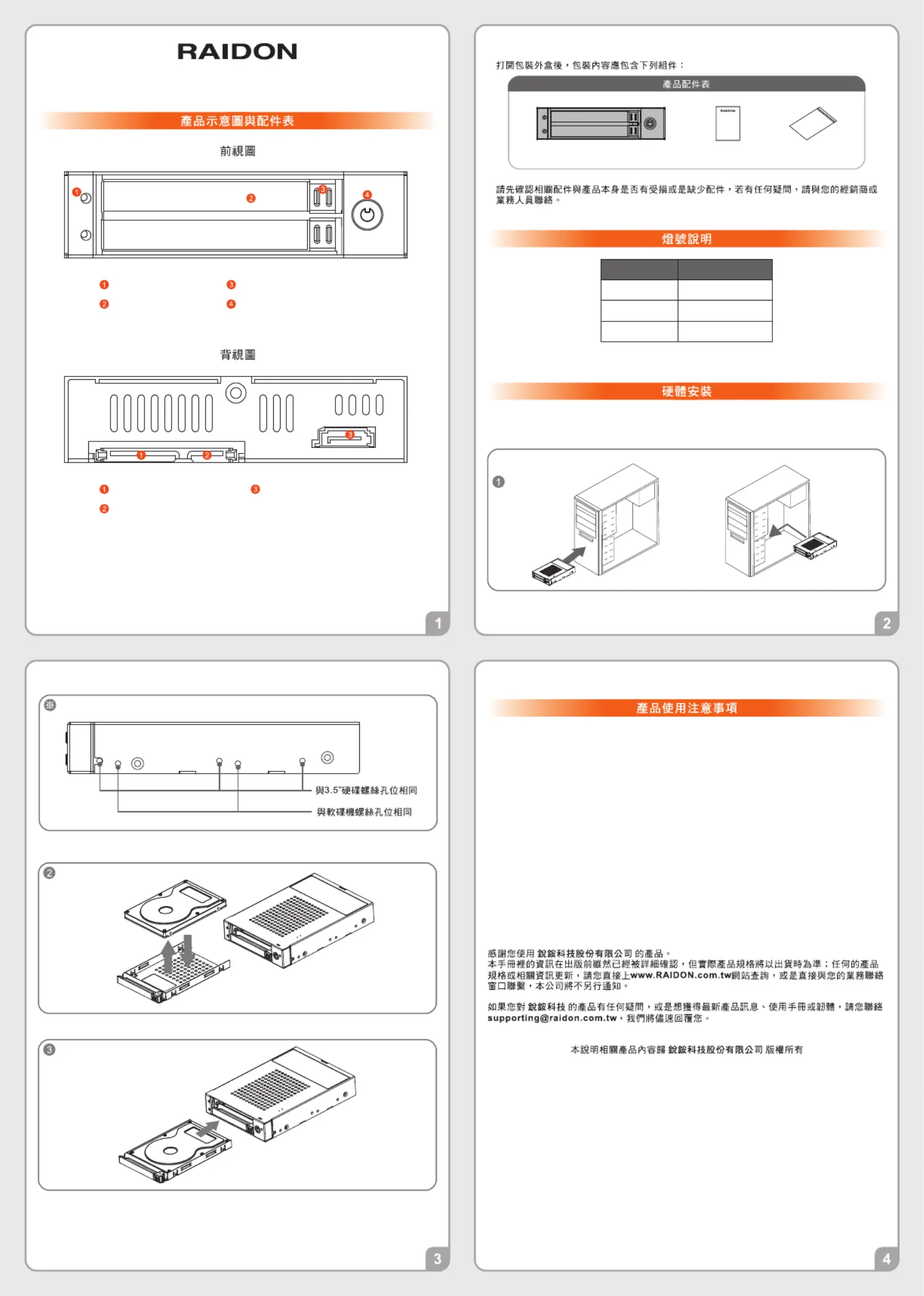

iT2771-S3 快速安裝導引

頂出按鍵

硬碟抽取盒鑰匙孔

LED指示燈

硬碟抽取盒把手

硬碟位置 2 SATA 連結埠SATA 15Pin 電源輸入埠

硬碟位置 1 SATA 連結埠

iT2771-S3 主體快速安裝導引螺絲及鑰匙x1 x1

1. 將主體裝置在機殼上，連接相關連接線，並確認固定螺絲是否鎖上。

請參照下列步驟，完成 iT2771-S3 的硬體安裝:

3. 確認完成後請插回抽取盒，並確認取盒確實插入且固定在適當位置。

4. 硬體安裝完成。您可開啟電源進行相關設定與應用。

5. 完成。你的作業系統將會自行辨識硬體，辨識成功後請先完成硬碟格式化，完成後

即可使用。

2. 將您的硬碟安裝至抽取盒上。

※ 螺絲孔位說明

1.本系統允許使用不同廠牌的硬碟。但如果要獲得更好的效能，我們強烈建議使用相同廠牌型

號的硬碟。

2.請確保使用的硬碟是不含壞軌的，以避免當其中一顆硬碟發生故障時，可能導致系統當機或

所有資料遺失。

3.硬碟格式化後， iT2771-S3 的總使用儲存容量或許會與硬碟容量加總後的有所不同。

4. 強烈建議除了使用 iT2771-S3 的資料儲存功能外，請針對重要資料備份到另一個儲存裝置

上或遠端備份，雙重備份您重要的資料。若您儲存在 iT2771-S3 的資料損毀或遺失，

RADION 將不負任何的責任。

硬碟位置 1

硬碟位置 2

V1.1 (Jun. 2017)

註：LED 指示燈之燈號為安裝 HDD 時顯示的燈號；

若安裝的是 SSD ，則燈號會因廠牌不同而有變化。

狀態指示燈LED

無硬碟紅燈恆亮

資料存取紫燈閃爍

硬碟閒置紫燈恆亮

Hardware Installation

iT2771-S3 Quick Setup Guide

Product Illustration and Parts List

HDD Tray Ejection

HDD enclosure keyhole

LED Indicator

HDD enclosure handle

SATA 15 PIN Power Connector

Hard disk location 1

SATA 7 pin connector

Hard disk location 2

SATA 7 pin connector

Front View

Rear View

Hard Disk Location 0

Hard Disk Location 1

The following items should be inside the package upon opening:

iT2771-S3 body Quick Setup x1

Guide x1

Screws

and key

Please check the included parts and the product itself for any damage or missing parts. If you

have any questions, please contact the retailer or sales representative.

The Indication of HDD Status

1. Install the product unit into the computer chassis and make the necessary connections

and mount the product unit properly and securely to the bay position desired.

Please follow the steps below to complete the iT2771-S3 hardware setup process:

3. Re-insert the removable tray when completed and make sure the tray is securely inserted

into the appropriate position.

4. When hardware installation is completed, you can turn on the power of the main unit to

proceed with relevant settings and applications.

5. Installation completed. Your operating system should automatically detect the hard

drives within. Please proceed to format the drives. Once formatting is completed,

you may then start to operate the device.

2. Mount the hard drive onto the removable tray.

※ Mounting Positions

Screw positions to mount like a

3.5” hard drive

Screw positions to mount like a

floppy drive

Important Notice

The product allows the user to simultaneously utilize two hard drives manufac-

tured by different companies. However, if the user expects better efficiency, we

strongly recommend the users to use hard drives manufactured by the same

manufacturer.

Before a new HDD is installed in the iT2771-S3, please make sure that there are no bad

tracks or defects to avoid data loss.

The actual storage capacity of iT2771-S3 recognized by the system may differ from the

total capacity stated on the hard drives combined once the drives have been formatted.

We strongly recommend backing up important data stored on the iT2771-S3 to another

storage device or a remote site. RAIDON will not be held liable for the damage or loss of

data you stored on the iT2771-S3.

Thank you for choosing this product.RAIDON

The information provided in this manual was checked before publication, but the actual product

specifications may have changed before shipping; Latest product specifications and updates can be

found at .tw or through your sales representative. No separate notifications will be www.RAIDON.com

provided by our company.

If you have any questions about products or would like to receive the latest product information, RAIDON

instruction manuals, or firmware, please contact for assistance.sales1@raidon.com.tw

All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.

※ LED Indication design is based upon users to use HDD products. And in case

if you use SSD, the Indication will be varied by different SSD products.

Status LED

No HDD detected Red light always on

Data access Purple light Flashing

HDD idle Purple light always on

V1.1 (Jun. 2017)

Produkt Specifikationer

Mærke:	Icy Box
Kategori:	Ikke kategoriseret
Model:	iT2771-S3
Type:	Opbevaring drev bakke
Bredde:	102 mm
Dybde:	147 mm
Højde:	26 mm
Antal pr. pakke:	1 stk
Produktfarve:	Black, Metallic
Opbevaringstemperatur (T-T):	-20 - 47 °C
Driftstemperatur (T-T):	10 - 35 °C
Hurtig start guide:	Ja
Certificering:	CE, FCC
LED-indikatorer:	Strøm
Harmoniseret systemkode (HS):	84733080
Understøttede Windows-operativsystemer:	Ja
Understøttede Linux-operativsystemer:	Ja
HDD-grænseflade:	SATA
Dataoverførselshastighed:	6 Gbit/sek.
Størrelse:	3.5 "
HDD-størrelse:	2.5 "
Antal understøttede HHD'er:	2
RAID-niveauer:	JBOD
Nøglelås:	Ja
Antal eksterne SATA-porte:	1
