Side 1/1
3-1 3-2
3-3 3-4
Push the tray ejection button to eject the
drive tra y.

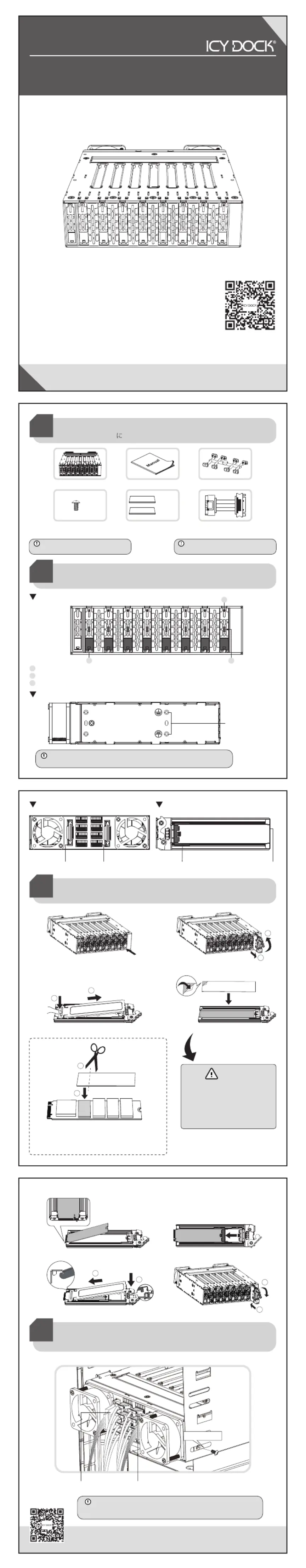

Installation Guide ●
Installationsanleitung Guide d' ●Installation ●Guía
de instalación
●
操作步驟 ●
操作步骤
3
1
2
2
1
Remove the protective film on both
sides of the 1mm-thick thermal pad.
Warning
If using the 1mm thermal pad
on the M.2 drive and it prevents
M.2 drive from mating with the
enclosure’s connector correctly,
please use the 0.7mm thermal
pad instead.
(Optional)
1
2
If there is a significant height difference between
the components on the M.2 drive, use an unused
thermal pad, cut it into small pieces and paste it
onto the shorter component for a complete
contact with the thermal pad.
Adjustable M.2 SSD Locker
Guide Pin to
Align M.2 Connector
15 Pin S A Power OCuLink (SFF-8612)AT
Rear View
Drive Tray Inner View
Front View
Side View
Drive Tray Ejection Button
1
2
LED Indicator (Power: Solid Green; Drive Access: Flashing Green)
3
Slot for Drive ID Plug
Device Information ●
Geräteinformationen I●
nformations dispositif
●
Información del dispositivo ●
本体説明 ●
機體說明 机体说明●
2
Note: When installing the ToughArmor MB873MP-B, only the lower screw holes
have to be secured. This device can be installed upside down if desired
Grounding Screw Holes
1
2
3
Package Contents ●
Packungsinhalt Contenu Contenido ● ●
del paquete
●
包装 ついて
●
包裝說明 ●
包装说明
1
Note: Please use the extension cables
before connecting to your cable
Drive ID Plugs
2 x SATA Power Extension Cable
User Manual
Thermal Pad
×
16
1.0mm × 8
0.7mm × 8
Note: Please use the included screws
to secure the device
Device
4 x M3*6 Screws for Device
(2 x Screws for Spare Parts)
× 6
*Cables are not included
M3*6 rew Sc s
OCuLink Cable15 Pin Power Connector
Device Installation ●
Installation eines Gerätes nstallat I●ion du dis sitifpo
●
Inst ac n del disal ió positivo de ●
デバイス取付手順 ●
裝置安裝步驟
● 裝置安裝步驟
4
Note: If the drive is not detected by the system, go to "device manager",
right click on "disk drives" and then select "scan for hardware
changes" to preform manual hardware refresh
3-6
Secure the drive with adjustable M.2 SSD locker.
3-7 3-8
2
1
3-5
4 Pin
Back Side of
M.2 NVMe SSD
Guide Pin
2
1
For the warranty information, please visit www.icydock.com/warranty.php
8 x M.2 NVMe SSD Backplane Cage for 5.25" Bay
ToughArmor
Copyright
©
ICY DOCK International. All Rights Reserved. 650276 VER 1.0
Scan the QR code for
more product information
