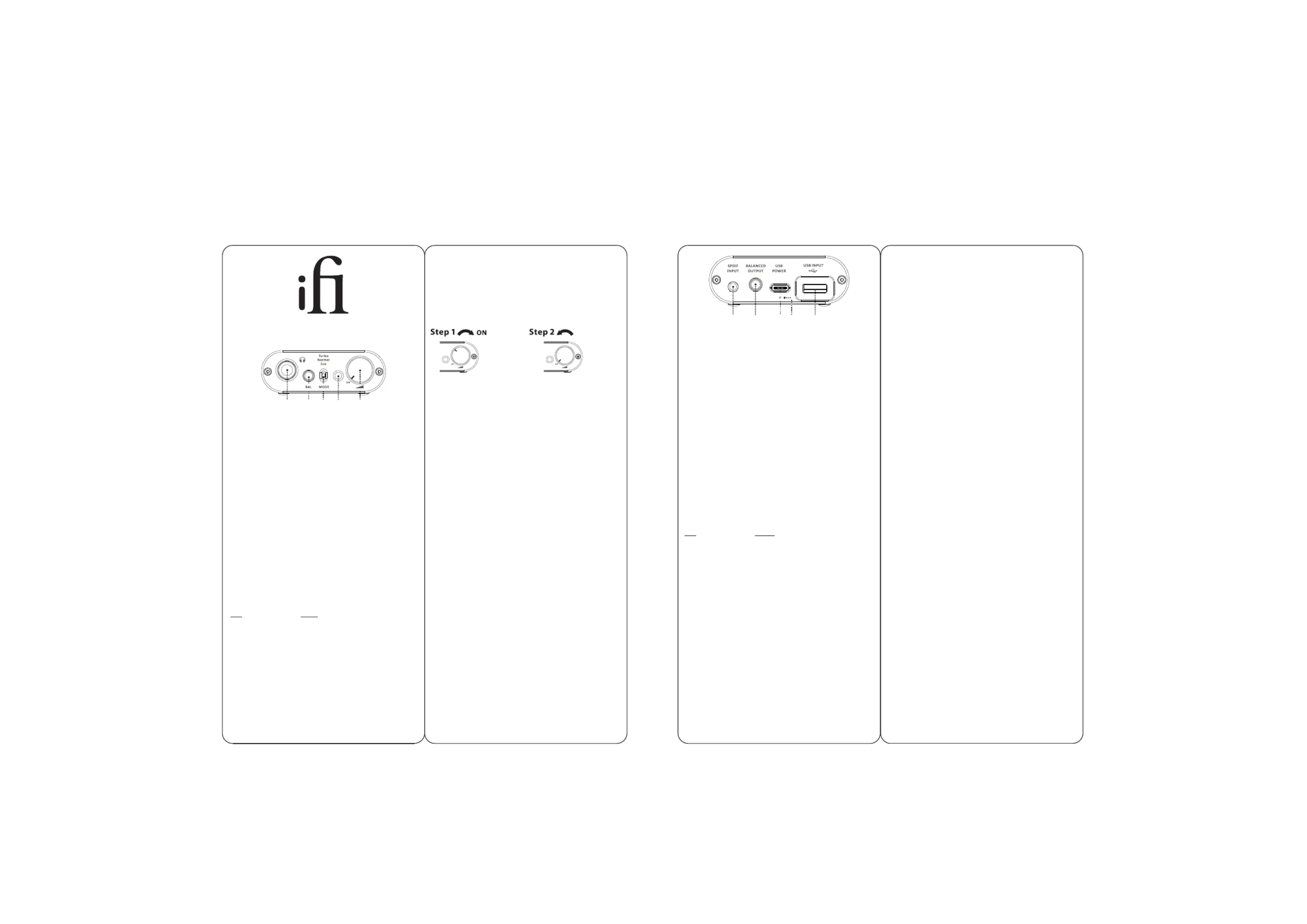

5. ON/OFF and Analogue Volume Control

The analogue volume control in iDSD Diablo is superior to any

digital volume control.

Warning: Due to the high power of iDSD Diablo, always start off at a low volume

level so that there is no risk of damage to your headphones or your hearing. iFi

audio is not responsible for any hearing or equipment damage from misuse.

Power ON. Power OFF.

Tip: For Apple iOS and Android devices, please use battery power, otherwise you

may receive error messages from your device.

Tip: For connection to Apple devices, an Apple Lightning to a USB Camera Adapter

is required. For connection to Android devices, a USB On-The-Go (OTG) cable and

appropriate OS support are required.

For more information, please refer to www.ifi-audio.com.

ifi-audio.com

Ver1.4

4 5

1. Single-ended 6.3mm output

Connection for 6.3 single ended headphones . Please use 3.5 to

6.3 mm adaptor for 3.5 single ended headphones.

2. Balanced 4.4mm analogue output

Connect balanced 4.4mm headphones.

Tip: As iDSD Diablo is balanced, we recommend the 4.4mm output.

3. Power Mode

There are 3 different types of power output levels to drive

different headphones from the ultra-sensitive in-ear monitors

to the most demanding over-ear headphones .

Approximate listening time (in Battery mode with typical headphones):

Eco up to a maximum of 12 hours (10)

Normal up to a maximum of 9 hours (8)

Turbo up to a maximum 6 hours (4)

4. Audio Format LED (kHz)

The LED colour scheme indicates the audio format and sampling

frequency received by the iDSD Diablo from the music source.

LED Mode

Yellow PCM 48/44.1kHz

White PCM 768/705.6/384/352.8/192/176.4/

96/88.2kHz

Cyan DSD 128/64

Red DSD 512/256

Green MQA

Blue MQA Studio

Magenta Original Sample Rate*

*MQB

108

6 9

6. S/PDIF 3.5mm Coaxial/Optical input

When USB is not used, connect to a Coaxial/Optical cable (through

a Toslink Mini-Plug).

Tip: a Toslink Mini-Plug to Toslink adaptor is included for connecting a Toslink

optical cable.

Tip: The SPDIF standard supports PCM only up to 192kHz.

7. Balanced 4.4mm fixed analogue output

This is an analogue output via 4.4mm > XLR or other balanced

interconnects. You could use this for an active speaker or an

amplifier.

Warning: Do not insert 4.4mm headphones to this source as the full volume is

likely to damage your headphones or your hearing.

8. USB-C (5V) battery charge input

For charging only. Due the very high-power nature of iDSD

Diablo, it will take ~12 hours and ~6 hours for a standard and

high-powered (the enclosed super-silent iPower 5V) charger

respectively to fully recharge the iDSD Diablo.

9. LED for Battery Status

LED Status

White* > 75%

Green* > 25%

Red* > 10%

Red (flashing) ≤ 10%

*Battery LED will flash when it is charging.

10. USB3.0 'Type A' input port

For data transfer only. Connect your phone to the iDSD Diablo

with a Lightning to a USB Camera Adapter (Apple) or USB On-

The-Go (OTG) cable (Android). When using other audio sources,

please connect with a USB cable.

Tip: It is preferable to use a USB 3.0 over using a USB 2.0 port on the PC.

Tip: The iDSD Diablo comes with a pre-installed firmware optimised for MQA. This

version also handles up to PCM384/DSD256.

Tip: For firmware optimised to run PCM768/DSD5 12(non-MQA) please install

corres ponding firmware.

Tip: For all latest firmware updates please refer to our website here: www.ifi-

audio.com/downloads/

ii D

DD S

SS D D

D D

D DD D i

ii a

aa b

bb l

ll o

Technologies

•Octa-DSD512/PCM768 and 2X DXD.

•Native DSD/PCM Burr-Brown® chipset.

•Fully balanced 4.4mm output.

•Performance boosting Direct-Drive® and Headamp Turbo®.

•Zero Jitter/Femto clock system upgraded for lower phase-noise/jitter*.

•Digital engine upgraded with iFi custom ultra-low noise Op-Amp Ov2028*.

•Analogue section upgraded with iFi custom ultra-low noise Op-Amp

Ov2627*.

•Ultra-low impedance OS-CON polymer capacitors and Panasonic audio-

grade ECPU film capactiors*.

•Ultra-low noise iPower 5V power supply*.

* editionDiablo

Specifications

Digital Inputs:

Formats supported:

Frequency Response:

SNR:

Balanced:

S-E:

Dynamic range:

Balanced:

S-E:

THD + N:

Balanced:

S-E:

Headphone Max Output:

Balanced:

S-E:

Fixed Audio Output:

Power consumption:

Turbo:

Normal:

Eco:

Battery:

Power System:

Dimensions:

Weight:

Warranty period:

*Specifications are subject to change without notice.

USB 3.0 type 'A' (USB2.0 compatible)/

S-PDIF (3.5mm coaxial/optical)

DSD512/256/128/64,

Octa/Quad/Double/Single-Speed DSD

DXD (768/705.6/384/352.8kHz),

Double/Single-Speed DXD

PCM (768/705.6/384/352.8/192/176.4/

96/88.2/48/44.1kHz)

MQA

10Hz-80kHz(-3dB)

-120dB

-114dB

-120dB

-114dB

0.002%

0.001%

>19.2V/611 mW (@ 600 Ohm)

>12.6V/4,980 mW (@ 32 Ohm)

>9.6V/153 mW (@ 600 Ohm)

>8.8V/2,417 mW (@ 32 Ohm)

Balanced 4.4mm

12W

Lithium-polymer 4800mAh

Charging via USB-C (iFi iPower included)

BC V1.2 compliant up to 1900mA charging current

166 x 72 x 25 mm

6.5" x 2.8" x 1.0"

330g (0.73 lbs)

12 months

OFF
