Specification

Note:

: : Before providing power for the

camera, please read this User Guide in

detail!

Do not attempt to disassemble the camera.

If the camera can not work, please contact

local franchiser or our company.

Model ECO-312/700

Pick up Element 1/3" Nextchip CCD

Effective Picture Elements

(H×V) NTSC: 976(H)×494(V)

Horizontal Resolution 700 TV Line

Minimum Illumination 0.1 Lux

S/N Ratio More than 50dB

Scanning System 2:1 interface

Synchronous System Internal, Negative sync.

Auto Electronic Shutter NTSC: 1/60s~1/100,000s

Gama Characteristic 0.45

Video Output 1Vpp, 75Ω

Auto Gain Control Auto

Power/

//Current DC12V(+/-10%)/300mA

Lens 2.8-12mm Manual Zoom Lens

Dimension (mm) ￠ 118 x 106(H)mm

Weight (g) 750

Storage Temperature -20~+60℃ RH95% MAX

Operating Temperature -10~+50℃ RH95% MAX

3-Axis Bracket Built-in

INTRODUCTION

Congratulations on your purchase of this product.

This User Guide suits ECO-312700 product. We adopt

the latest Nextchip technical of sensor and driver. The

most attractive characteristics are small and easy hidden,

suits the elevator and corridor. In addition, it owns the

characters of high definition and stability, strong anti-

jamming, rich and real color. Fixing and using this model

are convenient too. It is very good for you to apply to your

CCTV system.

Please read this instruction manual carefully to en-

sure proper use of the product.

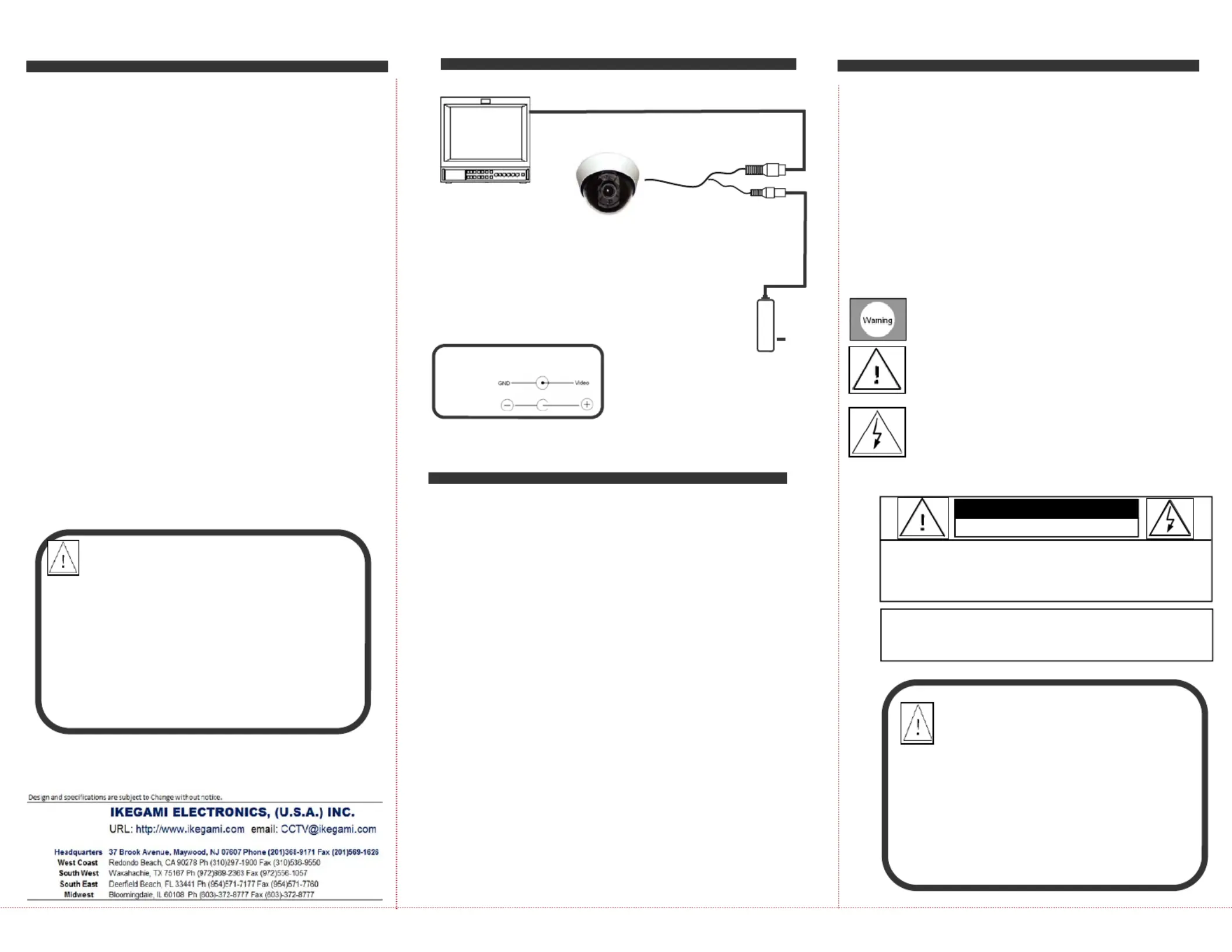

CONNECTING

BRIEF OF PRODUCT

* * (

(

(( )

)

) ) Sensor CCD

Adopt 1/3" Nextchip CCD Sensor.

* * Auto Gain Control (AGC)

Built-in auto gain control (AGC) circuit. The color

camera

can get high definition picture in low Lux condition.

* * Auto Electronic Shutter (AES)

Built-in auto electronic shutter function. The color

camera’s AES speed can reach 1/100,000s.

* * Gama Characteristic

Camera Gama characteristic is 0.45.

* * Scanning Mode

NTSC or PAL mode.

DC12V

Power Supply

Monitor

TROUBLE AND SOLUTION

Link wire rule：

Power

Video

1. No picture after providing power

. Maybe the power supply has voltage abnormity, please check the

power

supply voltage and pole whether exactitude.

. Please check all the connecting cable and monitors whether be con-

nected

correctly or not.

2. The picture level direction have flowing interference ripples

. May be caused by the power supply AC ripples, it need filter the wave

of the

power supply.

. Check the monitor and peripheral equipments used.

3. The picture background color changes continuously

. The fluorescent lamp’s electromagnetic field cause color roll. This is

proper

phenomenon of the cameras.

. Reduce the fluorescent lamp numbers or increase the distance be-

tween the

camera and the fluorescent lamps can improve it.

. Use power supply external sync. camera can solve it.

To prevent fire or shock hazarded. Do not expose the unit

The symbol is intended to alert the user to the presence of

to rain or moisture.

important operating and maintenance (servicing)

Instructions in the literature accompanying the appliance.

uninsulated ‘dangerous voltage’ within the product’s

enclosure that may be of sufficient Magnitude to consti-

a risk of electric shock to persons.

Video

DC12V

CAUTION:

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER OR BACK NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO OUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC. DO NOT OPEN

CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF

FIRE HAZARDS, DO NOT USE OTHER THAN

SPECIFIED POWER SOURCE.

Note：

：

：：

● The power supply must through safe attestation. Its output volt-

age, current, voltage polarity and operating temperature must

match the camera’s requirement.

● ,When using the camera in the thunderbolt condition please note to

mount Anti-thunder device or put off the power supply plug and

cable.

●In order to capture high quality pictures, the power supply’s cable

and video output cable should not be too long.

Note:

: :

● Please note the camera’s operating temperature and its using

environment requirement. Avoid using the camera at too high

or too low temperatures. The operating temperature is –

20~+60Ԩ. (Recommendatory operating temperature is -

10~+50Ԩ.)

● Never make the camera face the sun or bright object. Other-

wise, it will damage the sensor.

● Do not mount the camera near by the radiator or heater.
