Side 1/3

SPECIFICATION:

MODEL NO. : IDX-3250B

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : Watts 2800

BOX DIMENSION : ______________

UNIT DIMENSION : ______________

GROSS WEIGHT : ______________

UNIT WEIGHT : ______________

IMPORTANT SAFEGUARD:

When using electrical appliances, basic safety precautions should always be followed, including

the following:

1. Read all instructions carefully.

2. Do not use the Induction Cooker on any metal table.

3. Do not use the Induction Cooker next to devices, which react sensitively to magnet (e.g.

radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, ammable materials, etc. away from the Induction Cooker and from

the convenience outlet where the Induction Cooker is plugged.

5. Before using the Induction Cooker, check if the voltage indicated corresponds with the

convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be

replaced with the same type and size or bring the Induction Cooker to the nearest Authorized

Service Center.

7. Do not use a two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the Induction Cooker and the power plug with wet hands.

10. Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of 10cm

to 20cm away from the wall or from other items.

11. The Induction Cooker’s surface is made of glass, if damaged, unplug immedi ately.

12. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.

13. Do not allow the cord to touch the hot surface of the unit.

14. The Induction Cooker does not heat up during cooking, but the heat from the cookware may

transferred to in the Induction Cooker. Do not touch the hot surface of the glass.

15. Scientic tests have proven that Induction Cookers are safe to use. However, persons with a

pacemaker should keep a minimum distance of 60cm from the unit while using.

16. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker.

These may heat up when the Induction Cooker is ON.

17. Do not place any magnetic objects on the glass surface while the Induction Cooker is in use.

18. To protect against electric shock, do not immerse the Induction Cooker in water.

19. This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliances by person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance.

20. Do not use the unit if the glass is damaged or has a cracked.

21. This induction cooker is only intended for tabletop use.

22. Do not use the Induction Cooker for other than intended use.

23. Not intended for outdoor use.

24. For household use only, not intended for any business purposes.

25. Save this instruction for future references.

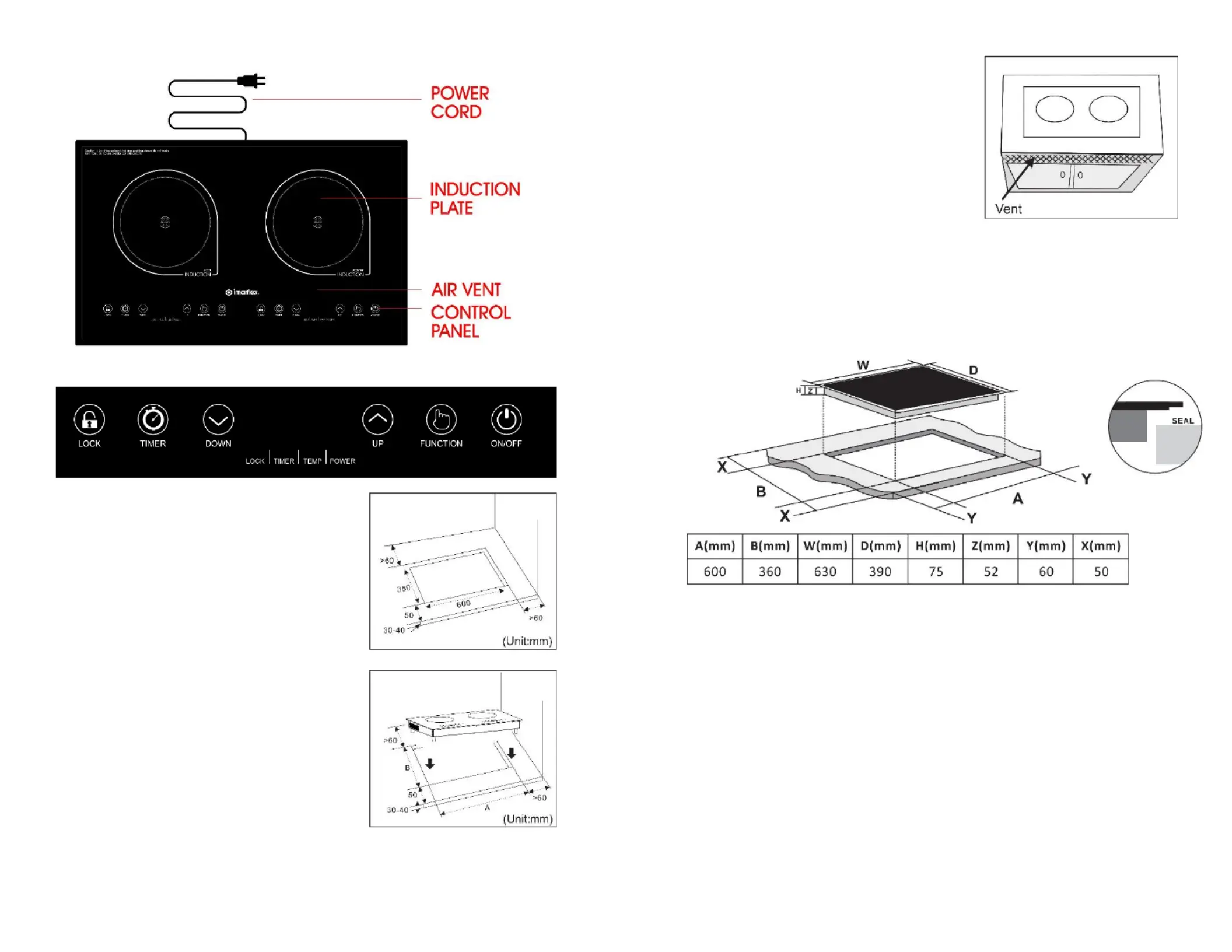

DESCRIPTION OF PARTS:

CONTROL PANEL:

INSTALLATION INSTRUCTION:

Cautions:

 If any damage, the appliance must bring to the

nearest authorizes Imarflex Service Center

 The Appliance must be installed according to

the given instruction in the instruction manual.

Incorrect installation, may cause injuries or

damage to the unit

 Always unplug the appliance from the main

power supply before moving the appliance for

cleaning or any maintenance operation

FIG.1

Warnings:

 The adhesive tape to be used to hold the plastic

laminate to the furniture must withstand

temperature not less than 150°C to avoid

delamination

 Unit walls must sustain 75°C above room

temperature

 The cooktop can be built into a working surface

of 30 to 40mm thick and 600mm deep

FIG.2

60mm minimum between the side

cut-out and the side wall.

 In order to install the induction hob into the

kitchen xture, FIG.1-hole dimension must be

followed

 Induction cooker must not be installed directly

above the following: dishwasher, fridge,

freezer, washing machine, and clothes dryer,

as the humidity may damage the appliance

 If the induction cooker is installed above an

oven, the oven must have a cooling fan. The

two electrical supply with independent

connections

 The induction cooker must be kept at least

60mm away from the side walls and 50mm FIG.3

 away from the back / rear wall If the hob is installed above an oven

 The distance of the hob and any cabinet there must be at least 55mm distance

or range hood must be at least 650mm

as photo shown in FIG.2

 Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of

10cm to 20cm away from the wall or from other items as photo shown in FIG.3

MEASUREMENTS IN (MM)

 Minimum of 50mm from hob cut-out to back wall

 Minimum of 60mm from hob cut-out to side wall

 Minimum of 75mm from the bench top with the tted drawer underneath

 Minimum of 60mm from the bench top with a tted oven underneath

 Minimum of 30mm from back cabinet for ventilation gap
