Side 1/2

SPECIFICATION

MODEL NO. : IMX-3 S 45

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 300 Watts

BOX DIMENSION : 338*274*234mm

UNIT DIMENSION : 308*187*336mm

GROSS WEIGHT : 3 kg.

UNIT WEIGHT : 2.4 kg.

R : 1350 rpm PM

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the

convenience outlet (230Va.c.).

3. Do not use the two- y socket with another appliance. wa

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it

should be replaced with the same type and size or bring the unit to the nearest

Imarex Authorized Service Center.

5. Do not place the unit near gas stove, an electric burner or in a heated oven. a

6. Place the unit on stable surface; keep it away from the edge of counter to avoid

accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliances by a person responsible for their safety.

9. plug mixer from the outlet when not in use, before inserting or removing parts, Un

and before cleaning.

10. Refrain from using the accessories with dierent function (one beater and one

dough hook) at the same time.

11. Keep curtains, furniture, ammabl materials, etc. away from the unit and from the e

convenience outlet where the unit is plugged in.

12. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and

other utensils away from beater during operation to prevent injury, and/or damage

to the mixer.

13. The maximum continuous operating time of the mixer is five minutes only. Do not

exceed with the maximum operating time. It may cause damage to the unit.

14. Do not let cord hang over edge of table or counter, or touch hot surfaces.

15. protect against electric shock, do not immerse the unit in water or any other To

liquid.

16. This appliance is not intended for outdoor use.

17. Never place the mixer near hot surfaces.

18. In case of malfunctions, please bring the mixer to the nearest authorized Imarflex

Service Center.

19. Avoid water spillage into the socket, connector, cord and alike.

20. Do not use this unit other than its intended use.

21. For household use only; not intended for any business purposes

22. Save this instruction manual for future reference.

23. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal

cutout, this appliance must not be supplied through an external switching device,

such as a timer, or connected to a circuit that is regularly switched on and o by

the utility.

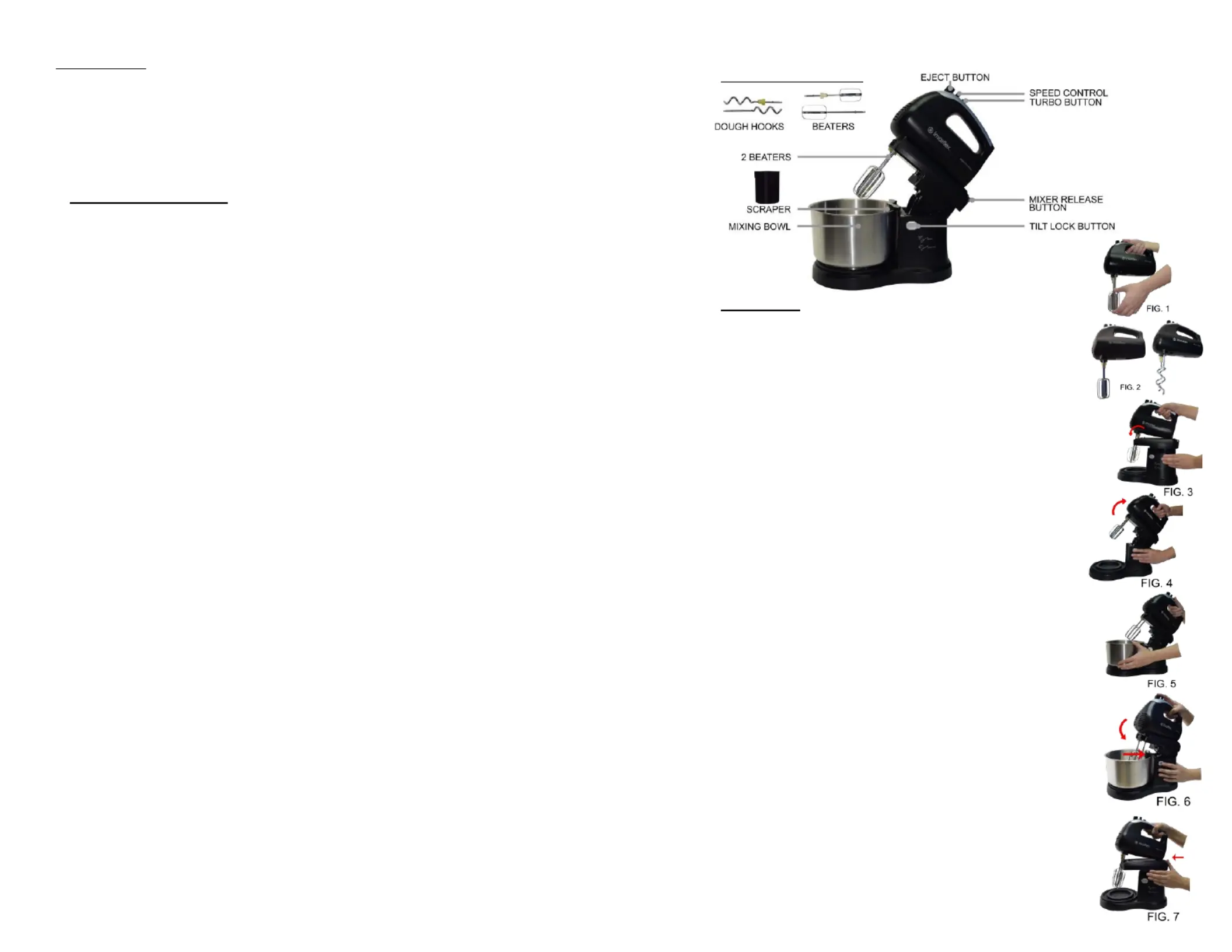

DESCRIPTION OF PARTS

HOW TO USE:

1. Before using the mixer, wash Beaters, Dough Hooks and Mixing

Bowl with soap and water. Rinse thoroughly and let it dry.

2. Place the stand on a level surface.

3. INSERTING THE BEATERS

a. Be sure that the Speed Control is in “0’ position.

b. Insert the edge of the Beaters and align the ange on slot one by one

and push until it fits (a click sound will be heard). The beater with gear

must be inserted into the right slot. (See Fig.1)

4. INSERTING THE DOUGH HOOKS

a. Insert the edge of the Dough Hooks and align the Slang on slot one

by one and push until it ts (a click sound will be heard). The

dough hook with gear must be inserted into the right slo (See t.

Fig.2)

5. PLACING MIXER ON STAND

a. Align the bottom part of the Mixer on the slot and press down.

(See Fig.3)

6. MIXING

a. Lift up the Movable support with the mixer by pressing the Tilt

Lock Button. (See Fig.4)

b. Place the Mixing Bowl on the tating Plate. (See Fig.5) Put the Ro

scraper on the mixing bowl. (See Fig.6) Press the Neck Release

Button again and push down the Movable support with mixer. (See

Fig.6)

c. Start blending or mixing at a low speed, add more speed as you

follow recipe instruction (ingredients can slowly be added during

mixing). Speed is from 1 to 5 with Turbo Button.

d. Turn OFF after use.

e. Remove the Mixing Bowl from the Rotating Plate. Press the Tilt

Lock Release Button and lift the movable support with mixer.

Note: After 5 minutes of continuous usage, allow a few minutes’

rest before the next use.

7. REMOVING MIXER FROM MOVABLE SUPPORT

a. Hold the Movable Support and press the Mixer Release Button and

slightly lift the Mixer. (See g. 7)

8. REMOVING THE BEATERS/DOUGH HOO KS

a. Hold the Beaters/Hooks and push the Eject Button.

CLEANING AND MAINTENANCE:

1. Make sure to unplug the unit before cleaning.

2. Remove the accessories from the unit body (kindly read removing the attachments for ‘ ’

the proper procedure).

3. All parts are washable with soap and water except the unit body.

4. The beaters dough hooks and whisk must be wipe clean and dry after every use. ,

Note: If there is crust food or residue left in the accessories. In a separate bowl ll with

warm, soapy water and let sit for about 30 to 60 seconds. Then rinse it with water and

wipe it with dry cloth.

5. Use damp cloth in cleaning the unit body.

Note: Do not immerse the unit body in water or any other liquid.

6. To remove stubborn spots, wipe surfaces with a cloth dampened in sudsy water or a

mild, non-abrasive cleaner. Then wipe with a clean, damp cloth. Do not use abrasive

cleansers on any part of the mixer as they can damage the nish.

CAUTION: Attachments of the unit are not recommended for dishwasher.

MIXING GUIDE:

ACCESORY

SPEED

DESCRIPTION

Beaters

Can be used to blend/fold in our or dry ingredients with liquids

for cookie doughs or batters

Can be used to stir thin batters for wafes, pancakes, etc.

Can be used to mix cake batters, eggs into batter, cream butter

and sugar

Can be used to beat whole eggs, frostings, light batters, thin

sauce

Can be used to whip cooked potatoes, turnips, squash

Dough Hooks

Can be used to mix or blend yeast dough for maximum of 5

mins.

Turbo

Press this button for maximum power for heavy mixing jobs

REMINDER: Please do not forget to ll up and send the warranty card with receipt to

our email address imarexfb@evergoodinc.com

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
