Before First Use

Soak the ice cream bowl and mixing blades in warm water to remove any dust or residue from production and

transportation. Avoid cleaning any parts with abrasive detergents or harsh tools.

Freezing the Ice Cream Bowl



Wash, clean, and dry the ice cream bowl thoroughly before freezing.

Place the ice cream bowl vertically on a flat surface, ensuring it is not upside down or tilted. The freezer

temperature should be below -18°C, and the freezing time should be at least 16 hours (ideally, freeze it overnight

and use it the next day).



When removing the ice cream bowl from the freezer, check that it is completely frozen. Gently shake the bowl—if

you don’t hear any liquid sloshing, it means the liquid is fully frozen.

How to Use

1. Place the ice cream bowl in the freezer for at least 16 hours until it is completely frozen.

2. Prepare your ice cream batter in advance (up to 700ml) and refrigerate for optimal results.

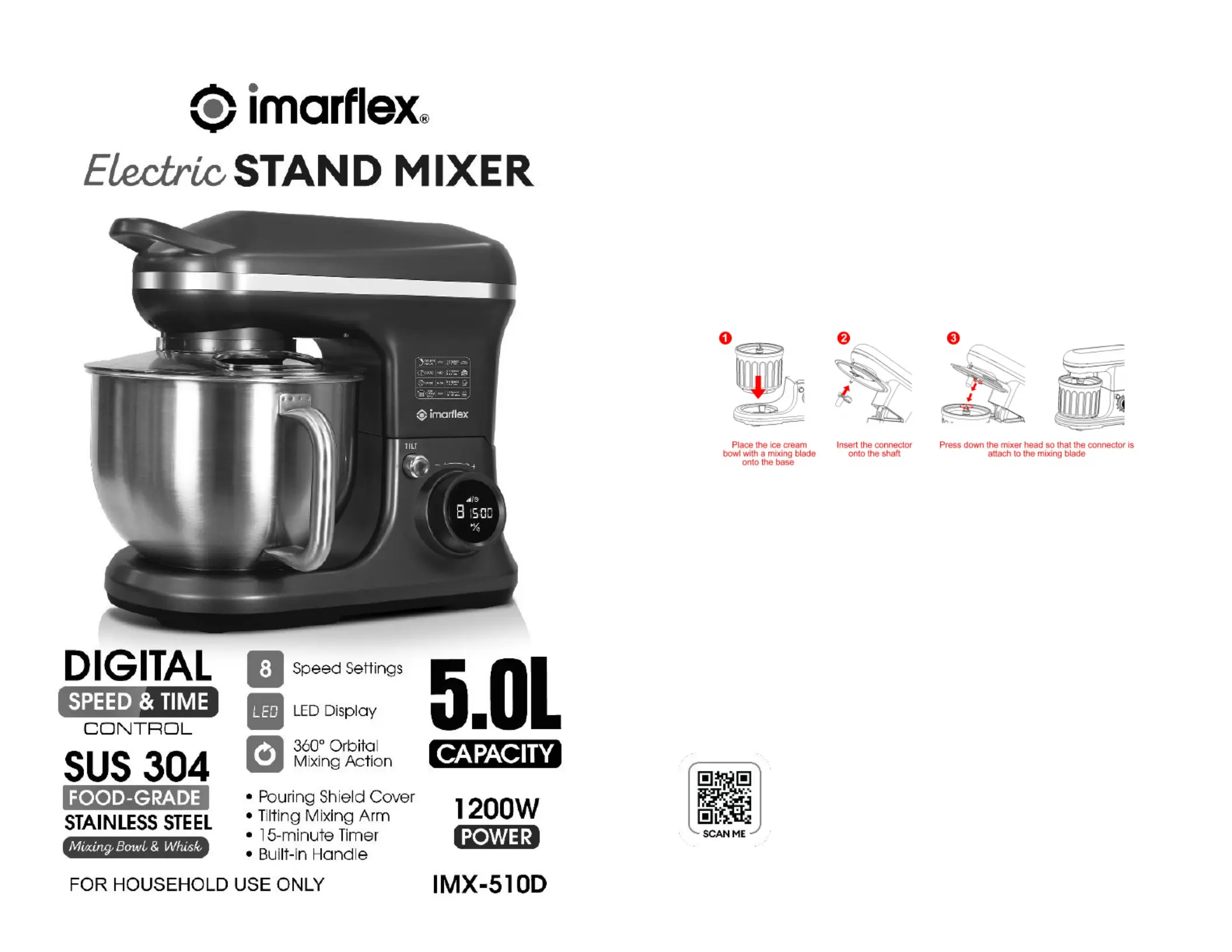

3. Align the 3 raised grooves on the bottom of the ice cream bowl with the 3 grooves on the stand mixer. Then,

place the ice cream bowl onto the mixer.

4. Connect the mixer’s output shaft to the connector.

5. Add your ice cream ingredients to the bowl.

6. Press down on the mixer head to ensure the connector is properly attached to the mixing blade.

7. Mix on speed 1 for 10 to 15 minutes. Be sure to let the unit rest for a few seconds every 4 minutes.

8. Serve immediately as a dessert or transfer to an airtight container and freeze for later.

Note: The machine must be switched on before adding the ice cream or sorbet mixture to prevent it from freezing

instantly on the inside of the bowl.

This product must be used with a mixer. The connecting head links to the mixing shaft, transferring speed to the blade

for stirring, allowing it to create delicious ice cream.



Store the ice cream mixing bowl in the freezer so it's always ready for use. Place it in a plastic bag before

freezing, and always store it upright.

Make sure the ice cream mixing bowl is completely dry before placing it in the freezer.



Do not puncture or heat the ice cream mixing bowl.

The ice cream mixing bowl should be frozen in a freezer set to -18°C (0.4°F) or lower for at least 16 hours before

use.

For optimal results, refrigerate your ingredients before making ice cream.

Adding alcohol to recipes will slow down the freezing process.

CAUTION:

1. When pouring the mixed ingredients into the frozen ice cream bowl, start the machine within 30 seconds to

prevent the mixture from freezing on the edges, which will make it harder to stir.

2. The ice cream will be soft when finished, but if you prefer a firmer texture, place the ice cream bowl back in the

freezer for an additional 30 minutes.

REMINDER: Please do not forget to register your product warranty through the warranty registration website at

https://imarflex.ph

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China

SPECIFICATION:

MODEL NO. : IMX-510D

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1200 Watts

BOX DIMENSION : 413*244*355mm

UNIT DIMENSION : 390.5*230.9*328.5mm

GROSS WEIGHT : 10.60KGS

UNIT WEIGHT : 4.56KGS

RPM : 11500RPM

IMPORTANT SAFEGUARDS:

When using electrical appliances, it's essential to follow basic safety precautions, including the following:

1. Thoroughly read all instructions.

2. Before using the unit, ensure the voltage matches the convenience outlet (230Va.c.).

3. Avoid using the two-way socket with another appliance.

4. Do not operate any appliance with a damaged cord or plug. If the cord is damaged, replace it with one of the

same type and size, or take the unit to the nearest Imarflex Authorized Service Center.

5. Keep the unit away from gas stoves, electric burners, or heated ovens.

6. Place the unit on a stable surface and keep it away from the edge of the counter to prevent accidents.

7. Children should be supervised to ensure they do not play with the appliance.

8. This appliance is not intended for use by individuals (including children) with reduced physical, sensory, or

mental capabilities, or those lacking experience and knowledge, unless supervised or instructed by a

responsible person.

9. Unplug the mixer from the outlet when not in use, before inserting or removing parts, and before cleaning.

10. Do not use accessories with different functions (e.g., one beater and one dough hook) simultaneously.

11. Keep curtains, furniture, flammable materials, and similar items away from the unit and the outlet it’s

plugged into.

12. Avoid contact with moving parts. Keep hands, hair, clothing, and utensils away from the beater during

operation to prevent injury or damage to the mixer.

13. The maximum continuous operating time for the mixer is five minutes; do not exceed this limit, as it may

cause damage to the unit.

14. Ensure the cord does not hang over the edge of the table or counter and keep it away from hot surfaces.

15. To protect against electric shock, do not immerse the unit in water or any other liquid.

16. This appliance is not designed for outdoor use.

17. Never place the mixer near hot surfaces.

18. In case of malfunctions, take the mixer to the nearest authorized Imarflex Service Center.

19. Avoid spilling water into the socket, connector, or cord.

20. Use this unit only for its intended purpose.

21. For household use only; not intended for business purposes.

22. Keep this instruction manual for future reference.

23. CAUTION: To prevent hazards from inadvertent resetting of the thermal cutout, this appliance should not be

connected through an external switching device, such as a timer, or to a circuit that is frequently switched on

and off by the utility.

24. CAUTION: This unit is equipped with an overload protection device. It will automatically turn OFF to prevent

overheating and will turn ON again once it has cooled down. Therefore, you should TURN OFF and

UNPLUG the unit immediately after it shuts down automatically.

DESCRIPTION OF PARTS:

HOW TO USE:

For initial use, wash the beaters and dough hooks with soap and water then rinse thoroughly and let it dry. Place

the unit in a flat and stable surface.

1. INSERTING THE ATTACHMENTS

a. Ensure the Speed Selector is set to the "OFF" position.

b. Press the tilting arm button and gently raise the arm.

c. Insert the edge of the attachments, then push and rotate to secure them.

d. Place the mixing bowl in the slot and turn it clockwise to lock it in place.

e. Position the pouring shield cover on top of the mixing bowl.

f. Press the tilting arm button and carefully lower the arm back to its normal position.

2. MIXING

a. Start mixing at a low speed, add more speed as you follow recipe instruction (ingredients can slowly be

added during mixing).

b. Turn OFF every after use.

c. Press the Lever 90°clockwise to move the arm up.

d. Remove the Mixing Bowl from the slot by turning it counter-clockwise.

Note: After 4 minutes of continuous usage, allow a few minutes’ rest before using it again.

3. REMOVING THE ATTACHMENTS

a. Press the Lever 90°clockwise to move the arm up.

b. Push the attachment upward and turn it in clockwise synchronously, then pull out to detach.

CLEANING AND MAINTENANCE:

1. Make sure to unplug the unit before cleaning.

2. Remove the accessories from the unit body (kindly read ‘removing the attachments’ for the proper

procedure).

3. All parts are washable with soap and water except the unit body.

4. The beaters, dough hooks and whisk must be wipe clean and dry after every use.

Note: If there is crust food or residue left in the accessories. In a separate bowl fill with warm, soapy water

and let sit for about 30 to 60 seconds. Then rinse it with water and wipe it with dry cloth.

5. Use damp cloth in cleaning the unit body.

Note: Do not immerse the unit body in water or any other liquid.

6. To remove stubborn spots, wipe surfaces with a cloth dampened in sudsy water or a mild, non-abrasive

cleaner. Then wipe with a clean, damp cloth. Do not use abrasive cleansers on any part of the mixer as they

can damage the finish.

CAUTION:

Attachments of the unit are not recommended for dishwasher.

MIXING GUIDE

SPEED

ATTACHMENTS

DESCRIPTION

1-2

Dough Hook

Heavy mixtures (e.g. bread or short pastry)

3-5

Beater

Medium- heavy mixtures

(e.g. crepes or sponge mixture)

6-8

Whisk

Light mixture (e.g. cream, egg white, blancmange)

1-2

Ice Cream attachment

Solely for Ice Cream

ICE CREAM ATTACHMENT (Not included in the packaging – must be purchased separately)

Preparation Before Loading into the Stand Mixer

1. Use Granulated Sugar: Granulated sugar dissolves easily and is recommended for this recipe.

2. Combine Ingredients to Dissolve: Mix the ingredients that need to dissolve together and ensure they dissolve

smoothly.

3. Prepare the Fruit: Use fully ripe fruit. Wash it thoroughly, and remove the stem, skin, seeds, and core as

necessary.

4. Fresh Juice: Use fresh, 100% juice, whether freshly pressed or store-bought, for the best flavor.

5. Container Volume: Fill the container no more than halfway to allow room for the ice cream to expand without

spilling. You can adjust the proportions of the ingredients based on your personal preferences.

Whip the light cream separately before combining it with the pulp.



Ensure the temperature of the ice cream maker bowl is low enough. It's best to set the freezer to its lowest setting.

Dry the inner surface of the ice cream bowl thoroughly before placing it in the freezer.



Do not refrigerate the mixing paddle with the ice cream bowl.



Place both the ice cream bowl and mixing paddle into the stand mixer, start the machine, and then add the ice

cream mixture.
