Side 1/8

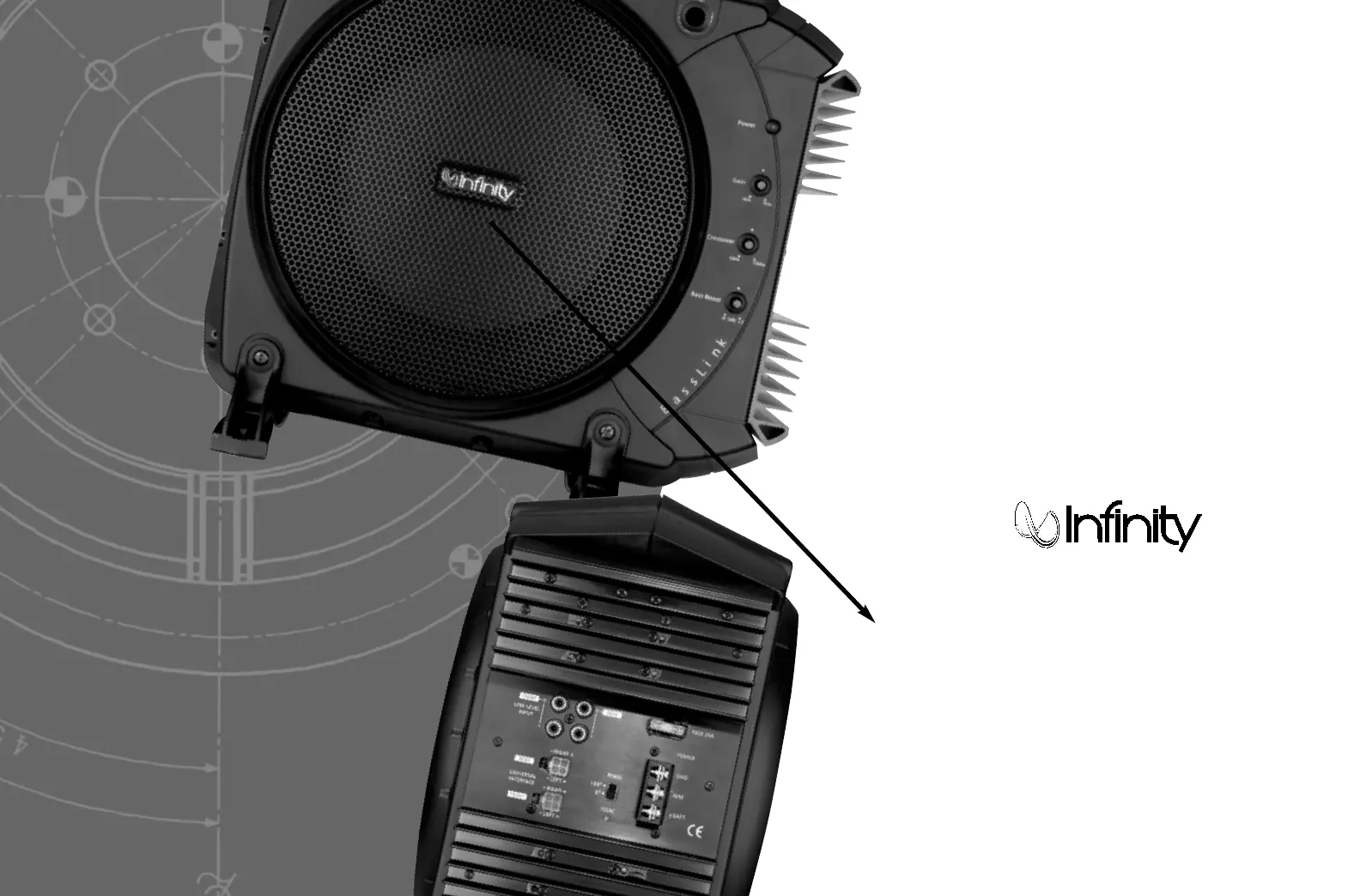

Thank you

for choosing the Infinity BassLink.

BassLink has been designed to provide the kind of

high-performance low-frequency reproduction that used

to require big, clumsy enclosures, large amplifiers, and

complex installation. To ensure maximum performance,

we strongly recommend that installation be entrusted to

a qualified professional. Although these instructions

explain how to install the BassLink in a general sense,

they do not show the specific installation methods for

your particular vehicle. If you feel you do not have the

necessary tools or experience, do not attempt the

installation yourself; rather, ask your authorized Infinity

car audio dealer about professional installation options.

Remember to keep this manual and your sales receipt

in a safe place for future reference.

instructions

BassLink

™

C M LHOOSING A OUNTING OCATION

Choose a mounting location that doesn’t interfere

with cargo, fold-down rear seats, or the trunk lid.

The best location is usually a corner of the trunk

or cargo area, as shown in Figures 1 and 2.

These locations, in addition to being out of the

way, will provide the best sonic reproduction in

the 60Hz to 100Hz range because the woofer out-

put will be “corner loaded” against the vehicle’s

walls. In any case, BassLink must not interfere

with the safe operation of the vehicle.

Figure 1. BassLink in a car’s trunk.

Figure 2. BassLink in an SUV’s cargo area.

INTRODUCTION

HEARING WARNING!

Playing loud music in a vehicle can permanently

damage your hearing, as well as hinder your

ability to hear traffic. We recommend using low

volume levels while driving. Infinity accepts no

liability for hearing loss, bodily injury or property

damage resulting from the use or misuse of

this product.

YOUR CAR AND BASS REPRODUCTION

Depending on the interior volume of your

vehicle and the dimensions of the passenger

compartment and cargo area, reproduced

frequencies below 80Hz may be boosted by

nearly 12dB per octave as frequency decreases.

This effect, known as the vehicle’s “transfer

function” or “cabin gain,” plays an important

part in shaping the overall in-car response of

the BassLink.

BassLink is designed to work with your vehicle’s

other speakers to reproduce frequencies below

100Hz. Moreover, depending on orientation and

mounting location, BassLink may be “in phase” or

“out of phase” with those speakers. The resulting

conditions, known as constructive and destructive

interference, also play a role in shaping the total

frequency response of your system.

Fortunately, BassLink has controls to optimize

both of these conditions and their adjustment is

explained later in the manual.

CAUTION: Make sure mounting screws will not

puncture wiring harnesses, brake or fuel lines, or

the vehicle’s fuel tank. Some or all of these may

be located behind or under the mounting surface.

Note: Each enclosed mounting foot has a captive

nut for foot attachment to BassLink. Orient each

foot so its nut faces BassLink’s back. Enclosed

bolts may then be passed through BassLink using

front or top holes and fastened to the nuts in the

back or bottom. See Figures 3 and 4 for details.

VERTICAL MOUNTING

Slide the two (black) vertical mounting feet over the

bottom of BassLink until they snap into the indenta-

tions, as shown in Figure 3. Place BassLink (with its

feet) so the controls face the trunk or cargo interior

for easy adjustment. At each foot, insert a supplied

bolt through holes and tighten with a screwdriver.

Securely mount BassLink to the mounting surface

with the four enclosed tapping screws.

Figure 3.Vertical mounting of BassLink.

HORIZONTAL MOUNTING

Slide the four (gray) horizontal mounting feet over

the sides of BassLink until they snap into the

indentations, as shown in Figure 4.

Place BassLink (with its feet) so controls face up

for easy adjustment. At each foot, insert a supplied

bolt through holes and tighten with a screwdriver.

Securely mount BassLink to the mounting surface

with the four enclosed tapping screws.

Figure 4. Horizontal mounting of BassLink.

M B LOUNTING ASS INK
