Side 1/8

BassLink

Fuse

25A

UniversalInterface Line LevelInput

Auto

Turn On

Phase

REM

OFFAUTO

Servo

Gnd Rem +Batt

Power

0∞180∞

C M LHOOSING A OUNTING OCATION

Choose a mounting location that doesn’t interfere

with cargo, fold-down rear seats or the trunk lid.

The best location is usually a corner of the trunk

or cargo area, as shown in Figures 1 and 2.

These locations, in addition to being out of the

way, will provide the best sonic reproduction in

the 60Hz to 100Hz range because the woofer out-

put will be “corner loaded” against the vehicle’s

walls. In any case, BassLink II must not interfere

with the safe operation of the vehicle.

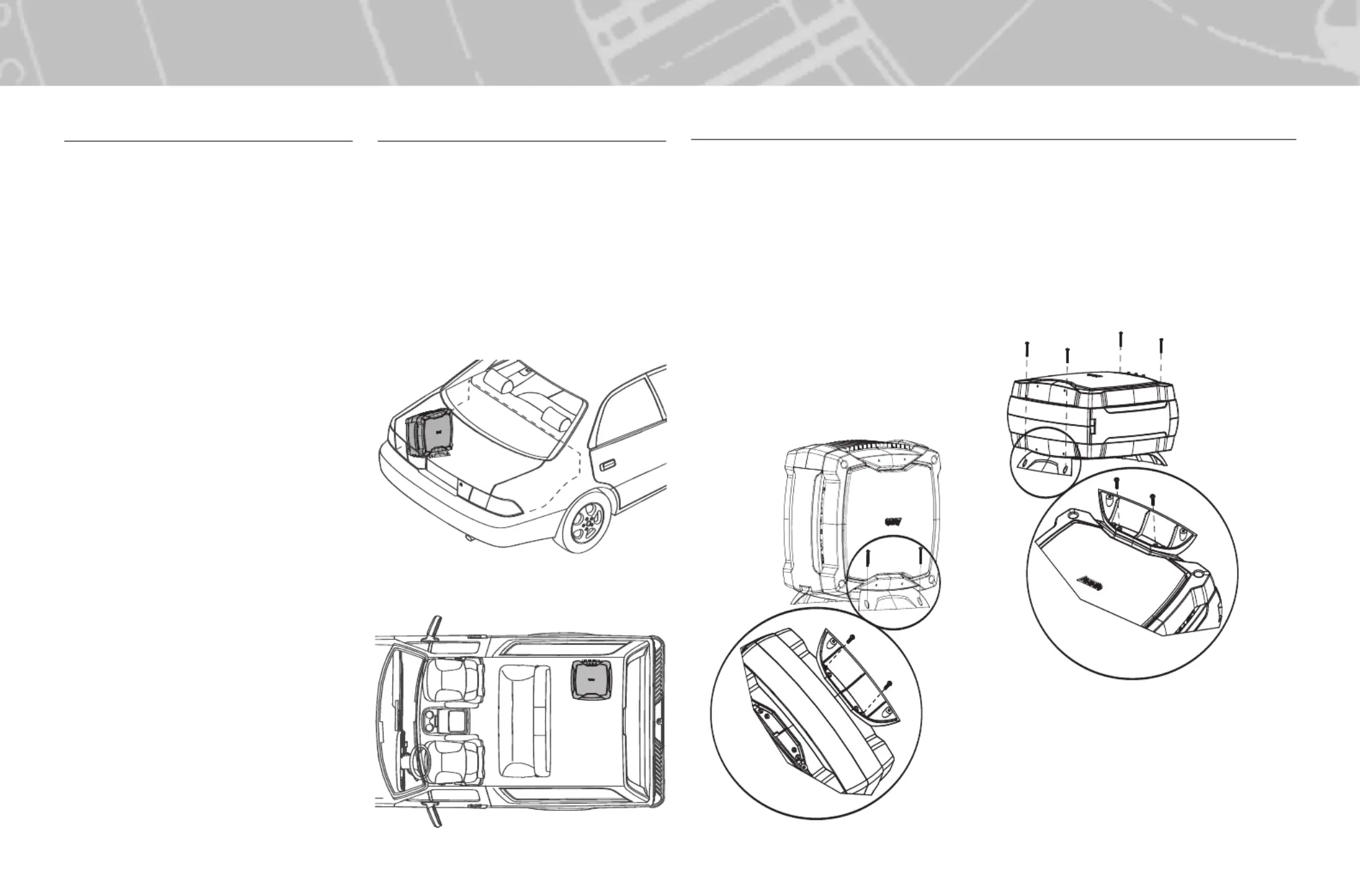

Figure 1. BassLink II in a car’s trunk.

Figure 2. BassLink II in an SUV’s cargo area.

INTRODUCTION

THANK YOU for choosing the Infinity

BassLink

powered subwoofer. BassLink II has been designed

to provide the kind of high-performance low-

frequency reproduction that used to require big,

clumsy enclosures, large amplifiers and complex

installation. To ensure maximum performance,

we strongly recommend that installation be

entrusted to a qualified professional. Although

these instructions explain how to install the

BassLink II in a general sense, they do not show

the specific installation methods for your particular

vehicle. If you feel you do not have the necessary

tools or experience, do not attempt the installation

yourself; rather, ask your authorized Infinity car

audio dealer about professional installation options.

Remember to keep this manual and your sales

receipt in a safe place for future reference.

HEARING WARNING!

Playing loud music in a vehicle can permanently

damage your hearing, as well as hinder your ability

to hear traffic. We recommend using low volume

levels while driving. Infinity accepts no liability for

hearing loss, bodily injury or property damage

resulting from the use or misuse of this product.

YOUR CAR AND BASS REPRODUCTION

Depending on the interior volume of your vehicle

and the dimensions of the passenger compartment

and cargo area, reproduced frequencies below

80Hz may be boosted by nearly 1

2dB per octave

as frequency decreases.This effect, known as the

vehicle’s “transfer function” or “cabin gain,” plays

an important part in shaping the overall in-car

response of the BassLink II.

BassLink II is designed to work with your vehicle

’s

other speakers to reproduce frequencies below

100Hz. Moreover, depending on orientation and

mounting location, BassLink II may be “in phase”

or “out of phase” with those speakers. The resulting

conditions, known as constructive and destructive

interference, also play a role in shaping the total

frequency response of your system. Fortunately,

BassLink II has controls to optimize both of these

conditions, and their adjustment is explained later

in the manual.

CAUTION: Make sure mounting screws will not

puncture wiring harnesses, brake or fuel lines, or

the vehicle’s fuel tank. Some or all of these may

be located behind or under the mounting surface.

VERTICAL MOUNTING

Position BassLink II so that the heatsink is facing

down and the bottom of the unit is up. Align the

mounting feet as shown in Figure 3. Secure the

feet using the supplied machine screws.

Place BassLink II (with its feet) so the controls

are easy to adjust. Securely mount BassLink II to

the mounting surface with the four enclosed self-

tapping screws.

Figure 3. Vertical mounting of BassLink II.

HORIZONTAL MOUNTING

Position BassLink II so that the controls are facing

down and the back of the unit is up. Align the

mounting feet as shown in Figure 4. Secure the

feet using the supplied machine screws.

Securely mount BassLink II to the mounting

surface using the four enclosed self-tapping

screws.

Figure 4. Horizontal mounting of BassLink II.

M B L IIOUNTING ASS INK
