BassLink+4

™

BassLink+4

™

INTRODUCTION

THANK YOU for choosing the Infinity BassLink+4™

System Upgrade Solution. BassLink+4 has

been designed to provide the kind of high

performance that used to require big, clumsy

enclosures, large amplifiers and complex

installation. To ensure maximum performance,

we strongly recommend that installation be

entrusted to a qualified professional. Although

these instructions explain how to install the

BassLink+4 in a general sense, they do not

show the specific installation methods for your

particular vehicle. If you feel you do not have

the necessary tools or experience, do not

attempt the installation yourself; rather, ask

your authorized Infinity car audio dealer about

professional installation options. Remember to

keep this manual and your sales receipt in a safe

place for future reference.

HEARING WARNING!

Playing loud music in a vehicle can permanently

damage your hearing, as well as hinder your

ability to hear traffic. We recommend using

low volume levels while driving. Infinity accepts

no liability for hearing loss, bodily injury or

property damage resulting from the use or

misuse of this product.

PARTS LIST

(1) Powered subwoofer

(2) Mounting feet

(4) 3mm x 18mm Screws to attach

mounting feet to sub

(4) #8 x 1" Screws to attach feet to vehicle

(1) 5m Phone cable

(1) Remote bass level/phantom control

(2) #6 x 3/4" Screw to hold remote control

(2) 5m Speaker input cables

(2) 5m RCA input cables

(1) 35 Amp fuse

(1) 25 Amp fuse

(1) Phantom setup CD

(1) Owner’s manual

(1) Warranty card

C M LHOOSING A OUNTING OCATION

Choose a mounting location that doesn’t interfere

with cargo, fold-down rear seats or the trunk lid.

The best location is usually a corner of the trunk

or cargo area, as shown in Figures 1 and 2.

These locations, in addition to being out of the

way, will provide the best sonic reproduction in

the 60Hz to 100Hz range because the woofer

output will be “corner loaded” against the

vehicle’s walls. In any case, BassLink+4 must not

interfere with the safe operation of the vehicle.

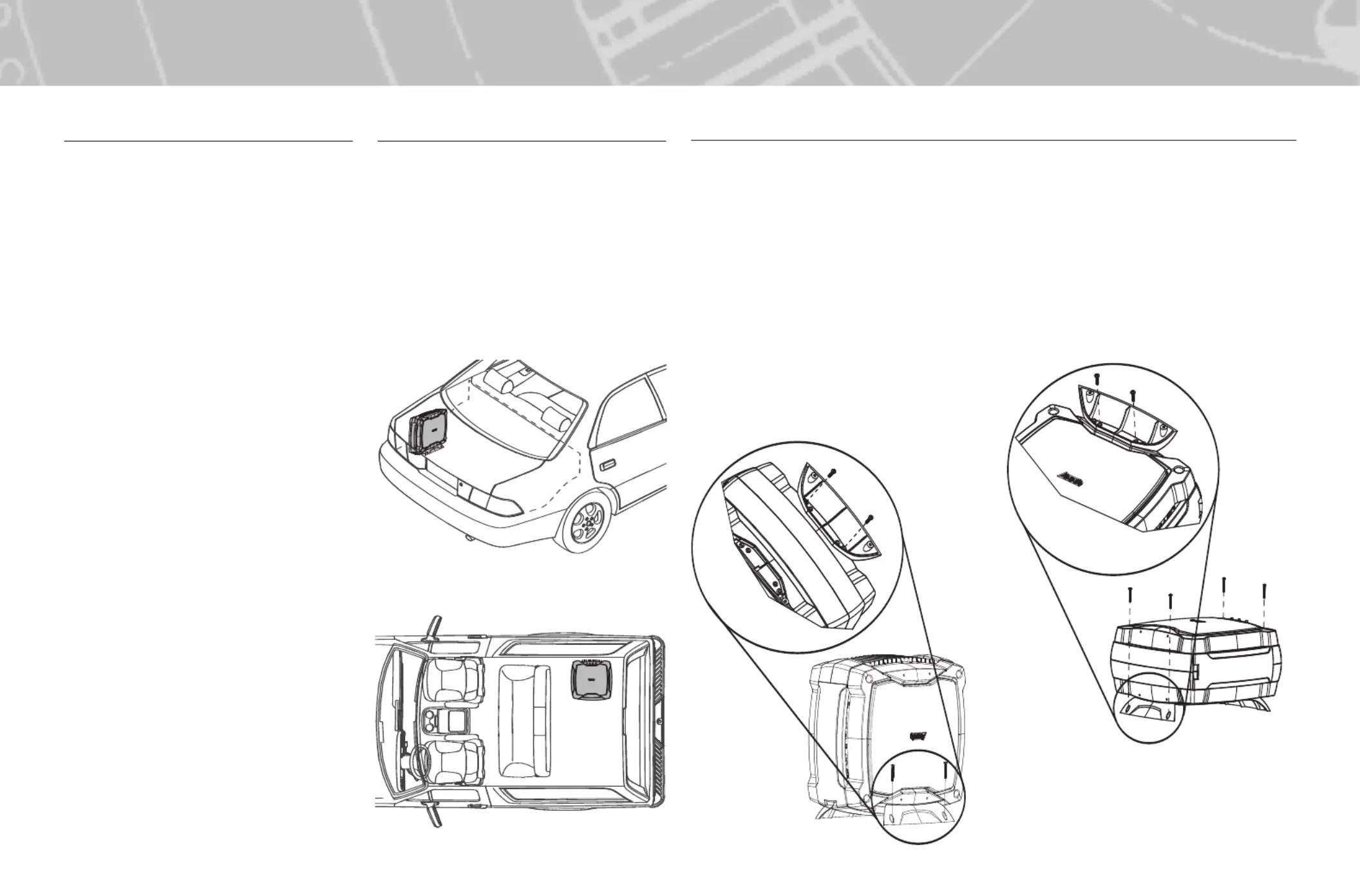

Figure 1. BassLink+4 in a car’s trunk.

Figure 2. BassLink+4 in an SUV’s cargo area.

CAUTION: Make sure mounting screws will not

puncture wiring harnesses, brake or fuel lines, or

the vehicle’s fuel tank. Some or all of these may

be located behind or under the mounting surface.

VERTICAL MOUNTING

Position BassLink+4 so that the heatsink is facing

down and the bottom of the unit is up. Align the

mounting feet as shown in Figure 3. Secure the

feet using the supplied machine screws.

Note: Place BassLink+4 (with its feet) so the

controls are easy to adjust.

Securely mount BassLink+4 to the mounting

surface with the four enclosed self-tapping screws.

Figure 3. Vertical mounting of BassLink+4.

HORIZONTAL MOUNTING

Position BassLink+4 so that the controls are

facing down and the back of the unit is up. Align

the mounting feet as shown in Figure 4. Secure

the feet using the supplied machine screws.

Note: Place BassLink+4 (with its feet) so the

controls are easy to adjust.

Securely mount BassLink+4 to the mounting

surface using the four enclosed self-tapping screws.

Figure 4. Horizontal mounting of BassLink+4.

M B L +4OUNTING ASS INK
