Side 1/30
INF6505 / INF6505AG
IND6565 / IND6565AG
Hardware Guide
009-1746-00
CONTENTS
Declaration of Conformity ....................................................................................................................................................3
Safety Considerations .........................................................................................................................................................4
What’s Included ...................................................................................................................................................................6
Setup ...................................................................................................................................................................................7
Mounting .......................................................................................................................................................................7
Door removal .................................................................................................................................................................7
Connecting to other devices ..........................................................................................................................................8
Connecting AC power .................................................................................................................................................11
External PC touchscreen control setup: IND6505 Only ..............................................................................................11
Setting up the Wireless Keyboard: INF6565 Only .......................................................................................................11
Turning the Display On/O ................................................................................................................................................11
Using the Remote ..............................................................................................................................................................12
Using the Keypad ..............................................................................................................................................................13
OSD (On-Screen Display) Menu System ..........................................................................................................................14
Picture .........................................................................................................................................................................15
Screen .........................................................................................................................................................................16

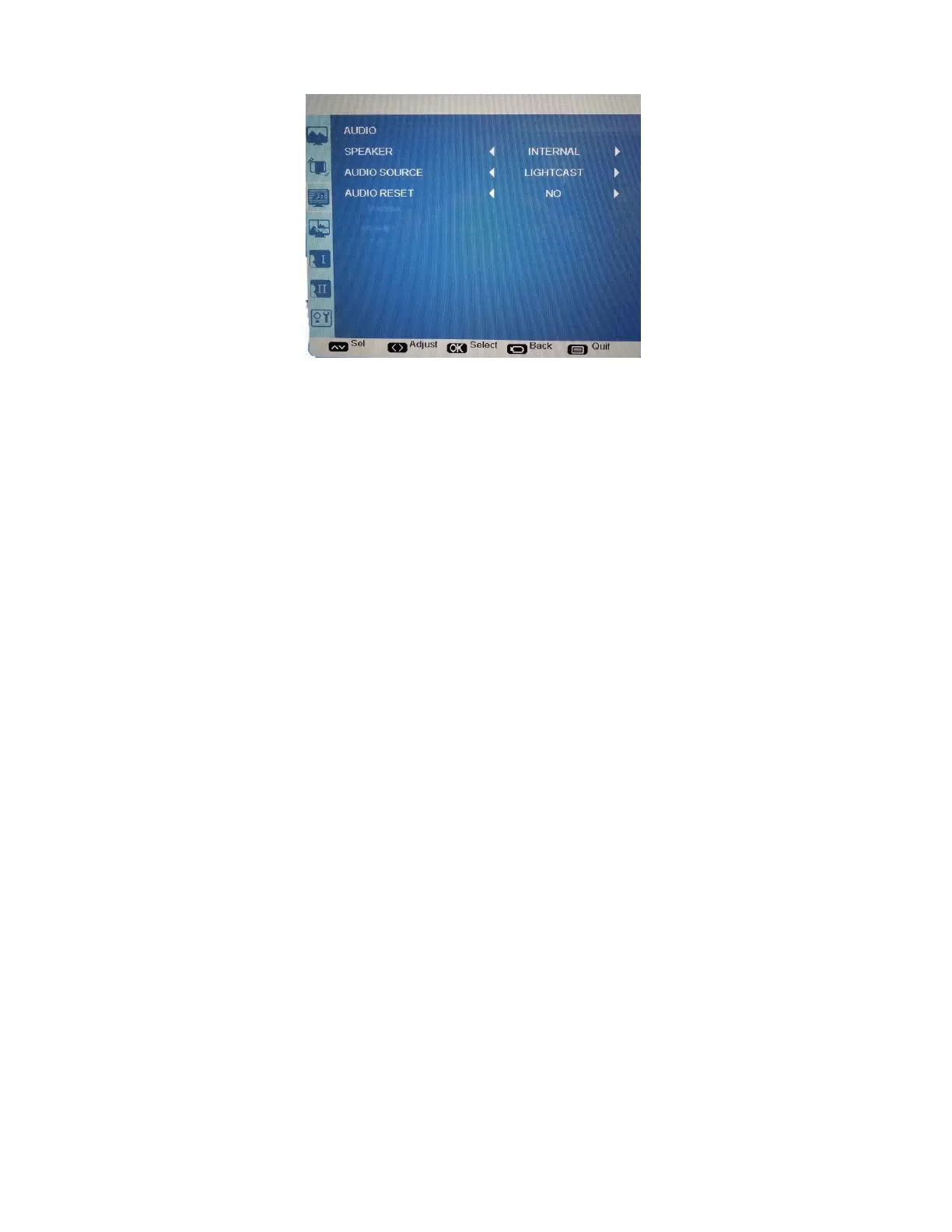

Audio ...........................................................................................................................................................................17
PIP ...............................................................................................................................................................................18
Conguration 1 ............................................................................................................................................................19
Conguration 2 ............................................................................................................................................................20
Advanced option ..........................................................................................................................................................21
Troubleshooting .................................................................................................................................................................22
Limited Warranty ...............................................................................................................................................................24
Page 3INF6505/IND6565 Hardware Guide
DECLARATION OF CONFORMITY
Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, Oregon 97223-8368 USA
Trademarks
Apple, Mac and Facetime are trademarks or registered trademarks of Apple, Inc. Microsoft, Windows, PowerPoint, Excel and Word are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. HDMI logo and “High Denition
Multimedia Interface” are registered trademarks of HDMI Licensing LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories. SRS TruSurround HD and SRS TruVolume are trademarks of SRS Labs, Inc. TruSurround HD and TruVolume technologies are
incorporated under license from SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, BigTouch, JTouch, and ShareView are either registered trademarks
or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks,
service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. There is no implied
sponsorship, aliation, certication, approval or endorsement if we use one of these terms.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of the equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense. Changes or modications not expressly approved by InFocus Corporation may void authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Canada
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate
measures.
INFORMATION FOR OPTICAL POINTING DEVICES ONLY / INFORMATION POUR LES DISPOSITIFS DE POINTAGE OPTIQUE SEULEMENT
This product uses LEDs that are inherently Class 1. / Ce produit utilize des DEL qui sont, par nature, de classe 1.
Agency Approvals
See product certication label.
This document applies to regulatory model: D101
Part Number: 009-1746-00
Input ratings: AC 100-240V AC, 3.0A, 50-60Hz
InFocus reserves the right to alter product oerings and specications at any time without notice.
Page 4
SAFETY CONSIDERATIONS
Please read and follow all safety instructions provided below and on the display before connecting the display to a power source.
Failure to comply with safety instructions may result in re, electrical shock, or personal injury and may damage or impair protection
provided by the equipment. Please save all safety instructions.
• This display is very heavy and should be moved and installed by at least two individuals. Do not attempt to move or install the
display yourself, otherwise injury and/or damage may occur.
• When moving the display, always hold the display rmly using the handles and side or bottom bezels. Do not hold the top bezel.
• When moving the display carton, do not tilt or invert the carton. Always keep it in an upright orientation.
• Disconnect all accessories and cables before moving the display.
• If the display is installed against the wall, maintain a distance of at least 1.98” (5cm) between the display and the wall to provide
adequate ventilation.
• Refer to this guide for proper startup and shutdown procedures.
• Follow all warnings and cautions in this manual and on the display.
• Locate the display at least 4’ (1.2m) away from heating and cooling vents.
• Do not block ventilation openings. Locate the display in a well-ventilated area without obstructions to intake or exhaust vents.
• Do not install or use the display or speakers near any heat sources such as radiators, heat registers, stoves, or other devices
(including ampliers) that produce heat.
• Do not place the display in direct sunlight, humid, greasy or dusty places or in places where the display may come into contact with
rain, smoke or steam.
• The display should not be used with the power cord near water, for instance, near a bathtub, washbowl, kitchen sink or swimming
pool, etc.
• Do not use any components of the display, including the speakers, near water. Warning: To reduce the risk of re or electric shock,
do not expose this equipment or any component of this equipment to rain or moisture.
• Do not drop the display.
• Do not spill liquid on the display. Spilled liquid may damage the display.
• WARNING: This display must be securely attached to the oor/wall per installation instructions. Tipping, shaking, or rocking the
machine may cause injury or death.
• The power outlet used to power this display should be readily accessible for fast disconnection in case
of emergency.
• No naked ame source, such as lighted candles, should be placed on the display.
• Use the power cord provided. Connect the power cord to a receptacle with a protective safety (earth) ground terminal. A surge-
protected power strip is recommended. Do not overload wall outlets.
• It is recommended that the Class 1 display be grounded.
• Do not install the display in places subject to mechanical vibration.
• Do not place the display on an unstable surface, which could result in serious personal injuries and display damage. When
mounting the display to a stand, be sure to following the manufacturer’s instructions. Use only the mounting hardware
recommended by the manufacturer.
• When disconnecting the power cord, hold the plug, not the cord.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they
exit from the display.
• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with the included micro-ber cleaning cloth. The screen may be wiped with the cleaning
cloth when the power is o. Never use alcohol, solvents or ammonia-based liquids on this display.
• Wash hands after handling the cables supplied with this display.
• The display remote control uses batteries (not included). Make sure the batteries’ polarity (+/-) is aligned correctly. Dispose of used
batteries in accordance with local disposal laws.
• Only use properly rated wall and stand mounting hardware that meet this product’s specications and follow the manufacturer
installation instructions. The warranty does not cover any damage caused by use of improperly rated mounting hardware or from
improper installation.
Page 5INF6505/IND6565 Hardware Guide
• Refer all service to qualied service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to
you and will void the warranty.
• Only use replacement parts specied by InFocus. Unauthorized substitutions may result in re, electrical shock or injury and may
void the warranty.
• When mounting the display to a wall, metric 8 (12mm) screws must be used. In addition, the mounting interface should comply
with the UL1678 standard in North America. The mounting means should be strong enough to bear the weight of the display.
• Follow these instructions to help ensure image quality over the life of the display. Failure to follow these instructions may aect the
warranty.
Page 6

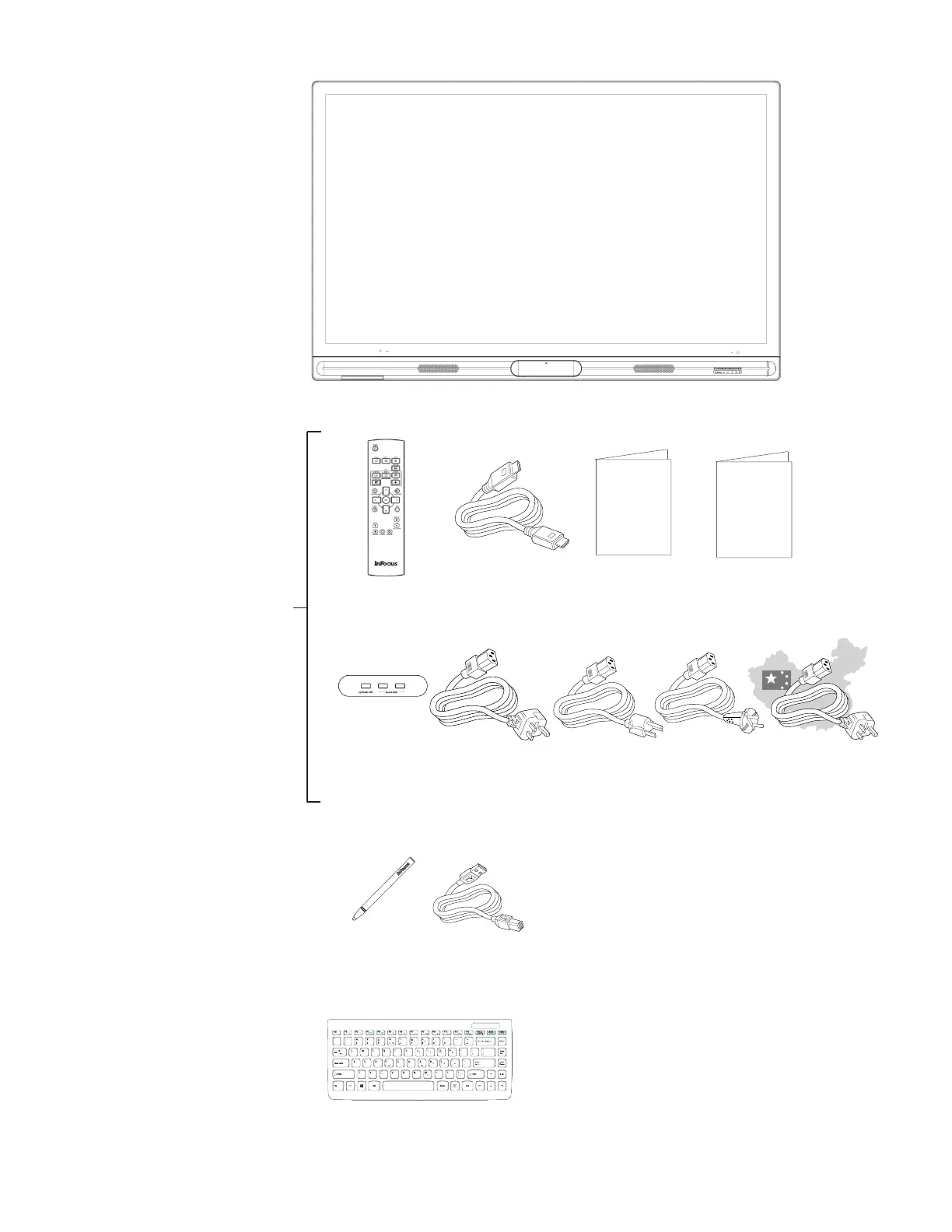

WHAT’S INCLUDED
INF6505
IND6565
INF6505/IND6565
HDMI Cord
Wireless keyboard with trackpad
(batteries not included)
Remote control
(batteries not included)
Safety/Warrenty
Guide
Quick Start
Guide
1920 x 1080 Display
Mylar Label
Power cord
(varies per country)
A to B USB
Cable
Stylus
Page 7INF6505/IND6565 Hardware Guide
SETUP
Mounting
This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this
product's specications and follow the manufacturer installation instructions.
• Only use properly rated wall and stand mounting hardware that meet this product’s specications and follow the manufacturer
installation instructions. The warranty does not cover any damage caused by use of improperly rated mounting hardware or from
improper installation.
• To prevent damage to the screen surface, carefully place your display face-down on a clean, cushioned surface.
• When mounting the display to a wall, metric 8 (12mm) screws must be used. Use spring washers to prevent the screws from
coming loose. In addition, the mounting interface should comply with the UL1678 standard in North America. The mounting means
should be strong enough to bear the weight of the display.
• Do not install the display in places subject to mechanical vibration.
• Do not place the display on an unstable surface, which could result in serious personal injuries and display damage. When
mounting the display to a stand, be sure to following the manufacturer’s instructions. Use only the mounting hardware
recommended by the manufacturer.
• WARNING: This display must be securely attached to the oor/wall per installation instructions. Tipping, shaking, or rocking the
machine may cause injury or death.
• If the display is installed against the wall, maintain a distance of at least 1.98” (5cm) between the display and the wall to provide
adequate ventilation.
• Do not install or use the display near any heat sources such as radiators, heat registers, stoves, or other devices (including
ampliers) that produce heat.
• Do not place the display in direct sunlight, humid, greasy or dusty places or in places where the display may come into contact with
rain, smoke or steam.
Door removal
If desired, the door can be removed for easy access to the front connectors. Follow the instructions below.
IMPORTANT: InFocus is not responsible for door breakage or for improper application of the mylar label.
1) Press the top of the door to release the door.
2) Gently swing the door open, so that the door hinges are visible.
3) Carefully press the right side of the door towards the left to disengage the right hinge, and then slide the door slightly towards
the right to disengage the left hinge.
4) Gently remove the door, and set aside.
5) Remove the back of the mylar label and carefully align the label over the connector panel before applying. If not aligned properly,
the label can interfere with the connection ports.
Page 8
Connecting to other devices
A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on the front, back,
and side of the display. Available jacks include: HDMI In (4), PC In (1), Composite Video (1), Component RCA (1), RS232 (1), Audio In
3.5mm (1), Audio In RCA (1-R/L), USB for touch control (1), RJ45 (1), USB 2.0-A (4), Audio Out RCA (1-R/L). Also included is an Audio Line
In to be used with the optional PC module and USB used with the embedded LightCast feature.
Source
A
B
D
C
TOUCH
USB
Page 9INF6505/IND6565 Hardware Guide
A
LightCast USB
Connect any USB device (such as a mouse, keyboard, USB thumb drive, etc.) to this USB Type
A 2.0 connector for use with the embedded LightCast feature.
Source USB Connect a USB thumb drive to this USB Type A 2.0 connector.
Source USB Connect a USB thumb drive to this USB Type A 2.0 connector.
B
Power switch
Toggles power on and o.
Power input
Connect the power cord to the power input and to an electrical outlet.
C
Source USB Connect a USB thumb drive to this USB Type A 2.0 connector. Used for rmware upgrades.
Source USB Connect a USB thumb drive to this USB Type A 2.0 connector. Used for rmware upgrades.
RJ45 Connect to an ethernet network (10/100/1000 Mbps).
Touch USB
INF6505: Connect a USB cable from the display to an external computer in order to
use touchscreen gestures on the display, or connect to another display in order to use
touchscreen gestures on dual screens.
IND6565: This feature is not available on this model.
VIDEO
Connect a composite video cable from the display to an external device (such as a VCR or
DVD player).
Page 10
HDMI 1 - 4
Connect an HDMI cable from the display to an HDMI external device (such as a VCR or DVD
player).
VGA Connect a VGA computer cable from the display to an external computer.
COMPONENT
Connect a component RCA video cable from the display to an external device (such as a DVD
player, HDTV device, or Laser Disc player) (YPbPr) signals.
D
RS232 Connect to an RS232 control device for remote control applications.
PC LINE IN
Connect a 3.5mm audio cable to deliver line in audio directly to the PC Module.
Note: Port is only active with optional PC module.
AUDIO IN1 Connect a 3.5mm audio cable to an external device (e.g., iPod player).
AUDIO IN2 Connect an RCA L/R audio cable to an external device.
AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers.
Page 11INF6505/IND6565 Hardware Guide
Connecting AC power
1) Connect one end of the AC power cord to the AC In jack on the back of the display.
2) Connect the other end of the AC power cord to an AC outlet.
3) Toggle the power switch to the ON position.
4) Press the power switch. (The LED on the front of the display turns on.)
NOTES:
• Your display should only be operated from the power source indicated on the label.
• Always unplug the AC power cord from the power outlet when you are not using your display for an extended period of time.
External PC touchscreen control setup: IND6505 Only
1) Connect an external computer to the display using a HDMI, or VGA cable.
2) Connect a USB cable from the USB-A jack on the source computer to the display. Connect to the USB Touch jack on the back of
the display.
3) The computer can now be controlled by using touchscreen gestures on the display.
Setting up the Wireless Keyboard: INF6565 Only
NOTE: The wireless keyboard is not included as a standard accessory for some countries. For initial setup and/or conguration, it may
be easier to use a mouse and keyboard. Any standard wired or wireless mouse or keyboard can be connected through the display's USB
ports.
1) Turn the keyboard over and open the battery cover.
2) Insert two (2) AAA batteries (not included) into the keyboard, by aligning the + and – ends of the batteries and sliding them in
place.
3) Replace the cover.
4) If the keyboard is not auto-detected, press the CONNECT button on the top of the keyboard and hold it for one second to allow
the keyboard to bind with the dongle.
TURNING THE DISPLAY ON/OFF
1) Verify that the power cord is connected to a power outlet and that the power switch is ON.
2) Press the Power button on the remote or the right side of the display.
Page 12
USING THE REMOTE
The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the +
and – ends of the batteries, sliding them in place and replacing the cover.
To operate, point the remote at the display sensor at the bottom right-hand corner of the display. The range of optimum operation is
about 26’ (8m) and within a horizontal and vertical angle of 30 degrees.
Source
30˚ 30˚
CAUTION:
• When disposing of the batteries, be sure to do so in an environmentally proper manner.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Ensure the batteries’ polarity (+/-) is properly aligned.
• Do not mix new and old batteries or dierent types of batteries together.
• Replace the batteries as soon as they run out.
• Remove batteries from the remote control when storing or not in use for a prolonged period.
Page 13INF6505/IND6565 Hardware Guide
USING THE KEYPAD
The keypad, located on the front of the display, has the following buttons:
Source
Power button: If the display is o, pressing the Power button turns the display on. If the display is on and the Power button is
pressed for less than four seconds, the display goes into standby. If the display is on and the Power button is pressed for more than
four seconds, the display turns o.
Source button: Turns the Source menu on allowing the user to change sources. Saves changes/selections if the OSD menu is on.
^ button: Moves the highlight bar up when the OSD or Source menu is on.
v button: Moves the highlight bar down when the OSD or Source menu is on.
< button: When the OSD menu is on, this button decreases the value of selected OSD items. When the OSD menu is o, this button
decreases the audio volume.
> button: When the OSD menu is on, this button increases the value of selected OSD items. When the OSD menu is o, this button
increases the audio volume.
Menu button: Turns the OSD menu on and o.
Page 14
OSD (ON-SCREEN DISPLAY) MENU SYSTEM
The OSD provides the user the ability to control the display.
To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the display.
Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu.
Use the up and down arrows and OK button to select the item you would like to adjust. Left and right arrow buttons are used to make
adjustments.
When your adjustments are complete, press the Back button to go to a dierent menu or press the Menu button to exit the OSD menu
entirely.
The following pages describe each of the OSD menus in detail.
Sel Adjust Enter Back Quit
< >
<
<
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMPERATURE
COLOR CONTROL
PICTURE MODE
PICTURE RESET
NATIVE
STANDARD
NO
70
50
50
100
100
100
RED
GREEN
BLUE
Sel Adjust Enter Back Quit
< >
<
<
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
BLANK
DIMMING
ASPECT RATIO
SCREEN RESET
50
50
50
50
OFF
70
WIDE
NO
Sel Adjust Enter Back Quit
< >
<
<
PIP
PIP MODE
PIP INPUT
PIP POSITION
PIP SWAP
PIP SIZE
PIP AUDIO
PIP RESET
NO
VGA
TOP-RIGHT
NO
SMALL
MAIN
NO
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 1
LANGUAGE
AUTO SOURCE
USB HUB SWITCH
CONFIGURATION RESET
FACTORY RESET
ENGLISH
NO
AUTO
NO
NO
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 2
OSD TURN OFF
FREEZE
OSD H POSITION
OSD V POSITION
OSD ROTATION
MONITOR INFORMATION
10
50
50
OFF
PORTRAIT
Page 15INF6505/IND6565 Hardware Guide
Sel Adjust Enter Back Quit
< >
<
<
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMPERATURE
COLOR CONTROL
PICTURE MODE
PICTURE RESET
NATIVE
STANDARD
NO
70
50
50
100
100
100
RED
GREEN
BLUE
Brightness: changes the intensity of the image. Range: 0-100. (Default 70.)
Contrast: controls the degree of dierence between the lightest and darkest parts of the picture and changes the amount of black and
white in the image. Range: 0-100. (Default 50.)
Sharpness: changes the clarity of the edges of a video image. Range: 0-100. (Default 50.)
Color Temperature: changes the intensity of the colors. Options include: Native (default), User, 6500K, and 9300K.
Color Control: allows the user to nely adjust individual red, green and blue colors. Color Temperature must be set to User to access this
feature. Range: 0-100 for each color.
Picture Mode: provides dierent preset picture modes to choose from. Options include: Standard (default), HighBright, and Soft.
Picture Reset: resets all Picture menu items to factory default settings. Options: Yes and No.
Page 16
Screen
Sel Adjust Enter Back Quit
< >
<
<
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
BLANK
DIMMING
ASPECT RATIO
SCREEN RESET
50
50
50
50
OFF
70
WIDE
NO
H Position: adjusts the horizontal position of the image. Range: 0-100. (Default 50.)
V Position: adjusts the vertical position of the image. Range: 0-100. (Default 50.)
Clock: adjusts the width of the image (For VGA input only). Range: 0-100. (Default 50.)
Clock Phase: adjusts the focus, clarity and stability of the image (For VGA input only). Range: 0-100.
Blank: When enabled, a blank black screen displays. Options: On and O. (Default O.)
Dimming: Adjusts brightness level. Options: 10, 30, 70 or 100. (Default 70.)
Aspect Ratio: adjusts the ratio of the image width to image height. Options: 4:3 and Wide. (Default Wide.)
Screen Reset: resets all Screen menu items to factory default settings. Options: Yes and No.
Page 17INF6505/IND6565 Hardware Guide
Audio
Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options include:
Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal.
Audio Source: selects the audio input source. Options include: HDMI 1, HDMI 2, HDMI 3, HDMI 4, Lightcast, Audio 1, Audio 2, PC and PC
Speaker. Note: PC and PC Speaker are only available when the optional PC module is installed.
Audio Reset: resets all Audio menu items to factory default settings. Options: Yes and No.
Page 18
PIP
Sel Adjust Enter Back Quit
< >
<
<
PIP
PIP MODE
PIP INPUT
PIP POSITION
PIP SWAP
PIP SIZE
PIP AUDIO
PIP RESET
NO
VGA
TOP-RIGHT
NO
SMALL
MAIN
NO
PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No.
PiP Input: selects the source input for the PiP window. Options include: Video, component, VGA, HDMI1, HDMI2, HDMI3, HDMI4,
HDMI5, PC.
PiP Position: moves the PiP window position. Options include: Top-right, Top-left, Bottom-right, Bottom-left.
PiP Swap: switches the source in the main and the PiP windows. Options include: Yes and No.
PIP Size: changes the size of the PiP window used in the Corner-to-Corner conguration. Options include: Small (default), Middle and
Large.
PIP Audio: switches the audio source from the main source to the PiP source. Options include: Main (default) and Sub.
PIP Reset: resets all PIP menu items to factory default settings. Options: Yes and No.
The PiP feature allows the user to display two distinct sources simultaneously on the display. These are the supported combinations
and congurations. Note: PC is only supported when the optional PC module is installed.
Input Video Component
(YPrPb)
VGA HDMI1 HDMI2 HDMI3 HDMI4 HDMI5
PC
Video
Component
(YPrPb)
VGA
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
PC
Page 19INF6505/IND6565 Hardware Guide
Conguration 1
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 1
LANGUAGE
AUTO SOURCE
USB HUB SWITCH
CONFIGURATION RESET
FACTORY RESET
ENGLISH
NO
AUTO
NO
NO
Language: switches the OSD menu language.
Auto Source: When enabled, automatically searches for an active source. If no source is detected, the display will revert to the
previously active source. If Auto Source is disabled, the display will stay on the last selected source regardless of whether an active
source is detected or not. Options: Yes and No (default).
USB Hub Switch: allows the user to use the touch functions from an input source exclusively or to allow the display to switch
automatically depending on whether input source is connected or not. Options: Auto (default), PC (available when the PC module is
installed), LightCast, and External.
Conguration Reset: resets all Conguration 1 and Conguration 2 menu items to factory default settings. Options: Yes and No.
Factory Reset: resets all menu items to factory default settings. Options: Yes and No.
Page 20
Conguration 2
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 2
OSD TURN OFF
FREEZE
OSD H POSITION
OSD V POSITION
OSD ROTATION
MONITOR INFORMATION
10
50
50
OFF
PORTRAIT
OSD Turn O: controls how many seconds the OSD menu remains on the screen Range: 5-120 (seconds). (Default: 10)
Freeze: When enabled, freezes the image which is currently displayed. Options: On and O (default).
OSD H Position: adjusts the horizontal position of the OSD menu. Range: 0-100. (Default: 50)
OSD V Position: adjusts the vertical position of the OSD menu. Range: 0-100. (Default: 50)
OSD Rotation: rotates the image to either a landscape or portrait mode. Options include: Portrait and Landscape.
Display Information: This read-only submenu displays the model name, serial number, operation hours, and software version.
Page 21INF6505/IND6565 Hardware Guide
Advanced option
Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode
2, Mode 3.
Over scan: removes noise around the edges of a video image. Options include: On and O (default).
IR Control: disables and enables the IR sensor on the display. Options include: Normal (default; IR is enabled) and Lock (IR is disabled).
Keypad Control: disables and enables the keypad on the right-hand side of the display. Options include: Lock (keypad is disabled) and
Unlock (default; keypad is enabled).
DDC/CI: enables and disables DDC/CI communication. Options include: On (default) and O.
Advanced Option Reset: resets all Advanced Option menu items to factory default settings. Options: Yes and No.
Page 22
TROUBLESHOOTING
SYMPTOM POSSIBLE SOLUTIONS
No power • Verify the power cord is properly connected to the power outlet and to
the display.
• Verify the power switch is ON and that the Power button on the remote or keypad has
been turned on (the front LED should be green).
• Plug another electrical device to the power outlet to verify that the outlet is supplying
the proper voltage.
The display shuts down suddenly • Verify that a source is active.
• The display may have overheated. Remove any objects blocking the vents.
No image • If attempting to display an external source, see “No image from external source” below.
• Verify that the display is turned on (the front LED should be green).
No image from external source • Verify that connections between the source and the display have been
made correctly.
• Verify that the cables are in good condition.
• Verify the correct input source is selected and that the input signal is compatible with
the display.
The colors on the display do not look
right
• Adjust the color settings in the Picture menu.
• Reset the picture settings.
• Verify that connections between the source and the display have been made correctly.
• Verify that the cables are in good condition.
INF6505: No touchpad activity with
external computer
• Verify that the USB B to USB type A cable is plugged from the laptop into the display
correctly.
• Verify that the laptop’s operating system is Windows® 7 or later. (The display touchpad
does not support any other operating systems.)
INF6505: Touchpad functions are not
functioning consistently
• Remove all objects placed on the lip of the display and/or within 2” of the touchpad
screen.
• Disable the PiP feature.
• Power the display o and back on after a few seconds. Re-booting the display helps the
touchpad to re-synchronize.
Remote is not working • Make sure the batteries are installed in the proper orientation and are not dead.
• Verify the remote is turned on (the button is on the bottom of the remote).
• Verify you are pointing the remote at the table and are within 26’ (8m) and 30 degrees
(horz/vert) of the sensor.
• Verify that the IR Control setting in the Advanced Option OSD menu is set
to Normal.
Audio noise • Noise can occur when infrared communication equipment (for example, infrared cordless
headphones) is used near the display. Move the infrared communication equipment away
from the display to eliminate the noise.
Page 24
LIMITED WARRANTY
InFocus Limited Warranty For InFocus Branded Hardware Products Only
LIMITED WARRANTY. InFocus’s warranty obligations for the hardware products are limited to the terms set forth herein. InFocus
warrants the InFocus-branded hardware products against defects in materials and workmanship under normal use for a period outlined
in the Limited Warranty Periods section below from the date of retail purchase by the original end-user purchaser (“Warranty Period”).
The Warranty Period starts on the date of purchase. Your dated sales or delivery receipt, showing the date of purchase of the product,
is your proof of the purchase date. You may be required to provide proof of purchase and proof that the product was purchased new
as a condition of receiving warranty service. If a hardware defect arises and a valid claim is received within the Warranty Period,
at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or
refurbished parts that are equivalent to new in performance and reliability, (2) exchange the product with a product that is new or
refurbished that is equivalent to new in performance and reliability and is at least functionally equivalent to the original product, or
(3) refund the purchase price of the product. InFocus may request that you replace defective parts with customer-installable new
or refurbished parts that InFocus provides in fulllment of its warranty obligation (“Customer Self Repair”). A replacement product
or part, including a Customer Self Repair part that has been installed in accordance with instructions provided by InFocus, assumes
the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer
coverage. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes InFocus’s
property. Parts provided by InFocus in fulllment of its warranty obligation must be used in products for which warranty service is
claimed. When a refund is given, the product for which the refund is provided must be returned to InFocus and becomes InFocus’s
property. This is your exclusive remedy for defective products.
Limited Warranty Periods vary depending on your product model and the country of purchase. To review the warranty period
associated with your product model, please refer to the product specications information on www.infocus.com. By inputting your
product model in the Quick Search box on the website, you will nd warranty terms in the Specications matrix.
EXCLUSIONS AND LIMITATIONS. This Limited Warranty applies only to the hardware products manufactured by or for InFocus,
and sold by InFocus, its worldwide subsidiaries, authorized resellers or country distributors, that can be identied by the “InFocus”
trademark, trade name, or logo axed to it, and to required rmware. The Limited Warranty does not apply to any non-InFocus
hardware products or peripherals external to the InFocus-branded hardware products (including but not limited to external storage
subsystems, displays, printers, speakers or other peripherals), or to any software applications or programs, even if packaged or sold
with the InFocus hardware. Manufacturers, suppliers, or publishers of products, software or peripherals, other than InFocus, may
provide their own warranties to the end user purchaser, but InFocus, in so far as permitted by law, provides their products “AS IS”
without the InFocus Limited Warranty. Software distributed by InFocus with or without the InFocus brand name (including, but not
limited to system software) is not covered under this Limited Warranty. Refer to the licensing agreement accompanying the software
for details of your rights with respect to its use.
InFocus does not warrant that the operation of the products will be uninterrupted or error-free. InFocus is not responsible for damage
arising from failure to follow instructions relating to the products’ use.
INFOCUS IS NOT RESPONSIBLE FOR DAMAGE TO OR LOSS OF ANY PROGRAMS, DATA, OR REMOVABLE STORAGE MEDIA. INFOCUS
IS NOT RESPONSIBLE FOR THE RESTORATION OR REINSTALLATION OF ANY PROGRAMS OR DATA OTHER THAN SOFTWARE
INSTALLED BY INFOCUS WHEN THE PRODUCT IS MANUFACTURED.
To enable InFocus to provide the best possible support and service during the Limited Warranty Period, you will be required to:
• Maintain a proper and adequate environment, and use the InFocus hardware products in accordance with the instructions
furnished.
• Verify congurations, load most recent rmware, install software patches, run InFocus diagnostics and utilities, and implement
temporary procedures or work-around provided by InFocus while InFocus works on permanent solutions.
Page 25INF6505/IND6565 Hardware Guide
• Allow InFocus to keep resident on your systems or sites certain system and network diagnosis and maintenance tools to facilitate
the performance of warranty support (collectively referred to as “Proprietary Service Tools”); Proprietary Service Tools are and
remain the sole and exclusive property of InFocus.
Additional Limitations:
• Products external to the system processor (CPU) box, such as external storage subsystems, printers and other peripherals, are
covered by the applicable warranty for those products or options.
• An eective repair does not necessarily require the replacement of a defective part. For example, cleaning the heads of a oppy
drive or updating revision levels of ROM BIOS on a PCA board are activities that in many instances deliver an eective repair.
• BIOS/Firmware upgrades are not covered under the Limited Warranty. Firmware that is an integral part of the option hardware
board is not automatically upgraded when new versions of rmware are released.
• It is the responsibility of the customer to ensure that their software is compatible with the latest
BIOS/rmware revision.
This Limited Warranty does not apply: (a) to consumable or expendable parts, such as batteries, or protective coatings designed to
diminish over time unless failure has occurred due to a defect in materials or workmanship; (b) to cartons, carrying cases, shipping
cases, external cabinets, accessories used in connection with the product; (c) to cosmetic damage, including but not limited to scratches,
dents, and broken plastic on ports; (d) to damage caused by use with non-InFocus products; (e) to damage caused by accident,
abuse, misuse, improper ventilation, smoke exposure, contamination, improper or inadequate maintenance, cleaning or calibration,
liquid contact, unusual physical or electrical stress and/or power surges, virus infection, re, earthquake, disaster, lightning or other
external causes; (f) to damage caused by operating the product outside the permitted or intended uses or usage parameters described
by InFocus (including burned display screens and incorrect input voltage); (g) to damage caused by service (including upgrades and
expansions) performed by anyone other than a representative of InFocus or an InFocus Authorized Service Provider (“ASP”) or your own
installation of customer-installable parts as instructed by InFocus; (h) to a product or part that has been modied to alter functionality
or capability without the written permission of InFocus (including use of an unauthorized mount); (i) to defects caused by normal wear
and tear or otherwise due to the normal aging of the product; (j) to failure to follow maintenance procedures as outlined in the product
user documentation including where a schedule is specied for regular cleaning of certain parts (based on usage and environment); (k)
to loss or damage in transit; or (l) if the product is not used under normal operating conditions which are dened as use not in excess
of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered o state; or (m) if any InFocus serial
number has been removed or defaced. In addition, LCD burn-in as a result of excessive display of static images on the product is not
covered under the terms of this Limited Warranty.
Important: Do not open the hardware products unless otherwise directed by InFocus for the purposes of a Customer Self Repair (CSR).
Opening the hardware products may cause damage that is not covered by this Limited Warranty. Only InFocus or an ASP should
perform service on the hardware products.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AS
PERMITTED BY APPLICABLE LAW, INFOCUS SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND
WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF INFOCUS CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED
WARRANTIES THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE
DURATION OF THE EXPRESS WARRANTY AND TO THE REPAIR OR REPLACEMENT SERVICE AS DETERMINED BY INFOCUS IN ITS
SOLE DISCRETION. No InFocus reseller, agent, or employee is authorized to make any modication, extension, or addition to this
warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be aected or
impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, INFOCUS IS NOT RESPONSIBLE
FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS
Page 26
OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS
OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF,
DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER
CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING OR
REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH THE INFOCUS PRODUCT AND ANY FAILURE TO MAINTAIN THE
CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL
INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. INFOCUS
DISCLAIMS ANY REPRESENTATION THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A
PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
Limitation on Bringing Action: No action, regardless of form, arising out of the agreement to purchase the Product may be brought
by purchaser more than one year after the cause of action has accrued. Governing Law: Any action, regardless of form, arising out
of the agreement to purchase the Product is governed by the laws of the State of Oregon, U.S.A. Mandatory Arbitration – Any action,
regardless of form, arising out of the agreement to purchase the Product is subject to mandatory arbitration.
ADDITIONAL RIGHTS. FOR CUSTOMERS, WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR
COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY
ARE IN ADDITION TO ALL RIGHTS AND REMEDIES PROVIDED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. THIS
WARRANTY DOES NOT EXCLUDE, LIMIT OR SUSPEND ANY RIGHTS OF CONSUMERS ARISING OUT OF NONCONFORMITY WITH A
SALES CONTRACT. SOME COUNTRIES, STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION MAY LAST, SO THE
LIMITATIONS OR EXCLUSIONS DESCRIBED BELOW MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY COUNTRY, STATE OR PROVINCE. INFOCUS, THE WARRANTOR UNDER
THIS LIMITED WARRANTY, IS IDENTIFIED AT THE END OF THIS DOCUMENT.
EXTENDED WARRANTIES. InFocus extended product warranties are available for an additional charge. For further information on
InFocus extended product warranties, please contact InFocus or your product reseller.
OBTAINING WARRANTY SERVICE. Please access and review the online help resources located at www.infocus.com/support before
seeking warranty service. If the product is still not functioning properly after making use of these resources, please contact InFocus
Technical Support or, if applicable, an ASP using the information provided below. When contacting InFocus via telephone, other charges
may apply depending on your location. When calling, InFocus Technical Support or an ASP will help determine whether your product
requires service and, if it does, will inform you how InFocus will provide it. You must assist in diagnosing issues with your product and
follow InFocus’s warranty processes. InFocus may restrict service to the country where InFocus or its Authorized Distributors originally
sold the hardware product. InFocus will provide warranty service either (i) at an ASP location, where service is performed at the
location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if
you no longer have the original packaging, InFocus may send you packaging material at your cost) to enable you to ship the product
to an InFocus repair service location, or (iii) by sending you customer-installable new or refurbished replacement parts to enable you to
conduct Customer Self Repair, or (iv) by exchanging the product for a new or refurbished replacement.
Customer Self Repair
InFocus products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater exibility in
performing defective parts replacement. If during the diagnosis period, InFocus identies that the repair can be accomplished by the
use of a CSR part, InFocus will ship that part directly to you for replacement. There are two categories of CSR parts:
• Parts for which customer self repair is mandatory. If you request InFocus to replace these parts, you will be charged for the travel
and labor costs of this service.
• Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require
that InFocus replace them for you, this may be done at no additional charge under the type of warranty service designated for your
product.
Based on availability and where geography permits, InFocus will attempt to ship CSR parts out the next business day. Customer receipt
will vary based upon the actual part, customer location and shipping method. Next Day service may be oered at an additional charge
Page 27INF6505/IND6565 Hardware Guide
where geography permits. If assistance is required, you can call the InFocus Technical Support Center and a technician will help you
over the phone. InFocus species in the materials shipped with a replacement CSR part whether a defective part must be returned to
InFocus. In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within
a dened period of time, normally ve (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside
of the shipping carton or a similar package aording an equal degree of protection. The defective part must be returned with the
associated documentation in the provided shipping material. Failure to return the defective part may result in InFocus charging you for
the replacement. With a Customer Self Repair, InFocus will pay all shipping and part return costs and determine the courier/carrier to
be used.
Upon receipt of the replacement product or part, the original product or part becomes the property of InFocus and you agree to
follow instructions, including arranging the return of original product or part to InFocus in a timely manner. When providing a product
exchange or Customer Self Repair (CSR) part requiring the return of the original product or part, InFocus may require a credit card
authorization as security for the retail price of the replacement product or part and applicable shipping costs. When returning product
to InFocus, a Return Material Authorization Number (RMA #) is required and must be clearly displayed on the outside of the shipping
carton or a similar package aording an equal degree of protection. Service options, parts availability and response times may vary
according to the country in which service is requested. Service options are subject to change at any time. You may be responsible for
shipping and handling charges if the product cannot be serviced in the country in which service is requested. If you seek service in a
country that is not the country of original purchase, you will comply with all applicable import and export laws and regulations and be
responsible for all custom duties, V.A.T. and other associated taxes and charges. Where international service is available, InFocus may
repair or exchange defective products and parts with comparable products and parts that comply with local standards. In accordance
with applicable law, InFocus may require that you furnish proof of purchase details and/or comply with registration requirements before
receiving warranty service. Resources with more details on this and other matters on obtaining warranty service are described below.
PRIVACY. InFocus will maintain and use customer information in accordance with the InFocus Privacy Policy available at www.Infocus.
com/privacy and InFocus’s applicable legal obligations.
BACKUP. If your product is capable of storing software programs, data and other information, you should protect its contents against
possible operational failures. Before you deliver your product for warranty service it is your responsibility to keep a separate backup
copy of the contents, remove all personal information and data that you want to protect and disable any security passwords. THE
CONTENTS OF YOUR PRODUCT WILL BE DELETED AND THE STORAGE MEDIA REFORMATTED IN THE COURSE OF WARRANTY
SERVICE. Your product or a replacement product will be returned to you as your product was congured when originally purchased,
subject to applicable updates. InFocus may install system software updates as part of warranty service that will prevent the hardware
from reverting to an earlier version of the system software. Third party applications installed on the hardware may not be compatible or
work with the hardware as a result of the system software update. You will be responsible for reinstalling all other software programs,
data and passwords. Recovery and reinstallation of software programs and user data are not covered under this Limited Warranty.
RESOURCES. Support and service information including Authorized Distributor and Authorized Service Provider locations is available at:
www.infocus.com/support.
InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, OR 97223-8368 USA
© 2017 InFocus Corp. All rights reserved. InFocus and the InFocus logo are trademarks of InFocus Corp., registered in the U.S. and other
countries.
Page 28
Produkt Specifikationer
| Mærke: | InFocus |
| Kategori: | Skærm |
| Model: | JTouch INF6505 |
Har du brug for hjælp?
Hvis du har brug for hjælp til InFocus JTouch INF6505 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Skærm InFocus Manualer
31 Juli 2025
31 Juli 2025
19 Juli 2025
6 Juli 2025
21 Juni 2025
20 Juni 2025
19 Juni 2025
19 Juni 2025
19 Juni 2025
19 Juni 2025
Skærm Manualer
- Posiflex
- Yealink
- ESI
- Archos
- RCF
- CTOUCH
- Apple
- ViewZ
- Philips
- Flanders Scientific
- Blaupunkt
- I3-Technologies
- Samsung
- Titan Army
- Desview
Nyeste Skærm Manualer
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
12 August 2025
12 August 2025
12 August 2025
