11.10.16 06755A © Inovonics, 2016 - www.inovonics.com

EN1244/EN1244-60/EN1244A/EN1244Z

Wireless Smoke Detector

Installation Instructions

1 Overview

The wireless smoke detector features an onboard sounder, a smoke

sensor, an LED indicator and local test capability to allow the user total

visibility of its functionality. It is self-monitoring, alerting the user when

sensor maintenance is needed or batteries are low, and automatically

supervising the radio link.

The EN1244 and EN1244-60 wireless smoke detector have been designed

for operation in the United States; the EN1244A wireless smoke detector

has been designed for operation in Australia; and the EN1244Z wireless

smoke detector has been designed for operation in New Zealand.

The EN1244 wireless smoke detector is intended for open area protection

and for connection to a compatible power supply or control unit for

operation as part of a household fire alarm system (UL985).

Note: For UL 2560 installations, refer to the EN6080 Area Control

Gateway Installation Instructions.

1.1 Maximum Number of Repeaters for a UL 2560

Installation

To achieve the 99.99% alarm message reliability required for UL 2560

compliance, system installations must operate within the following limits for

end device and repeater counts.

1.2 Inovonics Contact Information

If you have any problems with this procedure, contact Inovonics technical

services:

• E-mail: support@inovonics.com.

• Phone: (800) 782-2709; (303) 939-9336.

1.3 Wireless Smoke Detector External Components

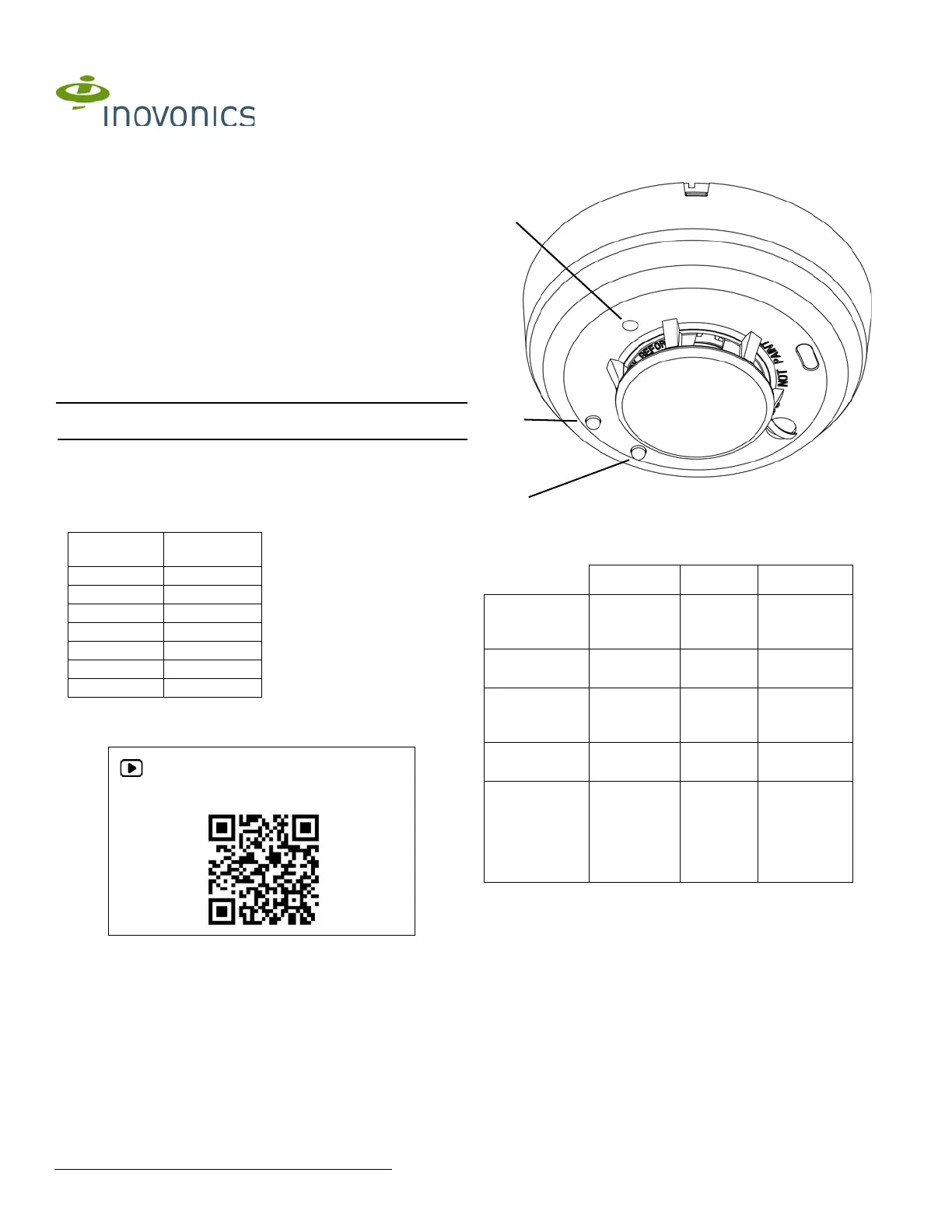

Figure 1 Wireless smoke detector external components

Device Indicators

1.4 What’s In The Carton

• One 3V-Lithium battery, installed.

• Two drywall anchors.

• Two mounting screws.

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by professional

security technicians.

• Products are tested for indoor use.

• All products should be manually tested weekly.

End

Devices

Maximum

Repeaters

150 397

250 386

350 375

500 360

1000 313

2000 238

3000 184

For product and installation videos visit us at

www.inovonics.com/videos or use the QR

code below.

Green LED Red LED Sounder

Power up Both LEDs

blink every 5

seconds

Both LEDs

blink every

5 seconds

Off

Normal

(standby)

Blinks every

10 seconds

Off Off

Sensitivity out of

range

Off Blinks

every five

seconds

Off

Smoke alarm Off Lit Temporal

pattern

Low battery Off Blinks

every 45

seconds

Chirps every

45 seconds

beginning two

days after the

LED begins

blinking

Test

button

Green

LED

Red

LED

11.10.16 06755A © Inovonics, 2016 - www.inovonics.com 2

2.2 Activate the Battery

1. Remove the orange dust cover.

Note: If the detector cover is loose it can detach while removing the dust

cover. If the detector cover is removed with the orange dust cover, place

the detector cover over the smoke sensor and turn clockwise until it snaps

into place.

2. Twist the detector counterclockwise and lift it off of the mounting base.

3. Remove the plastic tag in the battery compartment to connect the

battery.

4. Ensure the battery is seated.

2.3 Register the Wireless Smoke Detector

The wireless smoke detector must be registered to function in your

EchoStream system. Transmitters must be registered with the system in

order to be monitored and supervised. EN1244, EN1244A and EN1244Z

wireless smoke detectors send a check-in message every three minutes;

EN1244-60 wireless smoke detectors send a check-in message every 60

minutes.

Note: For UL 2560 installations, transmitters must have a minimum check-

in time of 60 minutes.

Refer to your receiver, network coordinator or control panel manual for

registration instructions. Inovonics recommends all EchoStream

transmitters be supervised.

Note: The wireless smoke detector needs thirty seconds to initialize after

power up, during which you will be unable to register devices. During this

initialization period, both LEDs will blink every five seconds.

5. When prompted to register the device, use a small screwdriver or Allen

wrench with a diameter of less than 0.18” to press the recessed test

button (See Figure 1).

Note: If you are registering a device directly after an initial power up or

battery replacement, you may need to press the recessed test button twice.

If the device fails to register with the first button press, press the recessed

test button again.

2.4 Mount the Wireless Smoke Detector

1. Choose a location for the wireless smoke detector, paying attention to

the following guidelines.

Caution: Regulations pertaining to smoke detector installations vary. For

more information, contact your local fire department or local authority

having jurisdiction.

• Install a minimum of two smoke detectors in any household.

• Put a smoke detector in the hallway outside of every bedroom area.

• Put a smoke detector on every level of a multi-level residence.

• In rooms with sloped ceilings, install smoke detectors 0.9m (3 feet)

measured down from the highest point of the ceiling.

• Install basement detectors on the ceiling as close to the center of the

room as possible. If this is not practical, install on the ceiling no closer

than 10cm (4 inches) from any wall or corner.

• If ceiling mounting is not practical, install on an inside wall between 10

an 15cm (4 and 6 inches) from the ceiling.

• Put smoke detectors at both ends of a bedroom hallway if the hallway

is more than 9m (30 feet) long. Large rooms over 84 square meters

(900 square feet) require more than a single detector.

• Areas with rough ceilings or short, transom-type walls coming down

from the ceiling require additional smoke detectors.

• Install second-floor smoke detectors on the ceiling at the top of the

first-to-second floor stairwell. Be sure that no door or other obstruction

blocks the path of smoke to the detector.

Do not locate detectors:

• To a drop ceiling panel; mount it to a metal runner as shown in figure

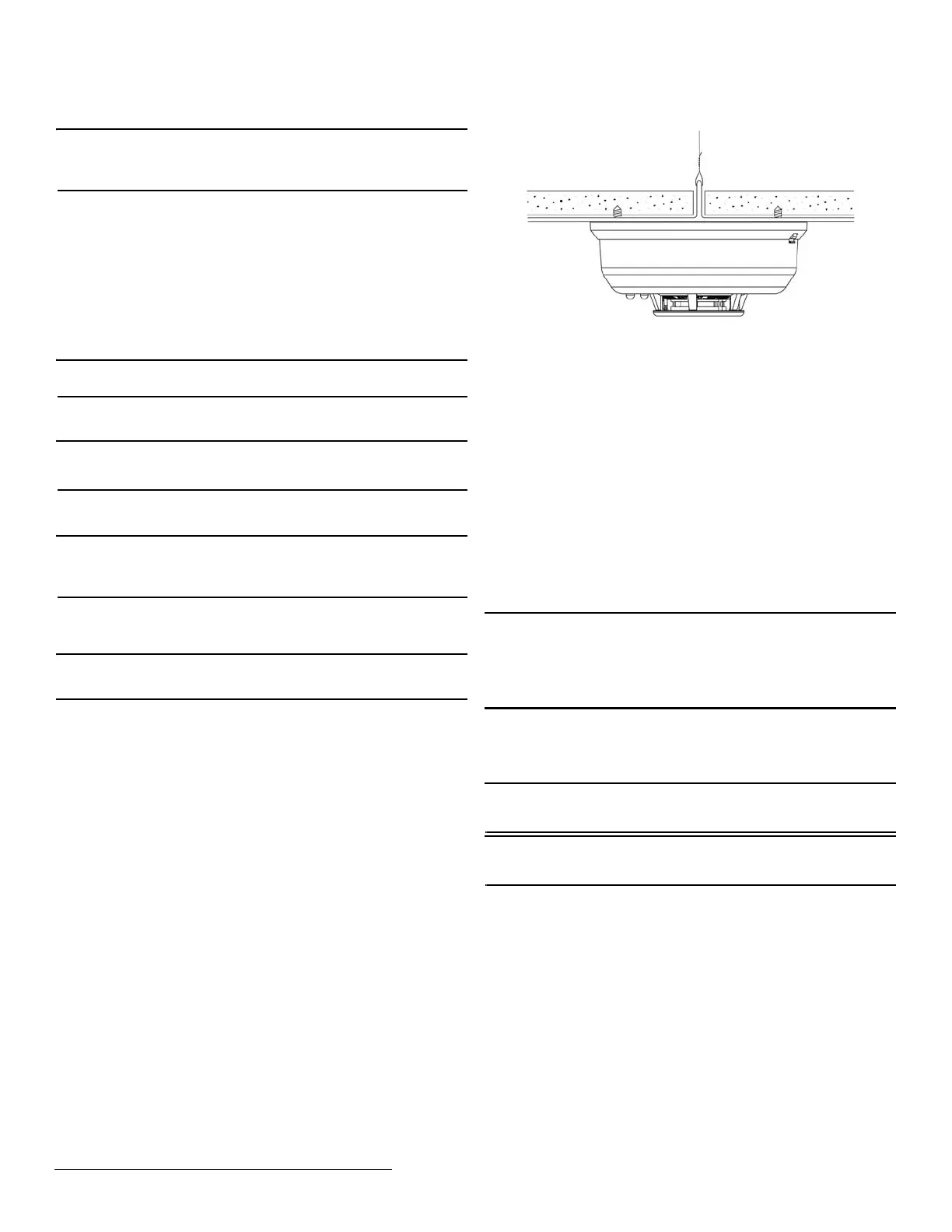

Figure 2 Mount the smoke detector across drop ceiling panel support

• In or near areas such as kitchens or garages, where smoke or vehicle

exhausts normally occur (protect these areas with heat-detection

devices, not with smoke detectors); near furnaces, hot water heaters,

or gas space heaters.

• In damp or very humid areas, or next to bathrooms with showers.

Install detectors at least 1.5m (5 feet) away from bathrooms.

• In very cold or very hot areas.

• In dusty, dirty, or insect infested areas.

• Near fresh air inlets or returns or excessively drafty areas. Air

conditioners, heater, fans, and fresh air intakes and returns can drive

smoke away from smoke detectors.

• In dead air spaces at the top of a peaked ceiling or wall/ceiling

intersect. Dead air may prevent smoke from reaching a smoke

detector.

• Near fluorescent light fixtures. Install smoke detectors at least 3m (10

feet) away from fluorescent light fixtures.

• Between protruding ceiling structures such as beams or walls which

can create dead air spaces and may prohibit smoke from reaching the

detector.

Caution: All detectors are subject to possible compromise or failure-to-

warn for a variety of reasons. For example: Smoke detectors cannot detect

smoke in chimneys, walls, roofs, or smoke blocked by a closed door;

detectors may not detect smoke on other levels of the building; detectors

may not warn in time when fires are caused by smoking in bed, explosions,

improper storage of flammables, overloaded electrical circuits, or other

hazardous conditions.

Do install:

• Within 10 feet of all sleeping areas.

• On every floor of the building.

• In every room that contains a fuel-burning appliance.

Note: If the room with a fuel-burning appliance is not normally used, such

as a boiler room, the detector should be placed just outside the room so

that the alarm can be more easily heard.

Warning: In order to comply with FCC RF exposure requirements, a 7.87”

(20 cm) distance must be maintained between all persons and the wireless

smoke detector.

Do not install:

• Within 10 feet of any cooking appliance.

• Directly above a sink, cooker, stove or oven.

• Next to a door or window that would be affected by drafts.

• Near an extractor fan or air vent.

• Outside.

• In any environment that does not comply with the detector’s

environmental specifications.

• In or below a cupboard.

• Where air flow would be obstructed by curtains or furniture.

• Where dirt or dust could collect and block the sensor.

• Where the detector could be knocked, damaged, or inadvertently

removed.

Produkt Specifikationer

Mærke:	Inovonics
Kategori:	Røgdetektor
Model:	EN1244
Højde:	58 mm
Vægt:	240 g
Produktfarve:	Hvid
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Driftstemperatur (T-T):	0 - 50 °C
Forbindelsesteknologi:	Trådløs
Strømkilde:	Batteri
LED-indikatorer:	Ja
Detektor type:	Kulilte-detektor
Kan forbindes indbyrdes:	Ja
Alarm decibel:	85 dB
Monteringstype:	Overflademonteret
Batterilevetid:	5 År
Diameter:	134.6 mm
Batteritype:	CR123A
Bæredygtighedscertifikater:	Federal Communications Commission (FCC), RoHS
Velegnet til indendørsbrug:	Ja
Bedste anvendelsesmuligheder:	Home, Office
Båndbredde:	928 MHz
Driftsstrøm:	12 µA
