Important: Read before use. • Importante: Leer antes de usar.
For additional benets:
or go to: register.intellinet-network.com/r/120234

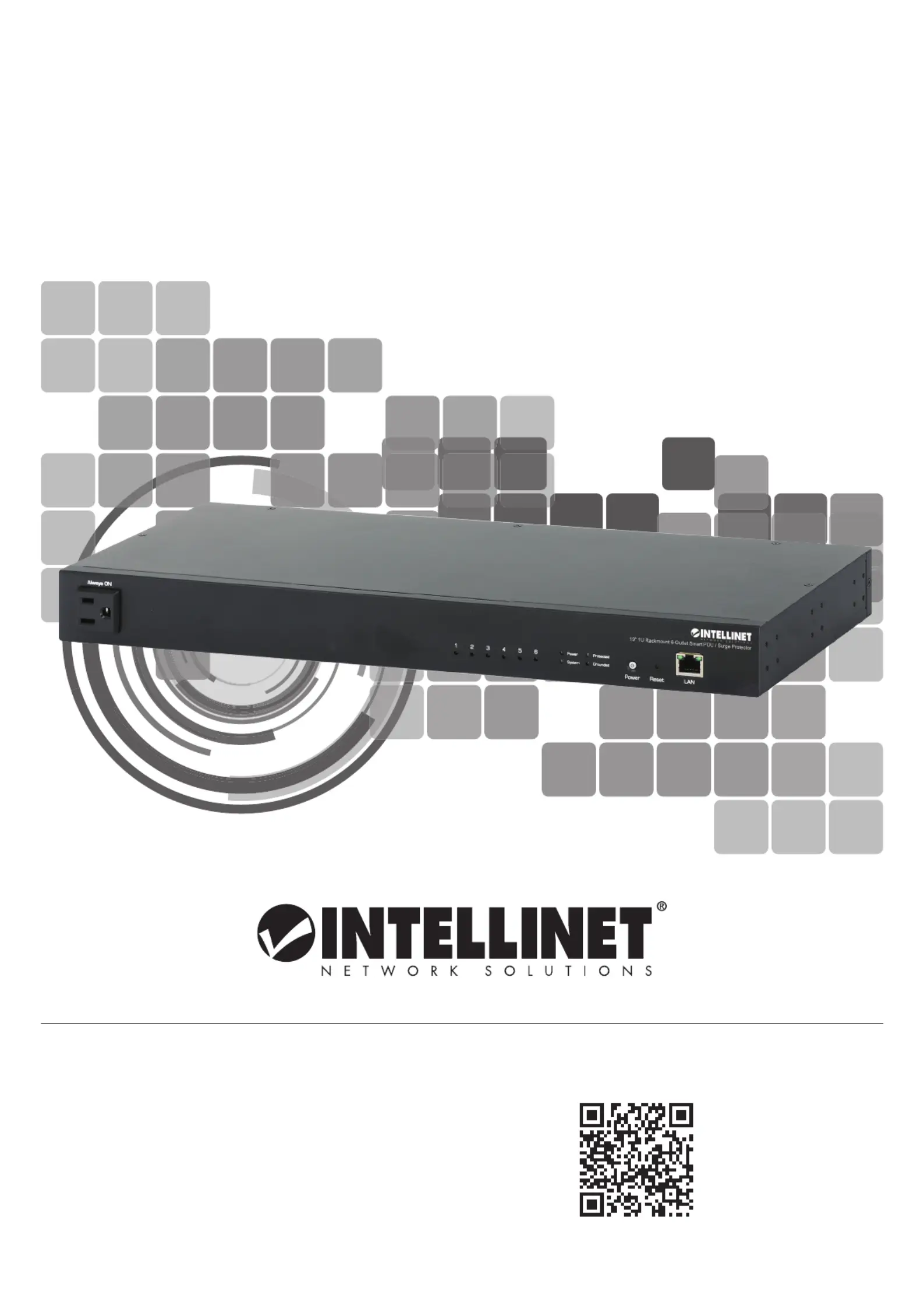

19” 1U Rackmount 6-Outlet Smart
PDU / Surge Protector
Instructions
Model 120234 (IPDU-SUS6OUT-C13IN-1U)
2
Front Panel
A B C D E F
A Always-On Outlet – Provides constant power.
B LED indicators – Show if the outlets are
supplying power to connected devices.
C Status Indicator – Displays the status of the PDU (e.g.
Power, System Status, Surge Protection, and Grounding).
D AC Power Button – Press to manually turn the outlet on and off.
E Reset Button – Press and hold:
• 5~8 seconds to reset the system
• 10 ~20 seconds to restore to factory defaults.
F Ethernet Port – Connects to network for
IP control and monitoring.
Rear Panel
A B C
A Controlled outputs 1-6 – Provides power for connected
devices. All outputs are switchable (IP controlled).
B Circuit Breaker Reset Button- Press this button to
restart the PDU to provide overload protection.
C AC Input - For 3-pin IEC power cord
Placement
Desktop Installation
Prior to use, it is recommended that the switch be placed:
• on a level surface that can support the weight
of the PDU (and possibly other objects);
• with at least 25 mm (approx. 1”) of clearance for
ventilation, shock or vibration (attach rubber feets
on the bottom at each corner of the PDU);
• away from sources of electrical noise (radios,
transmitters, broadband amplifiers);
• where it cannot be affected by excessive moisture;
• and within 100 m (approx. 328’) of network
devices it’s to be connected to.
Wall Installation
1 Disconnect any cables from the PDU.
2 Position a bracket over the mounting holes on one
side of the PDU and secure it in place with screws.
English
3 Repeat Step 2 on the other side of the PDU
4 Install screws into the wall at the distance of
the spaces on the brackets of the PDU.
5 Position the PDU in the rack and screw the brackets to the rack.
6 Reconnect any cables.
Rack Installation
The PDU includes brackets and screws for optional rack mounting.
1 Disconnect any cables from the PDU.
2 Position a bracket over the mounting holes on one
side of the PDU and secure it in place with screws.
3 Repeat Step 2 on the other side of the PDU.
4 Position the PDU in the rack and screw the brackets to the rack.
5 Reconnect any cables.
Connections
1 Connect the power cord to the PDU and plug the other end
of the cord into an electrical outlet. Check the power cord is
plugged into a grounded outlet. Verify that the Power and
System LEDs on the PDU are lit. Wait for the PDU to complete
booting up. This process may take several minutes.
2 Connect one end of the Cat5/6 Ethernet cable to
the Ethernet port on the front panel and the other
end to the Ethernet port on the computer.
Basic Web-Based Browser Management
The default PDU address setting is static IP address.
Use the following IP address settings:
• IP Address: 192.168.2.X
(last octet can be any numbers)
• Subnet mask: 255.255.255.0
Login to the PDU:
1 Open your Web browser.
2 Enter and the IP address of the PDU in the Address http://
field. The default management IP address is 192.168.2.1.
3 Press Enter to display the login screen. In the
Username field, enter ; in the Password field, admin
enter on the bottom of the switch. Click .SN OK
The 19” 1U Rackmount 6-Outlet Smart PDU / Surge Protector safely distributes and monitors power to the equipment in
your network rack, server room or data center. It features 6 metered US NEMA 5-15R outlets with remote access and control,
complimented by one non-metered bypass outlet. Access and manage the PDU via a web browser using the RJ45 Ethernet
port on the front panel, while monitoring the delivered power in voltage and current. It can be installed horizontally
in a standard 19” rack with the included rackmount brackets, or placed on its rubber feet for non-slip desktop use.
This guide presents the basic steps to set up and operate this device.
For the user manual and specifications, visit . Register your product at intellinet-network.com
register.intellinet-network.com/r/120234 or scan the QR code on the cover.
