Side 1/16

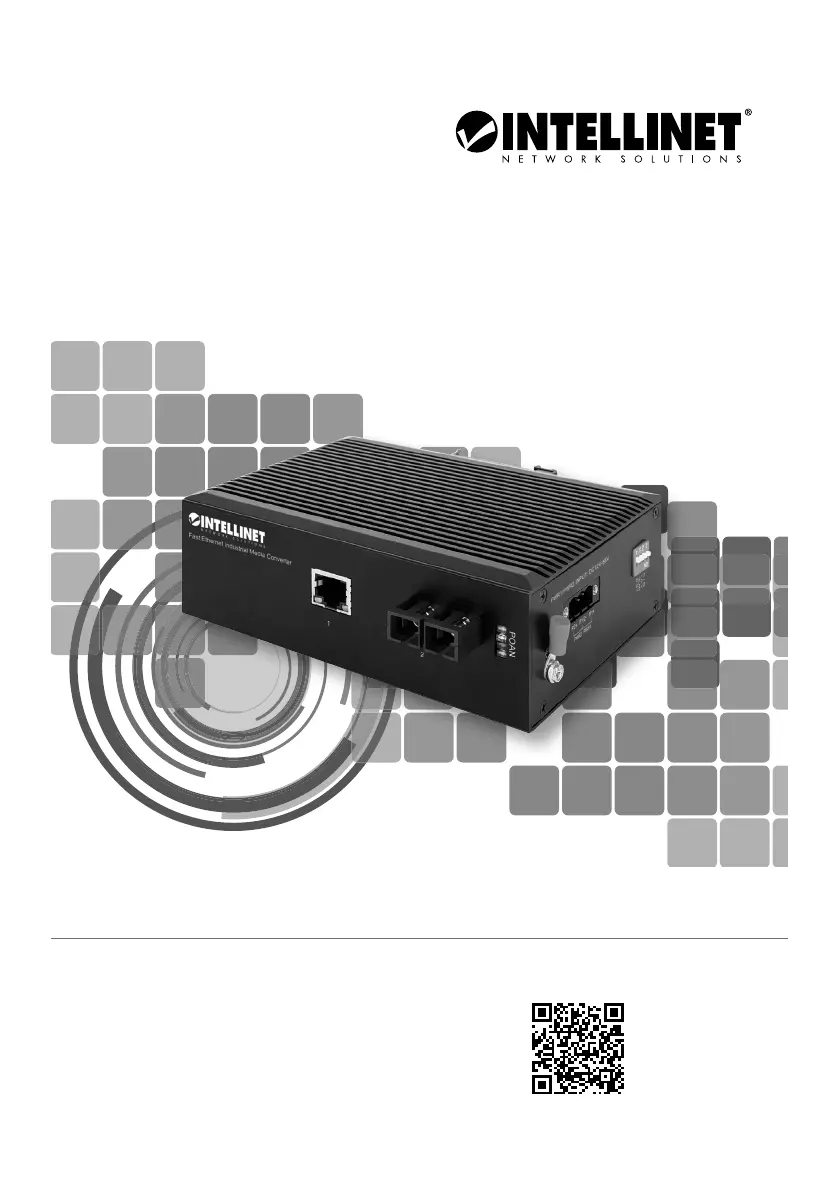

Fast Ethernet

Industrial

Media

Converter Instructions

Model 508322

(

IMCI-SMSCF20KM

)

or go to: register.intellinet-network.com/r/508322

Scan to

product warranty

Important: Read before use. • Importante: Leer antes de usar.

For additional benets:

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

For specifications, visit intellinetnetwork.com. Register your product at

Features

• One 10/100 RJ45 port supporting a maximum distance of 100 m (300 ft.)

• One 100Base-FX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)

• IP40 slim-type metal housing to withstand harsh industrial conditions

• Option for DIN-rail installation

• Two redundant DC inputs (12 - 58 V) with I/O terminal block

Twisted Pair – RJ45

Connect the UTP port of the media converter to an

RJ45 port on the network (e.g., to an Ethernet switch).

Cat5e or better cabling is recommended.

Fiber Optic

As shown, two fiber optic cables need to be connected

between two ideally identical media converters.

Make a connection from Media Converter 1 TX to Media Converter 2 RX, and from Media Converter 1 RX to

Media Converter 2 TX. Maximum length and fiber cable specification depend on the model. (See Models.)

Connections

Example

MEDIA CONVERTER1

MEDIACONVERTER 2

RJ45

OPTICAL FIBER

ETHERNET 1

ETHERNET 2

TWISTEDPAIR

TWISTED PAIR

Front panel

Item LED Color Status Description

RJ45 Port

Port activity Green

Flashing Sending or receiving data.

On Port is connected.

Off Port is not connected.

Speed Yellow

On 100 Mbps speed.

Off 10 Mbps speed.

P — Power

Power and power-

supply-under-voltage

alarm (priority of

under-voltage alarm is

higher than power LED)

Green

Flashing

every 1s

Equipment power supply is lower than the lower limit of the

input range of DC 12 V, indicating an under-voltage alarm.

On Power channel is powered.

Off Power channel is not powered.

O — Optical Fiber Port

Fiber port and power

supply overvoltage alarm

(priority for overvoltage

alarm is higher than fiber

port Link/Act LED)

Green

Flashing

every 0.5s

The power supply of the device exceeds the upper limit of the

input range of DC 58 V, indicating an overvoltage alarm.

On Fiber port is connected.

Off Fiber port is not connected.

Flashing Sending or receiving data.

A — Alarm

Device alarm and data

transmission indicator

Red

Flashing

Console/RS232/RS485 port is sending data (LED

flashes to the rhythm of data being sent).

On An issue has been detected (temperature, dying gasp, etc.).

Off No alarm issue detected.

N — NMC

Management indicator

and data receiving

Green

Flashing

Console/RS232/RS485 port is receiving data (LED

flashes to the rhythm of data being received).

On Module embedded and initialization is complete.

Off No embedded module.

Instructions Fast Ethernet Industrial Media Converter

English

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Audio/video konverter
Model:	508322
Bredde:	104 mm
Dybde:	143 mm
Højde:	48 mm
Vægt:	600 g
Brugervejledning:	Ja
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 90 %
Driftstemperatur (T-T):	-40 - 75 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Husmateriale:	Metal
Certificering:	FCC Class B, CE, RoHS
Netværksstandarder:	IEEE 802.3, IEEE 802.3u
Understøttede netværksprotokoller:	UTP/STP
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176990
Indgangsspænding:	12 - 58 V
Intern:	Ingen
Maksimal dataoverførselshastighed:	- Mbit/s
Fiber kabeldiametre understøttes (kerne/beklædning):	8/125, 8.3/125, 8.7/125, 10/125 µm
Maksimal overførselsafstand:	20000 m
Bølgelængde:	1310 nm
Ethernet-grænsefladetype:	Hurtigt ethernet
Jumbo Frames support:	Ja
Klemrække port:	Ja
Understøttede kabeltyper:	Cat5e
Fibertilstandsstruktur:	Enkeltilstand
Tx effekt (min.):	-9 dBmW
Tx effekt (maks.):	-3 dBmW
