Important: Read before use. • Importante: Leer antes de usar.

Scan to

product warranty

Ultra Long Range

Outdoor Fast Ethernet

PoE+ Extender Kit

Instructions

Model 561952

(

IPE-ODFE30

)

For additional benets:

or go to: register.intellinet-network.com/r/561952

This guide presents the basic steps

to set up and operate this device.

For specifications, visit support.intellinet-

network.com/barcode/561952.

intellinet-network.com/r/561952 or

scan the QR code on the cover.

Connections

Device Connections

Note: Your needs and setup may vary. Both

Extender units must be used together.

1 Plug a Cat5e/6 Ethernet cable — up

to 100 m long — from your powered

source device (for example, a PoE

injector or switch) into the Output

connector on one extender.

2 Plug a second Cat5e/6 Ethernet

cable — up to 800 m long — from

the Input on the first extender to

the Input the second extender.

3 Plug a third Cat5e/6 Ethernet cable —

up to 100 m long — from the Output

on the second extender to the device

you want to transmit power and data

to (e.g., a PoE network camera).

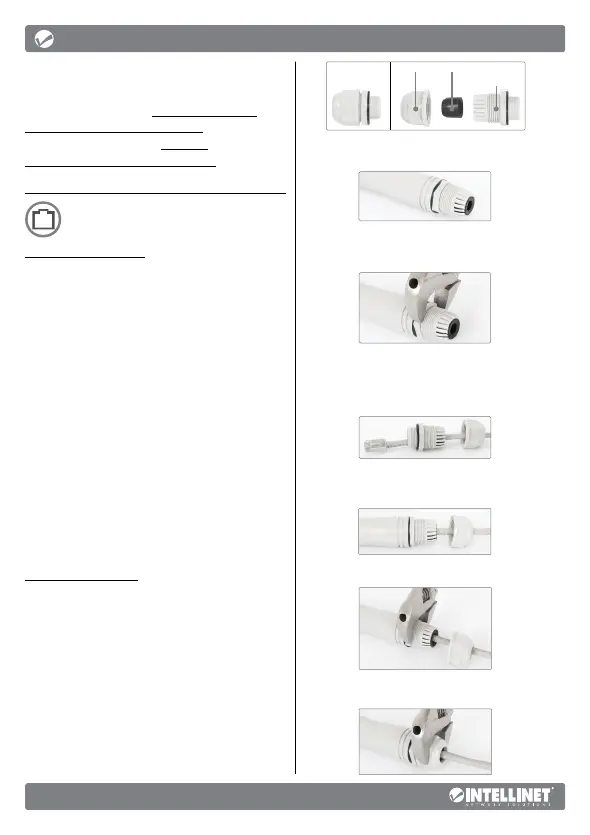

Cable Connections

Follow these general steps to make

waterproof connections on all cables that

connect to the units. Use a wrench to ensure

tight connections and whenever necessary.

1 Unscrew the Nut from the Body.

2 Loosen the washer and unscrew the Body

from the unit.

3 Remove the Insert from the Body and feed

the cable through the Nut and Body.

Replace the Insert into the Body .

4 Install the cable plug into the port. Screw

on the Body to the unit.

5 Tighten the Body washer to the unit.

6 Tighten the Nut to the Body.

Nut

Body

with

washer

Insert

English

Instructions

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Netværkskort/adapter
Model:	561952
Kode for international beskyttelse (IP):	IP67
Bredde:	29 mm
Dybde:	157 mm
Højde:	29 mm
Vægt:	155 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 90 %
Strømforbrug (typisk):	0.4 W
Driftstemperatur (T-T):	-10 - 55 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Pakketype:	Kasse
Udgangseffekt:	30 W
Strømforbrug (maks.):	0.7 W
Kabelteknologi:	10/100
Netværksstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
LED-indikatorer:	Ja
Bæredygtighedscertifikater:	National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC), RoHS, UKCA
Plug and play:	Ja
Strøm over Ethernet (PoE):	Ja
Maksimal driftstilstand:	1000 m
Ethernet-grænsefladetype:	Hurtigt ethernet
Antal produkter inkluderet:	1 stk
RJ-45 indgangs-porte:	1
Strømbeskyttelsesfunktioner:	Over voltage, Overload, Short circuit
Understøttede kabeltyper:	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a
RJ-45 udgangs-porte:	1
Power over Ethernet (PoE) spænding:	- V
Duplex system:	Fuld
