Side 1/2

Server & Network

Cabinets

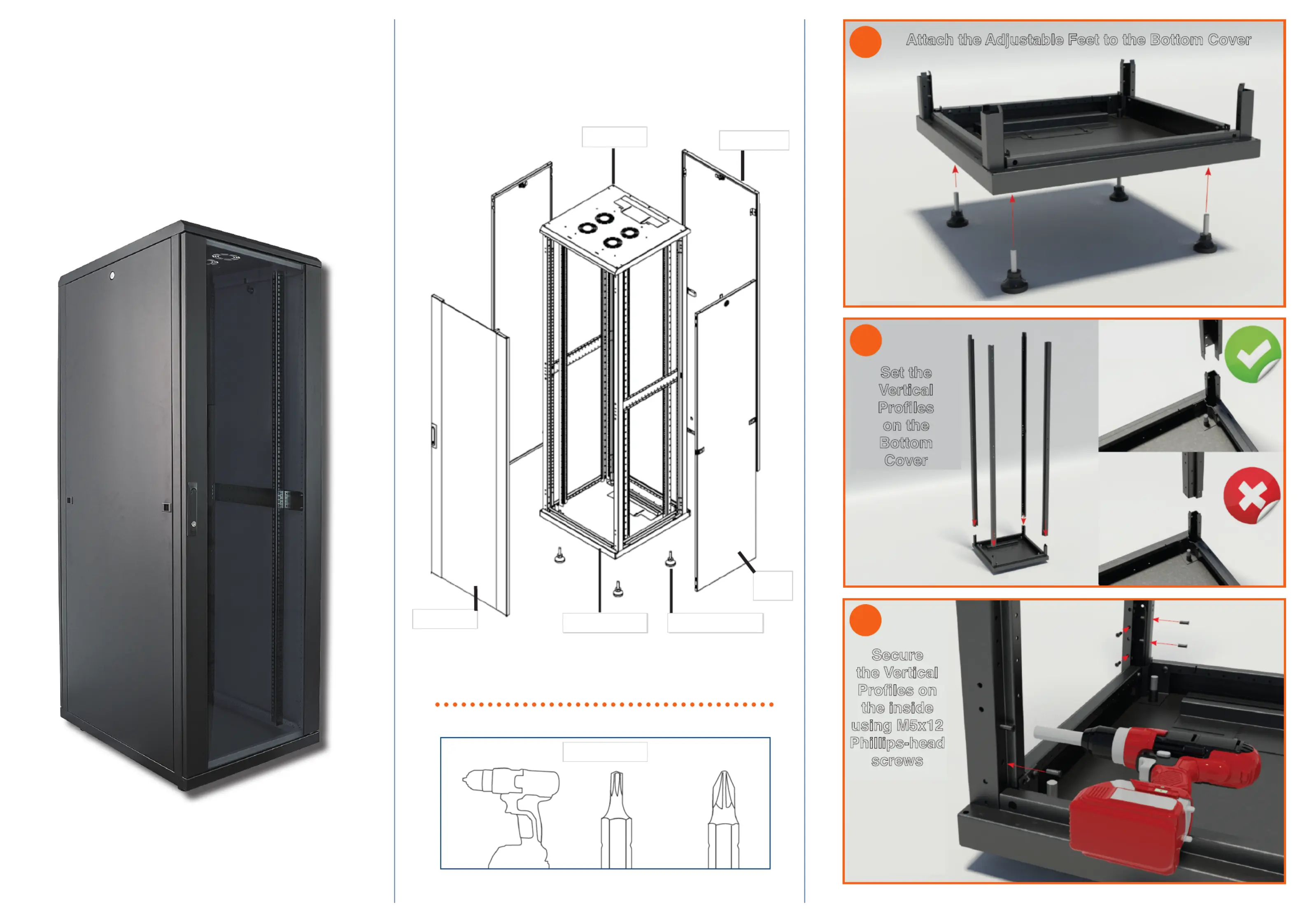

Assembly Instructions

SNCAB-INST-ICG-0915-01

Front Door

Side

Panel

Rear Panel

Bottom Cover Adjustable Feet

Top Cover

Attach the Adjustable Feet to the Bottom Cover

Set the

Vertical

Proles

on the

Bottom

Cover

Insert each

prole as

shown

Secure

the Vertical

Proles on

the inside

using M5x12

Phillips-head

screws

Note: Cable

entry is at

the rear

Do not

overtighten:

It can damage

the screws

Rear

Front

Tools Needed

Steps 10-12 are for 600mm-wide cabinets. For cabinets

that are 800 mm wide, jump to Step 13.1.

Caution: The mounting rails are attached to the cabinet at

3 points: Be sure they are a safe distance from the door.

Secure the Top Cover from both sides

Use M5x12

Torx-head

screws

Attach

the Rear

Panel

Locking

Points

Use M5x12

Phillips-head

screws

Use

M5x12

Torx-head

screws

Attach

both

Side

Support

Rails

Use M5x12

Torx-head

screws

To install the Back Panel,

rst insert the tabs in the

Bottom Cover slots

Set the locks in

the unlock position

Turn

the locks

to the lock

position

Use M5x12

Torx-head screws

Attach the 19”

Mounting Rails

for cabinets

600 mm wide

Attach the

Mounting Rails to

the Bottom Cover

Use M5x12

Torx-head

screws

Attach the

Rear Panel

Supports

Set the Rear Panel

in place

Steps 13.1 & 13.2 are for

800mm-wide cabinets.

13.1 Attach a pair of adapters to

each side support rail (on

the left and right sides of

the cabinet interior).

13.2 Attach the mounting rails:

• First, to the adapter

• Next, to the bottom cover

• Then, to the top cover

Attach the Mounting Rails

to the Top Cover

Attach the

Mounting Rails

to the Adapters

Use

M5x12

Torx-head

screws

Attach

the Adapters

for cabinets

800 mm wide

Use M5x12

Torx-head screws

3.1

Repeat

Steps

9.1-9.3

for the

side

panels

Attach the Side Panels

Attach the Door

Set the

washer

between the

door pin and

bottom cover

Pull down the latch

to set the door

in place

3.2

Rear

Front

Set the Top Cover on the Vertical Proles

Note:

Cable entry

is at the

rear

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Ikke kategoriseret
Model:	713078
Kode for international beskyttelse (IP):	IP20
Type:	Fritstående reol
Bredde:	600 mm
Dybde:	600 mm
Højde:	1144 mm
Vægt:	72000 g
Produktfarve:	Sort
Justerbare fødder:	Ja
Certificering:	UL, Gost-R
Harmoniseret systemkode (HS):	85381000
Bæredygtighedscertifikater:	RoHS
Maksimal vægtkapacitet:	1500 kg
Rammetype:	Lukket
Størrelse:	19 "
Rackkapacitet:	22U
Nøglelås:	Ja
Justerbar dybde:	Ja
Dørkonstruktion:	Glas
Aftagelige sidepaneler:	Ja
Sidepaneler medfølger:	Ja
Dørlås til hoveddøren:	Ja
Justerbare monteringsskinner:	Ja
