Side 1/12

MODE SELECTION (S1 DIP SWITCH):

First determine what model is being replaced (Grasslin or Competitors). The

mode selector DIP switch (located at lower right side of the board)determines

the conﬁguration of terminals 2 & 4. In position , the terminals are nor-“A”

mally closed, and will open during a defrost. In position , terminals 2 & 4 “B”

are normally open, and will close during a defrost. Select proper position from

table below and wiring diagrams indicated.

To select mode simply slide the switch as follows:

Mode A - position switch up;

Mode B - position switch down;

Note: “B” When Mode is selected the

DTAV40E2 will operate as follows:

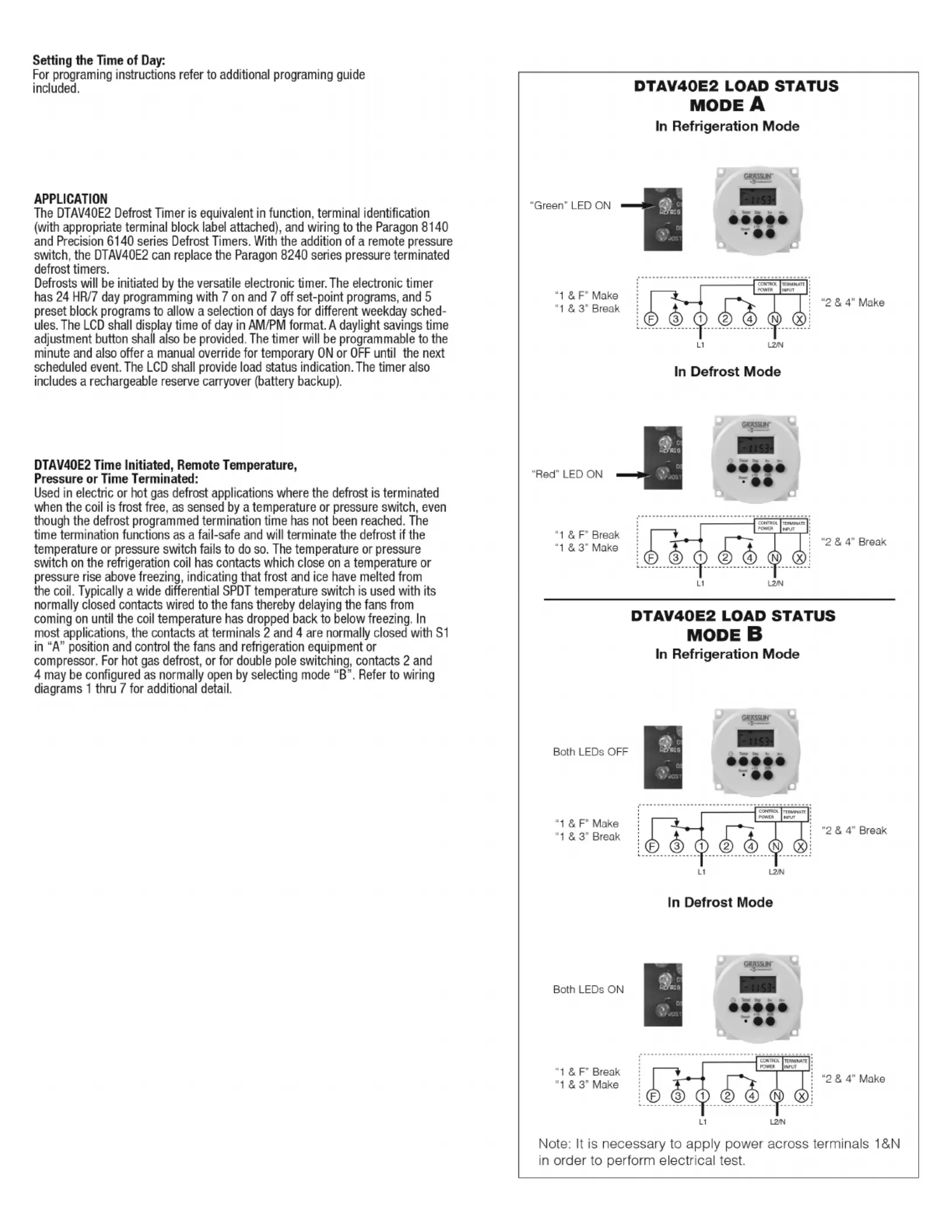

Refrigeration Mode - Red & Green LEDs

will turn OFF (1 & 3 and 2 & 4 break while

1 & F make)

- RED & GREEN LEDs will turn Defrost Mode

ON (1 & 3 and 2 & 4 make while 1 & F break)

Installation &

Operating Instructions

DTAV40E2 Series Time Initiated, Temperature, Pressure or

Time Terminated Auto-Voltage 40A Defrost Timers

Figure 2

2-1/2"

6-1/8"

Ground Lug

INSTALLATION

1. Open door and then remove interior protective cover by releasing

spring latch on bottom (Figure 1).

2. Apply corresponding Terminal Identiﬁcation and Door labels-see

retroﬁt kit instructions.

3. Remove timer mechanism by releasing PCB Latch on bottom

(Figure 1).

4. Select knockouts to be used. Remove inner 1/2" knockout by

inserting a screwdriver in the slot and carefully punch knockout

loose. Remove slug. If 3/4" knockout is required, remove the outer

ring with pliers after removing the 1/2" knockout. Smooth edges

with knife if necessary, on plastic enclosure only.

5. Place enclosure in desired mounting location and mark the three

mounting holes (refer to Figure 2 for Type 3R below). Start by

installing top screw into mounting surface and hanging enclosure on

screw head through keyhole; then screw in remaining two screws

in bottom holes.

6. Grounding: Terminate all ground wires to ground lug on bottom of

enclosure.

7. Re-install timer in enclosure.

8. Replace interior protective cover.

PCB Latch

Interior

Protective

Cover

Timer Mechanism

Spring Latch

Paragon Precision

Grasslin

Mode Selection Wiring Diag.

TIME INITIATED, PRESSURE TERMINATED

(Separate Pressure Switch Required (see instructions)

TIME INITIATED, REMOTE TEMPERATURE OR

PRESSURE TERMINATED

Cross Ref.

DTAV40E2 replaces over 40 models.

Set Mode Selection (See S1 DIP Switch, table and instructions below).

UL TYPE 3R ENCLOSURE

BRACKET MOUNT

(Saleable item DT-B)

Type 3R Enclosure Type 3R Enclosure

Figure 1

SPECIFICATIONS:

Maximum Contact Switch Rating:

40A Resistive @ 120-240VAC

2HP @ 240VAC; 1HP @ 120VAC

WIRING CONNECTIONS:

Screw box lug terminals. Up to one #8 AWG Wire

ENVIRONMENTAL RATINGS:

 OperatingTemperatureRange:-13˚Fto104˚F

 (-25˚Cto40˚C)

Operating Humidity: 0 - 95% RH,

non-condensing

ELECTRICAL LIFE:

 50,000OperationsatFullLoad

DIMENSIONS:

8.795"x6.631"x2.935"(HxWxD)

SHIPPING WEIGHT: 3 lbs.

AGENCY APPROVALS: UL LISTED

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• More than one circuit breaker or disconnect switch may be required to de-energize the equipment before

servicing.

• Installation and/or wiring must be in accordance with national and local electrical code requirements.

• For 40 amp loads, use #8 AWG wire, rated 90 C min.°

• Bonding between conduit connections is not automatic and must be provided as part of the installation.

• When replacing a timer with a metal bracket, replace the bracket with a non-metallic bracket. (Intermatic

Model DT-B is recommended).

• For outdoor locations, raintight, or wet location, conduit hubs that comply with requirements of UL514B

(standard for ﬁttings for conduit and outlet boxes) are to be used.

WARNING Risk of Fire or Electric Shock
