MODEL HB880R
WARNING
Risk of Fire or Electrical Shock
• Connect only to an outdoor receptacle protected by a Ground Fault
Circuit Interrupter (GFCI).
• Connect only to an outdoor receptacle with a “while in use” weatherproof
cover.
• Mount at least 24 inches (0.6 meters) above ground level with receptacles
facing downward.
• Replace battery cover and retaining screw before plugging in timer cord.
• Do not use timer if battery cover and/or retaining screw is missing or
damaged.
• Do not exceed rated capacity of connected extension cord or timer.
Specifications
• Input Voltage: 120 VAC, 60 HZ
• 15 Amps General Purpose
• 1000 Watts Tungsten
• 1/2 Horsepower
• 8.3 Amps Ballast (Standard) (Inductive)
• 500 VA Electronic Ballast
Description
The HB880R Time Switch is a programmable digital timer for outdoor
applications. Astronomic settings adjust for seasonal changes. Auto-
matic Daylight Saving Time adjustment. Follow these instructions to
complete the programming for the HB880R time switch.
Enable the Battery
1. On the back of timer, pull out the pull tab (if present) from
the battery holder. See Figure 2.
2. Verify that the controller display activates.
3. Take one of these actions.
IF THE DISPLAY THEN...
Activates Go to Setting the Calendar,
Clock and Astro Time
Does not activate Replace Battery. See
Replacing Battery on page 2.
Setting the Calendar, Clock and Astro Time
NOTE: The timer does not have to be plugged in to set the timer.
1. Press DATE/TIME/NEXT. The year ashes.
SELECT
FUNCTION
DATE/TIME
NEXT
SET ON/OFF
EVENTS
RESET
DELETE
+-
MO
PM AUTO
AM RDM
DST
ON
OFF
TU
WE
THFR SASU
7 Day/ 7 Event Outdoor Timer
Pull Tab
Remove stic prior to usi prpla tape ng oduct.
C ery c tacts i no L display.heck batt on f CD
2. Press or to scroll to the current year, then press + - DATE/
TIME/NEXT. The month digit ashes.
The months start with 01 (Jan) through 12 (Dec).NOTE:
3. Press or to select the current month, then press + - DATE/TIME/
NEXT. The day of the month digit and the corresponding day of
the week ashes.
4. Press or to select the current day of the month and then press + -
DATE/TIME/NEXT.
5. From the DST (Daylight Saving Time) screen, press or to set + -
the DST function to or , then press Auto (ON) OFF DATE/TIME/
NEXT. The hour digit in the current time ashes on the screen.
6. Press or to set the current hour (AM/PM), then press + - DATE/
TIME/NEXT. The minute digit ashes.
7. Press or to set the current minute, then press + - DATE/TIME/
NEXT. A ashing “nor” and the Astro icon appears.
8. Using the map in Figure 3 as reference, press or to select your+ -
Astro zone then press DATE/TIME/NEXT to save the zone. The
screen appears. AM sunrise
denotes NORTH, denotes CENTER, and NOTE: nor CEN SOU
denotes SOUTH.
9. From the screen, press or to set the sunrise time, AM sunrise + -
then press DATE/TIME/NEXT. The PM Sunset screen appears.
The setting range is a maximum of / 2 hours. NOTE: + -
Press to restore calculated sunrise time.NOTE: DELETE
10. Press or to set the sunset time, then press + - DATE/TIME/
NEXT. The time of day screen (ashing colon) appears.
The setting range is a maximum of / 2 hours fromNOTE: + -
the automatically calculated sunrise time.
Press to restore calculated sunset time.NOTE: DELETE
Setting Events
This section provides instructions for setting pairs of ON/OFF events.
To set an event pair, you must rst set the ON event and then repeat
the procedure to set the OFF event. You can set up to seven pairs
of ON/OFF events (14 total) in the timer. Follow this procedure to set
timer events.
1. Press . Dashed lines appear to indicate noSET ON/OFF EVENTS
event is set for the event number.
2. Press DATE/TIME/NEXT to set an ON event. The screen
displays 1200 AM 1 ON (for ON event 1).
3. Press + or - to scroll to the days of the week that the event will run.
To set the event to run every: NOTE:
- Week: Select MO, TU, WE, TH, FR, SA, SU
- Weekday: Select MO, TU, WE, TH, FR
- Weekend: Select SA, SU
Press DATE/TIME/NEXT. The hour ashes.
4. Press or to scroll to the desired hour or Sunrise or + - AM PM
Sunset for the event.
The hour can be set with the 12-hour AM/PM format or atNOTE:
Sunrise or Sunset.
MO
PM AUTO
AM RDM
DST
ON
OFF
TU
WE
TH FRSA SU
nor
(NORTH)
CEN
(CENTER)
SOU
(SOUTH)

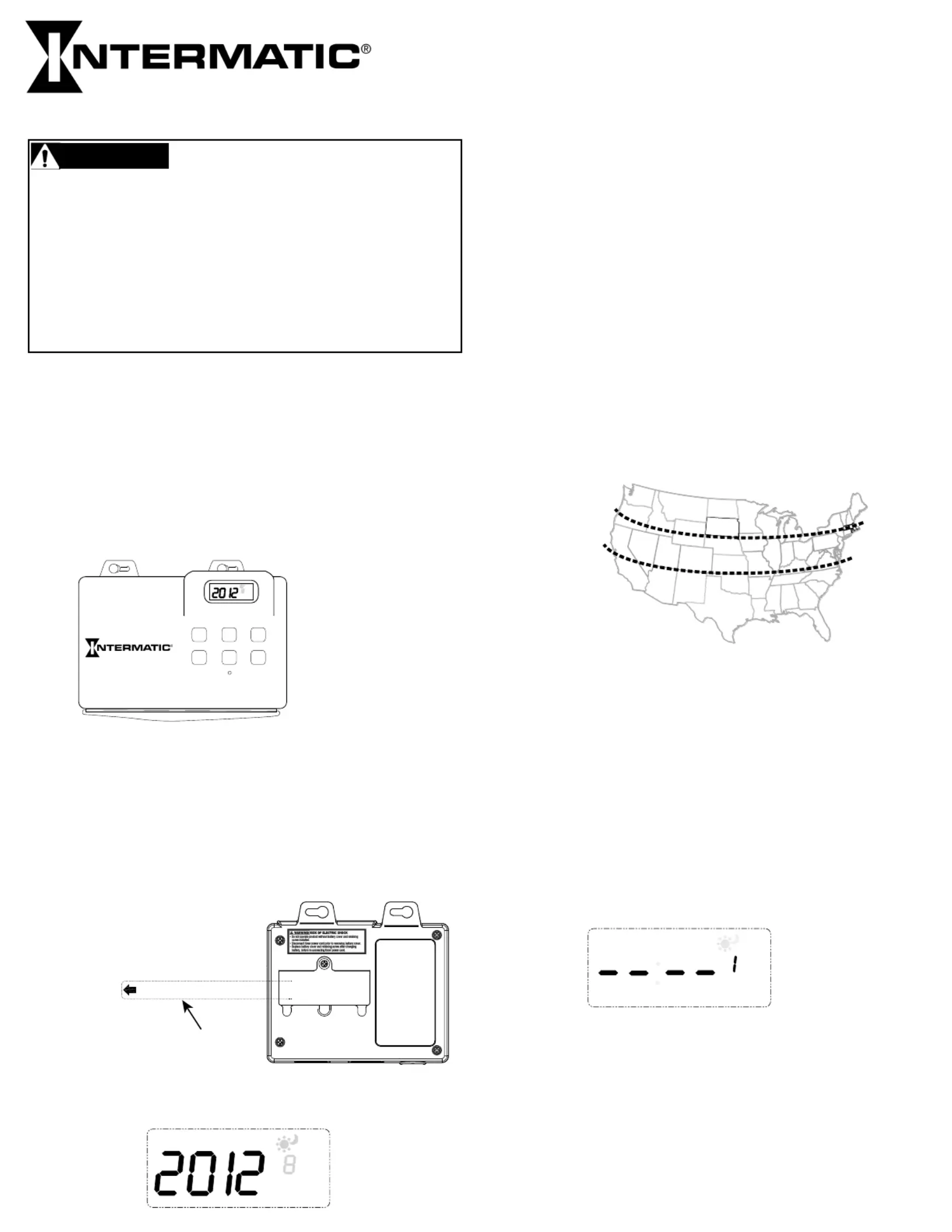

Figure 1
The HB880R Time Switch
Figure 2
Removing pull tab from battery holder
Figure 3
Astro zone map
Outdoor 7 Day
Digital Timer
Operating and User Instructions
MO
PM AUTO
AM RDM
DST
ON
TU
WE
TH FRSA SU
TABLE 1. Description of Modes
Mode Description
AUTO Switches ON/OFF events at programmed times.
RDM
(Random)
Varies each event up to 30 minutes from the
programmed time
MANUAL Programmed events are ignored but are saved in
memory.
6. When the modications are complete, press SET ON/OFF
EVENTS to scroll through all 7 ON/OFF events (including blank
events) and return to the time of day screen (ashing colon).
Deleting an Event
Follow this procedure to delete an event.
1. Press SET ON/OFF EVENTS to scroll to the unwanted ON
or OFF event.
2. Press DELETE. The screen displays dashes to indicate the
ON or OFF event is deleted.
If necessary, repeat this procedure to delete both NOTE:
ON and OFF settings for the event.
3. When the modications are complete, press SET ON/OFF
to scroll through all 7 ON/OFF events (including blank EVENTS
events) and return to the time of day screen (ashing colon).
Resetting the Timer
In case of a time malfunction or to delete all previous settings, the
unit can be reset.
To reset the timer, use a pen or blunt object to Press . The RESET
timer resets and deletes all the settings in the unit.
Replacing the Battery
One AA size alkaline battery is needed to complete this procedure.
1. Unplug the timer power cord.
2. From the rear of the timer, remove the retaining screw and
battery cover.
3. Install the new AA battery (observe polarity).
4. Verify that the controller display activates.
5. Take one of these actions.
IF THE DISPLAY... THEN...
Activates Go to step 6.
Does not activate, Make sure the battery is not dead and
is installed with the proper polarity.
Adjust as needed to get the screen to
activate.
6. Replace the battery cover and retaining screw.
7. Go to Setting the Calendar, Clock and Astronomic Time.
If the timer is going to be stored for an extended NOTE:
period of time, it is recommended to remove the battery to
preserve the life of the battery.
TABLE 2. Selecting Operating Mode.
Mode Description
ON Load is ON permanently in MANUAL mode.
ON AUTO AUTO has been selected, load is ON, and
will stay ON until the next scheduled OFF
event.
ON RDM RDM mode has been selected, load is ON,
and will stay ON until the next scheduled
RDM OFF event
OFF Load is OFF permanently in MANUAL mode
stay OFF until the next scheduled ON event.
5. Take one of these actions.
IF YOU SELECTED... THEN...
A specic hour, Go to step 6.
Sunrise or Sunset, Press SET ON/OFF EVENTS
time for event and go to step 8.
6. Press DATE/TIME/NEXT. The minute digit ashes.
7. Press or to set the minute for the event.+ -
8. Press to set the OFF Event. DashedSET ON/OFF EVENTS
lines appear to indicate no event is set for the event number.
9. Press DATE/TIME/NEXT. The screen displays 12:00 AM 1
OFF (OFF Event 1).
10. Press or + - to scroll to the days of the week that the program will run.
11. Press DATE/TIME/NEXT. The hour ashes.
12. Press + - or to scroll to the desired hour or AM Sunrise or PM
Sunset for the event.
13. Take one of these actions.
IF YOU SELECTED... THEN...
A specic hour, Go to step 14
Sunrise or Sunset, Go to step 16
14. Press DATE/TIME/NEXT. The minute digit ashes.
15. Press or to set the minute for the event.+ -
16. If you want to set another ON/OFF pair, repeat steps 1 to 16.
17. If you are nished setting events, press and hold SET ON/OFF
EVENTS until the time of day screen appears.
If you leave the timer idle in Calendar or Event setting NOTE:
modes for 5 minutes, the timer will automatically switch to AUTO
operating mode after saving your settings.
Daily Operation
Once the initial settings are completed, follow this procedure
to select the operation mode in the timer.
1. Press SELECT FUNCTION to scroll to the desired operation
mode. See Table 2 for selection of modes.
In order for the time switch to run the programmed NOTE:
events, the operation mode must be set to or .AUTO RDM
Reviewing or Modifying an Event
Follow this procedure to modify an event.
1. Press SET ON/OFF EVENTS to scroll to the desired event.
2. Press DATE/TIME/NEXT to select the event setting that
you want to modify.
3. Press + - DATE/TIME/ or to adjust the setting, then press
NEXT to save and advance to the next setting.
4. Repeat step 3 as needed for this event.
5. If you want to modify another event, press SET ON/OFF
EVENTS to scroll to the desired event.
Warranty service is available by either (a) returning the product to the dealer from whom the unit was
purchased or (b) completing a warranty claim online at www.intermatic.com. This warranty is made by:
Intermatic Incorporated, 1950 Innovation Way, Suite 300, Libertyville, IL 60048. For additional product or
warranty information go to: http://www.Intermatic.com or call 815-675-7000.
158--02241REF
Troubleshooting
Symptom Possible Cause Solution
The timer is losing settings Low battery not holding memory Replace the battery. See Replacing the
Battery.
Output does not switch or output switches
at wrong time
Auto or RDM mode is not properly
selected.
Select the desired mode. See Daily
Operation.
There are extra or incorrect event settings. Press to scroll SET ON/OFF EVENTS
through the events to nd the event that
needs to be changed or deleted.
See .Reviewing or Modifying an Event
Astro Events have seasonally adjusted
beyond xed time.
Make sure the xed timed events are not
set anywhere in the range of earliest to
latest sunrise and sunset.

Produkt Specifikationer

Mærke: Intermatic
Kategori: Skifte
Model: HB880R

Har du brug for hjælp?

Hvis du har brug for hjælp til Intermatic HB880R stil et spørgsmål nedenfor, og andre brugere vil svare dig


Skifte Intermatic Manualer

Intermatic

Intermatic P1101 Manual

20 Marts 2025
Intermatic

Intermatic DDFM Manual

12 December 2024
Intermatic

Intermatic DDT40 Manual

12 December 2024
Intermatic

Intermatic DT121K Manual

12 December 2024
Intermatic

Intermatic DTAV40 Manual

12 December 2024
Intermatic

Intermatic DT200LT Manual

12 December 2024
Intermatic

Intermatic HB114 Manual

12 December 2024
Intermatic

Intermatic HB113 Manual

12 December 2024
Intermatic

Intermatic HB51K Manual

12 December 2024
Intermatic

Intermatic HB112 Manual

12 December 2024

Skifte Manualer

Nyeste Skifte Manualer

Lancom

Lancom GS-2412 Manual

4 April 2025
Lancom

Lancom GS-2412P Manual

4 April 2025
Lancom

Lancom GS-2426 Manual

4 April 2025
Hager

Hager ARF970D Manual

3 April 2025
Hager

Hager ARF920D Manual

3 April 2025
Roline

Roline 14.01.3579 Manual

2 April 2025
Fantini Cosmi

Fantini Cosmi B12BN Manual

1 April 2025
Fantini Cosmi

Fantini Cosmi B12DN Manual

1 April 2025
Fantini Cosmi

Fantini Cosmi B12GN Manual

1 April 2025
Fantini Cosmi

Fantini Cosmi B12HN Manual

1 April 2025
