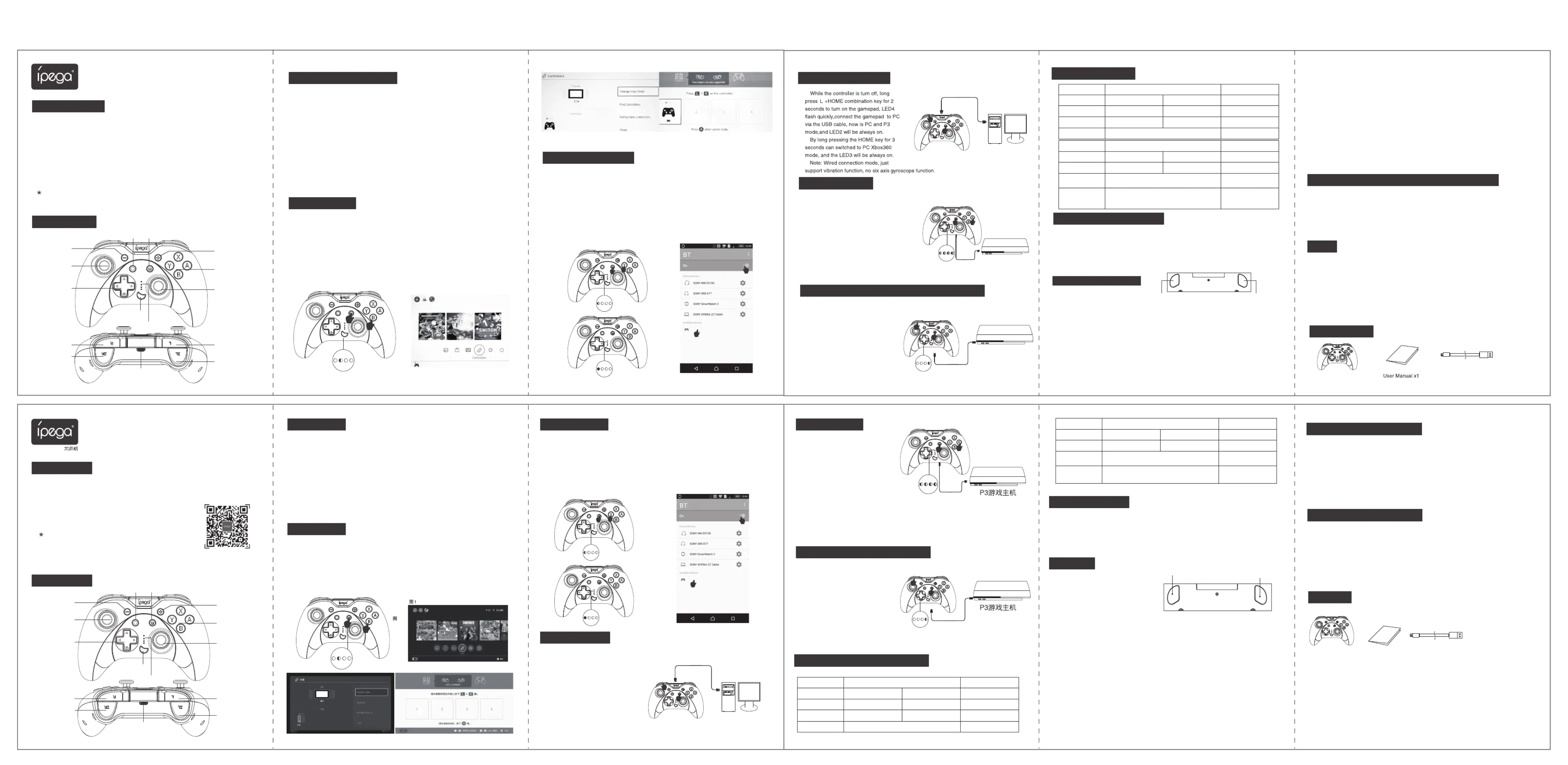

1.This controller is used for playing games on N-S console /P3/ Android and PC (Win 7 /8/10).
If NOT use it on the N-S console, the function on A and B buttons will be interchanged, the
function on X and Y buttons will be interchanged.
2.Function button of this gamepad is one-one corresponding with N-S_pro gamepad, and with
TURBO continuous function.
3.This controller support vibration and six axis gyroscope function, provide better game
experience for game player.
4. With MACRO function, the button on the back can be set as commonly used buttons or
5.Ergonomic design, feels comfortable.
Due to the official game platform software upgrades or source code changes and other not
resist factors caused some of the game can not be played or connected with our Gamepad,
iPega company has no responsibility.iPega reserve the right of final interpretation for this.
Product Application:
(for Android standard HID mode,Note:under Android mode, no
vibration & six axis gyroscope function):
While the controller is off, press Y + HOME key at same time for 2 seconds to enter Android
standard paired mode. The LED1 light flash quickly, when the Android phone/Android tablet/
Android smart TV search the "PG-SW023" buletooth name, select paired ! After pairing
successfully， LED1 will be always on. once successfully paired,press the HOME button,
LED1 flash slowly , reconnect automatically.
1.Action keys include (A/B/X/Y/L/ZL/R/ZR) 8 keys, any action keys can set TURBO function by
manual operation.
2.Setting method: long press action key, and then press the TURBO key to enable TURBO function.
Long press the action key, and then press the TURBO key to disable TURBO function
3.When gamepad are turn off, power off, slept, or restart, TURBO function will be closed
automatically. If want to enable TURBO function again, need to reset to satrt TURBO function.
Controller charging/Sleep/wake up function
1.Charging the controller when the controller is turned off : LED 1-LED 4 indicators flash
simultaneously, LED 1-LED 4 indicators will be turned off after fully charge.
2. Charging under connecting mode, LED indicator light will flash and will be always on after fully
charged.
3.Sleep/wake up function: the controller will enter into sleeping mode automatically, if there are
no operation within 5 minutes, press the HOME key to wake up and reconnect when need to restart.
4.When the power is low, the correspnding LED falsh quickly;
Android Mode :(Wireless)
Turn on/off for TURBO Fuction:
Controller charging/Sleep/wake up/turn off function:
Button Illustration
N-S BT Gamepad
User Manual(PG-SW023)
D-pad
R
ZR
A/B/X/Y Button
Capture Button
“+”Button
(START)
L
ZL
Right 3D&
downward R3
Left 3D&
downward L3
Turbo Button
“-”Button
(SELECT）
HOME Button
Type-C port
LED Indicator
1.Working voltage:DC3.7V
2.Working current:<30mA
3.static current:<20uA
4.Continuous gameplay time: about 15H
5.Input voltage/current:DC5V/500mA
6.Charging time:about 2 hours
7.BT 3.0,Transmission distance:≤8M
8.Battery capacity: 400mAh
9.Standby time:up to 30days once fully charged
Electrical Parameters:
Pic 1
Pic 1
Pic 3
Pic 2
Pic 2
1.Pair the controller to the console (for the first time)：Turn on the Switch Console, from the HOME
Menu, select Controllers, then Change Grip and Order.
2.While the controller is turned off, press the B + HOME key for 2 seconds to turn on controller
and enter into paired mode, LED2 will be cycle flash quickly, when the one or several LED lights
always on (console automatically assigned), paired successfully, and then press A button to operate
3.Once gamepad paired successfuly before :By long press the HOME key for 2 seconds to turn
on gamepad ,the gamepad will automatically paried the console, then press the A button to operate.
N-S Mode:
1.While the controller is turn off, long
press L+HOME combination key for 2
seconds to turn on the gamepad, LED4
flash quickly ,connected gamepad to
Android devices/P3 console via the
USB cable, the LED will be always
on(console automatically assigned),
paired successfully.
2.Note :for Android devices no vibration
Type-C cable p1-x1 Wireless gampad p1-x1
Android device/P3 console wired connnection mode:
PC wired connect mode:
PG-SW023说明书 100G铜版纸双面印刷/单色印刷 尺寸：105x142mm
Android System
Paired mode
（long press 3 seconds）
Indicator
Remark
Paired mode
（long press 3 seconds）
Indicator
Remark
Not support vibration and six axis function
Support vibration and
six axis function
Android wireless mode
Android wired mode
Y+Home
LED 1
L+Home
LED 1
N-S wireless mode
N-S console
B+HOME
Console assign
automatically
P3 Console
For wireless mode, should insert the USB cable to enter
searching status,once paired successfully,unplug the
USB cable, then the gamepad enter the
wireless connection mode.
Support vibration but
not six axis function
P3 wireless mode P3 wired mode
A+Home L+Home
PC wired mode
PC
L+Home
PC P3 mode：LED2
PC 360 mode：LED3
Console assign automatically
Operation mode:
Notes:
1. Please do not store this product in wet or high-temperature areas.
2. Don't knap, beat, drub, pierce, or try to decompose this product, to avoid unnecessary
damage to the product.
3. The product has built-in batteries, and please don’t discard them together with the garbages.
4. Non professional personnel should not disassemble the product, otherwise it will not be
covered in the after-sales warranty service.
5. Due to the official game platform software upgrade or source code changes and other not
resist factors caused of some games can not be played or connected with our gamepad. Our
company has no responsibility, we reserves the right of final interpretation for this.
Accessories List
P3 Mode(Wireless):
1.While controller is turn off, long press A + HOME
combination key for 2 seconds to turn on the
gamepad , the 4 LED indicators will flash simultane-
ously.
2. Connect the controller with the P3 console via a
USB cable , press the HOME key to paired.
3.Once paired successfully, the corresponding
channel LED will be always on, it showing gamepad
enter into P3 operation mode .
4.Unplug the USB cable, controller enter into wireless
connection mode.
1.
P3 Game console
P3 Game console
2.
3.
Programmingfunction:
There are programmablebuttonsontheleftandrightsidesatthebottomofthegamepad.
Eachprogrammingbuttoncanmapthefunctionofasinglebuttonorprogrammultiplebuttons,
suchasA/B/X/Y/L1/L2/R1/R2/L3/R3/ UP/DOWN/LEFT/ RIGHT/+"buttons,each
canbeprogrammed.
Asingleprogrammingbutton allowscombinations buttonstobeset (upto12buttons).
TheprogrambuttonDON’T support TURBO function.
Theprogrammingbuttonhasthememoryfunction.No matter what state the controller is in
(sleep,shutsdown or restarts), thegamepad willsavethesetting set last time.
Programmingmethod:
1.Pressandholdthe(leftorright)programmingbutton need to be setand press"+"button at
thesametime.Afterthe indicatorsLED1,LED4 and LED2,LED3flashalternately,releasethe
buttonstoentertheprogrammingmode;
2.Pressoneormore buttons which need tobecopied,forexample,
pressoneor combinationbuttonsof "A/B/X/Y/L1/L2/R1/R2/L3/R3/UP/
DOWN/LEFT/ RIGHT/+",
pressthecorrespondingprogrammingbuttonagaintoconfirm,andexitautomatically,
Then completetheprogrammingsetting,andthemodeindicatorlight willreturnstothe
displaystatebeforeset.
3.After set successfully,theprogrammingbuttonhasthesamefunctionofasingle
buttonormultiplebuttonsprogrammed..
Clearprogrammingbuttonfunction:
1.Pressandholdtheprogrammingbutton that need to be cleared (left orright ) and
press"+"button(start) atthesametime.AfterthemodeindicatorlightsLED1,LED4
andLED2,LED3flashalternately,releasethebuttons.
2.Presstheprogrammingbutton again tocancelthefunction,andexitautomatically,and
themodeindicatorlightwillreturntothedisplaystatebeforeset.Theprogrambutton
functioncanbecleared.
产品适用说明:
（安卓标准HID模式，备注：安卓模式下，无震动功能、无六轴功能）
无线连接安卓设备
1.首次连接手柄到主机：打开N-S 主机，在N-S主机主界面，用手指触摸点击：手柄
→更改握法/顺序，进入到主机配对模式界面。
2.在手柄关机状态下，按B+HOME组合键2秒开启手柄并进入配对模式，手柄上的LED2灯开始快
速循环闪烁，当单个或多个LED常亮时（主机自动分配），手柄与主机配对成功，然后按A键操作。
3.已成功连接过：通过长按HOME键2秒开启手柄，手柄与主机自动连接，然后按A键进行操作。
在手柄关机状态下，同时按Y+HOME键2秒进入安卓标准游戏配对模式，手柄LED1灯快闪，当安卓
手机/安卓平板/安卓智能电视搜索到“PG-SW023”设备名时，选择连接。连接成功后，手柄LED1
灯常亮；已成功连接过，可以直接按HOME键，LED1灯慢闪，自动回连。
推荐下载游戏平台：手机扫描说明书首页二维码关注艾派格官方公众号, 按提示下载并安装游戏平台
（葡萄游戏厅），进入平台下载所需要的游戏。
无线连接P3主机：
图1
图3
图2
N-S主机连接：
1.工作电压：DC3.7V
2.工作电流：<30mA
3.静态电流: <20uA
4.满电持续使用时间: 约15H
5.输入电压/电流：DC5V/500mA
6.充电时间：约2小时
7.无线3.0，传输距离：≤8M
8.电池容量：400mAh
9.待机时间：满电放置30天
1. 动作键包括(A/B/X/Y/L/ZL/R/ZR) 8个按键，均可手动设置TURBO功能。
2. 设置方法：长按动作键，同时再轻按TURBO键，TURBO功能开启；长按动作键，同时轻按
TURBO键，TURBO功能关闭。
3. 产品断开连接后，之前设置TURBO功能自动清除，若启用TURBO功能时，必须重新设置。
TURBO功能开启/关闭：
编程功能：
手柄充电/休眠/唤醒功能
1. 关机状态下充电时LED1-LED4指示灯灯同时闪烁，充满熄灭。
2. 开机连接设备时充电当前LED指示灯闪烁，充满长亮。
3. 睡眠/唤醒功能：手柄在5分钟内不使用会进入休眠状态。当需要重新使用时需按HOME键唤醒
即可回连。
4. 电池电量不足时，对应的指示灯将快闪提示，请及时充电。
手柄充电/休眠/唤醒/关机功能:
注意事项：
产品清单
功能按键图示
N 柄- S 无 线 手
产品说明书(PG-SW023)中文版
1.本手柄适合操作N-S/P3/安卓及电脑(Win7以上系统)设备上的游戏。（若用于N.S外的设备，
A与B键交换，X与Y键交换）。
2.本手柄的功能按键一一对应N-S_pro手柄的按键功能，并且支持TURBO连打功能。
3.本手柄支持震动及六轴功能，使玩家得到更好的游戏体验。
4.结构符合人体工程学,手感舒适。
5.支持按键编程功能，可把常用的功能键或组合键设置到底部
的编程键上，方便使用。
因官方游戏平台软件升级或源代码变更等不可抗拒的因素
造成部分游戏无法与本产品连接操作，我公司不负任何责任。
对此我公司保留最终解释权。
技术支持QQ群：837350687
客服电话：0755-27918998
ipega官方微信公众号
（关注微信号 下载游戏大厅）
十字方向键
A/B/X/Y功能键
截屏键
“+”键（START)
右3D及下压R3键
左3D及下压L3键
Turbo键
“-”键
(SELECT)
HOME键
状态指示LED灯
无线手柄 p1-x1 说明书 p1-x1 Type-C线 p1-x1
产品特性参数：
产品使用说明:
PG-SW023
1. 在手柄关机状态下，长按A+HOME
组合键2秒开机，手柄4个LED指示灯
同时闪烁。
2. 使用一条USB数据线将手柄与P3主
机连接，按HOME键配对。
3. 配对成功后，对应的通道LED长亮
，手柄进入P3模式操作。
4. 拔掉USB线，手柄进入无线连接。
1. 在手柄关机状态下，长按L+HOME组合
键2秒开机，手柄LED4灯快闪，用USB数
据线将手柄。
连接到PC设备，此时为PC/P3有线模式，
手柄LED2灯长亮。
2. 通过长按home键3秒可切换PC Xb 360
模式，此时手柄LED3灯长亮；
3. 备注：有线连接的模式下，支持振动功
能、无六轴功能。
有线连接PC设备：
1. 请不要把本产品在潮湿或高温地方存储。
2. 不要敲击、摔打、刺穿、或试图去分解本产品，以免对产品造成不必要的损害。
3.产品内置电池，请勿和垃圾一起丢弃。
4. 非专业人员误拆卸本产品,否则不在售后保修服务内。
5. 因官方软件升级或源代码变更等不可抗拒的因素造成部分游戏无法与本产品连接操作，我公
司不负任何责任。对此我公司保留最终解释权。
操作使用模式：
安卓系统
模式配对(长按3秒)
指示灯
备 注不支持震动、六轴 支持震动、六轴
安卓无线模式 安卓有线模式
Y+Home
LED 1
L+Home
LED 1
N-S无线模式
N-S主机
B+HOME
主机自动分配
P3主机
模式配对(长按3秒)
指示灯
备 注
无线模式下进入搜索状态时需插USB数据线，
连接成功时拔掉USB线，手柄进入无线连接
支持震动、不支持六轴
P3无线模式 P3有线模式
A+Home L+Home
PC有线模式
PC电脑
L+Home
PC P3模式：LED2
PC 360模式： LED3
主机自动分配
1. 在手柄关机状态下，长按L+HOME组
合键2秒开机，手柄LED4灯快闪，用
USB数据线将手柄连接到安卓设备/P3主
机时，手柄LED灯长亮（主机自动分配
），连接成功。
2. 安卓设备下不支持振动、六轴功能。
有线连接安卓设备/P3主机：
R1键
ZR键
L键
ZL键
Type-C 接口
2
手柄底部左右两侧各配备一个可编程按键。
每个编程键可以对单个或多个按键进行功
能映射编程，如A/B/X/Y/L1/L2/R1/R2/L3/
R3/上/下/左/ 右/+键均可设置编程。
单个编程键对应允许最多可设置12个键组合。
编程键无TURBO连打功能。
编程键具有记忆功能，无论手柄休眠，关机，重启，手柄都会保存最后一次的设置。
编程方法：
1. 同时按住需要设置的（左或右）编程键和“+”键，模式指示灯LED1、LED4和LED2、LED3
交替快闪后，松开按键，进入编程设置模式；
2. 按下需要复制的一个或多个常规功能键，如按下"A/B/X/Y/L1/L2/R1/R2/L3/R3/上/下/左/右/+"
中的一个或多个键成组合键后，再次按下对应的编程键确认并自动退出，即完成编程设置，模
式指示灯又回到设置前的显示状态。
3. 设置成功后，编程键则具有编程复制的某单个键或多个键相同的功能。
清除编程键功能：
1. 同时按住需要清除的编程按键（左边编程键或者右编程键）和“+”键（START），模式指
示灯LED1、LED4和LED2、LED3交替快闪后，松开按键.
2. 再次按下需取消功能的编程键后自动退出，模式指示灯回到设置前的显示状态。即可清除编
程键功能。
手柄底部编程按键
左编程按键右编程按键
PG-SW023
Right programmablekey Left programmablekey

Produkt Specifikationer

Mærke: IPEGA
Kategori: SLR kamera
Model: PG-SW023

Har du brug for hjælp?

Hvis du har brug for hjælp til IPEGA PG-SW023 stil et spørgsmål nedenfor, og andre brugere vil svare dig


SLR kamera IPEGA Manualer

IPEGA

IPEGA PG-SW036 Manual

13 Oktober 2025
IPEGA

IPEGA PG-SW023 Manual

13 Oktober 2025
IPEGA

IPEGA PG-9193 Manual

13 Oktober 2025
IPEGA

IPEGA XB-018 Manual

13 Oktober 2025
IPEGA

IPEGA PG-SW777 Manual

12 Oktober 2025
IPEGA

IPEGA PG-9119 Manual

12 Oktober 2025
IPEGA

IPEGA PG-SW038 Manual

12 Oktober 2025
IPEGA

IPEGA PG-9132 Manual

12 Oktober 2025
IPEGA

IPEGA PG-SW018 Manual

12 Oktober 2025
IPEGA

IPEGA PG-9163A Manual

12 Oktober 2025

SLR kamera Manualer

Nyeste SLR kamera Manualer

HTW

HTW -ATS-O-150VAW Manual

25 September 2025
Weibang

Weibang VELOCITY 86 FBM Manual

12 August 2025
Weibang

Weibang VELOCITY 76 FBM Manual

12 August 2025
PUR

PUR PPT600 Manual

29 Juli 2025
Oras

Oras 105001 Manual

29 Juli 2025
Keter

Keter 240L Bin Hideaway Manual

26 Juni 2025
Beemoo

Beemoo Pro Auto 2 Manual

17 Juni 2025
Stiga

Stiga Park 300 R Manual

17 Juni 2025
PUR

PUR PPT120W Manual

4 Marts 2025
PUR

PUR PPT700P Manual

4 Marts 2025
