JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL AM5212/66-WH

REV C

PACKAGE WIRING DIAGRAM

01-10

Technical Manual

JBL AM5212/66-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Transducer Power LF: 400W (1600W peak), 2 hrs

Rating (AES): 300W (1200W peak), 100 hrs

HF: 40W (160W peak), 2 hrs

• Long-Term Power Passive mode: 300W (1200W peak),

Rating (IEC): 100 hrs

• Frequency Response: 43 Hz - 20 kHz (±3 dB)

• Frequency Range: 37 Hz - 20 kHz (-10 dB)

• Maximum SPL:

Bi-amp mode: LF: 122 dB-SPL cont avg (128 dB peak)

HF: 130 dB-SPL cont avg (136 dB peak)

Passive mode: 121 dB-SPL cont avg (127 dB peak)

• System Sensitivity: Passive mode: 96 dB SPL

1 watt @ 1 meter

• Crossover Frequency: 2 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 338163-007, 338163-107 (WH)

SYSTEM COMPONENTS:

(CONT’D)

• Low Frequency Driver: 262H-1, 300 mm (12 in) driver

Transducer: with 50.8 mm (2 in) dual voice coil

• DC Resistance: 5.5 ohm +/- 10%

• High Frequency 2408H-1, 38 mm (1.5 in) exit

Transducer:: compression driver,38 mm (1.5 in)

voice coil

• DC Resistance: 4.80 ohm +/- 0.2 ohm

• Crossover Network: 443547-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 20 Hz to 20 kHz

B. L.F. Aural Sweep Test: 7.0V Input,10 Hz to 1 kHz

C. H.F. Aural Sweep Test: 0.75V Input, 200 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 713 x 371 x 458 mm D

(28.06 x 14.6 x 18.1in.D.)

• Net Weight: 45 lb (20.2 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

YEL/BLK

GRN/BLK

GRN

YEL

Network Assembly

443547-001

Driver, Low Freq.

262H-1

(363916-003X)

Cone Repl

C8R262

Driver, High Freq

2408H-1

(365011-001X)

Diaph Repl

D8R2408-1

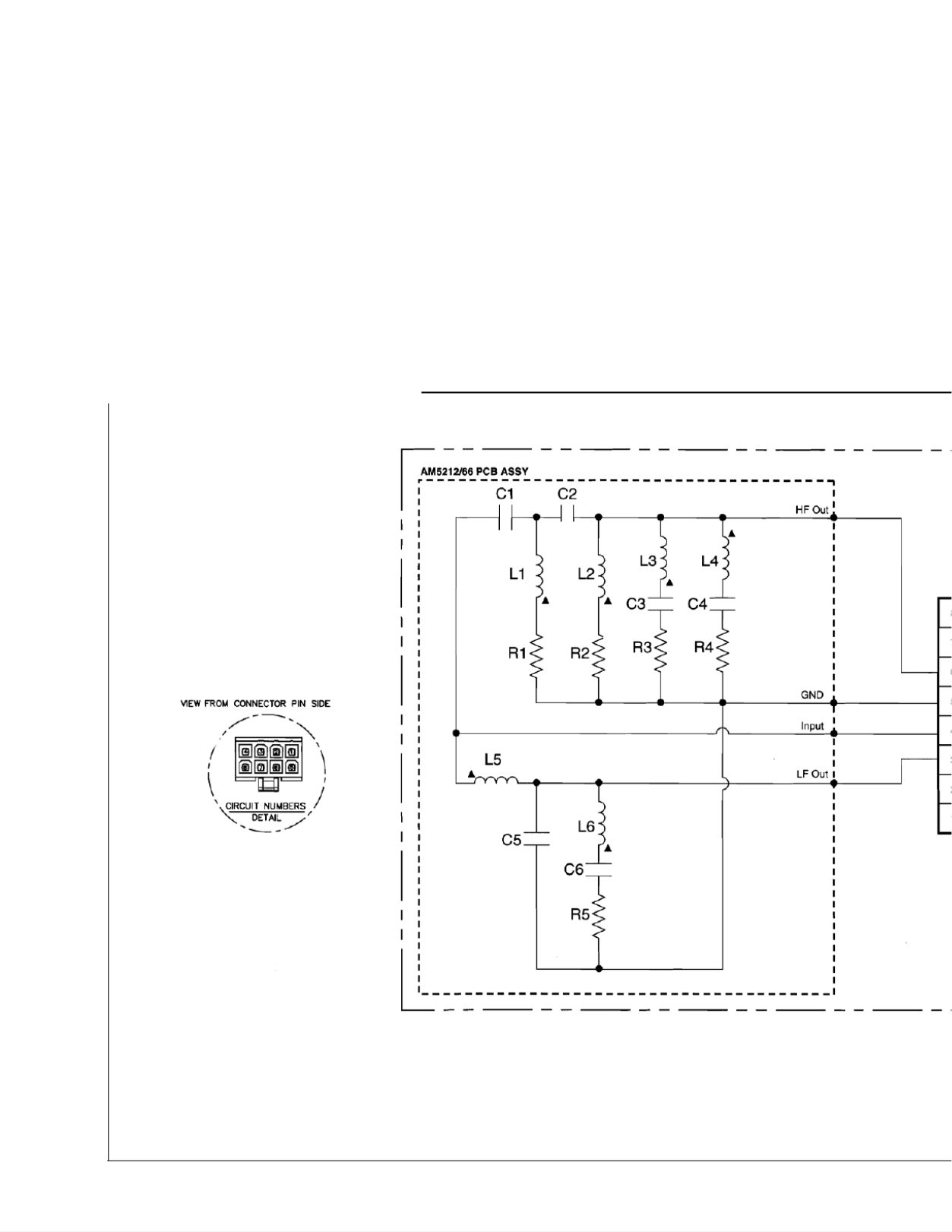

SEE NETWORK SCHEMATIC PAGE

Carton

352188-001

Filler (2)

352187-001

PKG,Microfoam (4)

49790P

20” x 18” Sheets

Warranty

59660

Installation Sheet

339390-060

Sticker, Logo

339397-001

Bag

21784

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
