JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBL AW266/-BK
REV B
PACKAGE WIRING DIAGRAM
05-12
Technical Manual
JBL AW266/-BK
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impediance: 8 Ohms
• Long-Term System Power
Rating: 500W, (2000W Peak),100 hrs
• Frequency Response (±3 dB):51 Hz - 18 kHz
• Frequency Range (-10 dB): 40 Hz - 20 kHz
• Maximum SPL: 126 dB SPL (132 dB peak)
• System Sensitivity: 98 dB, 1 Watt @ 1 Meter
• Crossover Frequency: 1.1 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not for Sale)
• Grille: 445176-001(BK), 445176-002 (Gray)
• Low Frequency 2262H, 300 mm (12 in) Differential
Transducer: Drive
®driver with 75 mm (3 in) dual
voice coil
• DC Resistance: 5.1 ohm
• High Frequency 2432H, 38 mm (1.5 in) exit
SYSTEM COMPONENTS:
(CONT’D)
• Transducer: compression driver, 75 mm (3 in)
vice coil
• DC Resistance: 4.0 ohm +/- 2 ohm
• Crossover Network: 5000158
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 7V Input, 10 Hz to 10 kHz
B. L.F. Aural Sweep Test: 10V Input, 10 Hz to 1 kHz
C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 409 x 732 x 452 mm D
(16.1 x 28.8 x 17.8 in.D.)
• Net Weight: 55.5 lb (25.2 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Network
Assembly
5000158
Wire Harness
446350-001
Driver, High Freq
2432H
(365512-001X)
Diaph Repl
D8R2432
Driver, Low Freq
2262HPL
(338312-004X)
Cone Repl
C8R2262
YEL
YEL/BLK
GRN
GRN/BLK
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

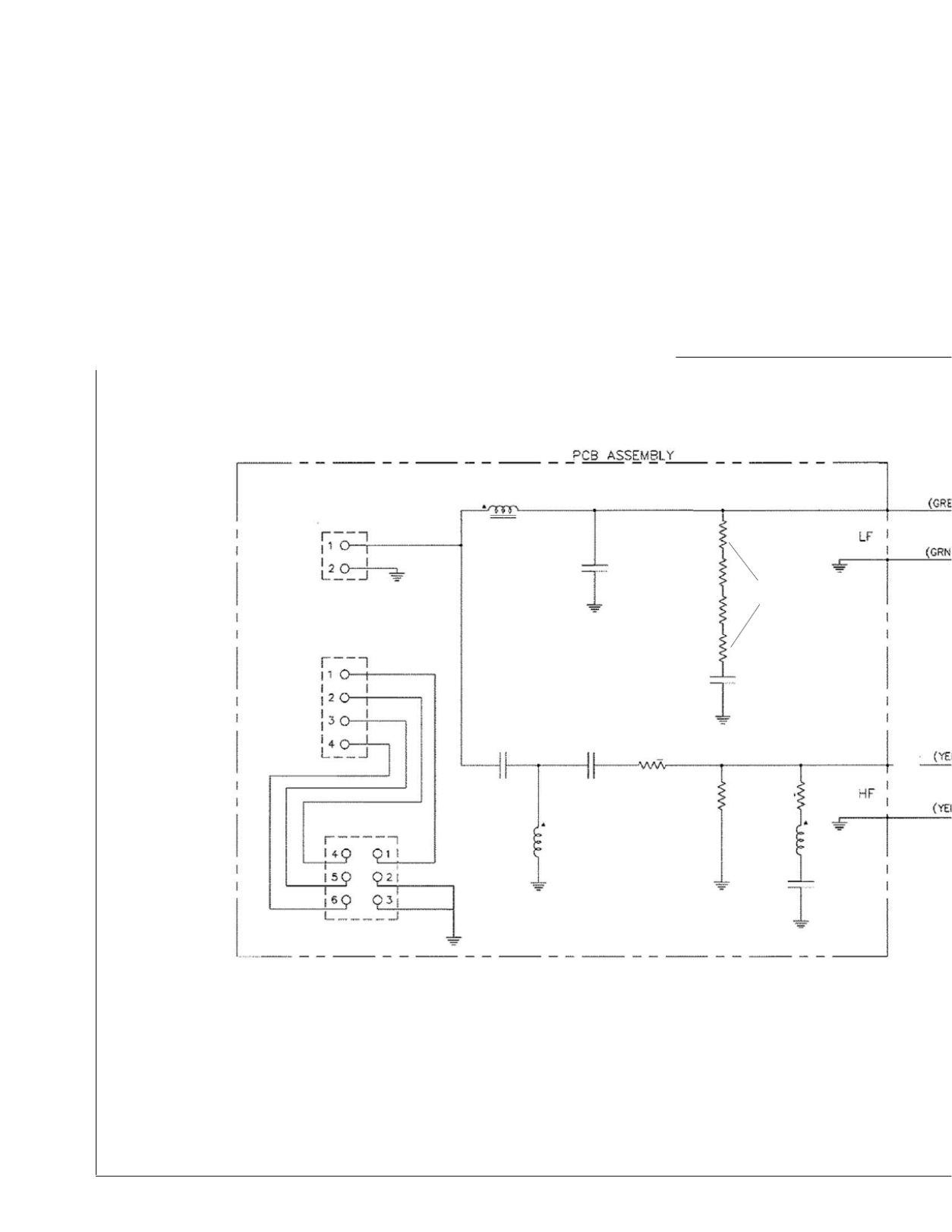

SEE NETWORK SCHEMATIC (5000158) PAGE 2
SEE WIRE HARNESS DIAGRAM (44350-001) PAGE 3
70V/100V Transformer Taps: 70V: 400W, 200W, 100W
100V: 400W, 200W
Owner’s Manual
5012278
Carton
5012280
Top Tray
5019840
Bottom Filler
5019841
U-Bracket Filler
5019842
PKG, Mircofoam (6)
49790P
