Side 1/4

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL AW595/-BK

REV A

PACKAGE WIRING DIAGRAM

02-12

Technical Manual

JBL AW595/-BK

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impediance: 8 Ohms

• Long-Term System Power

Rating (IEC): 600W, (2400W Peak),100 hrs

• Frequency Response (±3 dB):55 Hz - 19 kHz

• Frequency Range (-10 dB): 35 Hz - 20 kHz

• Maximum SPL:

Passive Mode: 128 dB-SPL cont avg (130 dB peak)

• System Sensitivity:

Passive Mode: 100 dB SPL, 1 Watt @ 1 Meter

• Passive Crossover

Frequency: 1.2 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not for Sale)

• Grille: 445176-001 (BK), 445176-002 (Gray)

• Low Frequency 2265H, 380 mm (15 in) Differential

Transducer: Drive

®driver with 75 mm (3 in) dual

voice coil

• DC Resistance: 5.10 ohm +/- 10%

SYSTEM COMPONENTS:

(CONT’D)

• High Frequency 2432H, 38 mm (1.5 in) exit

Transducer: compression driver, 75 mm (3 in)

vice coil

• DC Resistance: 4.0 ohm +/- 2 ohm

• Crossover Network: 5004551

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7V Input, 10 Hz to 10 kHz

B. L.F. Aural Sweep Test: 15.0V Input, 10 Hz to 100 Hz

C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 485 x 810 x 478 mm D

(horizontal orientation): (19.1 x 31.9 x 18.8 in.D.)

• Shipping Weight: 62.5 lb (28.3 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Network

Assembly

5004551

Wire Harness

44350-001

Driver, High Freq.

2432H

(365512-001X)

Diaph Repl

D8R2432

Driver, Low Freq.

2265HPL

(338343-003X)

Cone Repl

C8R2265

YEL

YEL/BLK

GRN

GRN/BLK

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

SEE NETWORK SCHEMATIC (5004551) PAGE 2

SEE WIRE HARNESS DIAGRAM (446350-001) PAGE 3

Owner’s Manual

5012278

Carton

5012263

Filler (2)

5012264

PKG, Mircofoam (6)

49790P

70V/100V Transformer Taps: 70V: 400W, 200W, 100W

100V: 400W, 200W

JBL AW

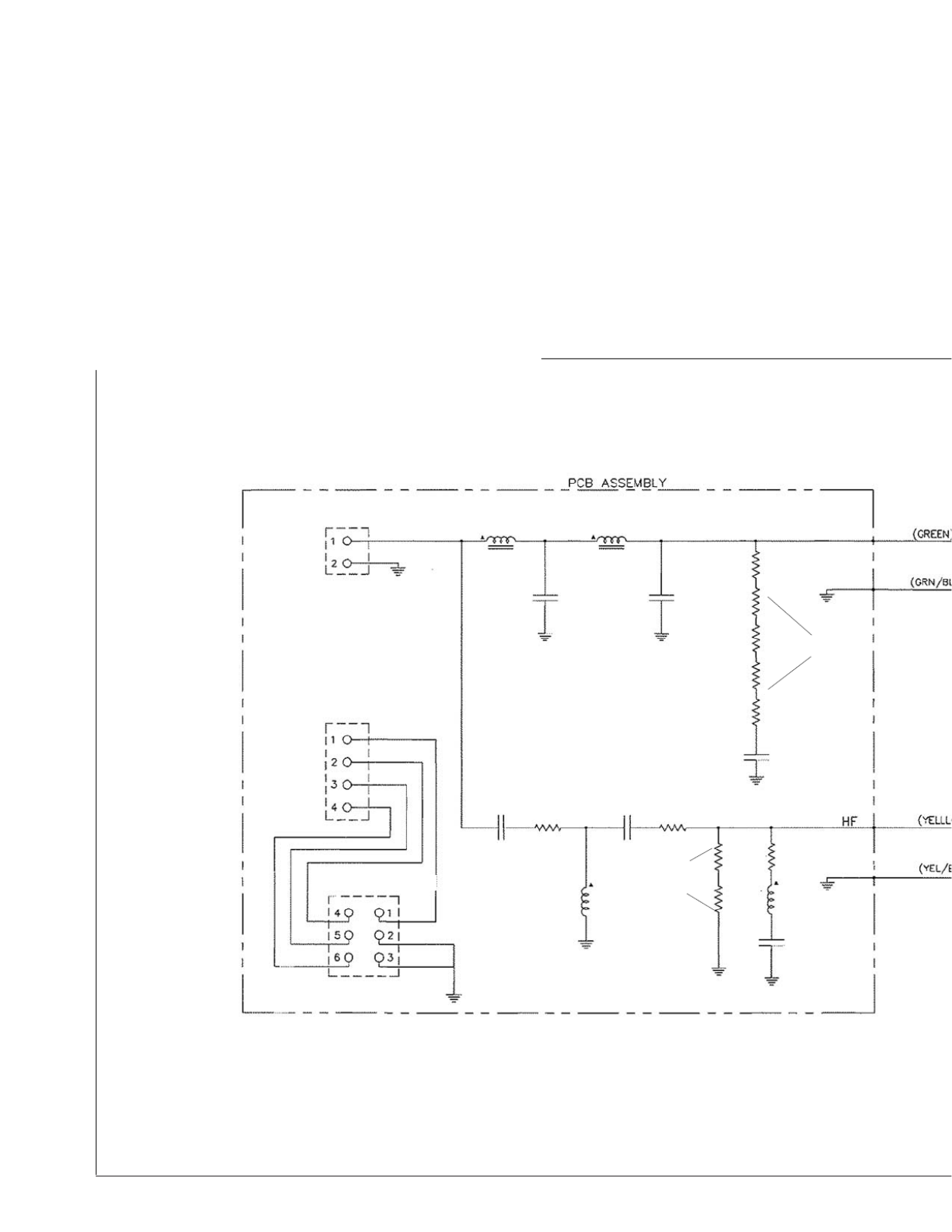

NETWORK SCHEMATIC - (5004551)

JBL AW595/-BK

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

Connector, 2-Pin

Connector, 4-Pin

Connector, 6-Pin

1.00mH 0.680mH

0.510mH 0.560mH

15.0uF

250V

24.0uF

250V

10.0uF

250V

6.80uF

250V 13.0uF

250V

6.20uF

250V

1.60 ohms

0.200

ohms

0.750

ohms

3.30

ohms

4.70

ohms
