AWC15LF
All-Weather Compact
Low-Frequency Speaker
with 15" LF
Key Features:
䉴
Low frequency reinforcement for outdoor
applications
䉴
Highly weather-resistant IP56 rating
䉴
Component:
• 380 mm (15 in) woofer with Kevlar-
reinforced cone and 75 mm (3 in)
voice coil.
䉴
500 Watt power handling (average
continuous pink noise)
䉴
Frequency range down to 45 Hz
䉴
300 Watt 70V/100V multi-tap transformer
or direct 8Ωlow-impedance.
Applications:
The AWC15LF is a compact highly
weather resistant loudspeaker for
augmenting the low frequency capability
of a sound system. AWC15LF is ideal for
many applications, including sports
facilities, racetracks, stadiums, fairgrounds,
rodeos, skating rinks, themed
entertainment venues, cruise ships, water
parks, outdoor background music systems,
swimming pools, and a wide variety of
other outdoor and indoor venue types.
The AWC15LF utilizes a high-power,
long-excursion 380 mm (15 in) low
frequency driver with Kevlar-reinforced
cone for reliability, well-damped surround
for smoother frequency response, high
temperature 75 mm (3 in) voice coil and a
reduced distortion design through
saturated-gap magnet geometry.
The paintable enclosure is constructed
of thick ABS plus fiberglass and is heavily
braced to maximize low-frequency
performance. The corrosion-resistant zinc-
rich extra-thick powder-coated steel grille
is backed with open cell foam and tight-
weave mesh, providing a high level of
protection against water incursion in harsh
environments. The system is rated IP-56,
per IEC529 when installed at minimum 5°
down-tilt.
The AWC15LF is equipped with a 300W
70V/100V multi-tap transformer.
Connection is made via outdoor-rated
terminals in a recessed terminal cup. A
protective terminal compartment cover is
included, along with gland nut, which
forms a water-tight seal with round-
jacketed cable within the specified range
of diameters.
A heavy-duty zinc-rich, thick powder-
coated U-type mounting bracket in
included.
Specifications:
System:
Frequency Range (-10 dB) 1: 45 Hz – 2.2 kHz
Frequency Response (±3 dB) 1: 70 Hz – 1.2 kHz
Long-Term System Power Rating (IEC) 2: 500 W (2000 W peak), 2 hrs.
350 W (1400 W peak), 100 hrs.
Sensitivity (2.83V @ 1m): 94 dB (Ave. 80 Hz – 300 Hz)
Maximum SPL3: Direct 8Ω: 121 dB (peaks of 127 dB)
300 W Tap: 119 dB (peaks of 125 dB)
Nominal Impedance: 8 ohms (in Direct mode)
Transformer Taps: 70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W
Transducers:
Low Frequency Driver: 380 mm (15 in), Kevlar-reinforced cone, with weather
treatment, 75 mm (3 in) voice coil, long throw.
Physical:
Enclosure: ABS with Glass enclosure, heavily braced
Attachment: Two M10 (course-thread) points for included U-bracket.
M6 secondary safety attachment point on back panel.
Grille: Corrosion-resistant zinc-rich extra-thick powder coated
steel grille, 3-layer assembly with foam and woven poly
mesh backing.
Input Connection: CE-compliant covered barrier strip terminals. Barrier
terminals accept up to 8 mm outside 4 mm inside open-
lug (#6 or #8) plus bare wire up to 2.5 mm2(12 AWG)
wire or spade lugs. Terminal compartment cover
equipped with gland nut that forms water-tight seal with
round-jacketed cables with outside diameters between
4.0 mm (0.16") and 9.0 mm (0.36")
Environmental: IP56 per IEC529, with a minimum 5° downward aiming
angle. Exceeds Mil Spec 810 for humidity, salt spray,
temperature & UV, and ASTM G85 for salt spray
(168 hrs).
Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet
507 mm (19.9 in) depth with gland nut
546 mm (21.5 in) including bracket extending to back
Net Weight: 20.2 kg (44.5 lb), 23 kg (50.5 lb) with U-bracket
Shipping Weight: 27 kg (59.5 lb)
Included Accessories: U-bracket, matches loudspeaker color (gray or black),
zinc-rich extra-thick powder coated, steel.
1Full-space (free-field)
2AES standard, one octave pink noise with 6 dB crest factor.
3Calculated based on power rating and measured full-space sensitivity.
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
Professional Series
SS AWC15LF
CRP
10/14

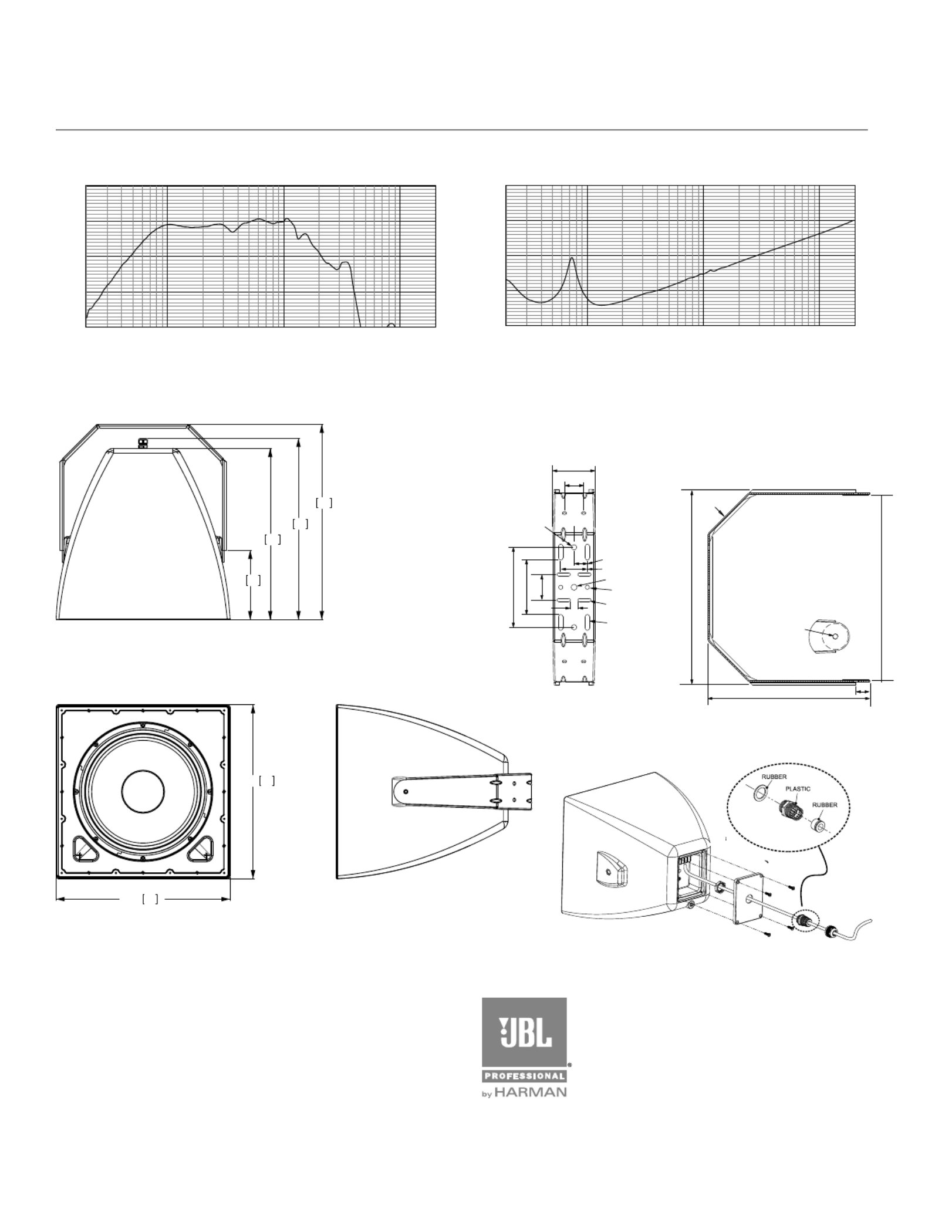

䉴AWC15LF All-Weather Low-Frequency Loudspeaker with 15" LF
20 100 1000 10000 20000
Frequency (Hz)
65
75
85
95
105
SPL (dB)
20 100 1000 10000 20000
Frequency (Hz)
65
75
85
95
105 316
100
31.6
10
3.16
SPL (dB)
Ohms
Frequency Response Impedance
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2014 JBL Professional
www.jblpro.com
Dimensions in IN" [mm]
19.1 486
19.1 486
7.6 194
19.9 507
18.8 479
21.5 546
Dimensions Attaching U-Bracket to Cabinet
Terminal Compartment
Gland nut for round jacketed cable between 4.0mm (0.16”) and 9.0mm (0.36”) O.D.
BB
64 [2.5]
38 x 10 [1.5 x 0.4] (x4)
Ø 12 [0.5] (x2)
191 [7.5]
130 [5.1]
32 [1.25]
103 [4.1]
C/L
31 x 7 [1.2 x 0.3] (x4)
Ø 10 [0.4] (x6)
Ø 14 [0.5]
18 [0.7]
61 [2.4]
46 [1.8]
Ø 12 [0.5] (x2)
466 [18.4]
386 [15.2]
34 [1.3]
443 [17.4]
