Side 1/2

Professional Series

Key Features:

Highly weather-resistant IP56 rating.

Consistent 110° x 110° broadband pattern control.

Components:

• 165 mm (6.5 in) woofer with Kevlar-

reinforced cone and 38 mm (1.5 in) voice coil.

• 25 mm (1 in) exit compression driver

Extraordinary clarity for speech, with extended

frequency response for music.

Advanced high-slope crossover network for

constant coverage and smooth, natural midrange.

175 Watt power handling (average continuous pink

noise) with high sensitivity provides high SPL

capability.

High-power passive crossover network.

Overload protection.

70 Hz – 18 kHz frequency response.

120 Watt 70V/100V multi-tap (built-in

transformer) or direct 8Ω low-impedance.

Applications:

The AWC62 is a compact, coaxial-driver, 2-way,

highly weather-resistant full-range loudspeaker

system which is ideal for speech and music-ll in

a wide variety of applications, including sports

facilities, racetracks, stadiums, fairgrounds, rodeos,

skating rinks, themed entertainment venues, cruise

ships, water parks, outdoor background music/

paging systems, swimming pools, and a wide

variety of other outdoor or indoor venue types.

The AWC62 is comprised of a high-power

coaxial 165 mm (6.5 in) low frequency driver and

25 mm (1 in) high frequency compression driver.

The co-axial design utilizes a unique tapered

pole-piece design and transitions to the cone of

the low frequency driver as a large diameter

pattern control horn for the high frequencies,

both eliminating high-frequency beaming which is

common among this category of speaker and

extending pattern control to the lowest possible

frequencies. The result is a coaxial speaker with

wide, extremely consistent 110° coverage on a

broadband basis.

Component features include a Kevlar-reinforced

low frequency cone for reliability, well-damped

surround for smooth frequency response, high

temperature voice coil and a reduced distortion

design through saturated-gap magnet geometry.

The paintable enclosure is constructed of thick,

ABS plus berglass and is heavily braced to

maximize low-frequency performance. The

corrosion-resistant zinc-rich extra-thick powder

coated steel grille is backed with open cell foam

and high thread-count mesh, providing excellent

protection in the harshest environments. The

system is rated IP-56, per IEC529 when installed

at minimum 5° down-tilt.

The system is equipped with a 120W 70V/100V

multi-tap transformer. Connection is made via

outdoor-rated terminals in a recessed terminal

cup. A protective terminal compartment cover is

included, along with gland nut, which forms a

water-tight seal with round-jacketed cable having

outside diameter between 4 mm (0.16 in) and

9 mm (0.36 in).

A heavy-duty weather-capable zinc-rich, thick

powder coated U-type mounting bracket is

included.

Specications:

AWC62

All-Weather Compact

2-Way Coaxial

Loudspeaker with 6.5” LF

System:

Frequency Range (-10 dB)1: 70 Hz – 18 kHz

Frequency Response (±3 dB)1: 100 Hz – 16 kHz

Coverage Pattern2: 110º x 110º

Directivity Factor: 7.2 (1 k – 16 kHz)

Directivity Index (DI): 7.9 dB (1 k – 16 kHz)

Long-Term System Power Rating (IEC)3: 175 W 2 hrs.

120 W 100 hrs

Sensitivity (2.83V @ 1m): 92 dB (Ave. 100 Hz – 18 kHz)

Maximum SPL4: Direct 8: 114 dB (peaks of 120 dB)

120 W Tap: 112 dB

Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF,

3rd order low-pass to LF

Nominal Impedance: 8 ohms

Transformer Taps: 70V: 120W, 60W, 30W, 15W

100V: 120W, 60W, 30W

Transducers:

Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.

High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter

HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection

Physical:

Enclosure: ABS with Glass enclosure

Attachment: Two M10 (ne-thread) points for included U-bracket. Reference torque

15 lb (20 Nm). M6 secondary safety attachment point on back panel.

Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille,

3-layer assembly with foam and woven poly mesh backing.

Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept

up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up

to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment

cover equipped with gland nut that forms water-tight seal with round-

jacketed cables with outside diameters between 4.0 mm (0.16”) and

9.0 mm (0.36”).

Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds

Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM

G85 for acid-air/salt-spray (336 hrs).

Dimensions: 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet

288 mm (11.4 in) including gland nut

309 mm (12.2 in) including bracket extending to back

Colors: Available in gray (similar to Pantone 420C) and black (-BK)

Net Weight: 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket

Shipping Weight: 8.8 kg (19.5 lb)

Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra

thick powder coated, steel.

¹ Full-space (free-eld)

² Average 1 kHz to 10 kHz

IEC standard, full bandwidth pink noise with 6 dB crest factor.

Calculated based on power rating and measured full-space sensitivity.

JBL continually engages in research related to product improvement. Changes introduced into existing products without notice

are an expression of that philosophy.

AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5” LF

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

w w w .jb lp ro.c om

SS AWC62

10/2020

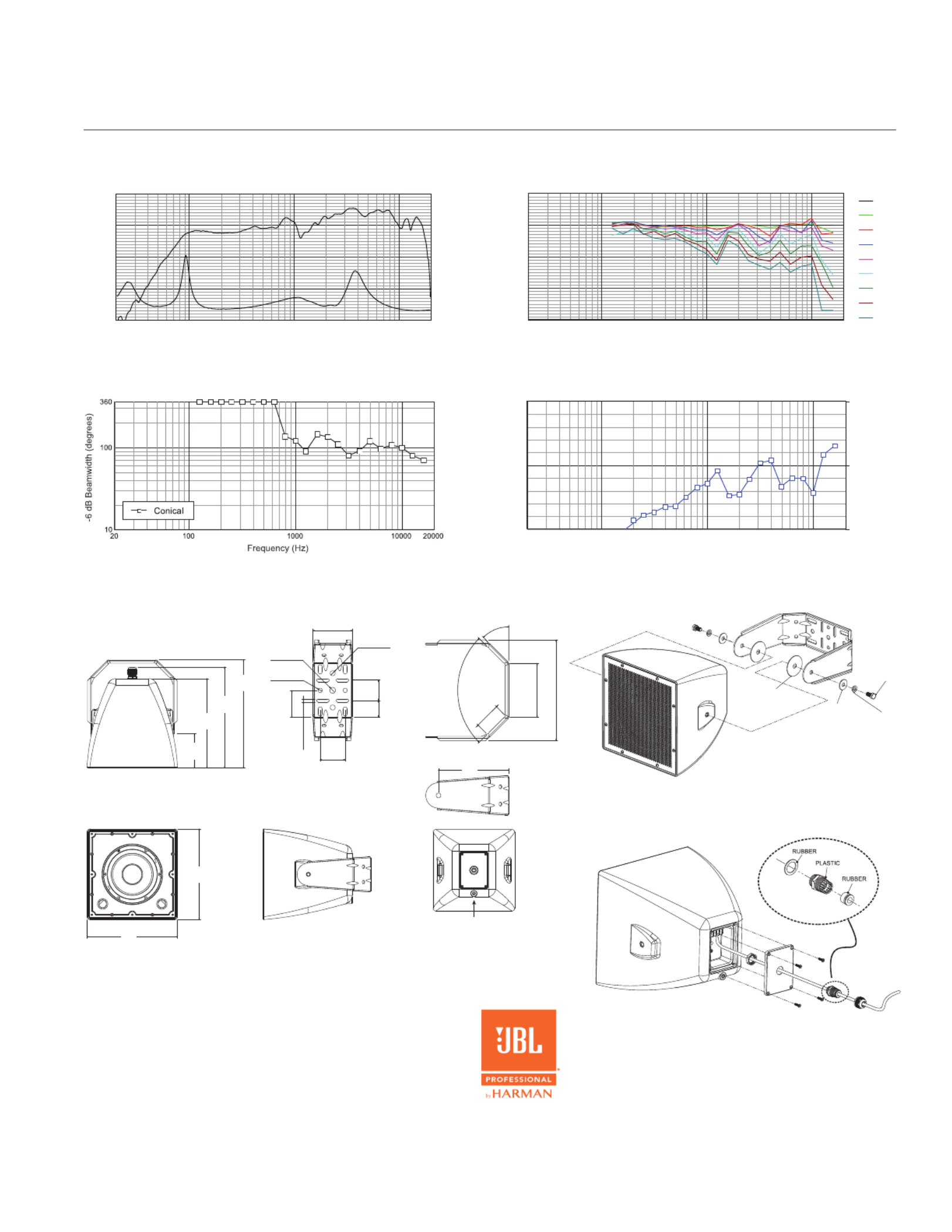

Dimensions

[3.8]

255

[10.1]

288

[11.4]

309

[12.2]

259

[10.2]

259

[10.2]

179

[7.1]

Ø14.2

[0.56]

Ø10.2

[0.4]

Ø12.7

[0.5]

100

[3.94]

[2.5]

7.6

[0.3]

[2.7]

[2.1]

[1.7]

45˚

90˚

[2.6]

136

[5.4]

256

[10.1]

Bracket Rotational Range = ±90°

M6 Secondary safety attachment point

Off-Axis Frequency ResponseFrequency Response and Impedance

20 100 1000 10000 20000

Frequency (Hz)

100

SPL (dB)

Ohms

20 100 1000 10000 20000

Frequency (Hz)

-30

-20

-10

Attenuation (dB)

0 deg

10 deg

20 deg

30 deg

40 deg

50 deg

60 deg

70 deg

80 deg

Directivity IndexBeamwidth

20 100 1000 10000 20000

Frequency (Hz)

100

Directivity Index (DI), dB

Directivity Factor (Q)

Attaching U-Bracket to Cabinet

M10 Bolt

Lock Washer

Flat Washer

Friction Gasket

Terminal Compartment

Gland nut for round jacketed cable between 4.0mm (0.16”) and 9.0mm (0.36”) O.D.
