JBL Balboa 10 Manual

JBL Højttaler Balboa 10

Læs gratis den danske manual til JBL Balboa 10 (4 sider) i kategorien Højttaler. Denne vejledning er vurderet som hjælpsom af 28 personer og har en gennemsnitlig bedømmelse på 4.9 stjerner ud af 14.5 anmeldelser. Har du et spørgsmål om JBL Balboa 10, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/4

BALBOA 10, BALBOA 30

AND BALBOA CENTER

BALBOA SERIES

OWNER’S GUIDE

MODEL: BALBOA 10

SPEAKER PLACEMENT

Proper placement of the

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimal placement of the

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your listen-

ing pleasure.

All of the Balboa Series loud-

speakers referred to in this

guide are video-shielded

and can safely be placed

near a television.

As front speakers

MODEL: BALBOA 30

As surround speakers

MODEL: BALBOA CENTER

The Balboa Center loud-

speaker is designed to com-

plement all of the Balboa

Series loudspeakers. It is the

ideal way to re-create the

cinematic experience in your

home.

†Placement for surround back

speakers in 6.1/7.1 systems,

or alternate placement for

side surround speakers in 5.1

systems.

MODELS:

BALBOA 10 AND

BALBOA CENTER

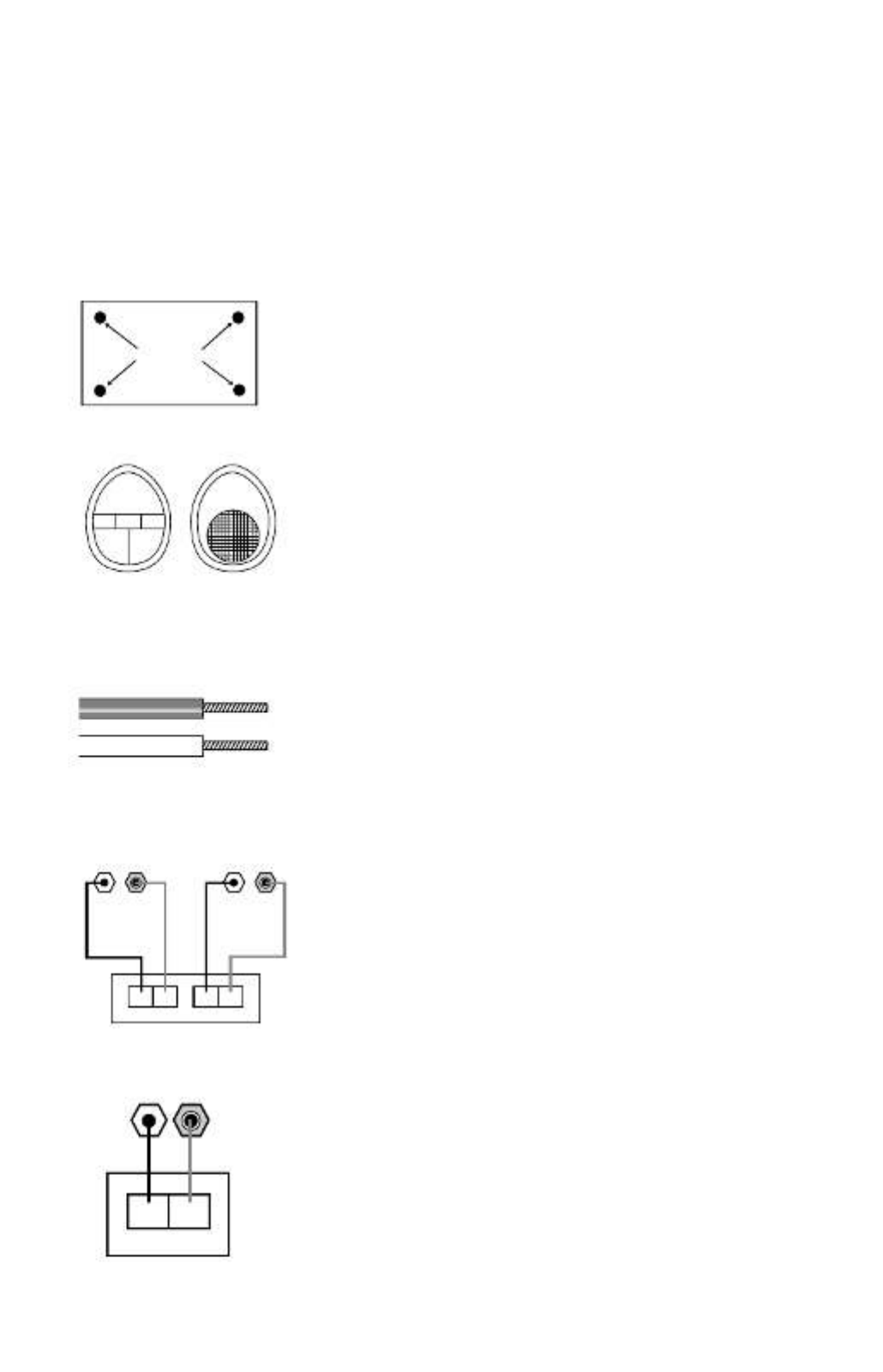

The supplied self-adhesive

rubber feet may be attached

to the bottom corners of your

speakers to protect your

furniture.

MODEL: BALBOA 30

This model is shipped with

four self-adhesive nonskid

pads that are to be used when

the loudspeaker is intended

to be placed on a smooth-

surfaced floor, such as tile or

hardwood. Gently lay the

speaker on its side (not its

front or back) on a soft,

nonabrasive surface. Attach

each pad to the bottom of its

foot in the widest portion of

the recessed area.

DO NOT attach the pads if

the speaker will be placed

on carpeting.

NEVER drag the speaker to

move it, as this will damage

the pads, the feet and/or the

wood cabinet itself. Always

lift the speaker and carry it to

its new location.

CAUTION: Floorstanding

(tower) loudspeakers have a

high center of gravity and may

become unstable and tip over

during earthquakes, or if

rocked, tipped or improperly

positioned. If this is a concern,

these speakers should be

anchored to the wall behind

them, using the same proce-

dures and hardware custom-

ary for anchoring bookcases

and wall units. The customer

is responsible for proper instal-

lation and proper selection of

hardware.

Without pad With pad

Place pads here

SPEAKER PLACEMENT (CONTINUED)

MODELS:

BALBOA 10 AND

BALBOA 30

MODEL:

BALBOA CENTER

Speakers and electronics

terminals have correspon-

ding (+) and (–) terminals. It

is important to connect both

speakers identically: (+) on

the speaker to (+) on the

amplifier and (–) on the

speaker to (–) on the ampli-

fier. Wiring “out of phase”

results in thin sound, weak

bass and poor imaging. With

the advent of multichannel

surround sound systems,

connecting all of the speak-

ers in your system with the

correct polarity remains

equally important in order to

preserve the proper ambi-

ence and directionality of the

program material.

To use the binding-post

speaker terminals, unscrew

the colored collar until the

pass-through hole in the cen-

ter post is visible. Insert the

bare end of the wire through

this hole; then screw the col-

lar down until the connection

is tight.

The hole in the center of

each collar is intended for

use with banana-type con-

nectors. To comply with

European CE certification,

these holes are blocked with

plastic inserts at the point of

manufacture. Use of banana-

type connectors requires the

removal of the inserts. Do

not remove these inserts if

you are using the product

in an area covered by the

European CE certification.

Receiver

Speaker Outputs

– +

CENTER

– +

– +– +

– +

Receiver’s Speaker Outputs

LEFT

RIGHT

– +

SPEAKER CONNECTIONS

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttaler
Model:	Balboa 10
Vægt:	3900 g
Udgangseffekt (RMS):	125 W
Dimensioner (BxDxH):	259 x 165 x 210 mm
Frekvensområde:	68 - 20 Hz
Impedens:	8 ohm (Ω)
Peak Music-Udgangseffekt (PMPO):	240 W
Sensitivitet:	86 dB
Delefrekvens:	3000 Hz
