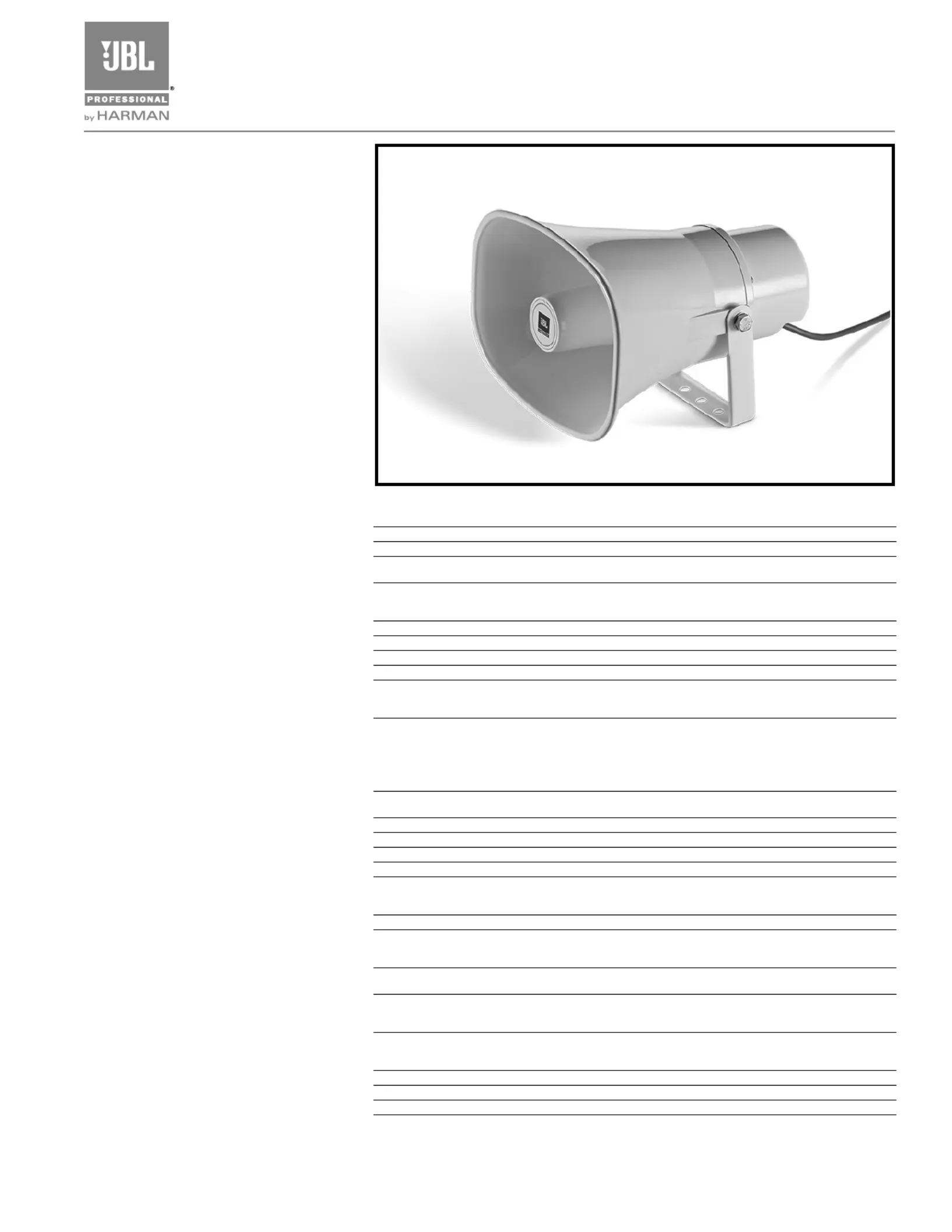

CSS-H15

15 Watt Paging Horn

Professional Series

Key Features

c Excellent voice range clarity for

announcement and paging.

c High sensitivity delivers high

sound levels with minimal power

ampliﬁcation.

c Wide 70° horizontal by 90° vertical

coverage for medium throw

applications.

c Phenolic diaphragm driver for outdoor

durability and high reliability.

c UL-registered 15-watt multi-tap

transformer, with 8 ohm direct bypass.

c Built-in high-pass ﬁlter enhances

reliability by protecting against low

frequency damage.

c Highly weather-resistant, with stainless

steel bracket and hardware.

Application

The Commercial Solutions Series

CSS-H15 Paging Horn provides excellent

voice range clarity for public address

systems, announcement/paging,

intercom, security, alarm and industrial

applications. Designed for demanding

environmental conditions, the CSS-H15

is highly weather resistant (IP-65 rated)

so it can be used in either indoor or

outdoor applications. The wide coverage

pattern allows the horn to cover a larger

audience area than is the case with many

paging horns.

Typical applications for this product

are public access areas, warehouses,

factories, schools, recreational facilities,

commercial buildings, distribution

centers, civic centers, and other

commercial sound and protective-

signaling systems.

The CSS-H15 includes a UL-registered

15-watt multi-tap transformer for use with

70V or 100V distributed speaker lines.

The power tap switch is screwdriver

adjustable for easily changing settings

from 15W, 7.5W, 3.8W, 1.9W (and 0.9W

at 70V only). For non-distributed systems

there is an 8 ohm bypass position.

Connection is via bare wire on a built-in

jacketed cable with water-tight entrance

to the speaker.

The transducer diaphragm is sturdy

phenolic material to enhance durability,

especially in outdoor applications, and

to resist deformation under stressful

temperature conditions. To further

increase reliability, a 350 Hz high-pass

ﬁlter is built-in to protect the paging horn

against damage from frequencies below

the operational frequency band. The horn

is constructed from sturdy ABS plastic

and exterior hardware is corrosion-

resistant stainless steel. A stainless steel

mounting bracket is included.

Speciﬁcations:

System:

Frequency Response (-10 dB)1: 400 Hz – 7.5 kHz

Coverage Pattern: 70° horizontal by 90° vertical (at 2 kHz and averaged

1 kHz – 4 kHz)

Included High-Pass Filter: Passive 350 Hz high-pass ﬁlter built-in to protect

against damage from frequencies below operational

range.

Directivity Factor (Q): 10.9 (2 kHz)

Directivity Index (DI): 10.4 (2 kHz)

System Power Rating2: 15 W (60 W peak), 100 hrs

Sensitivity (1W, 2.83V@ 1m): 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz

Maximum SPL (1m)3: 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;

123 dB cont ave. (129 dB peak), 2 kHz, 15W input,

8 ohm setting

Nominal Impedance : 15W/70V, NC/100V tap: 333 ohms

7.5W/70V, 15W/100V tap: 667 ohms

3.8W/70V, 7.5W/100V tap: 1333 ohms

1.9W/70V, 3.8W/100V tap: 2666 ohms

0.9W/100V, 1.9W/100V tap:5332 ohms

8 ohms at 8 ohm direct setting

Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W

100V: 15W, 7.5W, 3.8W, 1.9W

Transducers:

Full-Range Driver: 33 mm (1.3 in) diameter with phenolic diaphragm

Physical:

Horn Material: ABS

Mounting Hardware: Stainless steel powder-coated U-bracket (yolk) with

3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel

exterior hardware.

Color: RAL9016 (horn and bracket)

Input Connection: 300 mm (12 in) pigtail to bare wire; entrance via water-

tight ﬁtting. Wire colors: red = positive (+); black =

negative (-).

Environmental: IP-65 rating per IEC529, salt spray per B117, stainless

steel U-bracket and exterior hardware.

Safety Agency: Transformer UL Registered per UL1876 “Isolating Signal

and Feedback Transformers for Use in Electronic

Equipment”

Dimensions (H x W x D): 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn

181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including

mounting bracket. Depth excludes cable exit.

Weight (ea): 3.0 lb/1.36 kg

Shipping Weight (ea): 3.7 lb/1.68 kg

Included Accessories: Stainless steel mounting bracket

1Based on average 1 kHz – 6 kHz sensitivity

2AES standard, one decade pink noise with 6 dB crest factor within device’s operational band, free air, 100 hr continuous.

3Calculated, based on power rating and measured sensitivity, exclusive of power compression.

JBL continually engages in research related to product improvement. Some materials, production methods and design

reﬁnements are introduced into existing products without notice as a routine expression of that philosophy. For this reason,

any current JBL product may differ in some respect from its published description, but will always equal or exceed the original

design speciﬁcations unless otherwise stated.

c CSS-H15

15 Watt Paging Horn

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

www.jblpro.com SS CSS-H15

10/22

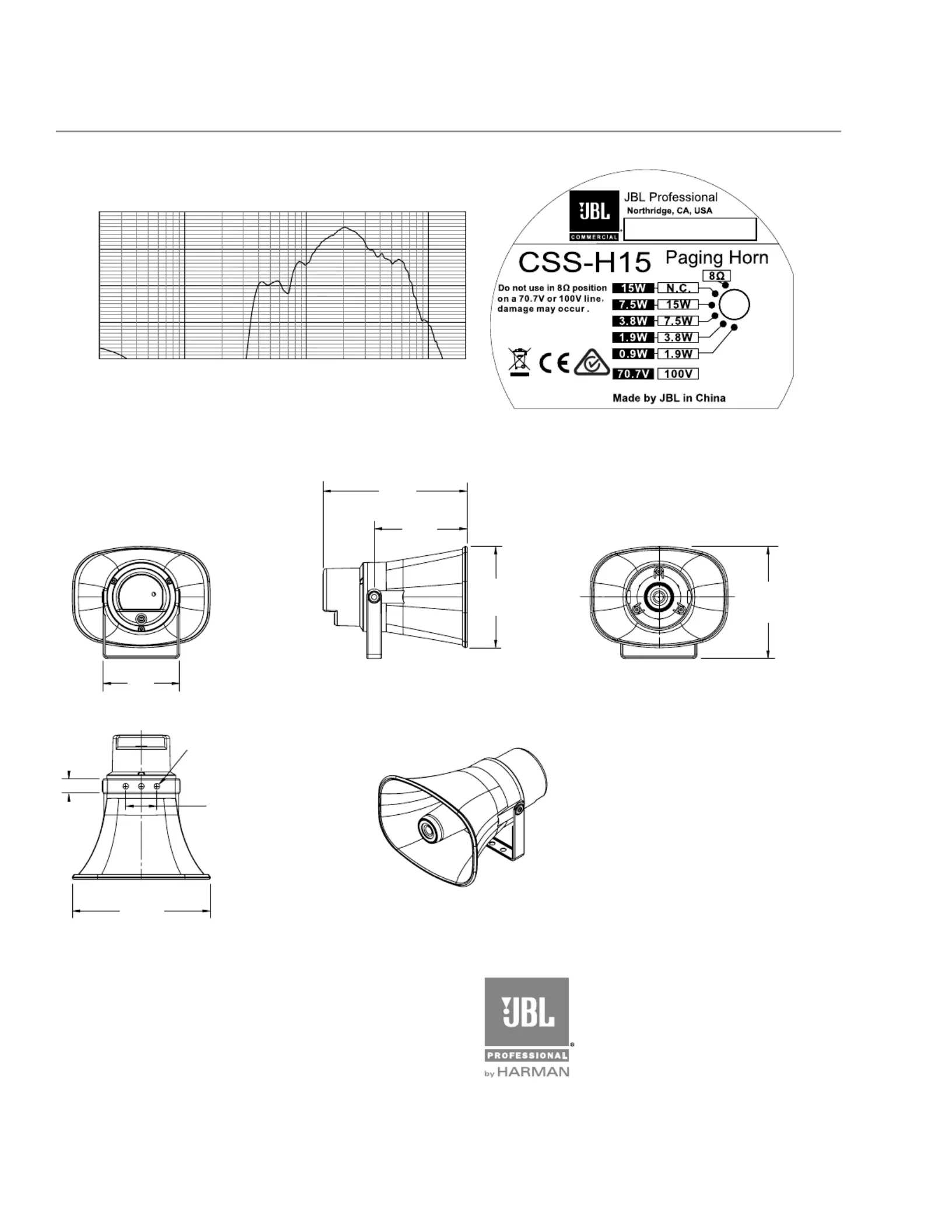

Dimensions:

Dimensions in mm (inches)

Frequency Response:

123

[4.9]

232

[9.2]

150

[5.9]

163

[6.5]

181

[7.1]

[1.0]

222

[8.8]

[2.0]

3 x 8.8 [0.34] dia

1W (2.83V) input, 8 ohm setting, full-space (4 ) p

20 100 1000 10000 20000

F (H )

105

115

SPL (dB)

Tap Selection:
