JRX212

Key Features:

䉴

JBL 12 in low frequency driver

with a 64 mm (2.5 in) diameter

edgewound voice coil which

provides more cross-sectional wire

area in the voice coil gap than

round wire designs, for greater

efﬁciency and power handling.

䉴

JBL 2414H-C 25 mm (1 in) polymer

diaphragm compression driver

improves high frequency

performance as well as system

realibility.

䉴

The advanced network topology

crossover design shapes frequency

response and delivers “coherent

summation” in the crossover

region.

䉴

High-voltage capacitors and

inductor s with massive cores and

heavy gauge wire enable the

crossover network to handle high

power without saturating.

䉴

Progressive Transition™ high

frequenc y waveguide provides

superior coverage control, reduced

distortion, and smoother frequency

response.

䉴

The rugged, acoustically superior

enclosure is constructed from

19 mm (.75 in) MDF (Medium

Density Fiberboard) using

advanced adhesives and

mechanica l fastener technology for

extreme durability and improved

low-frequency performanc e.

䉴

SonicGuard™ protects the high-

frequenc y driver from excess

power without interrupting the

performanc e.

䉴

Non-resonant, all-steel handles are

used.

䉴

Attractive 18-gauge hexagon

perforate d, steel grille protects

component s from damage.

䉴

Dual-angle pole-mount socket

allows the speaker to tilt 10° for

more uniform audience coverage.

The JRX212 is a portable, twelve-inch, two-way speaker system designed

speciﬁcally for live performance stage monitoring applications. With enough

sensitivity and power handling to cut through the performance volume on

stage, the JRX212 has a smooth response so it can deliver maximum gain

before feedback. It also includes JBL’s dual-angle pole socket making it

equally at home as a front-of-house speaker.

Speciﬁcations:

System Type: 12" 2-way, stage monitor

4␲Frequency Range (-10 dB)1 : 75 Hz – 20 kHz

2␲Frequency Range (-10 dB)1 : 60 Hz – 20 kHz

4␲Frequency Response (±3 dB) 1 : 110 Hz – 18 kHz

2␲Frequency Response (±3 dB) 1 : 80 Hz – 18 kHz

Sensitivity (1w/1m): 98 dB

Nominal Impedance: 8 ⍀

Power Capacity2 : 250 watts

Peak Power Capacity2 : 1000 watts

Recommended Ampliﬁer 250-500 watts @ 8 ⍀

Power:

Maximum SPL: 128 dB

Nominal Dispersion: 90° x 50°

Crossover Frequency: 2.1 kHz

Dimensions (H x W x D):3584 mm x 399 mm x 325 mm

(23 in x 15.7 in x 12.8 in)

Weight: 19.5 kg (43 lb)

Shipping Weight: 22.0 kg (49 lb)

High Frequency Driver: JBL 2414H-C 1" exit compression driver mounted on

Progressive Transition™ Waveguide

Low Frequency Driver: JBL M112-8

Input Connectors: Neutrik®Speakon®NL-4 (x1); " TS phone jack (x1); parallel¼

Enclosure Construction: 19 mm (¾in) MDF (Medium Density Fiberboard); with

glued and mechanically fastened joint detail; covered in

black carpet .

Grille: 18-gauge, powder-coated steel

Mounting & Suspension: 36 mm, dual-angle pole-mount socket

1. “Frequency Range” and “Frequency Response” are based on half-space response.

2. “Power Capacity” and “Peak Power Capacity” ratings are based on the average and peak power capacity of product

samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC

standards.

3. Height dimension includes feet.

JBL continually engages in research related to product improvement. Some materials, production methods and design

reﬁnements are introduced into existing products without notice as a routine expression of that philosophy. For this

reason, any current JBL product may differ in some respect from its published description, but will always equal or

exceed the original design speciﬁcations unless otherwise stated.

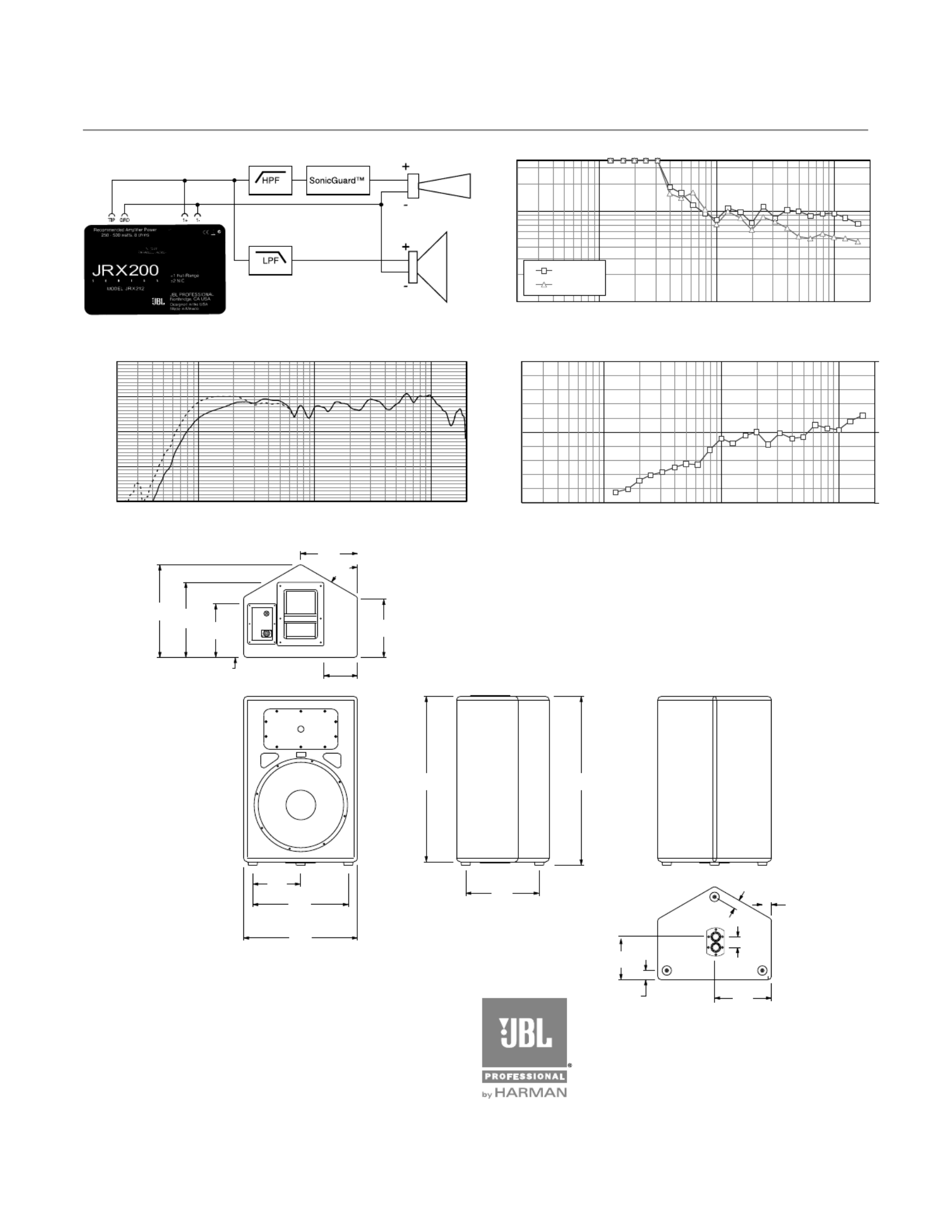

12 Inch Two-Way

Stage Monitor

Loudspeaker System

䉴JRX212 12 Inch Two-Way Stage Monitor Loudspeaker System

20 100 1000 10000 20000

Frequency (Hz)

100

Directivity Index (DI), dB

Directivity Factor (Q)

20 100 1000 10000 20000

Frequency (Hz)

100

360

-6 dB Beamwidth (degrees)

Horizontal

Vertical

330

(13.0)

165

(6.5)

399

(15.7)

254

(10.0)

577

(22.7)

584

(23.0)

325

(12.8)

60°

211

(8.3)

116

(4.6)

(1.6)

260

(10.2) 186

(7.3)

199

(7.9)

165

(6.5)

199

(7.9)

(1.3)

(53)

2.1

SSJRX212

CRP

06/13

Dimensions

Dimensions in mm (in)

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

www.jblpro.com

20 100 1000 10000 20000

Frequency (Hz)

100

110

SPL (dB)

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttaler
Model:	JRX212
Produktfarve:	Sort
Udgangseffekt (RMS):	250 W
Anbefalet brug:	Studio
Frekvensområde:	80 - 18000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Ceiling-mountable,Floor,Wall-mountable
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	1000 W
Sensitivitet:	98 dB
Delefrekvens:	2100 Hz
Bashøjttaler:	Ja
Højttaler bredde:	399 mm
Højttaler dybde:	325 mm
Højttaler højde:	584 mm
Speak-on porte, antal:	1
