JRX215

Key Features:

䉴

JBL 15 in low frequency driver

with a 64 mm (2.5 in) diameter

edgewound ribbon voice coil

which provides more cross-

sectional wire area in the voice coil

gap than round wire designs, for

greater efﬁciency and power

handling.

䉴

JBL 2414H-C 25 mm (1 in) polymer

diaphragm compression driver

improves high frequency

performance as well as system

reliability..

䉴

The advanced network topology

crossover design shapes the

frequenc y response to deliver

coherent summation in the

crossover region.

䉴

High-voltage capacitors and

inductor s with massive cores and

heavy gauge wire enable the

crossover network to handle high

power without saturating.

䉴

Progressive Transition™ high-

frequenc y waveguide provides

superior coverage control, reduced

distortion, and smoother frequency

response.

䉴

The rugged, acoustically superior

enclosure is constructed from

19 mm (.75 in) MDF (Medium

Density Fiberboard) using

advanced adhesives and

mechanica l fastener technology for

extreme durability and improved

low-frequency performanc e.

䉴

SonicGuard™ protects the high-

frequenc y driver from excess

power without interrupting the

performanc e.

䉴

Non-resonant, all-steel handles are

used .

䉴

Attractive 18-gauge hexagon

perforate d, steel grille protects

component s from damage.

䉴

Dual-angle pole-mount socket

allows the speakers to tilt 10° for

more uniform audience coverage.

The JRX215 is a portable, ﬁfteen-inch, two-way speaker system designed

speciﬁcally for applications in live music, music playback, and

reinforcement of speech. With the smooth, natural sounding mid-range of

the system, the JRX215 does a great job projecting live vocals, solos and

speech. The extended lows and great top-end make it at home for music

playback in DJ applications or anywhere live sound reinforcement is

needed . Features include the dual-angle, 36 mm pole-mount socket as well

as Neutrik®Speakon®and ¼" input connectors.

Speciﬁcations:

System Type: 15" 2-way, sound reinforcement speaker

4␲Frequency Range (-10 dB)1 : 53 Hz – 19 kHz

2␲Frequency Range (-10 dB)1 : 41 Hz – 18 kHz

4␲Frequency Response (±3 dB) 1 : 80 Hz – 14 kHz

2␲Frequency Response (±3 dB) 1 : 59 Hz – 13 kHz

Sensitivity (1w/1m): 99 dB

Nominal Impedance: 8 ⍀

Power Capacity:1250 watts

Peak Power Capacity: 11000 watts

Recommended Ampliﬁer 250-500 watts

Power: @ 8 ⍀

Maximum SPL: 129 dB

Nominal Dispersion: 90° x 50°

Crossover Frequency: 2.2 kHz

Dimensions (H x W x D):3699 mm x 460 mm x 432 mm

(27.5 in x 18.1 in x 17 in)

Weight: 27.4 kg (60.5 lb)

Shipping Weight: 30.4 kg (67 lb)

High Frequency Driver: JBL 2414H-C , 1" exit compression driver mounted on

Progressive Transition™ Waveguide

Low Frequency Driver: JBL M115-8A

Input Connectors: Parallel Neutrik®Speakon®NL-4 (x1); " TS phone jack (x1) ¼

Enclosure Construction: 19 mm (¾in) MDF (Medium Density Fiberboard); with

glued and mechanically fastened joint detail; covered in

black carpet .

Grille: 18-gauge, powder-coated steel

Mounting & Suspension: 36 mm, dual-angle pole-mount socket

1. “Power Capacity” and “Peak Power Capacity” ratings are based on the average and peak power capacity of product

samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC

standards.

2. “Frequency Range” and “Frequency Response” are based on half-space conditions.

3. Height dimension includes feet.

JBL continually engages in research related to product improvement. Some materials, production methods and design

reﬁnements are introduced into existing products without notice as a routine expression of that philosophy. For this

reason, any current JBL product may differ in some respect from its published description, but will always equal or

exceed the original design speciﬁcations unless otherwise stated.

15 Inch Two-Way Sound

Reinforcement

Loudspeaker System

SSJRX215

CRP

06/13

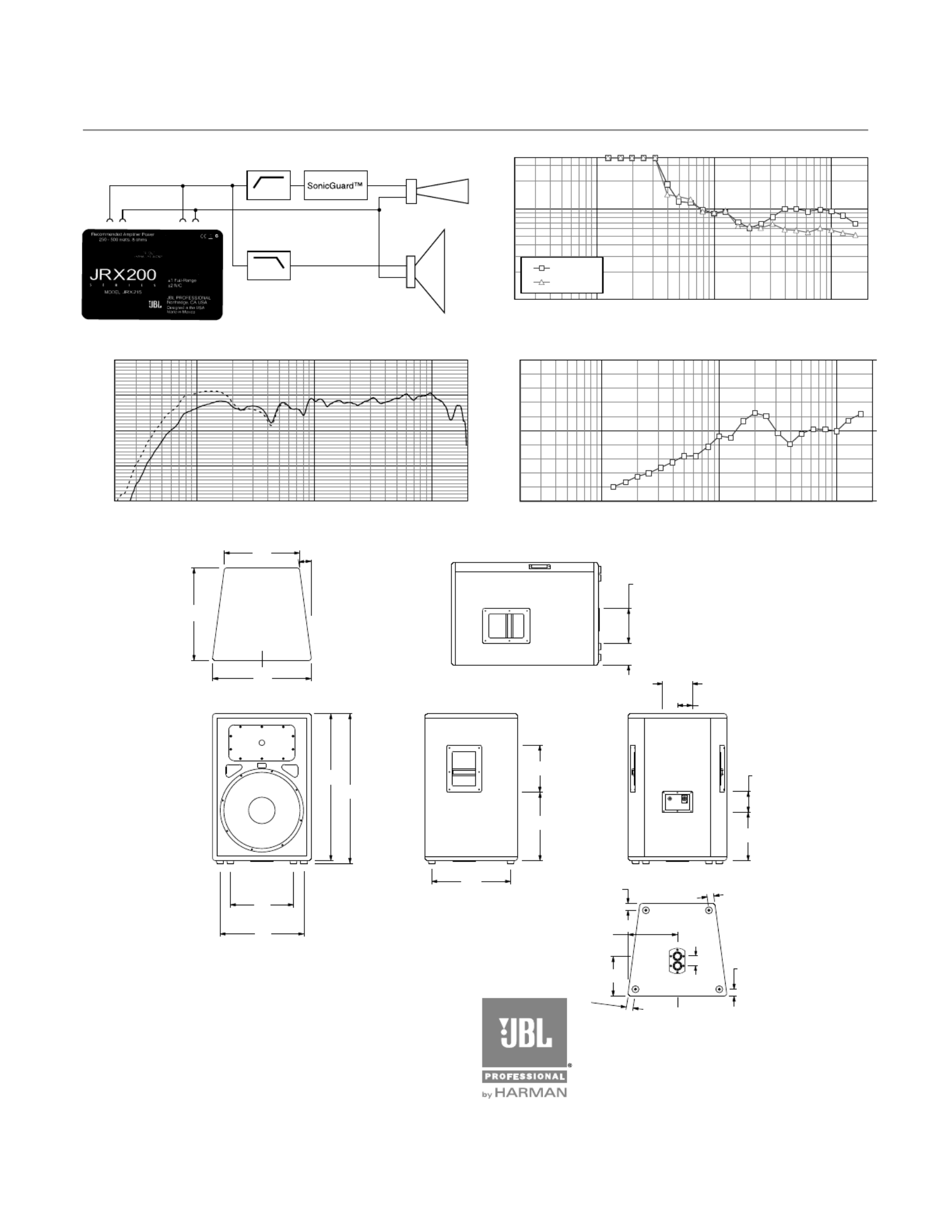

䉴JRX215 15 Inch Two-Way Sound Reinforcement Loudspeaker System

TIP

TIPTIP GRD

GRD

GRDGRD

HPF

LPF

1-1-1+

1+1+

20 100 1000 10000 20000

Frequency (Hz)

100

110

SPL (dB)

20 100 1000 10000 20000

Frequency (Hz)

100

Directivity Index (DI), dB

Directivity Factor (Q)

20 100 1000 10000 20000

Frequency (Hz)

100

360

-6 dB Beamwidth (degrees)

Horizontal

Vertical

294

(11.6)

391

(15.4)

686

(27.0)

699

(27.5)

7.5°

432

(17.0)

460

(18.1)

353

(13.9)

368

(14.5)

220

(8.7)

319

(12.6)

(2.7)

(3.8)

226

(8.9)

138

(5.4)

(1.3)

184

(7.3)

230

(9.1)

162

(6.4)

101

(3.9)

(2.1)

Dimensions

Dimensions in mm (in)

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

www.jblpro.com

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttaler
Model:	JRX215
Produktfarve:	Sort
Udgangseffekt (RMS):	250 W
Husmateriale:	MDF
Anbefalet brug:	Universel
Frekvensområde:	59 - 13000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Ceiling-mountable,Floor,Wall-mountable
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	100 W
Sensitivitet:	99 dB
Delefrekvens:	2200 Hz
Bashøjttaler:	Ja
Højttaler bredde:	460 mm
Højttaler dybde:	432 mm
Højttaler højde:	699 mm
Speak-on porte, antal:	1
