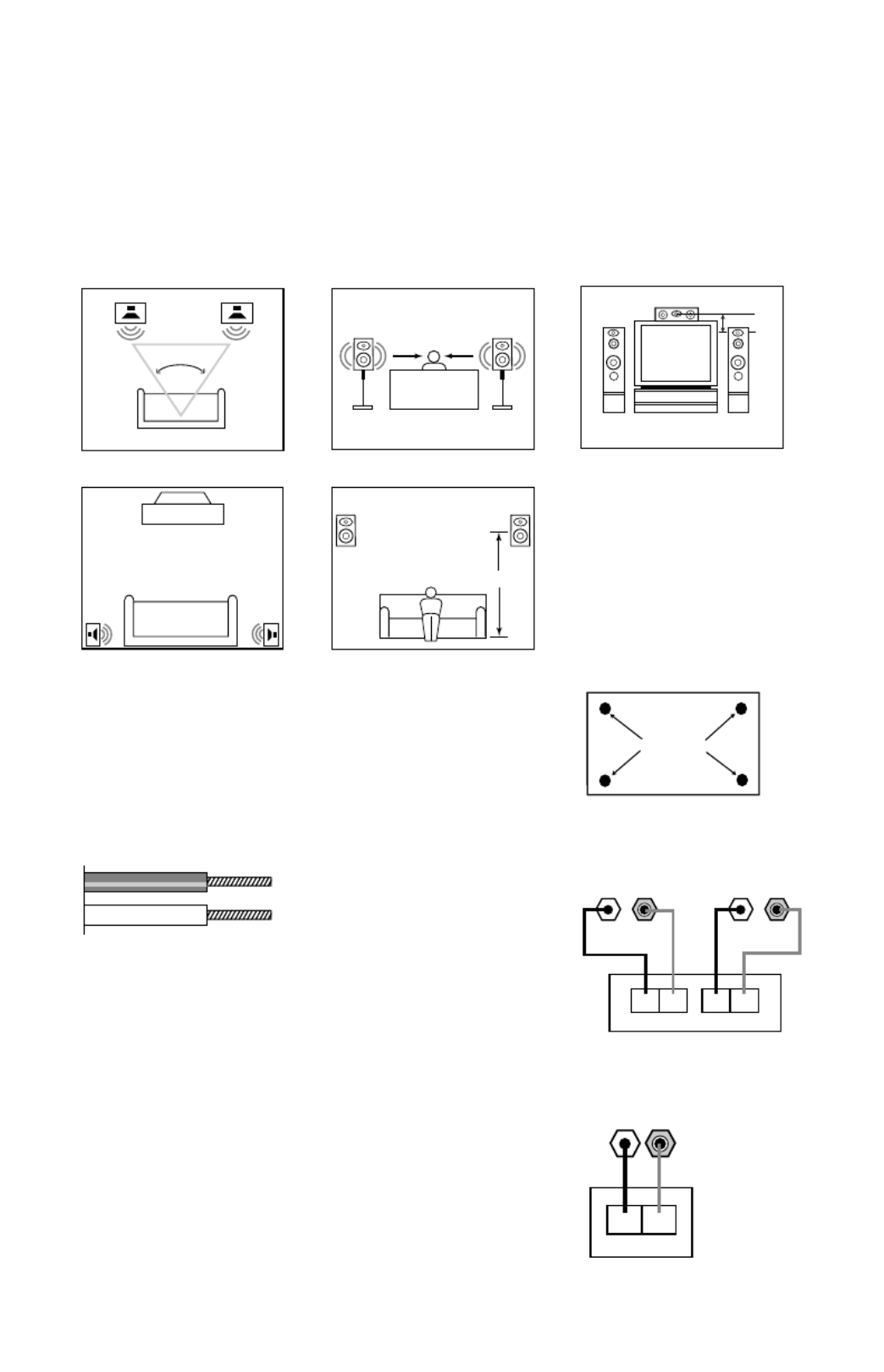

OWNER’S GUIDE

E10, E20, EC25

NORTHRIDGE™E SERIES

SPEAKER PLACEMENT

Proper placement of the speak-

ers is an important step in

obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the loud-

speakers. Use these placement

recommendations as a guide.

Slight variations will not dimin-

ish your listening pleasure.

All of the Northridge E Series

loudspeakers referred to in this

guide are video-shielded and

can safely be placed near a

television.

CONNECTION TIPS

Speakers and electronics termi-

nals have corresponding posi-

tive (+) and negative (–) termi-

nals. It is important to connect

both speakers identically: posi-

tive (+) on the speaker to posi-

tive (+) on the amplifier and

negative (–) on the speaker to

negative (–) on the amplifier.

Wiring “out of phase” results

in thin sound, weak bass and

a poor stereo image.

With the advent of multichannel

surround sound systems, con-

necting all of the speakers in

your system with the correct

polarity remains as important as

ever in order to preserve the

proper ambience and direction-

ality of the program material.

To use the binding-post speaker

terminals, unscrew the colored

collar until the pass-through

hole in the center post is visible

under the collar. Insert the bare

end of the wire through this

hole; then screw the collar

down until the connection is

tight.

The hole in the center of each

collar is intended for use with

banana-type connectors. To

comply with European CE

certification, these holes are

blocked with plastic inserts at

the point of manufacture.To use

banana-type connectors

requires the removal of the

inserts. Do not remove these

inserts if you are using the

product in an area covered by

the European CE certification.

SPEAKER CONNECTIONS

– +– +

– +

Receiver Speaker Outputs

LEFT

RIGHT

– +

40o – 60o

MODELS: E10, E20 MODEL: EC25

As front speakers

(0–0,6m)

The EC25 center channel loud-

speaker is designed to comple-

ment all of the Northridge E

Series loudspeakers. It is the

ideal way to re-create the cine-

matic experience in your home.

MODELS: E10, E20, EC25

Place pads here

The supplied self-adhesive

rubber feet may be attached to

the bottom corners of your

speakers to protect your

furniture.

MODELS: E10, E20

(1,5–1,8m)

MODEL: EC25

Receiver

Speaker Outputs

– +

CENTER

– +

As surround speakers

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttaler
Model:	Northridge E20
Bredde:	153 mm
Dybde:	206 mm
Højde:	275 mm
Vægt:	3200 g
Produktfarve:	Sort
Udgangseffekt (RMS):	125 W
Equalizer:	Ingen
Dimensioner (BxDxH):	153 x 206 x 275 mm
Anbefalet brug:	Højttalersæt enhed
Frekvensområde:	- Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Bordplade/bogreol
Strømkilde type:	Vekselstrøm
Antal drivere:	2
Diskanthøjttaler:	Ja
Sensitivitet:	86 dB
Delefrekvens:	3000 Hz
AC (strøm) indgang:	Ja
Diskant diameter:	0.75 "
Bashøjttaler:	Ingen
Forstærker:	Indbygget
Højttaler kabinet:	Refleks
Mid-range driver diameter:	130 mm
Forstærker, udgående strøm:	125 W
Mid-range driver diameter (britisk mål):	5 "
