E30, E50, E60, E80, E90,

E100, EC35

NORTHRIDGE

™

E SERIES

OWNER’S GUIDE

5 – 6 ft.

(1.5m–1.8m)

MODELS: E30, E50

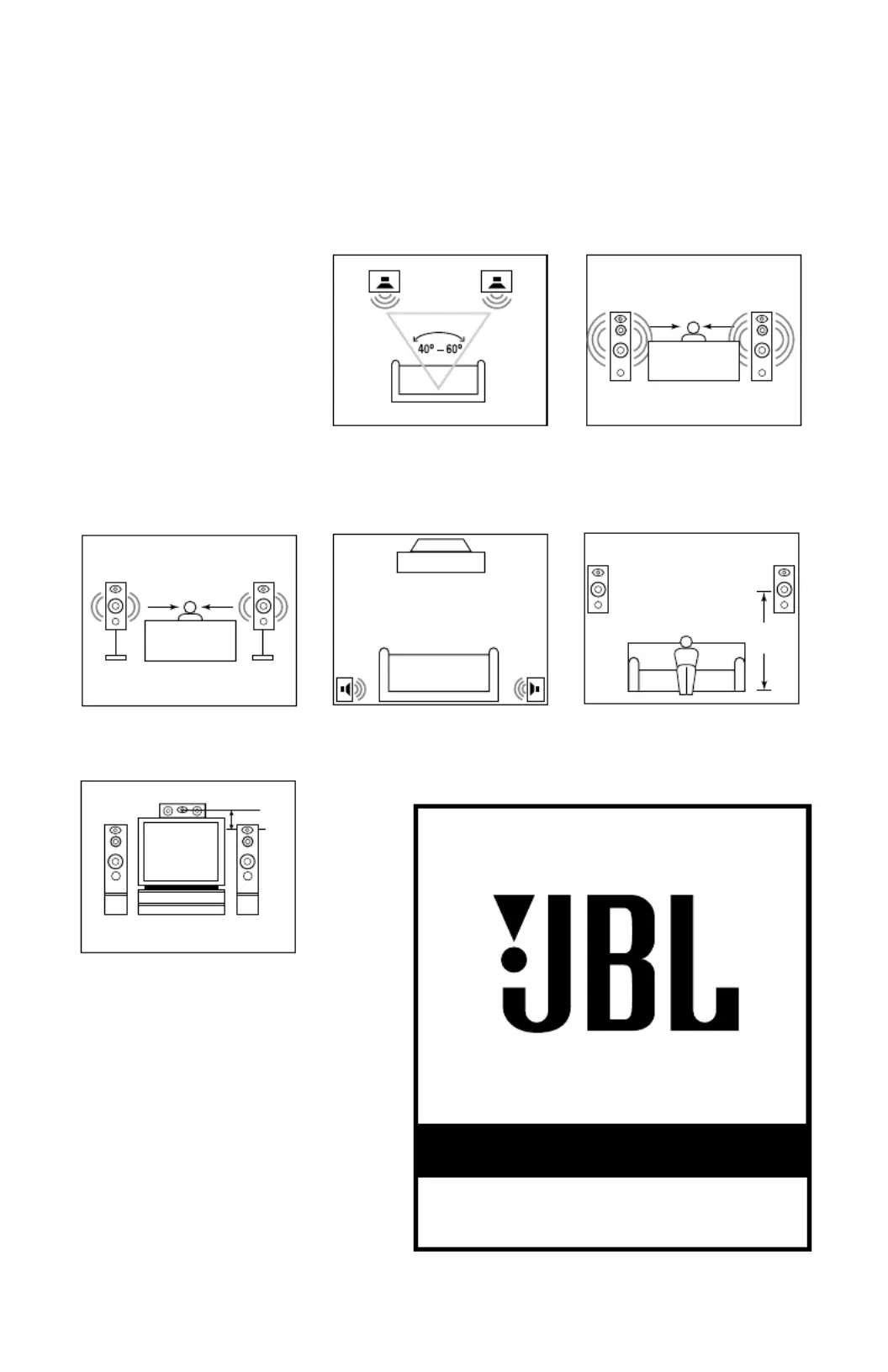

SPEAKER PLACEMENT

Proper placement of the

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your listen-

ing pleasure.

All of the Northridge E Series

loudspeakers referred to in

this guide are video-shielded

and can safely be placed

near a television.

As front speakers

MODELS: E60, E80, E90, E100

As surround speakers

MODEL: EC35

0 – 2 ft.

(0–0.6m)

The EC35 center channel

loudspeaker is designed to

complement all of the

Northridge E Series loud-

speakers. It is the ideal way

to re-create the cinematic

experience in your home.

MODELS: E30,

E50, E60, E80,

E90, E100

MODEL: EC35

Speakers and electronics ter-

minals have corresponding (+)

and ( ) terminals. It is impor-–

tant to connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and (–)

on the speaker to ( ) on the–

amplifier. Wiring out of“

phase” results in thin sound,

weak bass and poor imaging.

To use the binding-post

speaker terminals, unscrew

the colored collar until the

pass-through hole in the cen-

ter post is visible. Insert the

bare end of the wire through

this hole; then screw the collar

down until the connection

is tight.

The hole in the center of each

collar is intended for use with

banana-type connectors. To

comply with European CE cer-

tification, these holes are

blocked with plastic inserts at

the point of manufacture. To

use banana-type connectors

requires the removal of the

inserts. Do not remove these

inserts if you are using the

product in an area covered by

the European CE certification.

BI-WIRING

The bi-wire connection

method requires one amplifier

and two sets of speaker wires.

By removing the shorting bars,

connections may be made to

the individual network

sections

using four conductors,

one for

each of the four terminals.

For single-wire connection,

leave the shorting bars in

place and connect only a sin-

gle set of speaker wires (two

conductors) to the two upper

terminals.

Bi-Wire Connections

MODELS: E30, EC35, E50

The supplied self-adhesive

rubber feet may be attached

to the bottom corners of your

speakers to protect your

furniture.

MODELS: E60, E80, E90,

E100

These models feature four

rubber feet that enable them

to be placed on a smooth-

surfaced floor, such as tile or

hardwood. Four metal spikes

are supplied for use when the

speaker is to be placed on a

carpeted surface, to decouple

the speaker from the floor and

prevent unwanted damping. To

insert the spikes, gently lay the

speaker on its side (not its

front or back) on a soft,

nonabrasive surface. Each

spike screws into the threaded

insert in the center of each

rubber foot. Make sure all

four spikes are screwed in

completely for stability.

NEVER drag the speaker to

move it, as this will damage

the spikes, the feet and/or the

wood cabinet itself. Always lift

the speaker and carry it to its

new location.

CAUTION: Floorstanding

(tower) loudspeakers have a

high center of gravity and may

become unstable and tip over

during earthquakes, or if

rocked, tipped or improperly

positioned. If this is a concern,

these speakers should be

anchored to the wall behind

them, using the same proce-

dures and hardware custom-

ary for anchoring bookcases

and wall units. The customer

is responsible for proper instal-

lation and proper selection of

hardware.

– +

Amplifier

High Frequency

Low Frequency

Receiver

Speaker Outputs

– +

CENTER

– +

– +– +

– +

Receiver’s Speaker Outputs

LEFT

RIGHT

– +

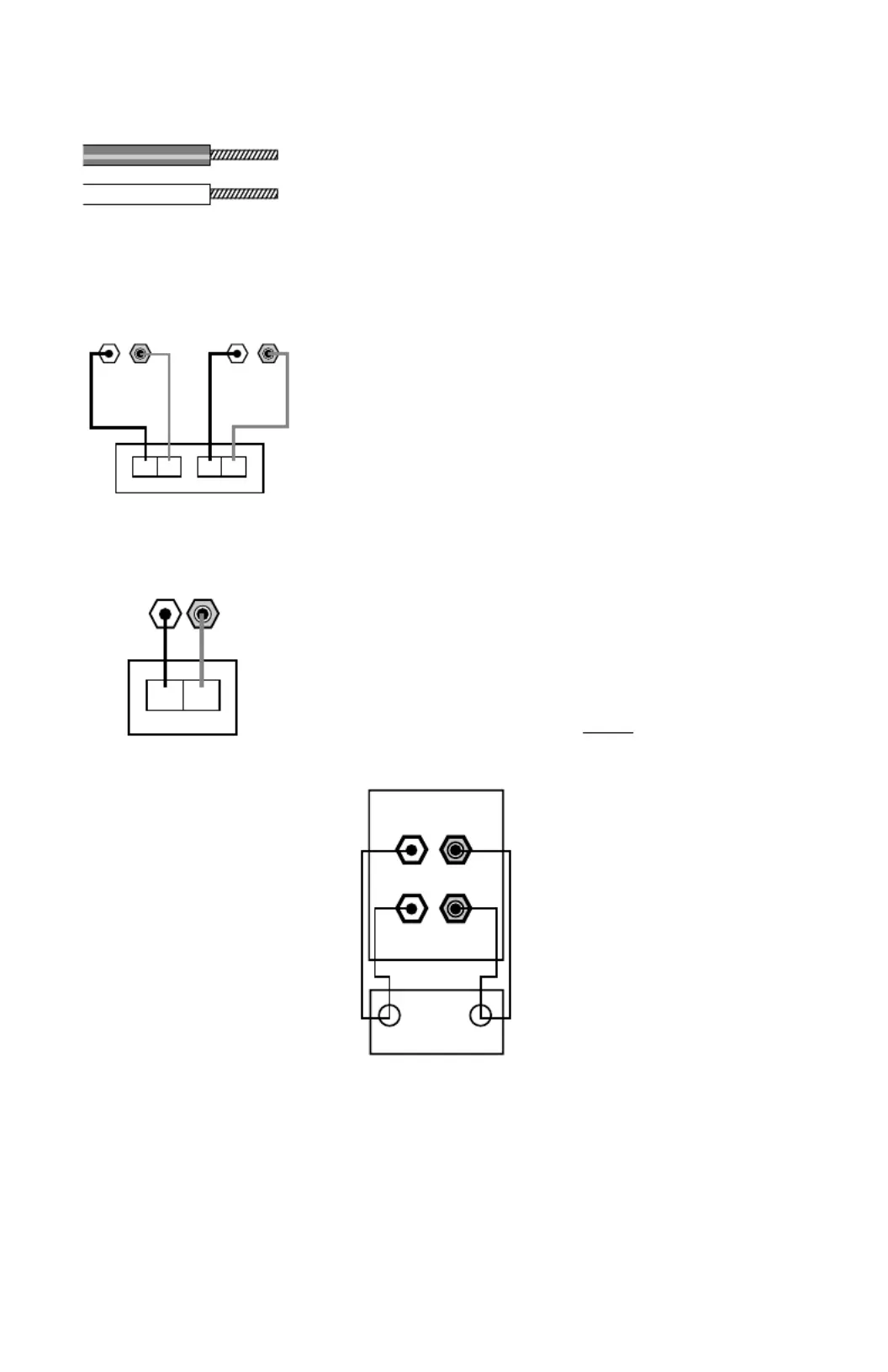

SPEAKER CONNECTIONS
