E30, E60, E80, E90

NORTHRIDGE™E SERIES

OWNER’S GUIDE

1.5 m–1.8 m

MODEL: E30

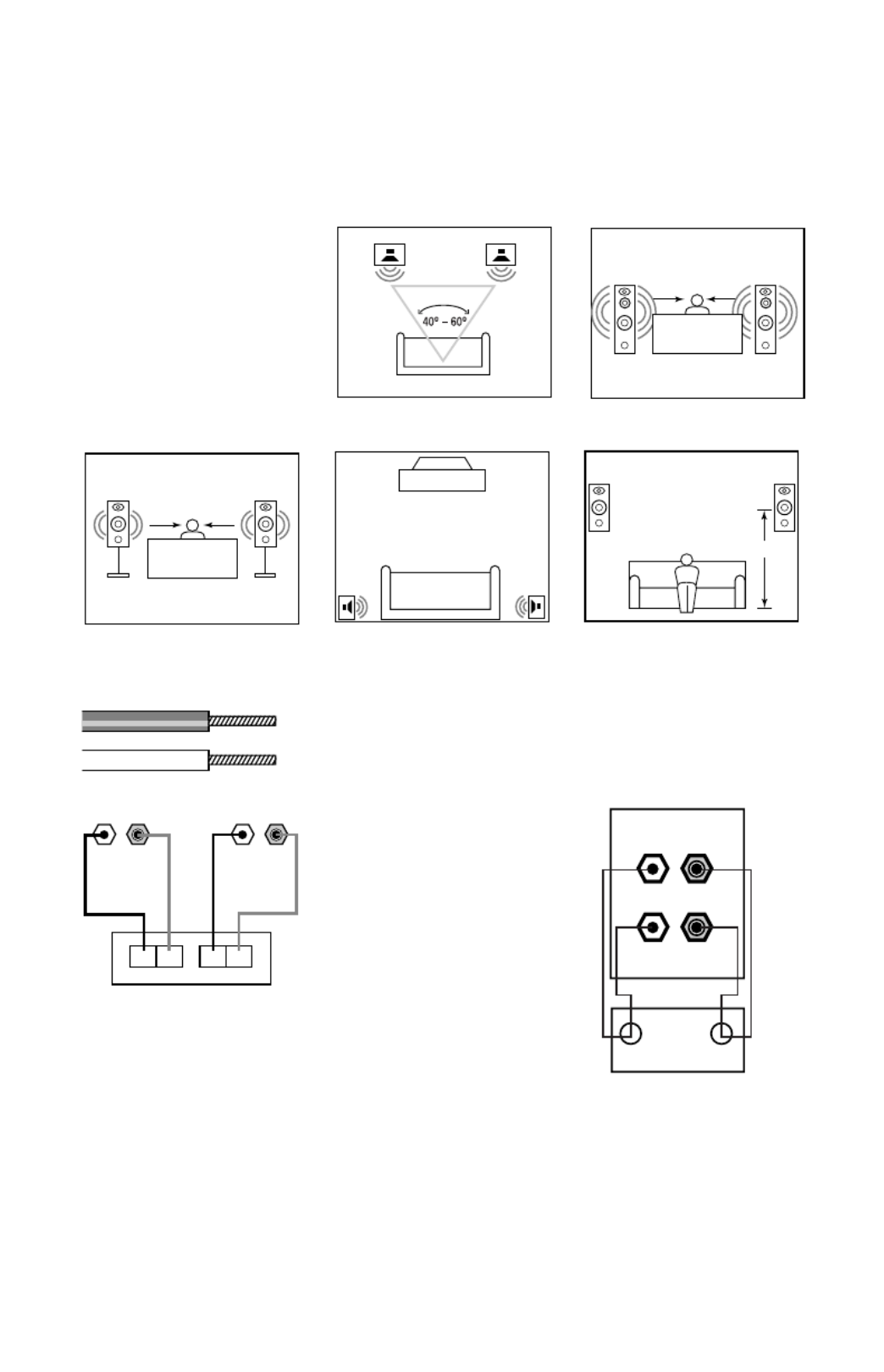

SPEAKER PLACEMENT

Proper placement of the speak-

ers is an important step in

obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the loud-

speakers. Use these placement

recommendations as a guide.

Slight variations will not

diminish your listening pleasure.

All of the Northridge E Series

loudspeakers referred to in this

guide are video-shielded and

can safely be placed near a

television.

As front speakers

Speakers and electronics termi-

nals have corresponding (+) and

(–) terminals. It is important to

connect both speakers identi-

cally: (+) on the speaker to (+)

on the amplifier and (–) on the

speaker to (–) on the amplifier.

Wiring “out of phase” results in

thin sound, weak bass and poor

imaging.

To use the binding-post speaker

terminals, unscrew the colored

collar until the pass-through

hole in the center post is visible.

Insert the bare end of the wire

through this hole; then screw

the collar down until the con-

nection is tight.

The hole in the center of each

collar is intended for use with

banana-type connectors. To

comply with European CE certi-

fication, these holes are

blocked with plastic inserts at

the point of manufacture. To use

banana-type connectors

requires the removal of the

inserts. Do not remove these

inserts if you are using the

product in an area covered by

the European CE certification.

BI-WIRING

The bi-wire connection method

requires one amplifier and two

sets of speaker wires. By

removing the shorting bars,

connections may be made to

the individual network sections

using four conductors, one for

each of the four terminals.

For single-wire connection,

leave the shorting bars in place

and connect only a single set of

speaker wires (two conductors)

to the two upper terminals.

Bi-Wire Connections

– +

Amplifier

High Frequency

Low Frequency

SPEAKER CONNECTIONS

– +– +

– +

Receiver’s Speaker Outputs

LEFT

RIGHT

– +

MODELS: E60, E80, E90

As surround speakers

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttaler
Model:	Northridge E80
Bredde:	213 mm
Dybde:	349 mm
Højde:	927 mm
Vægt:	19100 g
Produktfarve:	Sort
Udgangseffekt (RMS):	200 W
Equalizer:	Ingen
Dimensioner (BxDxH):	213 x 349 x 927 mm
Anbefalet brug:	Højttalersæt enhed
Frekvensområde:	38 - 20000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Gulv
Strømkilde type:	Vekselstrøm
Antal drivere:	4
Driver diameter:	170 mm
Diskanthøjttaler:	Ja
Sensitivitet:	91 dB
Delefrekvens:	4000 Hz
AC (strøm) indgang:	Ja
Diskant diameter:	0.75 "
Bashøjttaler:	Ingen
Forstærker:	Indbygget
Højttaler kabinet:	Refleks
Mid-range driver diameter:	100 mm
Forstærker, udgående strøm:	200 W
Subwoofer driver diameter (britisk):	6 "
Mid-range driver diameter (britisk mål):	4 "
