Side 1/22
QUICK
S TA R T
GUIDE

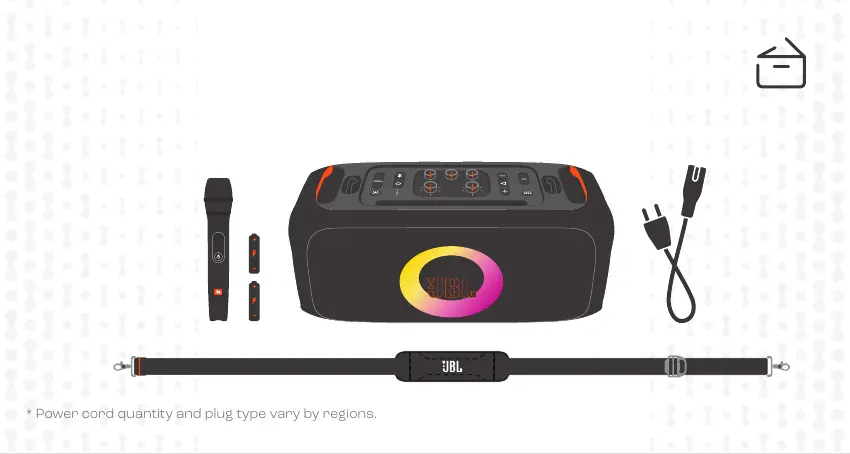

* Power cord quantity and plug type vary by regions.
x1
x2
x3
ROCK
FLASH FLOW
CROSS
RIPPLE
Settings Bluetooth
Bluetooth
DEVICES
JBL PartyBox OTG ESS
Connected
Now Discoverable
ON
>5s
>5s
*
PARTYBOX
ON-THE-GO
ESSENTIAL
WHAT’S
IN THE
BOX
PLAY
CHARGING
MICROPHONE
GUITAR
LIGHTSHOW
SPLASH
PROOF
IPX4
TRUE WIRELESS
STEREO
BLUETOOTH PAIRING
Transducers: 1 x 5.25 in (133 mm) woofer +
2 x1.75 in (44 mm) tweeters
Output power: 100 W RMS
Power input:
100 - 240 V ~ 50/60 Hz
Frequency response: 50 Hz - 20 kHz (-6dB)
Signal-to-noise ratio: > 80dB
Battery type: Li-ion polymer 18 Wh (equivalent to
7.2V/ 2500mAh)
Battery charge time: 3.5 hours
Music play time: up to 6 hours (varies by volume level and
audio content)
Cable type: AC power cable (type varies by regions)
Cable length: 1.5 m / 5 ft
USB charge out: 5V / 0.5A (max)
USB format: FAT16, FAT32
Bluetooth® version: 4.2
Bluetooth® profile: A2DP V1.3, AVRCP V1.6
Bluetooth® transmitter frequency range: 2.4 GHz - 2.4835 GHz
Bluetooth® transmitter power: ≤ 10 dBm (EIRP)
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Supported formats: .mp3, .wma, .wav
Input Sensitivity:
• Aux-In: 370mV rms (3.5mm connector)
• Mic-In: 20mV rms
• Guitar-In: 100 mV rms
• Bluetooth/USB input:
-12dBFS
Product dimensions (W x H x D): 490 mm x 245 mm x 228 mm /
19.3" x 9.6" x 9.0"
Net weight: 6.1 kg / 13.4 lbs
Packaging dimensions (W x H x D): 541 mm x 277 mm x 350mm /
21.3" x 10.91" x 13.78"
Gross weight: 7.9 kg/ 17.42 lbs
Wireless microphone spec
Frequency response: 65Hz - 15kHz
Signal-to-noise ratio: > 60dB
UHF frequency band: 470~960MHz
(depends on countries/regions)
Transmitter transmitting power: < 10mW
Microphone battery play time: < 10hrs
Distance between transmitter and
receiver: < 10m
TECH SPEC
PA_JBL_PartyBox OTG Essential_QSG_EMEA (1 mic)_SOP_V9.indd 1PA_JBL_PartyBox OTG Essential_QSG_EMEA (1 mic)_SOP_V9.indd 1 2023/7/27 11:19:342023/7/27 11:19:34
QUICK
S TA R T
GUIDE
* Power cord quantity and plug type vary by regions.
x1
x2
x3
ROCK
FLASH FLOW
CROSS
RIPPLE
Settings Bluetooth
Bluetooth
DEVICES
JBL PartyBox OTG ESS
Connected
Now Discoverable
ON
>5s
>5s
*
PARTYBOX
ON-THE-GO
ESSENTIAL
WHAT’S
IN THE
BOX
PLAY
CHARGING
MICROPHONE
GUITAR
LIGHTSHOW
SPLASH
PROOF
IPX4
TRUE WIRELESS
STEREO
BLUETOOTH PAIRING
Transducers: 1 x 5.25 in (133 mm) woofer +
2 x1.75 in (44 mm) tweeters
Output power: 100 W RMS
Power input:
100 - 240 V ~ 50/60 Hz
Frequency response: 50 Hz - 20 kHz (-6dB)
Signal-to-noise ratio: > 80dB
Battery type: Li-ion polymer 18 Wh (equivalent to
7.2V/ 2500mAh)
Battery charge time: 3.5 hours
Music play time: up to 6 hours (varies by volume level and
audio content)
Cable type: AC power cable (type varies by regions)
Cable length: 1.5 m / 5 ft
USB charge out: 5V / 0.5A (max)
USB format: FAT16, FAT32
Bluetooth® version: 4.2
Bluetooth® profile: A2DP V1.3, AVRCP V1.6
Bluetooth® transmitter frequency range: 2.4 GHz - 2.4835 GHz
Bluetooth® transmitter power: ≤ 10 dBm (EIRP)
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Supported formats: .mp3, .wma, .wav
Input Sensitivity:
• Aux-In: 370mV rms (3.5mm connector)
• Mic-In: 20mV rms
• Guitar-In: 100 mV rms
• Bluetooth/USB input:
-12dBFS
Product dimensions (W x H x D): 490 mm x 245 mm x 228 mm /
19.3" x 9.6" x 9.0"
Net weight: 6.1 kg / 13.4 lbs
Packaging dimensions (W x H x D): 541 mm x 277 mm x 350mm /
21.3" x 10.91" x 13.78"
Gross weight: 7.9 kg/ 17.42 lbs
Wireless microphone spec
Frequency response: 65Hz - 15kHz
Signal-to-noise ratio: > 60dB
UHF frequency band: 470~960MHz
(depends on countries/regions)
Transmitter transmitting power: < 10mW
Microphone battery play time: < 10hrs
Distance between transmitter and
receiver: < 10m
TECH SPEC
PA_JBL_PartyBox OTG Essential_QSG_EMEA (1 mic)_SOP_V9.indd 1PA_JBL_PartyBox OTG Essential_QSG_EMEA (1 mic)_SOP_V9.indd 1 2023/7/27 11:19:342023/7/27 11:19:34
** MICROPHONE QUANTITY VARY BY REGIONS.
