SC305

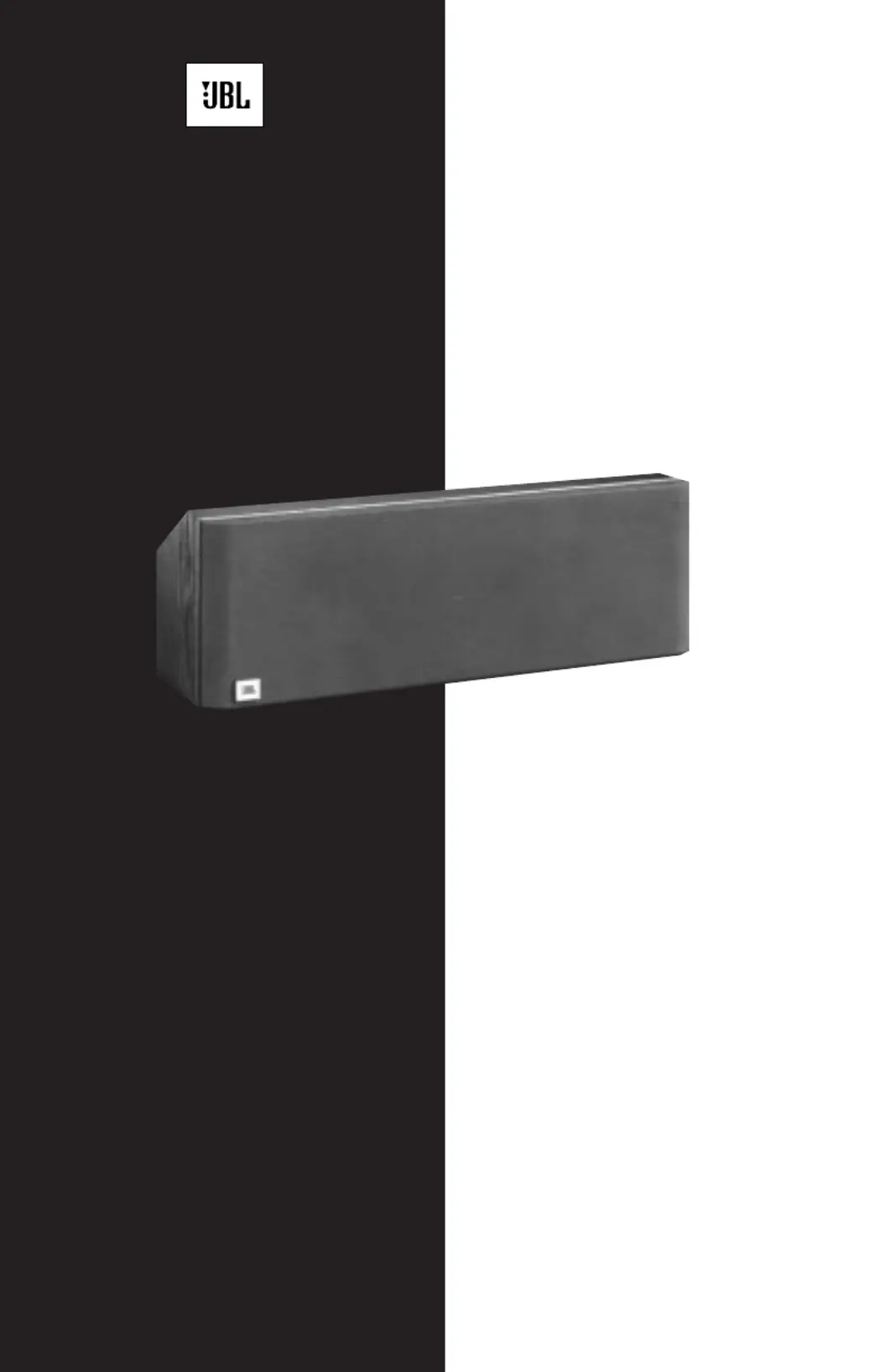

CENTER CHANNEL
SPEAKER
OWNER’S
MANUAL
SC
INTRODUCTION
Congratulations on choosing JBL
Series loudspeakers. Their highly
accurate, uncolored and balanced
sound character will greatly increase
your enjoyment of recorded music.
JBL speakers are built with careful
attention to detail, using only the
highest quality materials. They will
provide many years of excellent per-
formance.
The SC305 Center Channel Speaker
is the result of concentrated eorts to
combine traditional JBL performance
values with elegant contemporary
appearance. Some of the engineer-
ing features of the SC305 are:
Smooth, extended response:
The 14mm Titanium Laminate dome
tweeter, dual 5" polymer laminated
cone drivers and carefully designed
dividing network deliver the clear,
crisp, quality sound reproduction
needed to deliver the accurate, intelli-
gible vocal information required by a
center channel speaker.
High Quality Crossover
Network: the computer-optimized
dividing network employs up to third-
order (18 dB per octave) crossover
sections. JBL's use of high quality
capacitors and low-loss/low-distortion
inductors assures freedom from
phase or amplitude distortions.
305
2
Magnetic Shielding: prevents stray
magnetic elds from creating any
interference or distortion of the video
picture. This allows placement of the
SC305 directly on top of, or directly
below the video monitor.
Cabinet Design: the multi-angled
cabinet provides options of locating
the SC305 directly on top of the video
monitor or on the oor in front of the
monitor.
PLACEMENT
As the center channel contains the
dialog and other central action
sounds, the speaker should be locat-
ed very close to the video monitor
centered with the monitor's center line.
The SC305 can be placed in two loca-
tions:
1) On top of the video monitor.
Place the large at bottom of the
speaker directly on top of the monitor,
with the front edge of the speaker
grille ush with the edge of the moni-
tor. The speaker grille/bae should
be pointing directly at the listener.

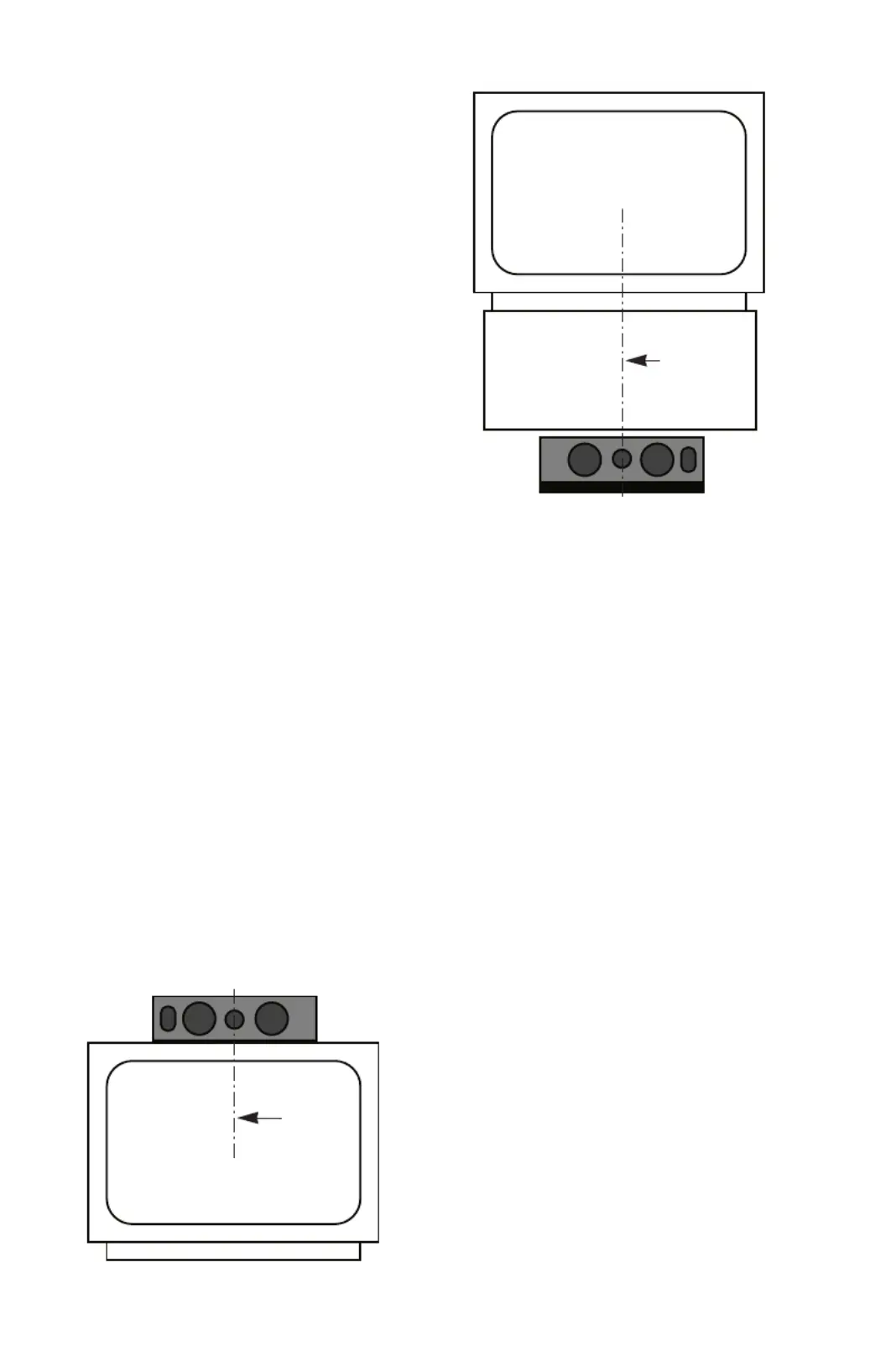

See Fig. 1.
2) On the oor directly in front of the
monitor.
Place the angled side of the
cabinet on the oor so that the speak-
er grille/bae is pointing directly
at the listener. The grille can be
removed and re-installed so the JBL
Logo is oriented properly. See Fig. 2.
CONNECTIONS
To connect the SC305 to the center
channel output of your AV receiver or
amplier, use two-conductor insulated
wire. Your JBL dealer can recommend
suitable cables, or you can buy wire at
most hardware stores. We recom-
mend #16 AWG wire as a minimum
size. If your speaker is more than 30
feet (10 m) from your AV receiver or
amplier, use larger diameter wire.
Connections are made at the termi-
nals located on the back of the SC305
speaker. The terminals accept bare
wire or dual banana plugs, either of
which will provide easy, secure con-
nections.
Preparing the hookup wire
1. First determine the distance
between the most distant speaker.
2. Now make the hookup wires for
both speakers this length, even if one
loudspeaker is much closer to your
amplier than the other. This will help
maintain proper signal balance.
3. Strip o 3/8" of insulation from both
ends of each conductor.
Fig.2
Fig.1
CENTER LINE
CENTER
LINE
