Side 1/6
SCS500.5 SYSTEM
Frequency Response
30Hz – 20kHz (–6dB)
SATELLITES
Maximum Recommended Amplifier Power
100 Watts
Nominal Impedance 8 Ohms
Sensitivity 88dB @ 1 Watt/1 meter
Frequency Response 100Hz – 20kHz (–6dB)
1/2" (13mm) Titanium-laminate dome,
video-shielded
Midrange
Dual 3" (75mm) drivers, video-shielded
Dimensions (H x W x D)
(not including shelf stand)
11-1/2" x 4" x 3-1/2" (292mm x 102mm x 89mm)
Weight 3 lb (1.4kg)
CENTER
Maximum Recommended Amplifier Power
100 Watts
Nominal Impedance 8 Ohms
Sensitivity 88dB @ 1 Watt/1 meter
Frequency Response 100Hz – 20kHz (–6dB)
1/2" (13mm) Titanium-laminate dome,
video-shielded
Midrange
Dual 3" (75mm) drivers, video-shielded
Dimensions (H x W x D)
(not including shelf stand)
4" x 11-1/2" x 3-1/2" (102mm x 292mm x 89mm)
Weight 3 lb (1.4kg)
SUBWOOFER
Amplifier 150 Watts RMS
Frequency Response 30Hz – 120Hz (–6dB)
Woofer 10" (250mm)
Enclosure Bass-reflex
Dimensions (H x W x D)
(including feet)
20" x 13-3/4" x 15-3/4"
(508mm x 349mm x 400mm)
Weight 35 lb (15.9kg)
SPECIFICATIONS
All features and specifications are subject to change
w
ithout notice.
Dolby and Pro Logic are registered trademarks of
Dolby Laboratories.
DTS is a registered trademark of DTS, Inc.
DESIGN GOAL: Bring the thrill of live performance and movie sound
to
the home environment bycalling on JBL’s professional engineering leadership.
SATELLITE TYPE:
Titanium-laminate-dome tweeter,
sealed enclosure
SUBW OOFER
TYPE :
Bass-reflex enclosure
PORT DESIGN: FreeFlow
™
flared
PROF ESSIONAL REFE RENCE: Cinema Loudspeaker Series
OWNER’S GUIDE
P R O D U C T
L I N E :
MODEL:
SCS500.5
SURROUND CINEMA
SPEAKERS
© 2007 Harman International Industries, Incorporated.
All rights reserved.
JBL is a trademark of Harman International Industries,
Incorporated, registered in the United States and/or
other countries.
Part No.
406-000-05677-E
PRO SOUND
COMES HOME
™
Harman Consumer Group, Inc.
250 Crossways Park Drive, W
oodbury
, NY
11797
8500 Balboa Boulevard, Northridge, CA 91329
516.255.4JBL
(4525) (USA
only)
www.jbl.com
SCS500.5
32
INCLUDED
THANK YOU FOR CHOOSING JBL
For more than 60 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to
the recordings you play in
your home, car or office.
We’re confident that the JBL
system you have chosen will
provide every note of enjoy-
ment that you expected –
and that when you think
about purchasing additional
audio equipment for your
home, car or office, you will
once again choose JBL.
Please take a moment to
register your product on our
Web site at www.jbl.com.
It enables us to keep you
posted on our latest advance-
ments, and helps us to better
understand our customers
and build products that
meet their needs and
expectations.
JBL, Incorporated
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wide blade
or the third prong is provided for your safety.
If the provided plug does not fit into your out-
let, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11. Only use attachments/accessories speci-
fied by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the manufac-
turer or sold with the apparatus. When a cart
is used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus dur-
ing lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way
,
such as power supply cord or plug is dam-
aged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Do not expose this apparatus to dripping
or splashing and ensure that no objects filled
with liquids, such as vases, are placed on
the apparatus.
16. To completely disconnect this apparatus
from the AC Mains, disconnect the power
supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord
shall remain readily operable.
18. Do not expose batteries to excessive heat
such as sunshine, fire or the like.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING: To reduce the risk of fire or elec-
tric shock, do not expose this apparatus to
rain or moisture.

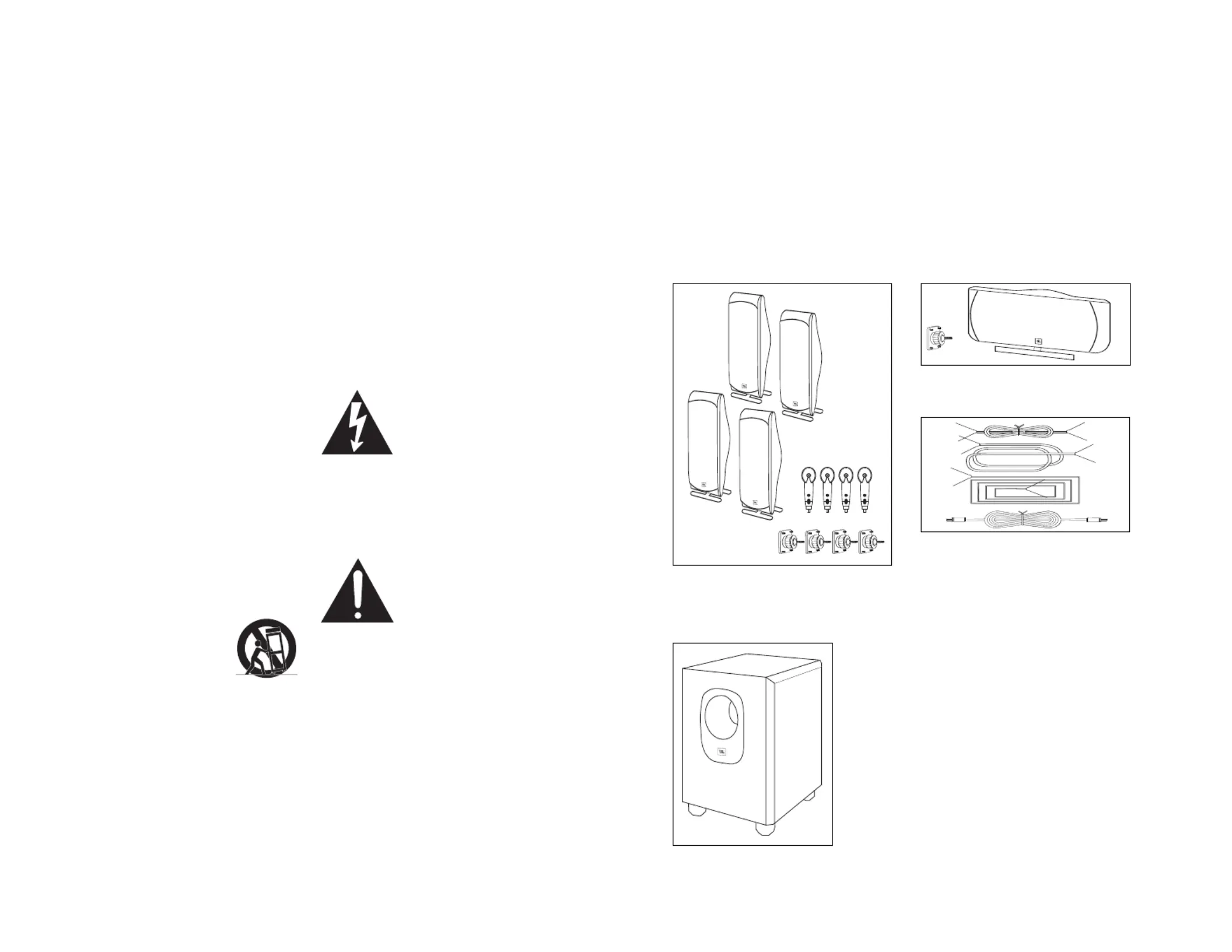

Four satellites for left, right and
surrounds. Wall-mount brackets.
Shelf stands. Floor stand adapters.
One center channel speaker with shelf
stand and wall-mount bracket.
Powered subwoofer.
Three 20' (6m) speaker cables for connection
to front, left, center and right speakers.
Two 40' (12m) speaker cables for connection
from receiver to rear satellites.
One 15' (4.6m) RCA interconnect cable for
connection from receiver to subwoofer’s
LFE input.
In addition, there are two hardware bags
included. Hardware Bag A contains screws
for the shelf stands. Hardware Bag B con-
tains screws for the floor stand adapters and
parts for the wall-mount brackets, including
the metal tightening bar.
