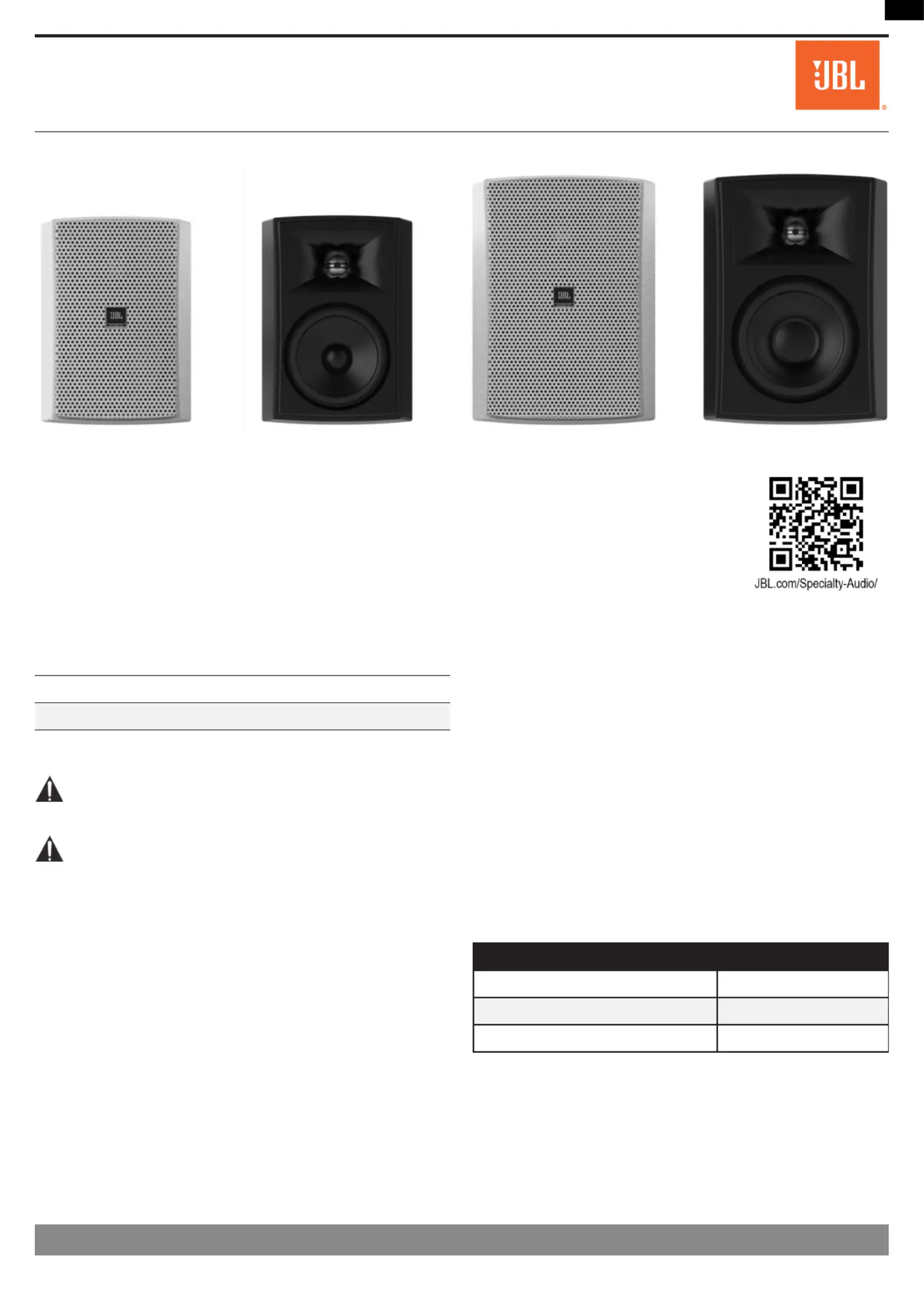

Side 1/8
Overview
This Quick Start Guide contains basic information on the Stage XD Indoor/Outdoor loudspeakers, important pre-
installation steps, and important safety warnings about installation of this product. Read through this document in its
entirety before proceeding with installation.
After reading this document visit the product page on the JBL Specialty Audio website for complete installation
instructions for these products.
Supported Products
This document supports the following products.
Stage XD-5 2-way Dual 5.25" In-Wall
Stage XD-6 2-way 6.5" In-Wall
Box Contents
2x Stage XD-5 or XD-6 Loudspeakers
2x Zero Bezel Grilles
4x Rubber Feet
1x Grille Removal Tool
2x Wall Installation Kit (Mounting Bracket)
1x Quick Start Guide (This Document)
IMPORTANT! HARMAN International assumes no responsibility for improper installation of hardware, any personal injuries, or product
damages resulting from improper installation or a fallen loudspeaker. Read through this document and other documents associated with
this product in their entirety and heed all warning before proceeding with the installation of these product(s).
IMPORTANT! Installation Precautions
Due to the nature of this product, there are several precautions to follow before installation can begin.
1. Ensure that all wire run inside of walls and ceiling meets or
exceeds local fire codes for hidden wiring.
2. Determine wire lengths and select the proper gauge speaker wire
to use based on the table under .Wire Gauge by Distance
3. Do NOT connect the speakers to an amplifier rated above the
recommended amplifier power. Overdriving the speaker can
cause an overheating condition increasing the risk of injury.
4. Do NOT connect the amplifier end of the wire until all speakers
are wired and installed.
Wire Gauge by Distance
Distance/Length Wire Gauge
< 50ft (15m) 16-gauge
50ft (15m) ~ 100ft (30m) 12-gauge
>100ft (30m) 10-gauge
©2022 Harman International Industries | Specifications, Appearance, and Features subject to change without notice. Pg 1
Stage XD Indoor/Outdoor Speakers
Quick Start Guide
Rev 1.3 20221017 | Part No. 950-0608-001
EN
European Representative: Harman International Industries, Incorporated.
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom.
© 2022 Harman International Industries, Incorporated. All Rights Reserved.
JBL is a trademark of Harman International Industries, Incorporated registered in the United States and other countries.
Features, Specifications, and Appearance subject to change without notice.
Stage XD Indoor/Outdoor Speakers Quick Start Guide | Rev 1.3 20221017 | Part No. 950-0608-001
Wall Installation
The Stage XD speaker can be installed on a wall using the included Wall Installation Hardware. Follow the instructions carefully to ensure
proper installation.
1. Install lock nut onto threaded knuckle away from the end.[A] [C]
2. Slide lock ring over threaded knuckle .[B] [C]
3. Secure lock nut onto speaker.[A]
4. Locate mounting position on wall leaving enough space for speaker to clear ceiling and/or other obstacles. Secure knuckle joint to [D]
wall with the included security cable on one of the bottom screws.[E]
5. Install the knuckle into the joint and secure lock ring .[C] [D] [B]
Adjusting Angle and/or Orientation
Once the speakers are installed on the wall they can be adjusted for angle and orientation. Simply loosen the lock ring slightly and move the
speaker within the mount into the desired orientation. Note that for horizontal orientation the logo can be rotated.
Tabletop Installation
While the common use is to install Stage XD speakers onto a wall,
they can also be used on a table/desktop. To use on a flat surface,
install the included rubber feet onto the bottom of each speaker at
the rear outer corners.
Feet Location
Connecting Speakers
1. Ensure that the appropriate wire gauge has been run based the
Wire Gauge by Distance chart.
2. Ensure that wires are marked for polarity to ensure speakers are
not connected out of phase.
3. Connect positive wires to the terminal and negative feed wire (+)
to the terminals. (-)
4. Continue connecting until all speakers are connected.
Specifications
Stage XD-5 Stage XD-6
High Frequency
Transducer
1" (25mm) Aluminum
dome with High-
Definition Imaging
(HDI™) waveguide
1" (25mm)
Aluminum dome
with High-Definition
Imaging (HDI™)
waveguide
Low Frequency
Transducer
5.25" (130mm)
Polycellulose cone
woofer
6.5" (165mm)
Polycellulose cone
woofer
Nominal Impedance 6ohms 6ohms
Sensitivity
(2.83V@1m) 86dB 88dB
Recommended
Amplifier Power 20-100W RMS 20-100W RMS
Frequency Response
(-6dB On-Axis) 75Hz-25kHz 55Hz-25kHz
Crossover Frequency 2500K 2500K
Dimensions HxWxD
H: 6.4 (162mm) x
W: 7.2 (182mm) x
D: 6.4 (162mm)
H: 8.7 (222mm) x
W: 11.8 (299mm) x
D: 7.6 (194mm)
Wall Mount Length H: 2.8 (71mm) H: 2.8 (71mm)
Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States.
