Side 1/4

INCLUDED ITEMS

Your n JBew L

p red o inc o P owe subw ofer orp rates a Poly las™

co e ce -i am lin tr nsdua r i and bu lt n gh- o a e hi perf rm nc p ﬁer at th

d r r l, a at fre enelive th poe we fu dyna c mi nd uracc e low- qu cy

pe or n es srf ma ce that mak your ﬁlm acksoundtr a mnd usic come

alive. -l oveAnd wi lith ne ev nputs, ust ssel iand LFE adj ab role c r

a as r s nd r on ff s s s p tnd ph e cont ol a auto ti tuma c n /o , it i al o im le o

co ecnn t and .set up

We’re i o pro e e conﬁdent that th s JBL subwo fer will vid ev ry note

of o e e a w kenj ym nt that you exp ct – and th t hen you thin about

pu chasin ti l udi equ pm r ur homr g i add ona a o i e ont f yo e, ca r or

of , you l onc aga o J r .ﬁce wi l e in cho se BL p oducts

This quic u need to k-start guide contains all the informat n io yo

se up, conne and djust ur new sub oft ct a yo wo er. For mo e r

in-d pt inf rm on ur eb sit .jb .ce h o ati , o o g to w e: www l om.

Powered Subwoofer

THANK YOU FOR CHOOSING THIS JBL

PRODUCT

SUB 250P/260P

QUICK-START GUIDE

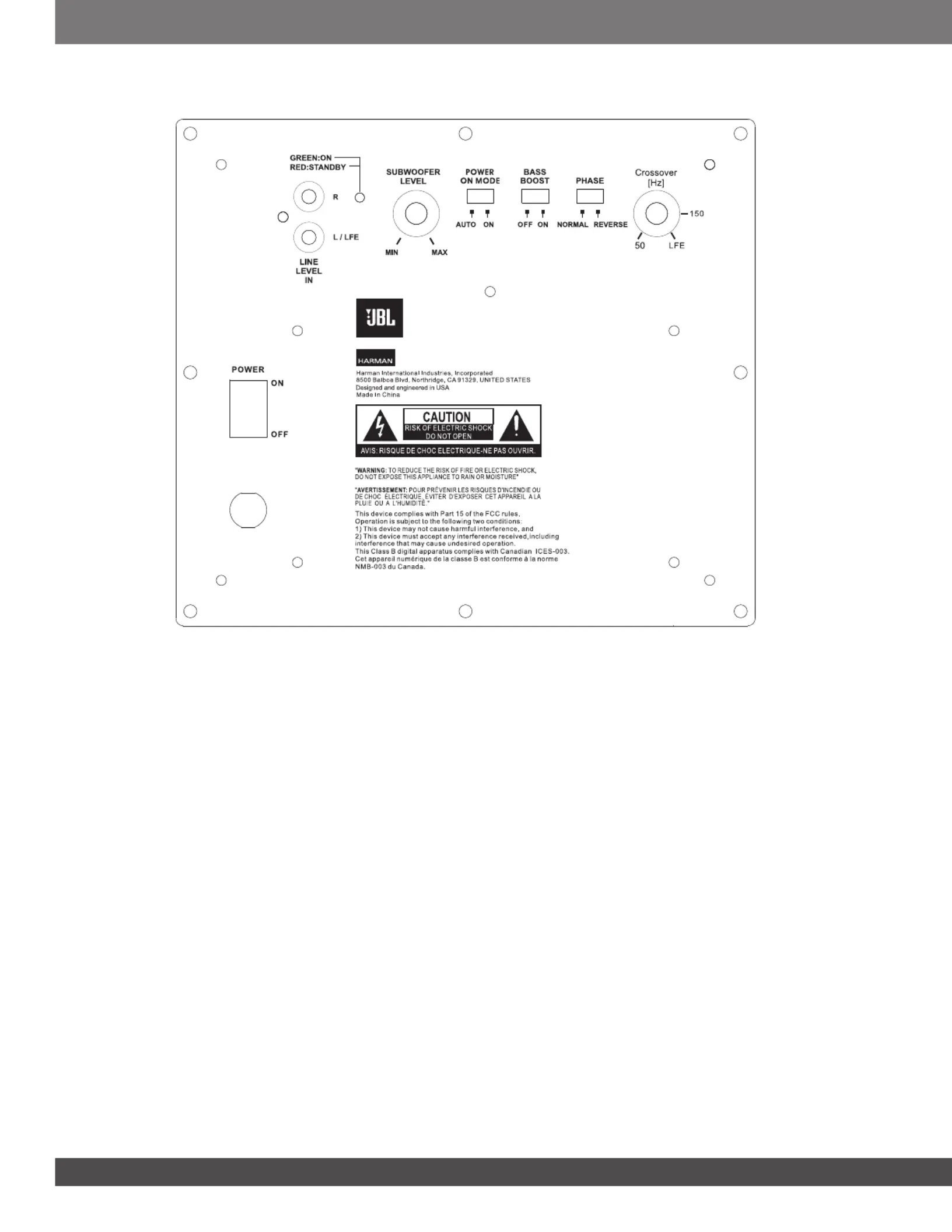

SUBWOOFER REAR-PANEL CONTROLS AND CONNECTIONS

1) Crossover Control: This control determines the highest frequency at

which the subwoofer reproduces sounds. The higher you set the Crossover

control, the higher in frequency the subwoofer will operate and the more its

bass will “overlap” that of the speakers. This adjustment helps achieve a

smooth transition of bass frequencies between the subwoofer and the

speakers for a variety of different rooms and subwoofer locations.

2) Phase Switch: This switch determines whether the subwoofer

transducer's piston-like action moves in and out in phase with the main

speakers. If the subwoofer were to play out of phase with the main

speakers, the sound waves from the main speakers could partially cancel

out the sound waves from the subwoofer, reducing bass performance and

sonic impact. This phenomenon depends in part on the placement of all the

speakers relative to the listening position and to each other in the room.

3) Bass Boost: When switched to 'On,' this boosts bass level for added

low-end power.

4) Power On Mode: When switched to 'Auto' position, the subwoofer will

then be in Standby mode. It will automatically turn 'On' when an audio signal

is detected at its inputs, and will return to the Standby mode when no audio

signal is detected by its inputs after approximately 10 minutes. Otherwise,

subwoofer will always remain powered until Power Switch is turned 'Off.'

5) Subwoofer Level: Use this control to adjust the subwoofer’s volume. Turn

the knob clockwise to increase the volume; turn the knob counterclock-wise

to decrease the volume.

6) On/Standby LED: When the Power switch is in the ‘On’ position, this

LED indicates whether the subwoofer is in the On or Standby state.

• When the LED glows the subwoofer is turned on.green,

• When the LED glows the subwoofer is in the Standby mode.red,

7) Line In/LFE Input Connectors:

• When you’re connecting the subwoofer to the dedicated subwoofer

output of a receiver/processor that has its own low-pass crossover

network, use the LFE Input connector.

• When you're connecting the subwoofer to the preamp or subwoofer

outputs of a receiver/processor that does not have its own low-pass

crossover network, use both Line In connectors and set the Input

Mode switch in the ‘Normal’ position. If your receiver/processor only

has one subwoofer output you can use either Line In connector.

8) Power Switch: Set this switch in the ‘On’ position to turn the

subwoofer on.

If you will be away from home, or will not be using the subwoofer for an

extended period, set this switch in the ‘Off’ position to conserve energy.

9) Power Cord: After you have made and veriﬁed the subwoofer’s input

connections, plug the power cord into an active, unswitched electrical outlet

for proper operation of the subwoofer.

DO NOT plug the power cord into the accessory outlets found on some

audio components.

POWER CORD

STUDIO

SUB 250P

Produkt Specifikationer

Mærke:	JBL
Kategori:	Højttalere
Model:	Studio SUB 260P
Produktfarve:	Sort
Anbefalet brug:	Universel
Line-in:	Ja
Subwoofer RMS-effekt:	300 W
Subwoofer driver diameter (britisk):	12 "
Subwoofer driver diameter:	300 mm
Subwoofer type:	Aktiv subwoofer
Subwoofer frekvensomrpde:	29 - 150 Hz
Subwoofer spidseffekt:	600 W
Subwoofer dybde:	435 mm
Subwoofer bredde:	381 mm
Subwoofer vægt:	17200 g
Subwoofer højde:	445 mm
